Spicer - SPL55-4X

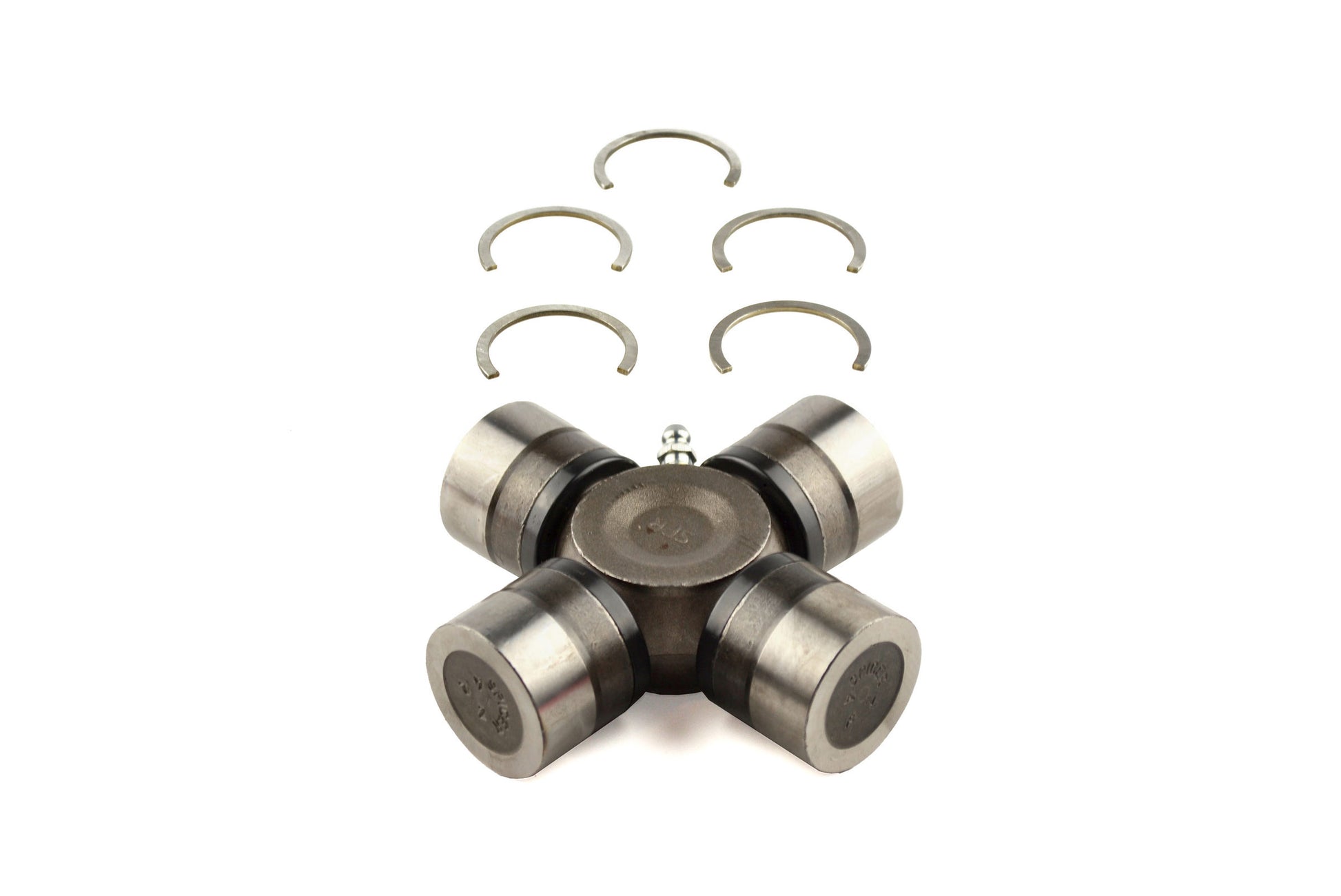

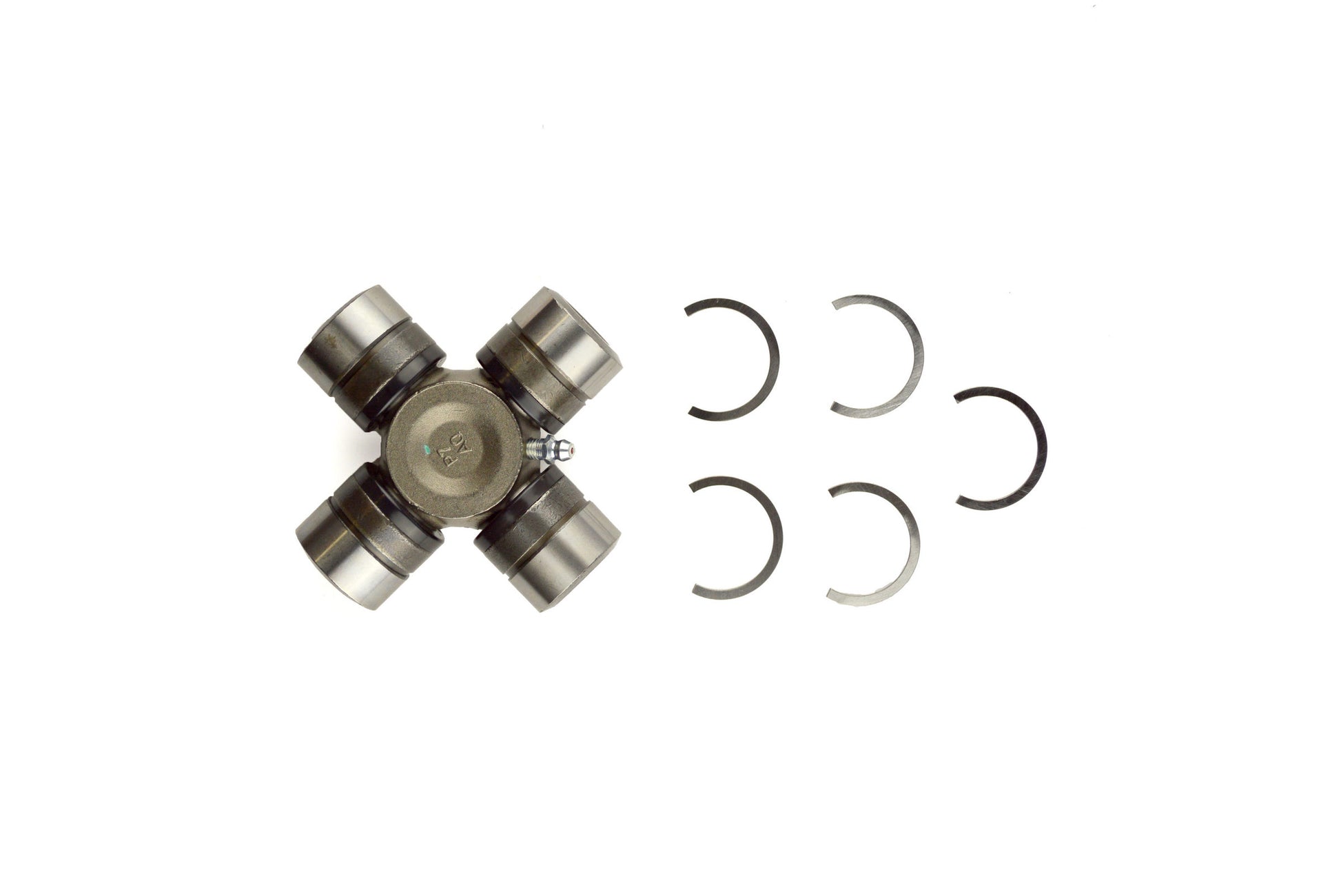

Universal Joint - SPL55 to 1480WJ Series - 1.375 in Bearing Cap Diameter - Greasable - Steel - Natural - Each
Axle Shaft Universal Joint; Greaseable
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.375
OEM Mfg: Spicer
OEM Series: SPL55/1480WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Y
Snap Ring Type: Internal
Grease Zerk Included: Y
Pre Greased: N
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: Side of Cross
Grease Type: N.L.G.I. Grade 2
Model Number: SPICER 1480 WJ (SPL55)
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: Y
Bearing Cap Diameter A (mm): 34.925
Bearing Cap Diameter B (mm): 34.925
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: N
Length A (In): 3
Length A (mm): 76.2
Length B (In): 3
Length B (mm): 76.2
Mounting Hardware Included: N
