Spicer SPL55-3X - Axle Shaft Universal Joint; Non-Greaseable; SPL55/1480WJ Series
Spicer SPL55-3X - Axle Shaft Universal Joint; Non-Greaseable; SPL55/1480WJ Series
SKU: FSGR-SPL55-3X
Regular price
$62.99 USD
Regular price
$69.29 USD
Sale price
$62.99 USD
Shipping calculated at checkout.
5 in stock
Quantity
Couldn't load pickup availability
Spicer SPL55-3X - Axle Shaft Universal Joint; Non-Greaseable; SPL55/1480WJ Series
Universal Joint - SPL55 to 1480WJ Series - 1.375 in Bearing Cap Diameter - Steel - Natural - Each
Axle Shaft Universal Joint; Non-Greaseable; SPL55/1480WJ Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Kit includes two U-bolts and four nuts.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
Material: Steel

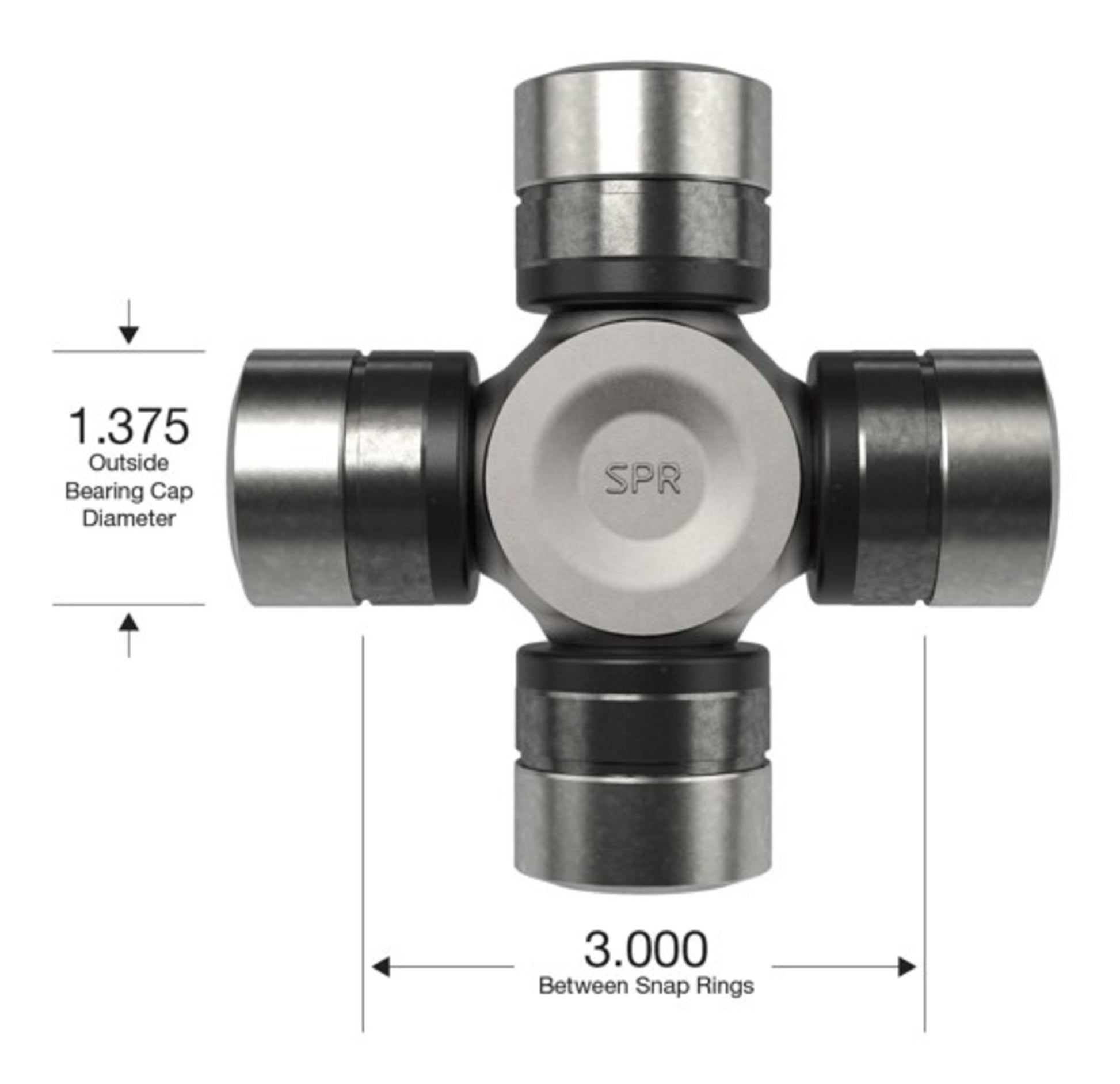

Bearing Cap Diameter (1): 1.375
OEM Mfg: Spicer
OEM Series: SPL55/1480WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Not Required
Seal Material: Rubber
Greaseable: No
Bearing Cap Diameter A (mm): 34.925
Bearing Cap Diameter B (mm): 34.925
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 3.000
Seal Color/Finish: Black
Model Number: Spicer 1480 WJ (SPL55)
Grease Type: N.L.G.I. Grade 2
Coating Type: None
Bearing Cap Finish: Ground
Pre Greased: Yes
Length A (mm): 76.200
Length B (In): 3.000
Length B (mm): 76.200
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 3.000
Distance Btw Snap Ring Grooves (ISR) (2): 3.000
