Spicer D-12378-00 - C2020 Series DANA Aftermarket Drive Shaft - Sprinter
C2020 Series DANA Aftermarket Drive Shaft - Sprinter
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

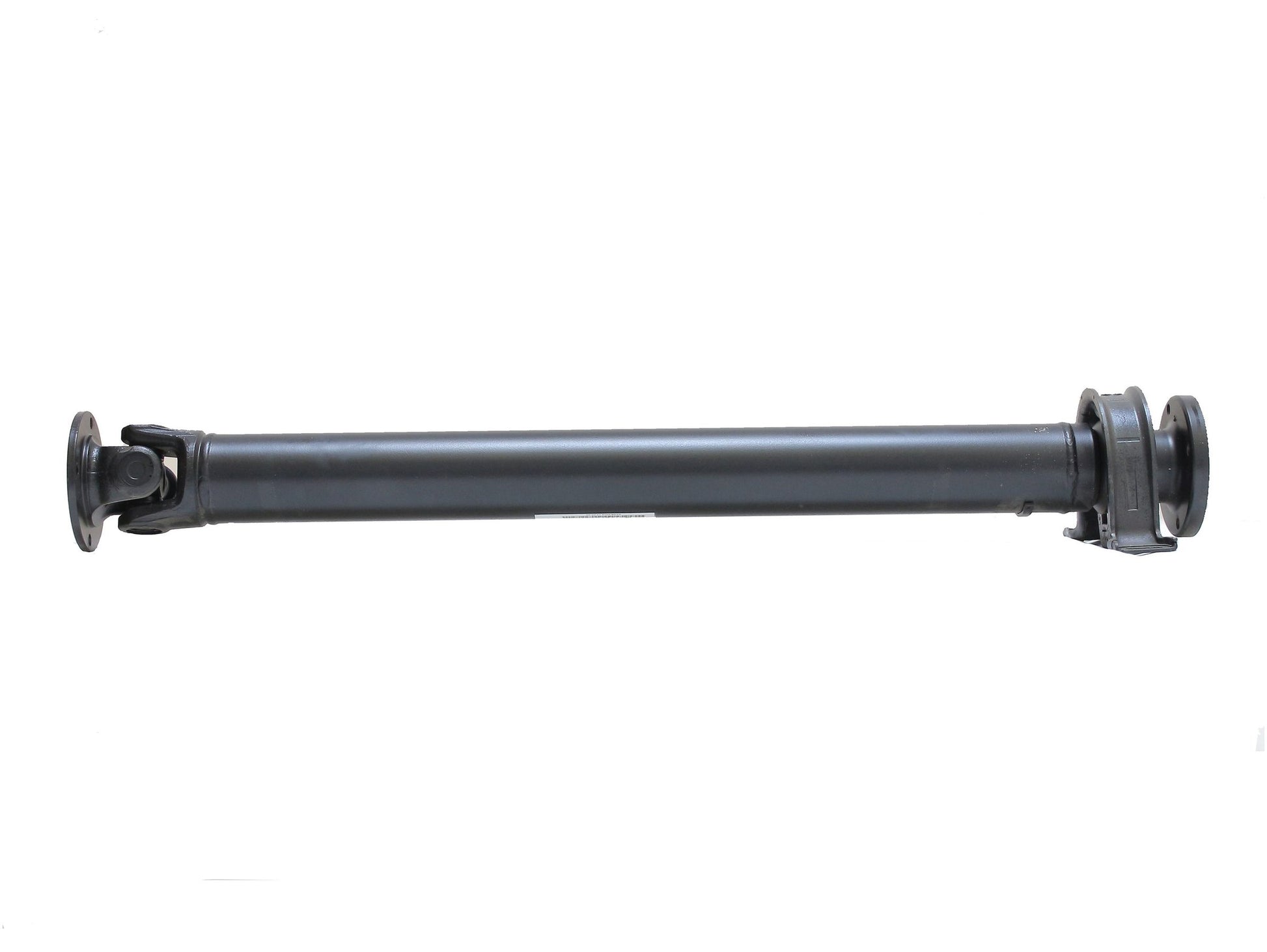

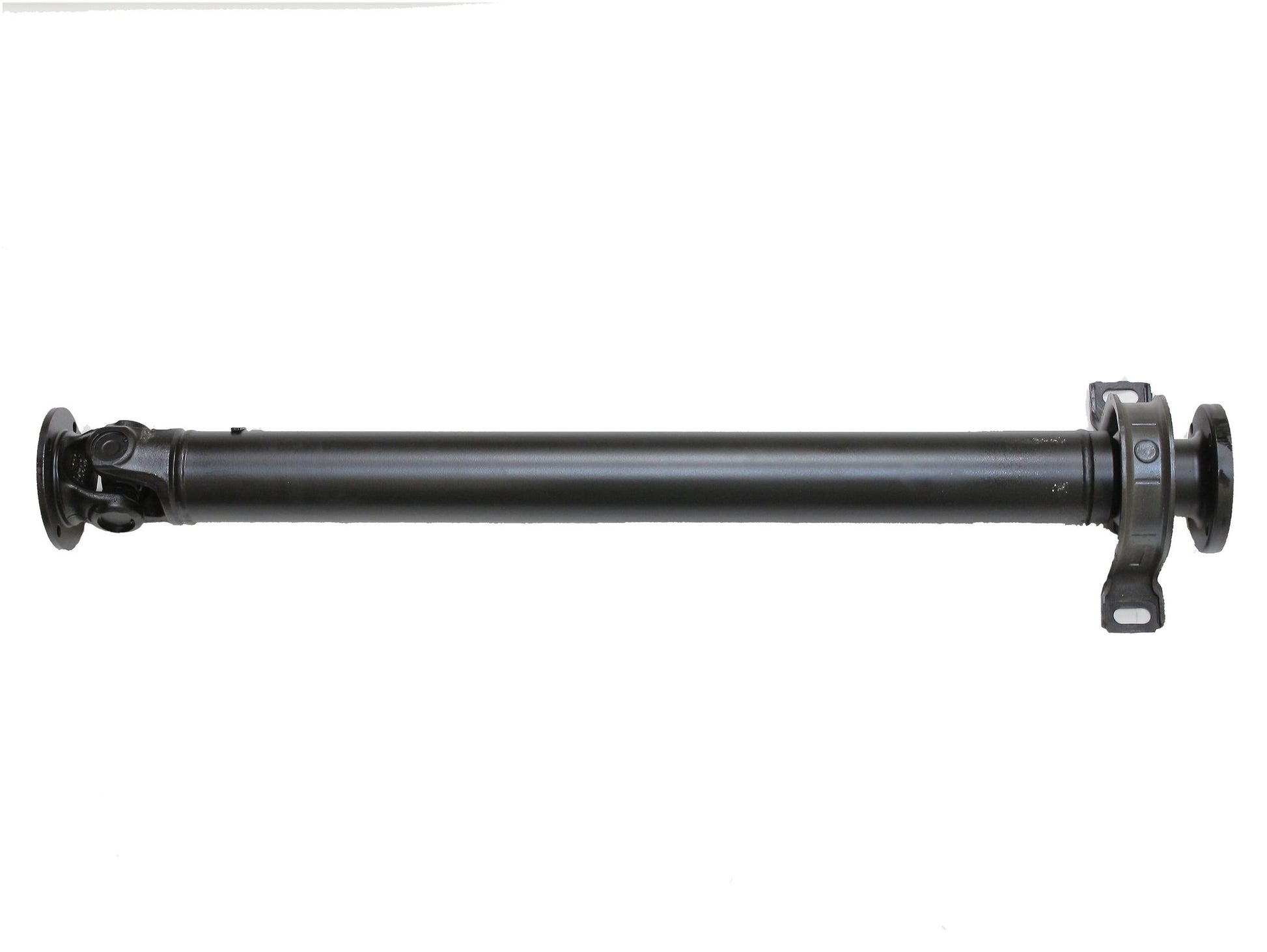

- 1 piece front section of 3 piece rear driveshaft
- Dana manufactured Spicer driveshafts for Sprinter vans are designed to be drop-in replacements, eliminating assembly time and meeting global aftermarket driveshaft requirements
- Dana proprietary swage tube design - provides ultra-high strength at critical speeds, clearances directly comparable with OE standards, and a perfect fit to vehicle
- Spicer compact 2020 universal joints are sealed for life and has snap ring construction for ease of service unlike the difficult to service staked universal joints used by the OE
Series: C-2020
Tube Length (In): 20.8858
Tube Length (Mm): 530.5000
Tube Size (In): 3.00 x .094
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Notes: Flange Both Ends, One Piece Shaft
FF(Flange Face) To FF (MM)-COLL: 752.0000
Phase (Yes/No): No
CL Yoke To CL Bearing (MM): 685.5000
CL Yoke To CL Bearing (IN): 26.9882
End 1 Type SJ Side: SPR0160
CV Joints Included: No
End 2 TJ Side: SPR0165
CL Yoke To Flange Face(IN)-COLL: 27.4803
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 29.6063
CL Yoke To Flange Face (MM)-COLL: 698.0000
