Spicer D-12248-00 - Drive Shaft - Sprinter
Spicer D-12248-00 - Drive Shaft - Sprinter
SKU: FSGR-D-12248-00
Regular price
$1,747.99 USD
Regular price
$2,351.36 USD
Sale price
$1,747.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

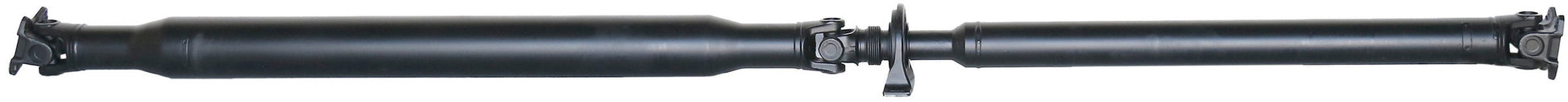

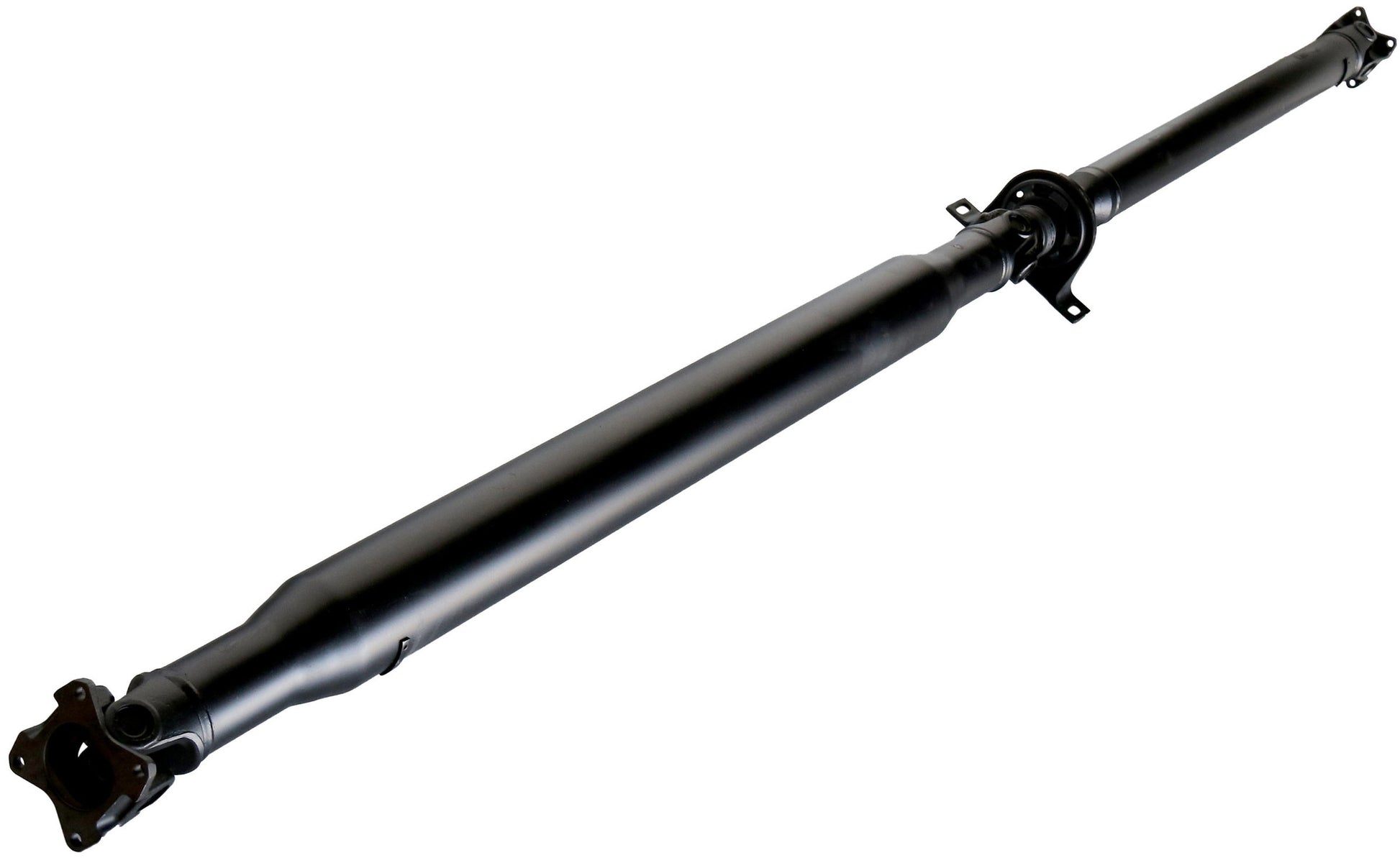

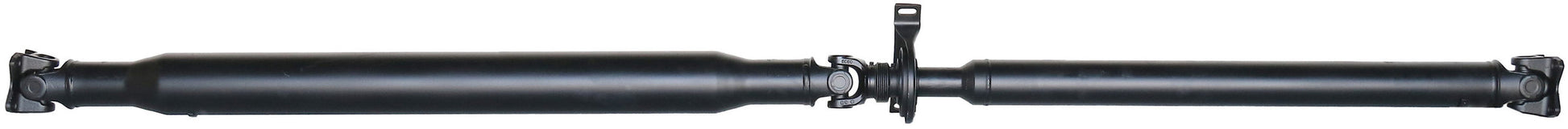

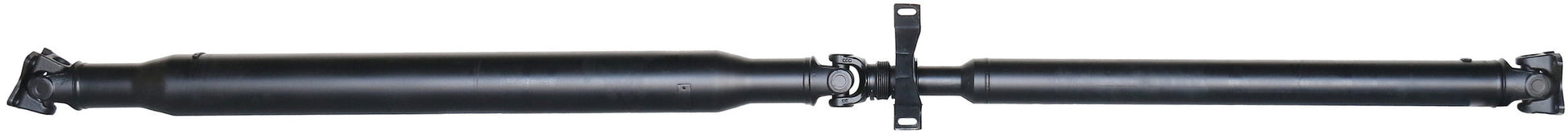

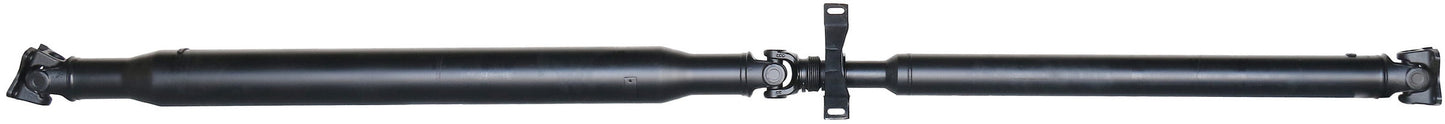

Spicer D-12248-00 - Drive Shaft - Sprinter
Drive Shaft - Sprinter
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- 2 Piece rear section of 3 piece rear driveshaft
- Dana manufactured Spicer driveshafts for Sprinter vans are designed to be drop-in replacements, eliminating assembly time and meeting global aftermarket driveshaft requirements
- Dana proprietary swage tube design - provides ultra-high strength at critical speeds, clearances directly comparable with OE standards, and a perfect fit to vehicle
- Spicer compact 2020 universal joints are sealed for life and has snap ring construction for ease of service unlike the difficult to service staked universal joints used by the OE
Series: C-2020
Tube Length (In): 100.5512
Tube Length (Mm): 2554.0000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 2.6378
Max Slip (MM): 67.0000
Notes: Flange Both Ends, Two Piece Shaft
CL Yoke To CL Yoke (IN) - COLL: 97.2441
CL Yoke To CL Yoke (MM) - COLL: 2470.0000
Mid Slip (MM): 33.5000
Mid Slip (IN): 1.3189
FF(Flange Face) To FF (MM)-COLL: 2554.0000
Phase (Yes/No): No
CL Yoke To CL Bearing (MM): 1064.0000
FF(Flange Face) To FF (IN)-COLL: 100.5512
CL Yoke To Flange Face (MM)-COLL: 2512.0000
CL Yoke To Flange Face (MM)-INST: 2545.500
FF(Flange Face) To FF (IN)-INST: 101.8701
FF(Flange Face) To FF (MM)-INST: 2587.5000
1/2 Max Slip (IN): 1.3189
1/2 Max Slip (MM): 33.5
Slip Assembly: No
CL Yoke To Flange Face(IN)-COLL: 98.8976
End 2 TJ Side: SPR0171
CV Joints Included: No
End 1 Type SJ Side: SPR0171
CL Yoke To CL Bearing (IN): 41.8898
