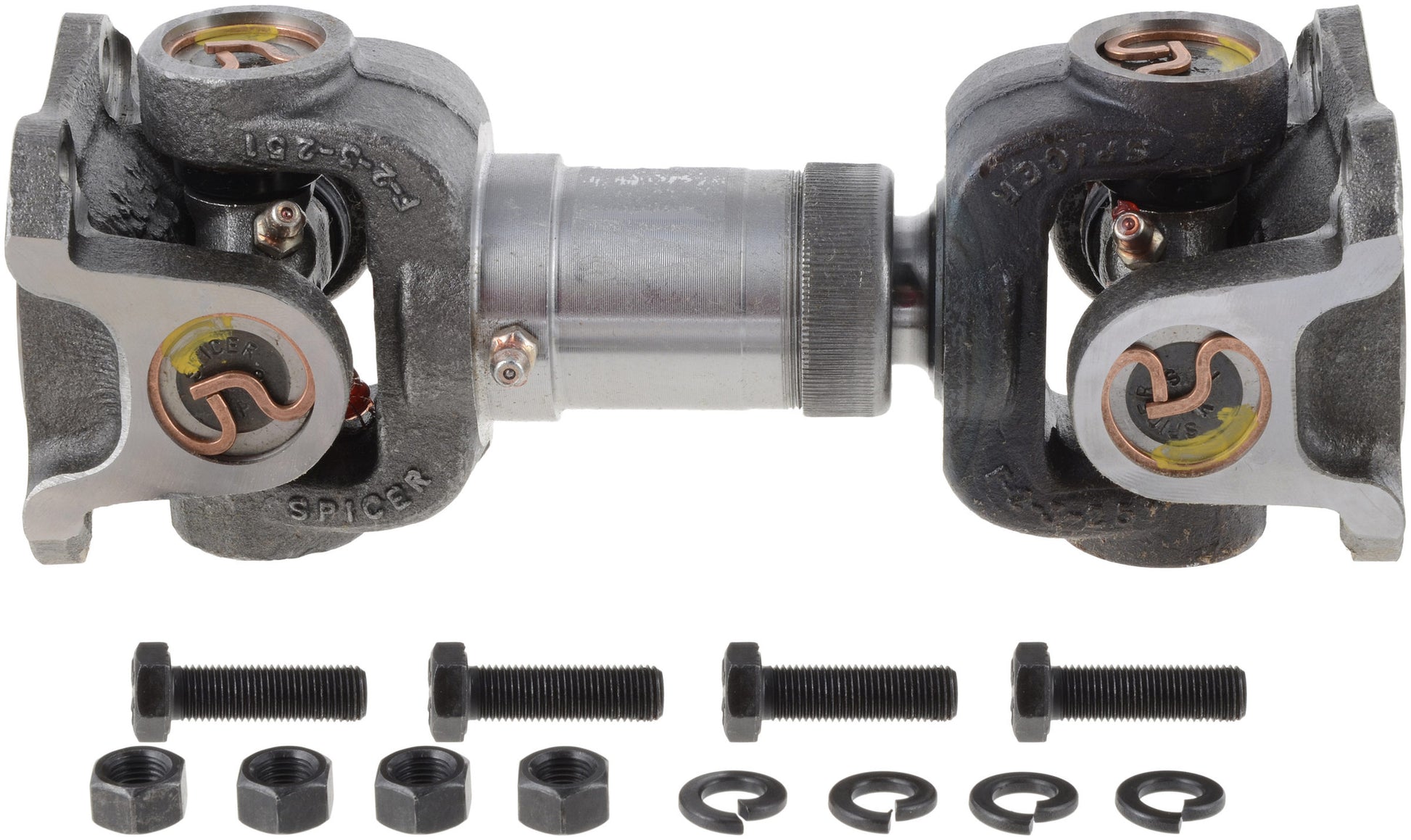

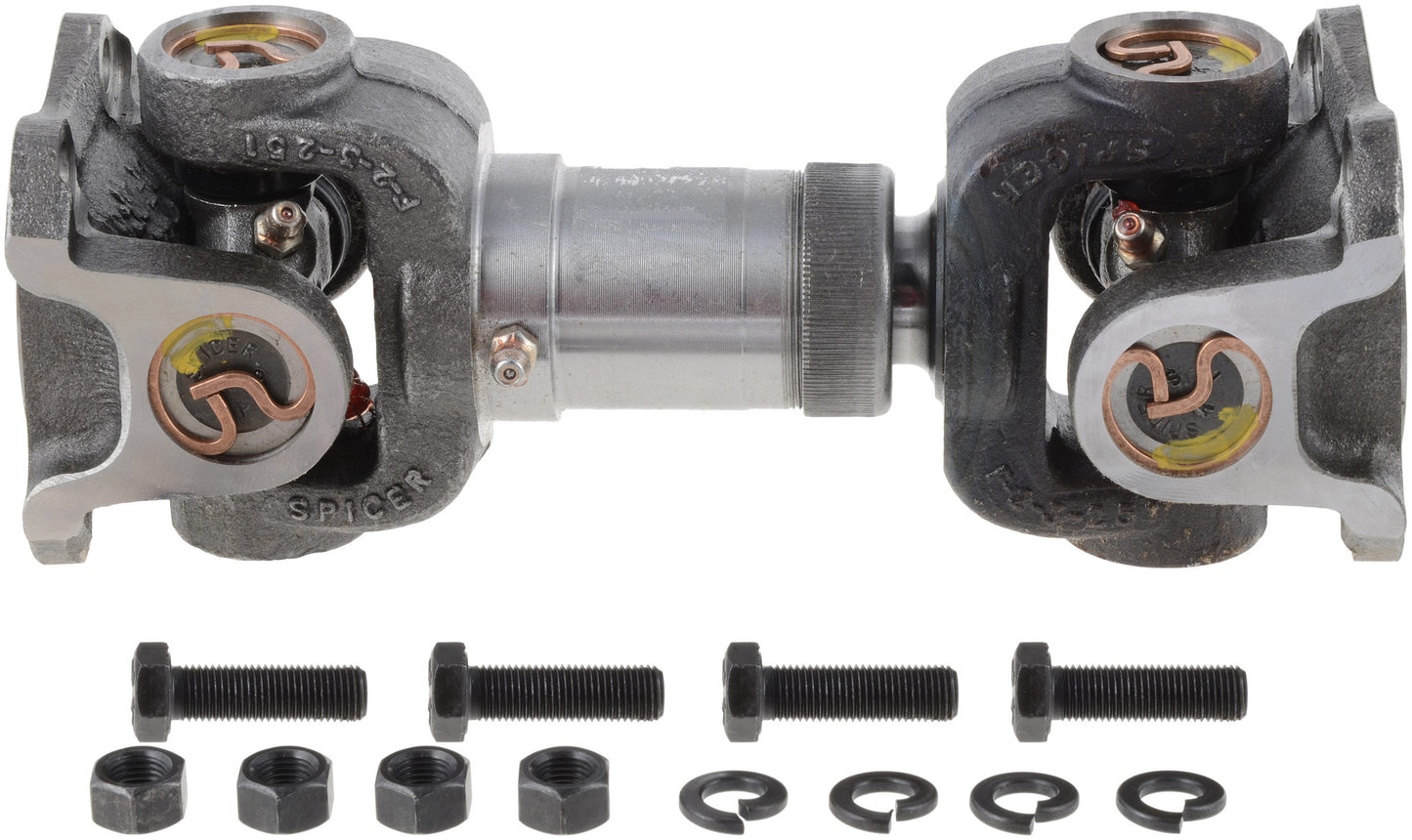

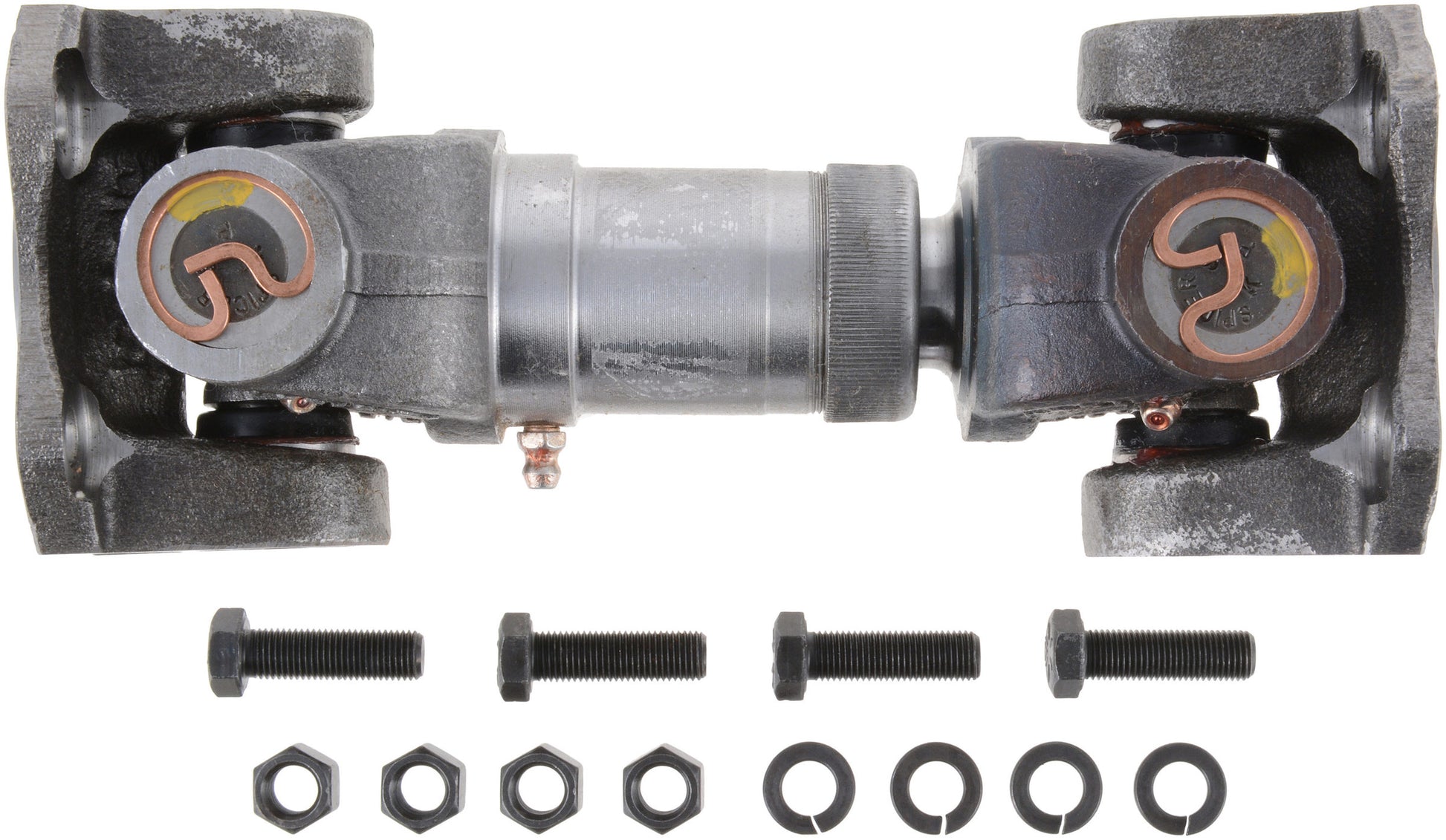

Spicer 9235-SF - DRIVE SHAFT
Spicer 9235-SF - DRIVE SHAFT
SKU: FSGR-9235-SF
Regular price
$494.99 USD
Regular price
$665.74 USD
Sale price
$494.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 9235-SF - DRIVE SHAFT
DRIVE SHAFT
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1280/1310
Tube Length (In): 25.0394
Tube Length (Mm): 225.6000
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 1.2520
Max Slip (MM): 31.8000
Notes: Flange Both Ends/short couple
CL Yoke To CL Yoke (IN) - COLL: 6.1181
CL Yoke To CL Yoke (MM) - COLL: 155.4000
Mid Slip (MM): 15.9000
Mid Slip (IN): 0.6260
FF(Flange Face) To FF (MM)-COLL: 225.6000
Phase (Yes/No): No
End 1 Type SJ Side: 2-2-329
CV Joints Included: No
End 2 TJ Side: 2-2-329
CL Yoke To Flange Face(IN)-COLL: 7.5000
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 8.8819
CL Yoke To Flange Face (MM)-COLL: 190.5000
CL Yoke To Flange Face (MM)-INST: 206.400
FF(Flange Face) To FF (IN)-INST: 9.5079
FF(Flange Face) To FF (MM)-INST: 241.5000
1/2 Max Slip (IN): 0.6260
1/2 Max Slip (MM): 15.9
