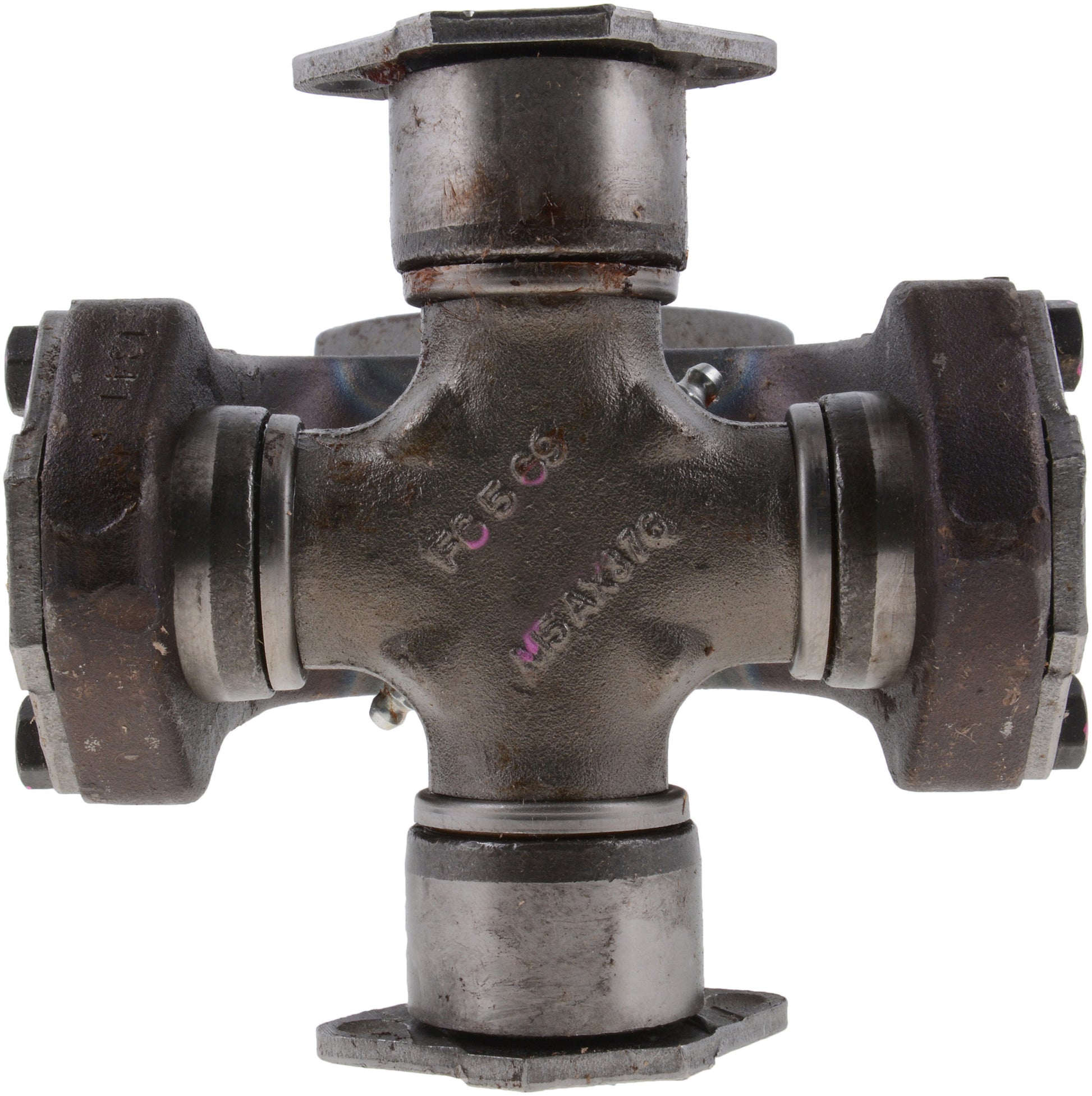

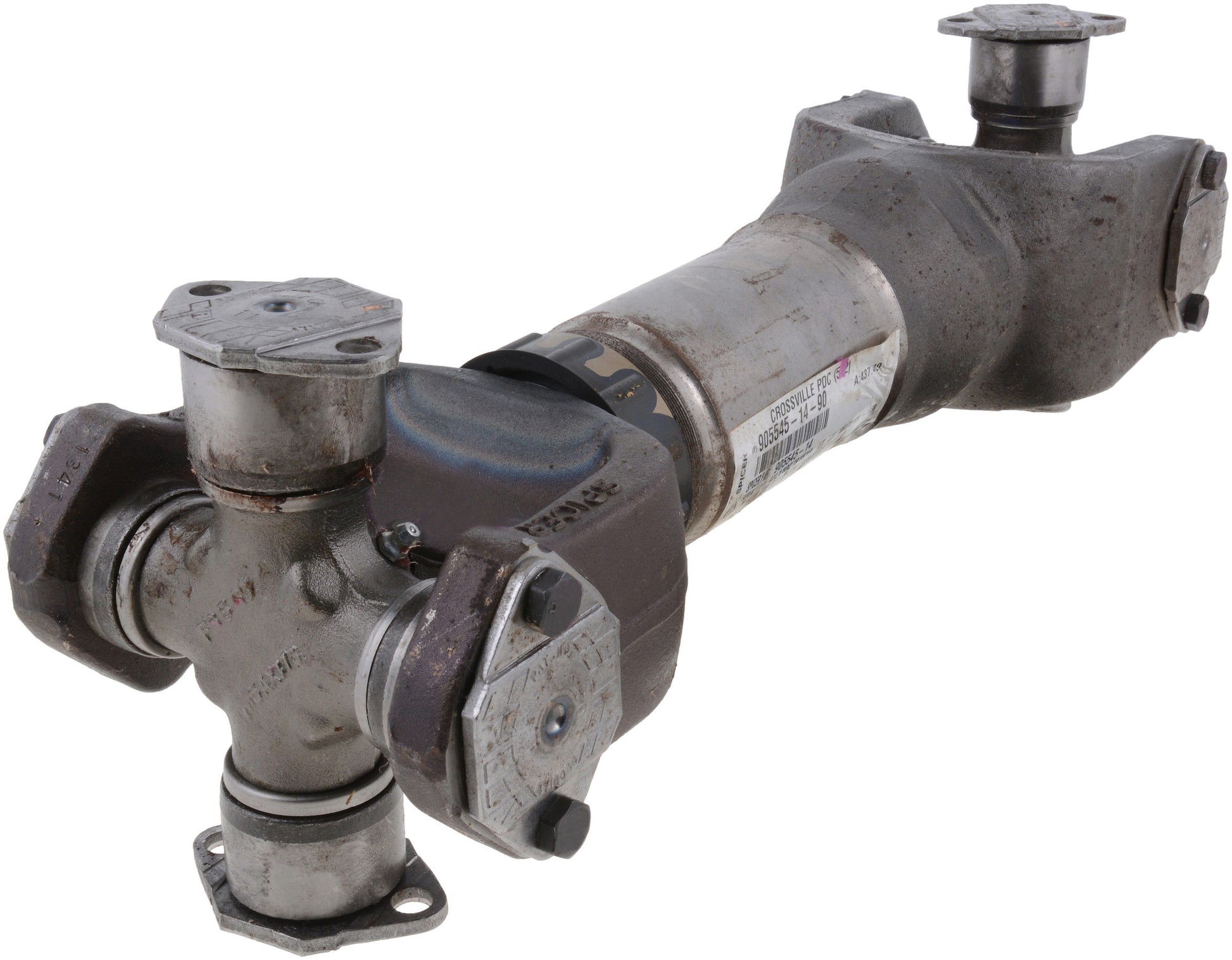

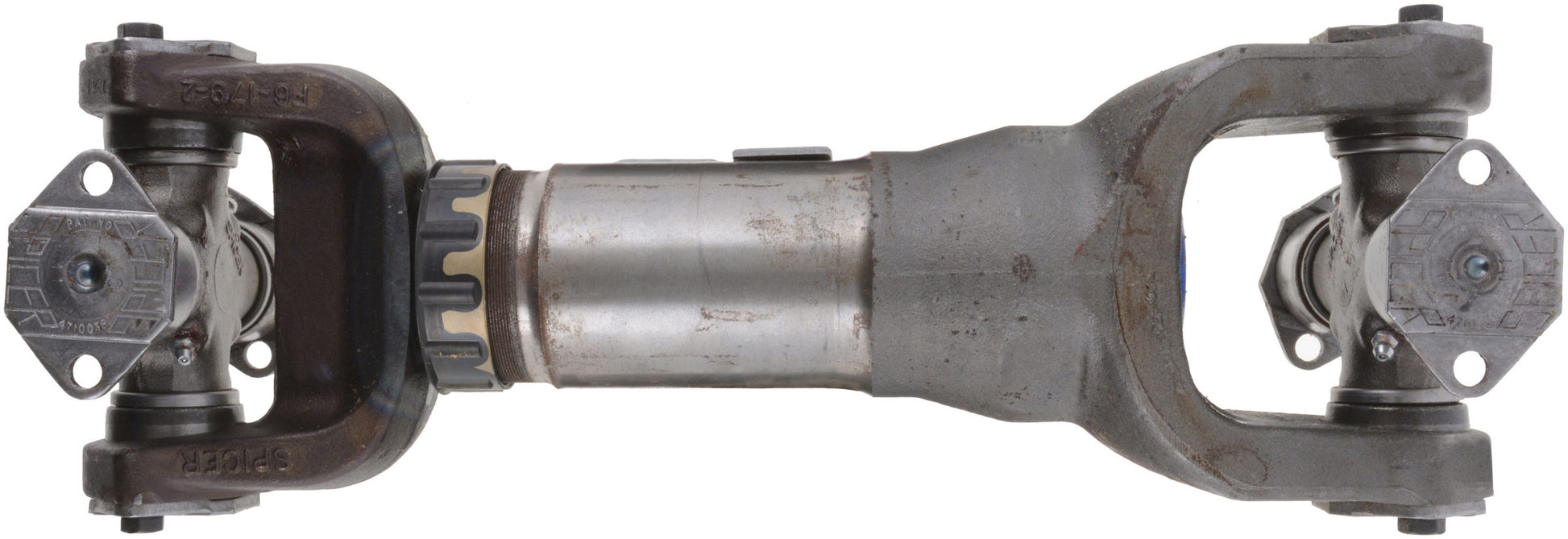

Spicer 906052-1 - Short Couple Drive Shaft
Spicer 906052-1 - Short Couple Drive Shaft
SKU: FSGR-906052-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Spicer 906052-1 - Short Couple Drive Shaft
Short Couple Drive Shaft
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1810
Phased - Degrees: 0.0000
Unwelded/Welded Assembly: Unwelded
Shaft Material: Steel
Max Slip (IN): 1.1250
Max Slip (MM): 28.5750
Notes: Short Couple
CL Yoke To CL Yoke (IN) - COLL: 8.2180
CL Yoke To CL Yoke (MM) - COLL: 208.7372
Mid Slip (MM): 9.5250
Mid Slip (IN): 0.3750
FF(Flange Face) To FF (MM)-COLL: 340.5124
End 1 Type SJ Side: 6.5-2-359
CV Joints Included: No
End 2 TJ Side: 6.5-2-359
Slip Assembly: No
FF(Flange Face) To FF (IN)-COLL: 13.4060
CL Yoke To Flange Face (MM)-COLL: 274.6248
Phased (Yes/No): No
CL Yoke To Flange Face (MM)-INST: 284.1498
FF(Flange Face) To FF (IN)-INST: 13.7810
FF(Flange Face) To FF (MM)-INST: 350.0374
1/2 Max Slip (IN): 0.3750
1/2 Max Slip (MM): 9.5250
CL Yoke To Flange Fac e(IN)-COLL: 10.8120
