Spicer 902262-1 - Short Couple Drive Shaft
Spicer 902262-1 - Short Couple Drive Shaft
SKU: FSGR-902262-1
Regular price
$1,484.99 USD
Regular price
$1,997.58 USD
Sale price
$1,484.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

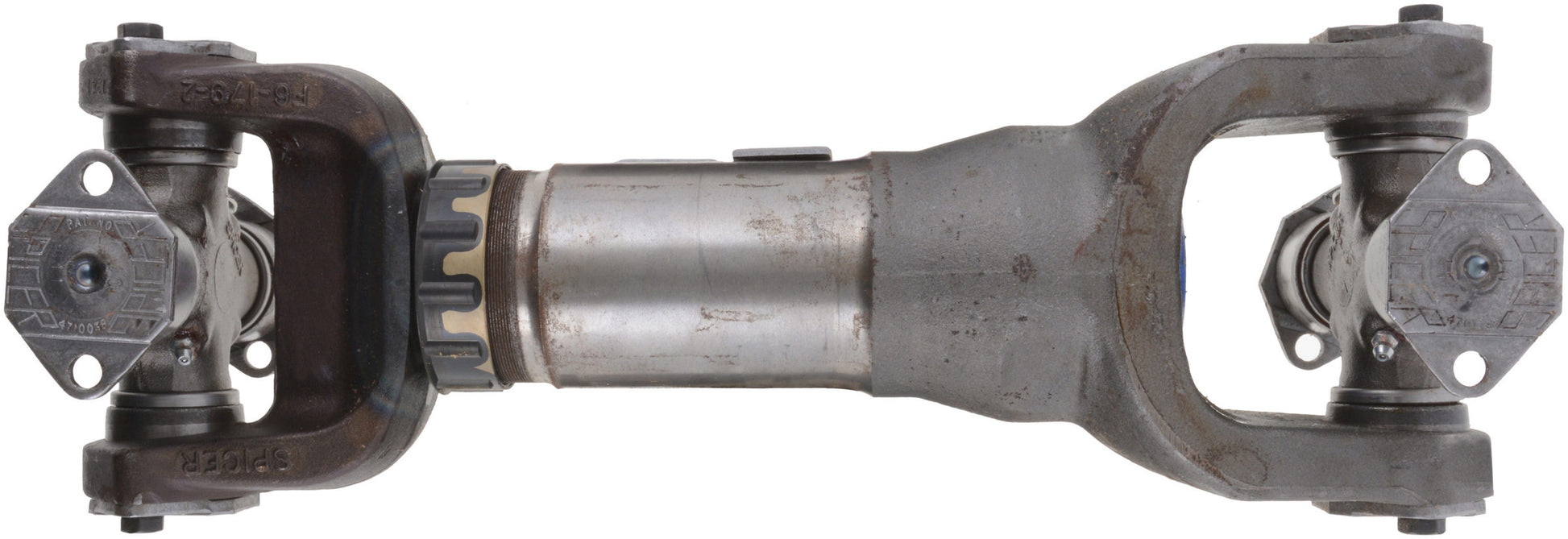

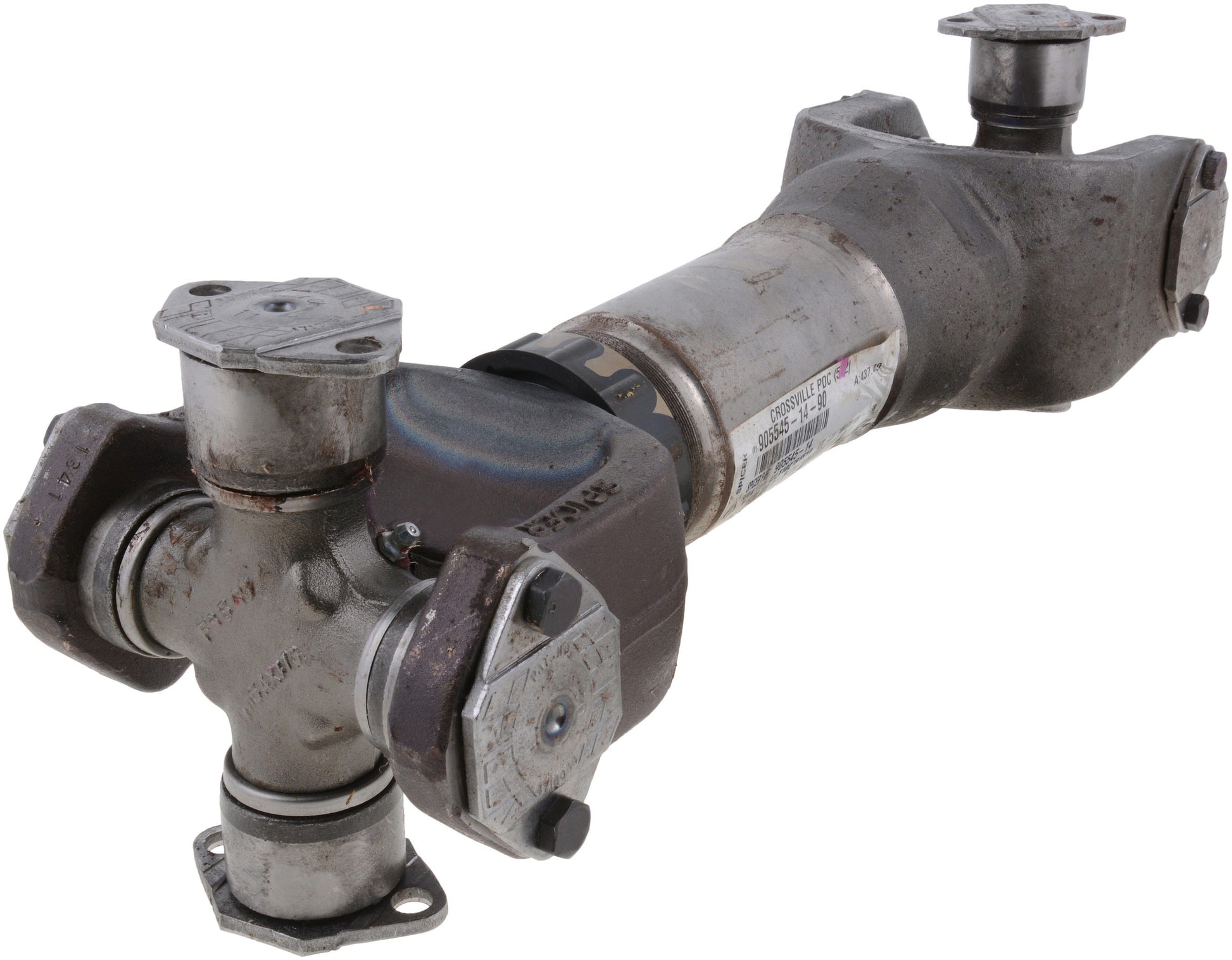

Spicer 902262-1 - Short Couple Drive Shaft
Short Couple Drive Shaft
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer Driveshafts are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Series: 1410
Phased - Degrees: 0
Unwelded/Welded Assembly: Welded
Shaft Material: Steel
Max Slip (IN): 1.0000
Max Slip (MM): 25.4000
Notes: Short Couple
CL Yoke To CL Yoke (IN) - COLL: 5.3580
CL Yoke To CL Yoke (MM) - COLL: 136.0932
Mid Slip (MM): 12.7000
Mid Slip (IN): 0.5000
Phase (Yes/No): No
CV Joints Included: No
End 2 TJ Side: 3-2-159
CL Yoke To Flange Face(IN)-COLL: 7.0460
Slip Assembly: No
CL Yoke To Flange Face (MM)-COLL: 178.9684
CL Yoke To Flange Face (MM)-INST: 191.668
1/2 Max Slip (IN): 0.5000
1/2 Max Slip (MM): 12.7
