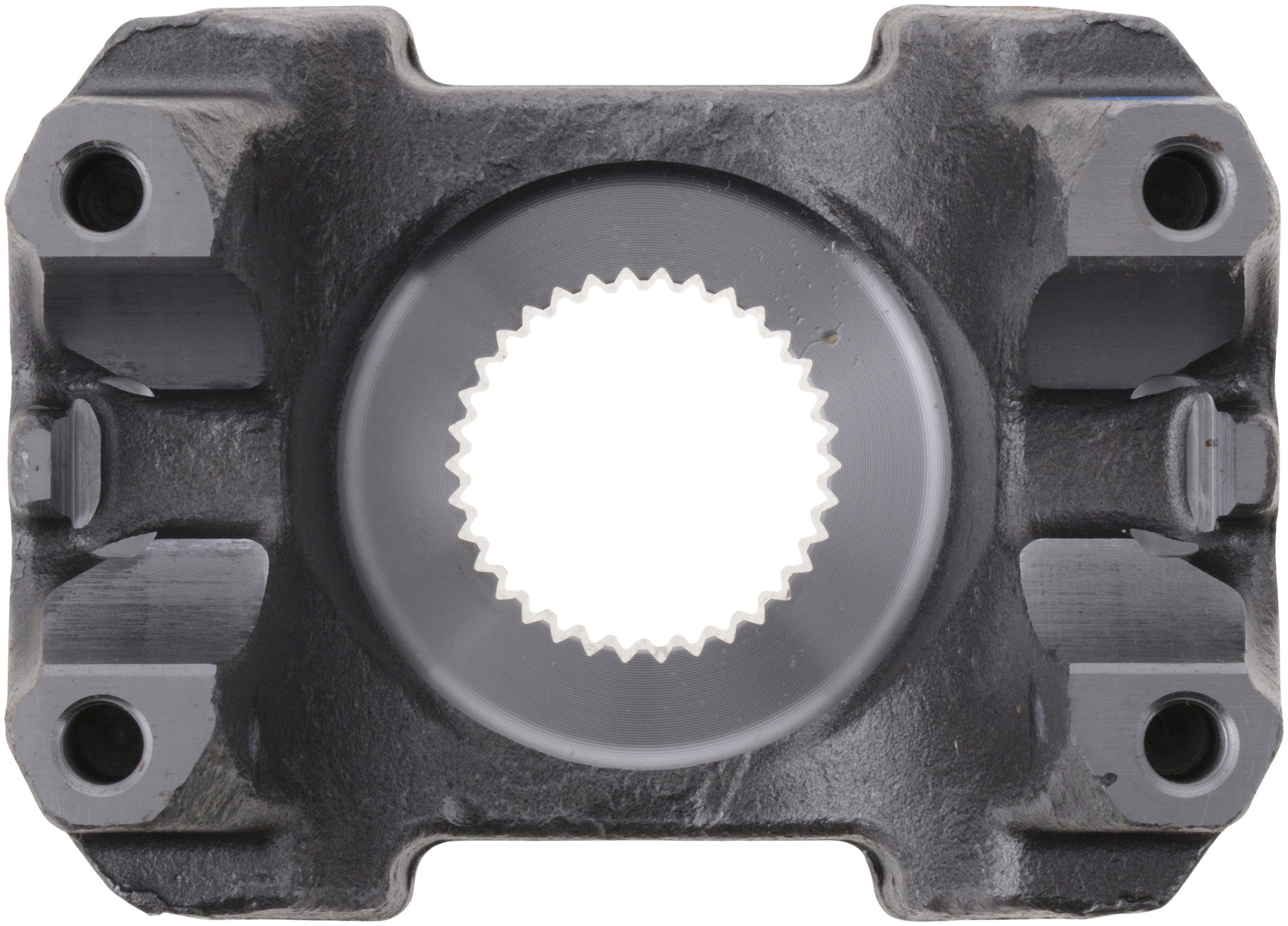

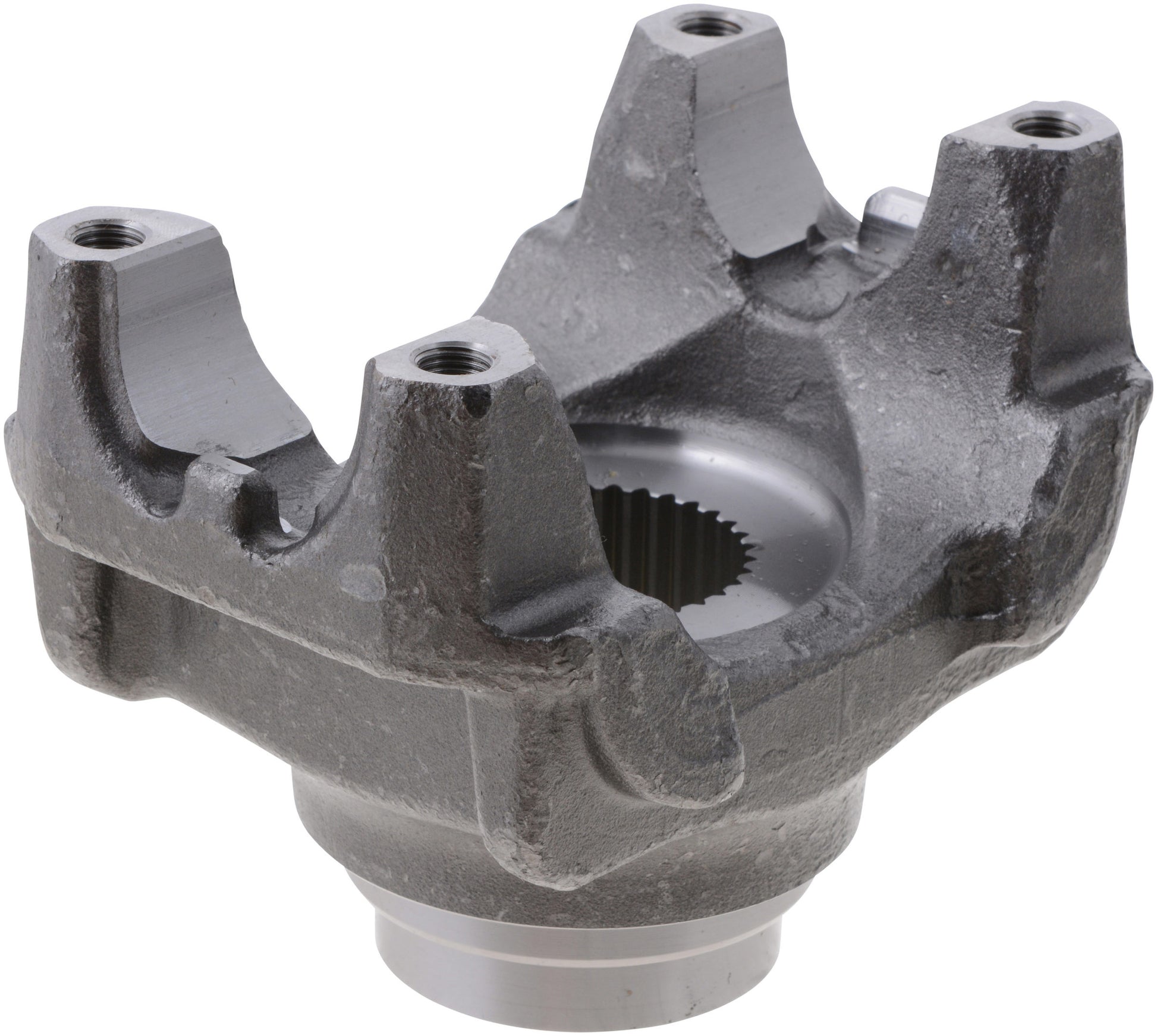

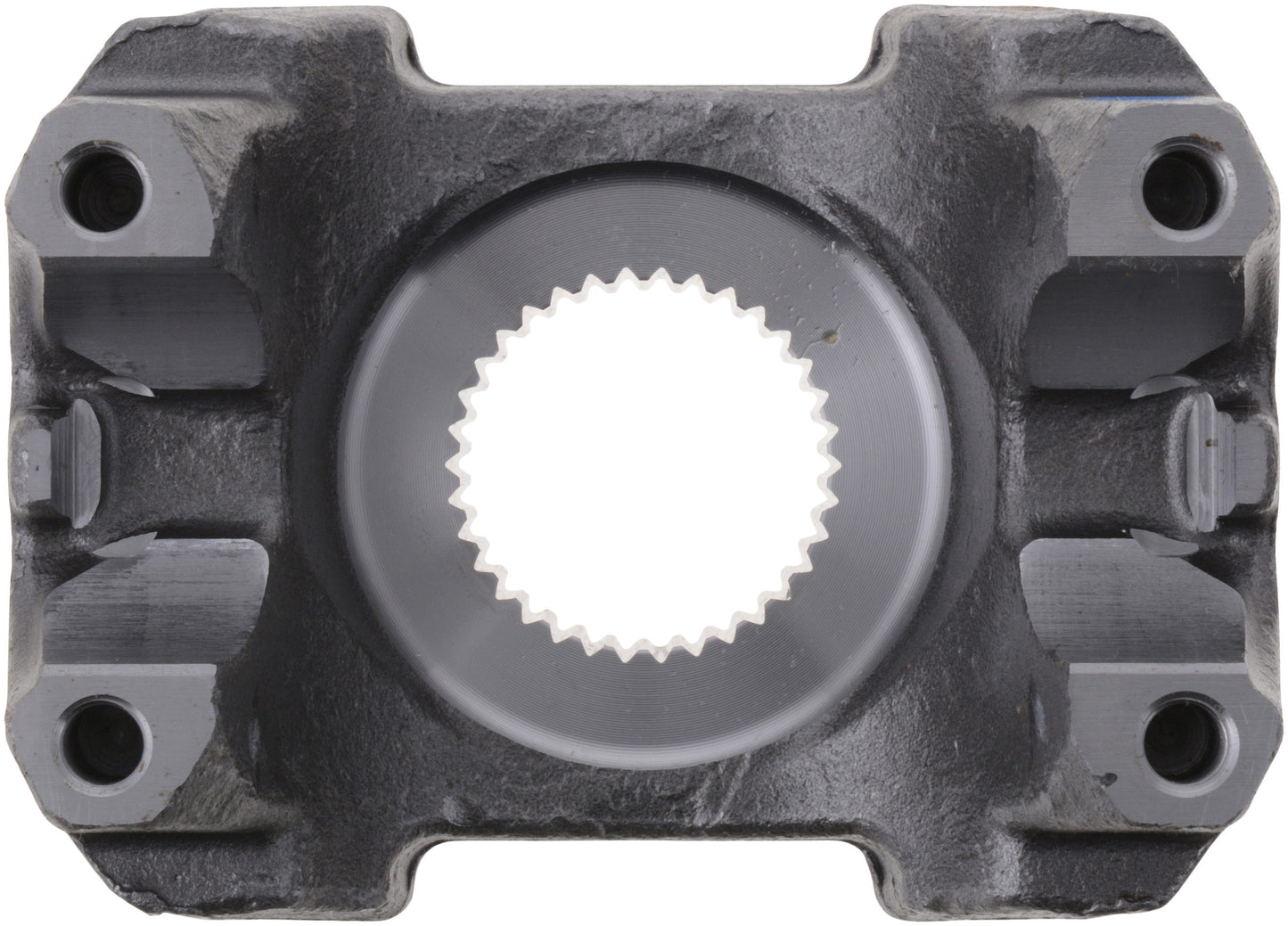

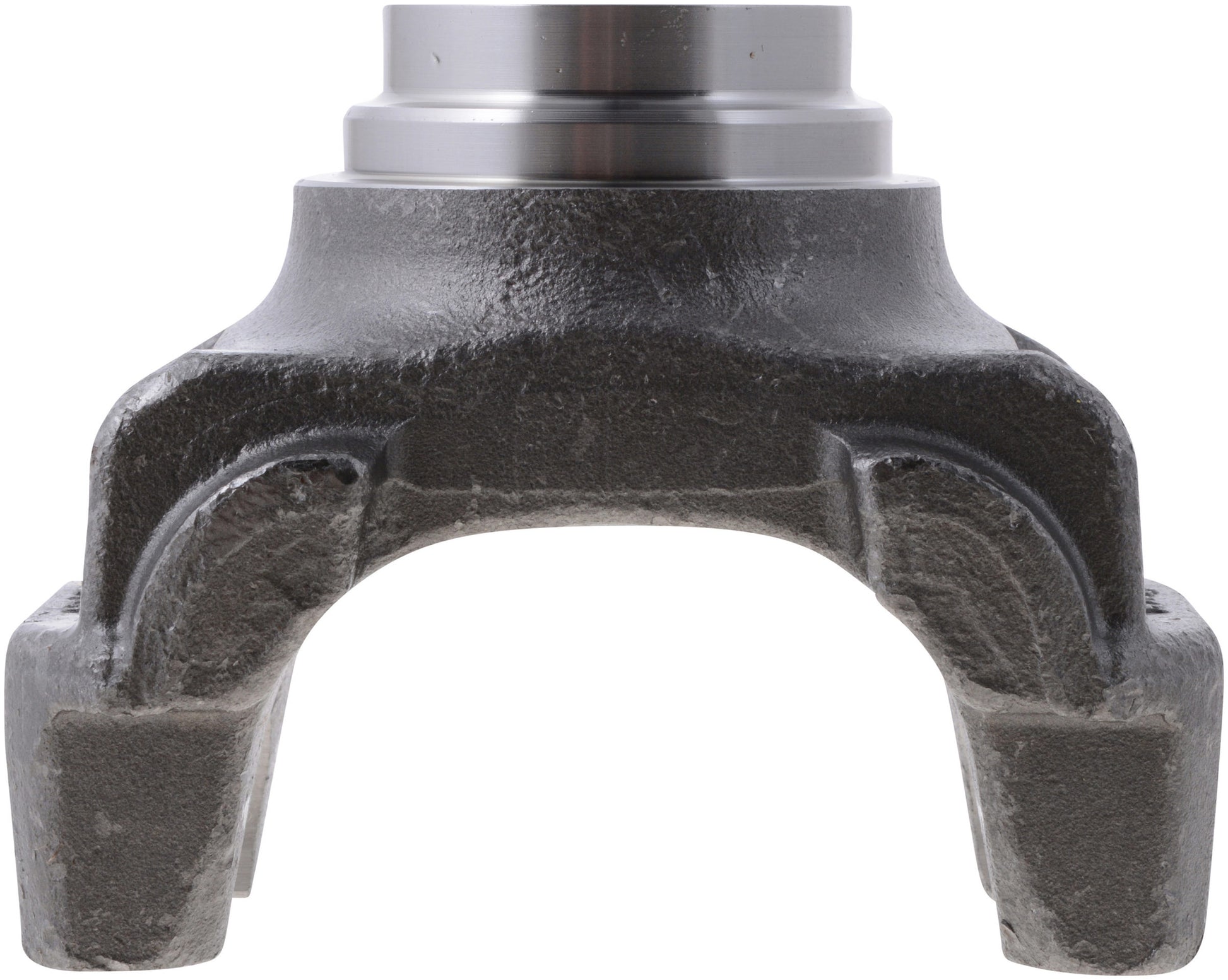

Spicer 90-4-11-1 - DRIVE SHAFT END YOKE

Spicer 90-4-11-1 - DRIVE SHAFT END YOKE

Spicer | 90-4-11-1
SKU: FSGR-90-4-11-1
$281.99 USD
$378.28 USD $281.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 90-4-11-1 - DRIVE SHAFT END YOKE

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: SPL90
Material: Steel
Spline Count: 34
Type: Splined Hole
Assembly: N
Hub Diameter R: 2.190
Includes Slinger/Plug: N
Involute Spline: I
Length Thru Hole Q: 2.250
Outside Yoke Dimension (In) E: 5.375
Yoke Bearing Dimension (In) D: 1.625
Yoke Style: BS
Major Diameter: 1.790
C/L To End Hub S: 4.062
C-Bore Depth: 0.500
C-Bore Diameter: 1.810
Joint Angle #1: 15
