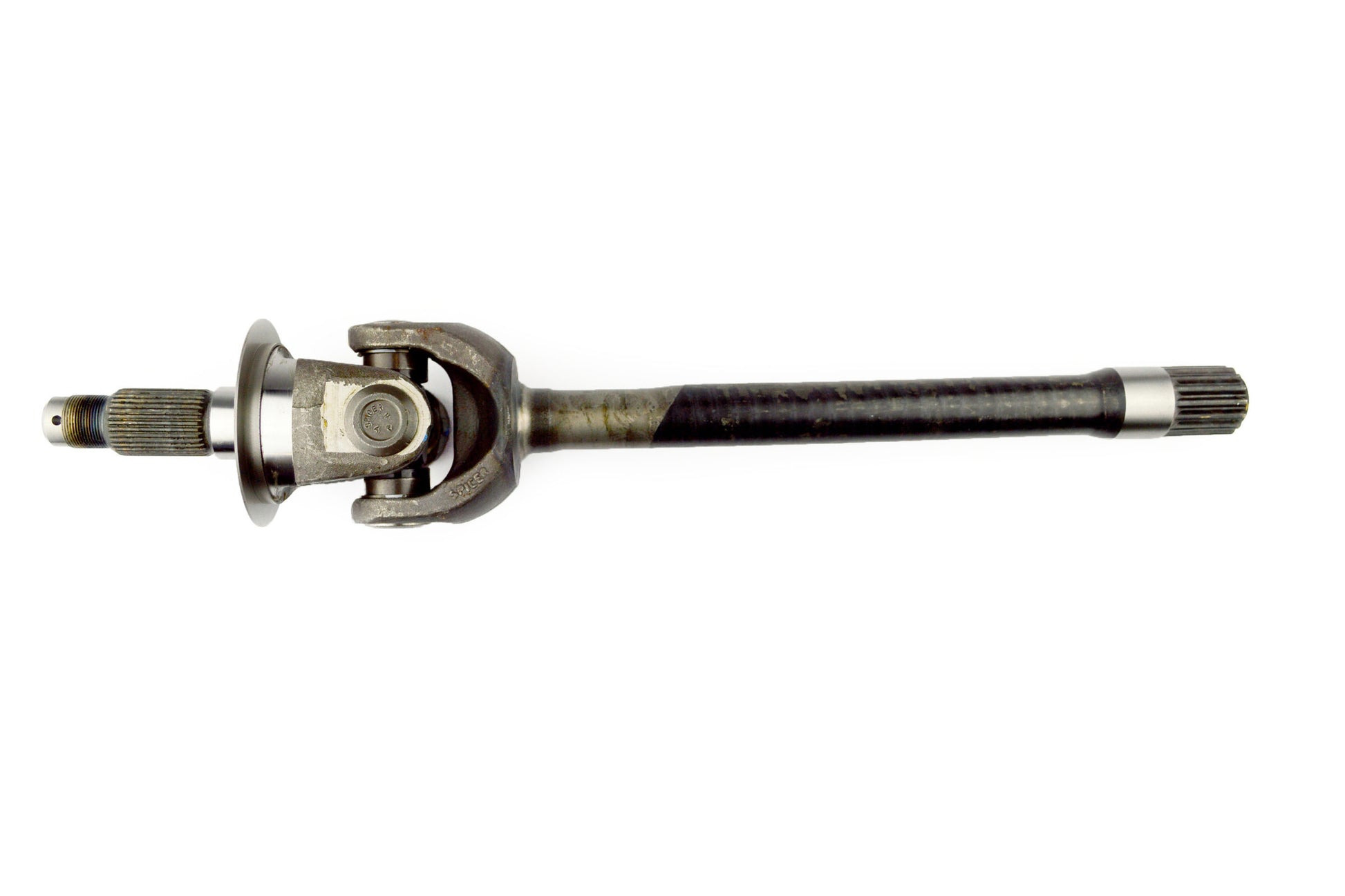

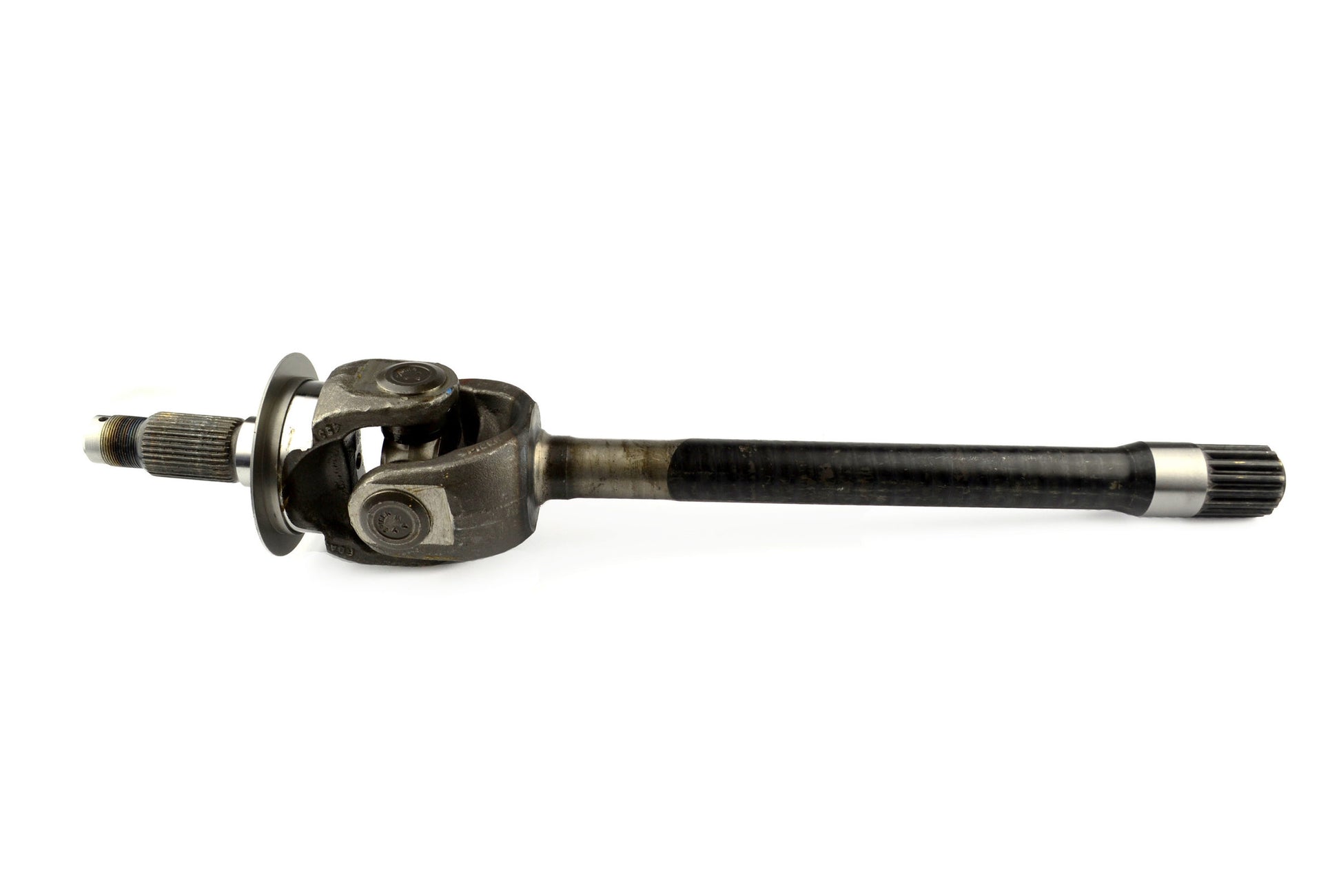

Spicer 76471X - AXLE SHAFT DANA 60

Spicer 76471X - AXLE SHAFT DANA 60

Spicer | 76471X
SKU: FSGR-76471X
$545.99 USD
$733.62 USD $545.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 76471X - AXLE SHAFT DANA 60

AXLE SHAFT DANA 60

Genuine Spicer light vehicle axle products are manufactured to the same high standards as original equipment (OE) parts because they are OE parts. That means when an automotive axle part is replaced with a genuine Spicer part, you are getting the same performance and reliability you have come to expect. And because Dana is constantly revolutionizing the technology behind its Dana axles and Spicer products, the replacement car axle or component you purchase today may even exceed the standards set for the original equipment part that you are replacing.

  • Genuine OE quality. Tested and proven.
  • Engineered for consistent quality and durability
  • Precision manufacturing processes
  • Heat-treated for optimal hardness and durability
Universal Joint Series: 1480
Axle Model: DANA 60
Material: Steel
ABS/Non-ABS: Non-ABS
Length (IN): 25.370
Spline Count: 15 Inboard / 33 Outboard
Axle Cover Bolt Hole Qty: 10
Includes Tone: N
Cover Bolt Quantity: 10
Axle Type: Complete Assembly
Includes Universal Joint: Y
Inner Shaft Length (In): 18.300
Inner Shaft Spline: 15
Outer Stub Length (In): 7.050
Outer Stub Spline Count: 33
Overall Assembled Length (In): 25.370
Quantity: 1
ABS Sensor Ring Included: No
ABS Sensor Ring Installed: N
Axle Shaft Included: Y
Bearing Included: N
Full-Floating Or Semi-Floating: Semi-Floating
Inner Axle Included: Y
Outer Axle Included: Y
Retainer Ring Included: N
Seal Included: N = Includes Bushing For Inner Shaft
Seal Kit Included: N
U-Joint Included: Y
Wheel Bearing Included: N
Wheel Bolt Prep Kit Included: N
Wheel Nuts Included: N
Wheel Studs Included: N
