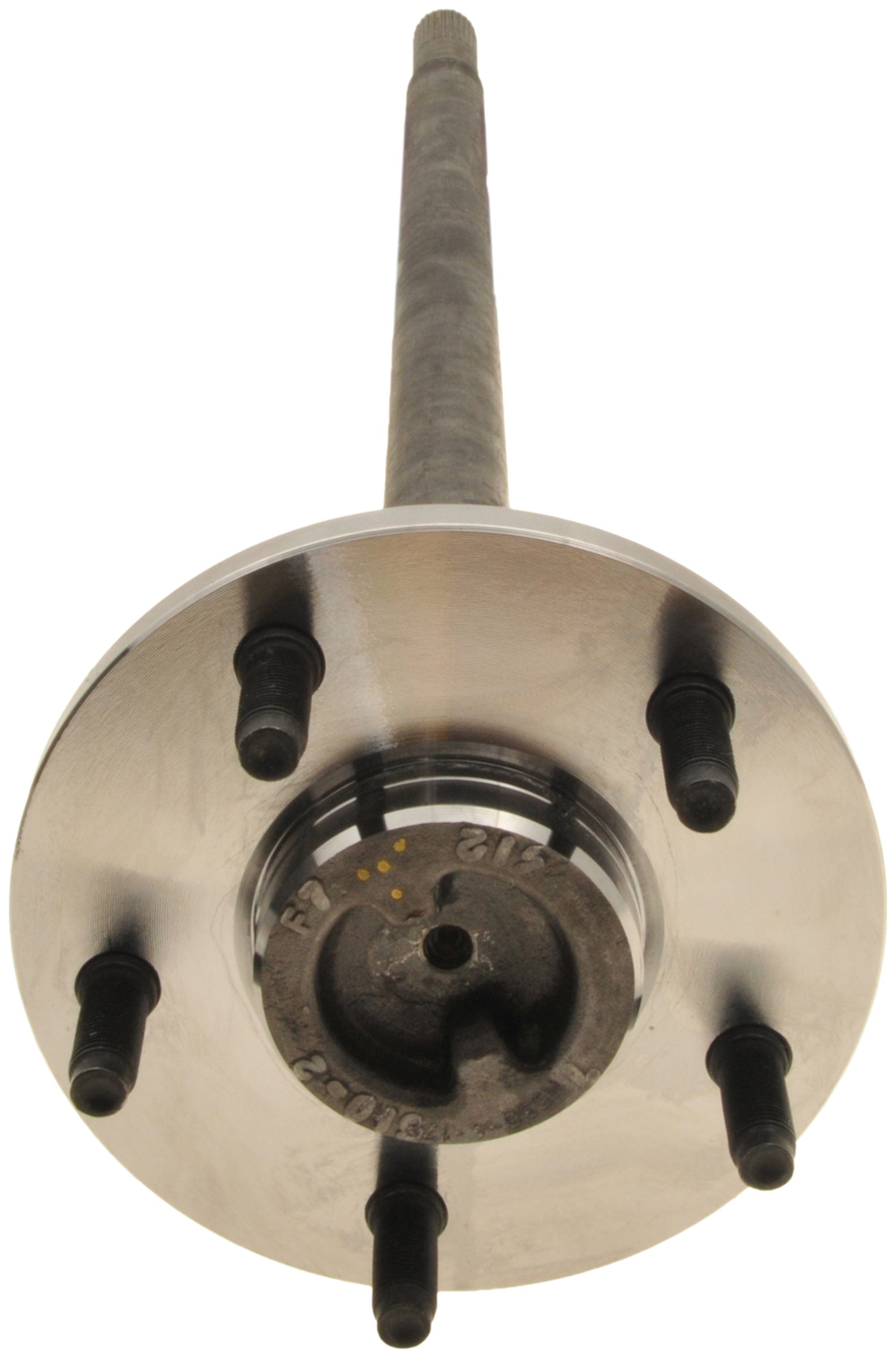

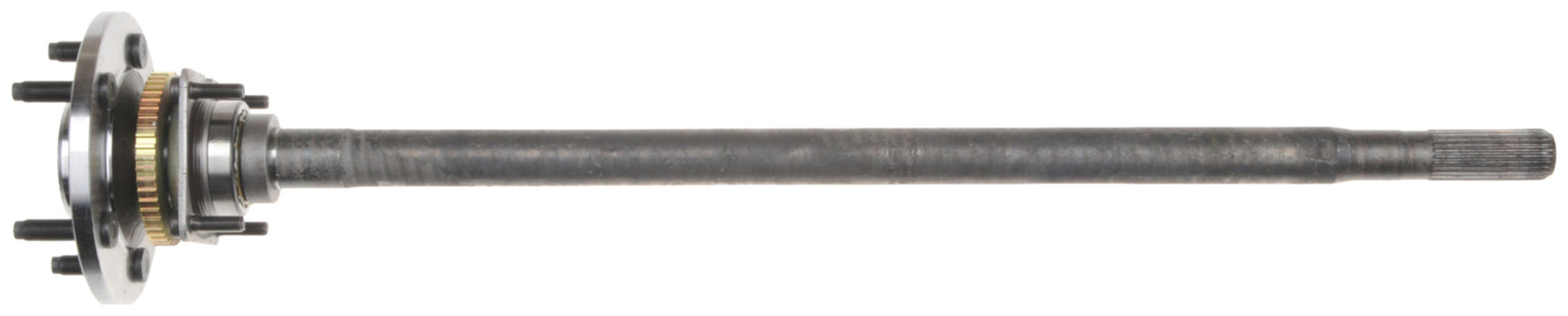

Spicer 76467-4X - Axle Shaft - DANA 35; Rear - With ABS

Spicer 76467-4X - Axle Shaft - DANA 35; Rear - With ABS

Spicer | 76467-4X
SKU: FSGR-76467-4X
$362.99 USD
$487.89 USD $362.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 76467-4X - Axle Shaft - DANA 35; Rear - With ABS

Axle Shaft - DANA 35; Rear - With ABS

Strength and durability to ensure longer life. Get genuine performance from genuine Spicer. Spicer parts are designed, engineered, and manufactured to meet or exceed OE requirements, because they are OE parts, ensuring a perfect fit with our full line of industry leading axles. That is why Spicer is the name you can trust for top performance and durability.

  • Genuine OE quality. Tested and proven.
  • Precision manufacturing processes
  • Built from high grade steel that stands up to any grade on the market
  • Heat-treated for optimal hardness and durability
Axle Model: DANA 35
Material: Steel
ABS/Non-ABS: ABS
Length (IN): 31.740
Location: LH
Spline Count: 27 Inboard
Axle Spline Count: 27 Inboard
Axle Cover Bolt Hole Qty: 10
Axle Length (In): 31.740
Bearing Pilot Diameter (In): 1.535
Bolt Pattern: 5 X 5.00
Brake Pilot Diameter (In): 4.997
Includes Tone: Y
Wheel Stud Hole Diameter (In): 0.607
Cover Bolt Quantity: 10
Axle Type: Complete Assembly
Quantity: 1
ABS Sensor Ring Included: Yes
ABS Sensor Ring Installed: Y
Axle Shaft Included: Y
Bearing Included: Y
Full-Floating Or Semi-Floating: Semi-Floating
Inner Axle Included: Y
Number Of Wheel Lugs: 5
Outer Axle Included: Y
Retainer Ring Included: Y
Seal Included: Y
Seal Kit Included: N
U-Joint Included: N
Wheel Bearing Included: Y
Wheel Bolt Prep Kit Included: N
Wheel Nuts Included: N
Wheel Studs Included: Y
Axle Length (Mm): 806.196
