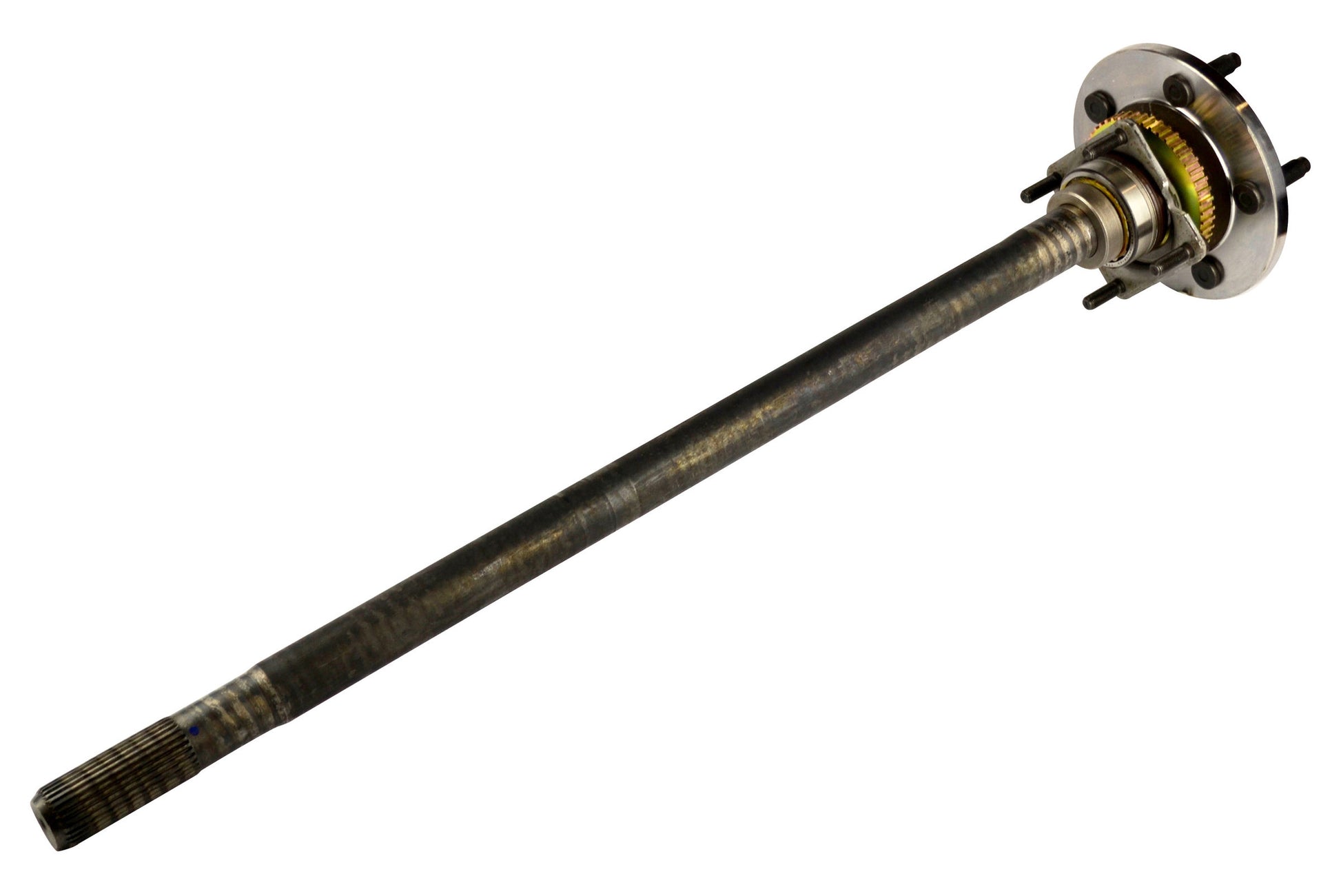

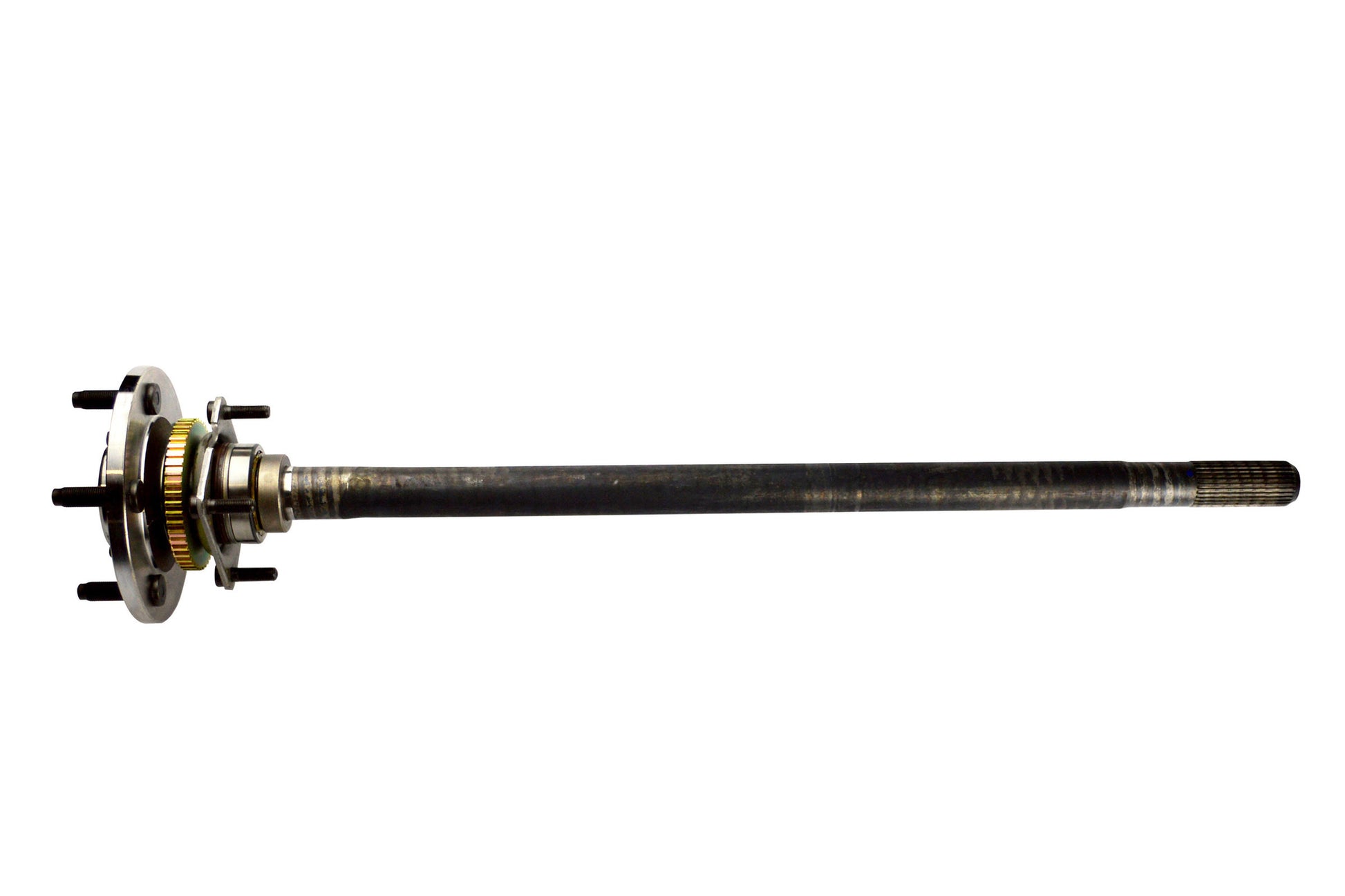

Spicer 76454-3X - AXLE SHAFT DANA 44
Spicer 76454-3X - AXLE SHAFT DANA 44
SKU: FSGR-76454-3X
Regular price
$334.99 USD
Regular price
$450.51 USD
Sale price
$334.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 76454-3X - AXLE SHAFT DANA 44
AXLE SHAFT DANA 44
Strength and durability to ensure longer life. Get genuine performance from genuine Spicer. Spicer parts are designed, engineered, and manufactured to meet or exceed OE requirements, because they are OE parts, ensuring a perfect fit with our full line of industry leading axles. That is why Spicer is the name you can trust for top performance and durability.
- Genuine OE quality. Tested and proven.
- Precision manufacturing processes
- Engineered for consistent quality and durability
- Meets Dana aftermarket requirements for static ultimate strength, torsional fatigue and rotating/bending torque
Axle Model: DANA 44
Material: Steel
ABS/Non-ABS: ABS
Length (IN): 30.340
Location: RH
Spline Count: 30 Inboard
Axle Spline Count: 30 Inboard
Axle Cover Bolt Hole Qty: 10
Axle Length (In): 30.340
Bearing Pilot Diameter (In): 1.535
Bolt Pattern: 5 X 5.00
Brake Pilot Diameter (In): 4.997
Includes Tone: Y
Wheel Stud Hole Diameter (In): 0.629
Cover Bolt Quantity: 10
Axle Type: Complete Assembly
Quantity: 1
Length (Mm): 770.636
ABS Sensor Ring Included: Yes
ABS Sensor Ring Installed: Y
Axle Shaft Included: Y
Bearing Included: Y
Full-Floating Or Semi-Floating: Semi-Floating
Inner Axle Included: Y
Number Of Wheel Lugs: 5
Outer Axle Included: Y
Retainer Ring Included: Y
Seal Included: Y
Seal Kit Included: N
U-Joint Included: N
Wheel Bearing Included: Y
Wheel Bolt Prep Kit Included: N
Wheel Nuts Included: N
Wheel Studs Included: Y
Axle Length (Mm): 770.636
