Spicer 75248-5X - Differential Gear Set - DANA 60 4.10 RATIO
Spicer 75248-5X - Differential Gear Set - DANA 60 4.10 RATIO
SKU: FSGR-75248-5X
Regular price
$756.99 USD
Regular price
$1,017.55 USD
Sale price
$756.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 75248-5X - Differential Gear Set - DANA 60 4.10 RATIO

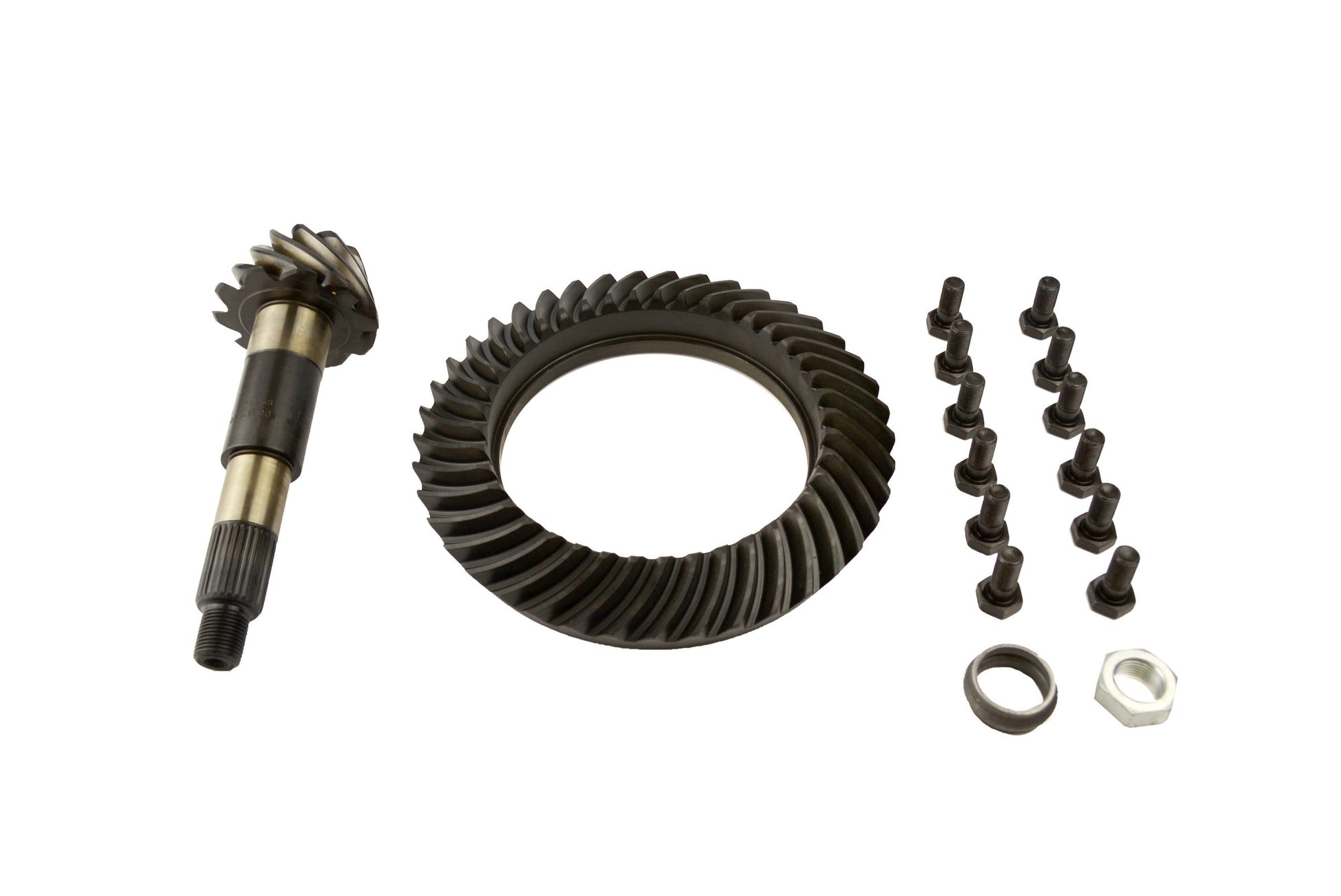

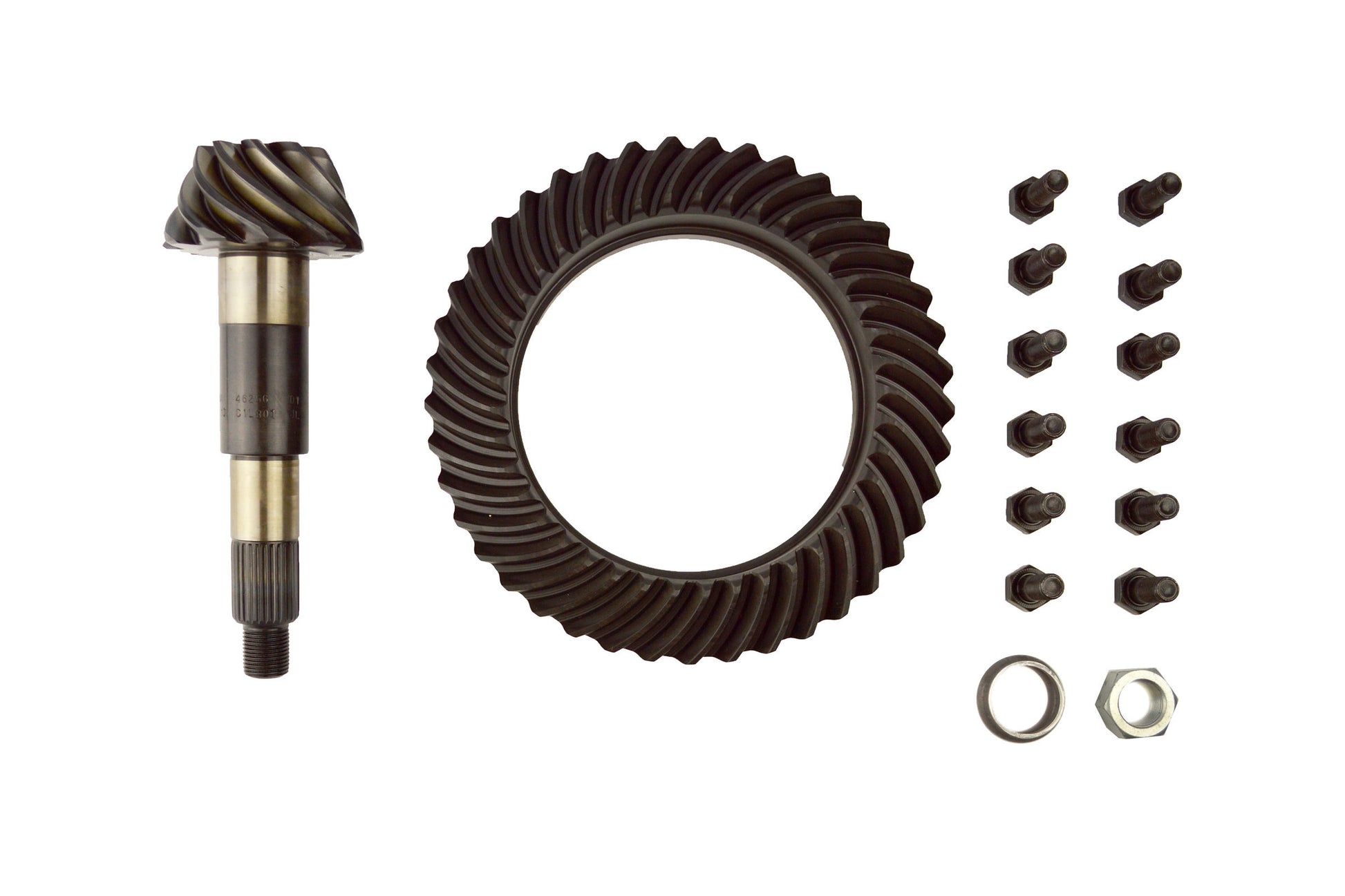

Differential Gear Set - DANA 60 4.10 RATIO
Demand genuine Spicer. Made in the USA. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- All Spicer ring gear and pinion sets are designed and tested to meet original equipment specifications.
- Lapped to reduce noise and heat. Lubrication process allows for no break in period.
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
- High-grade steel for maximum durability.
Axle Model: DANA 60
Gear Ratio: 4.10
Ring Teeth Count: 41
Carrier Breaks: 4.10 And Down
Cover Bolt Quantity: 10
Include Installation Kit: Y
On Vehicle Location: Front/Rear
Pinion Gear Tooth Quantity: 10
Pinion Shaft Diameter: 1.625
Pinion Spline Count: 29
Ring Gear Bolt Qty: 12
Ring Gear Bolt Thread In.: .500-20
Ring Gear Diameter (In.): 9.750
Ring Gear Rotation: Standard
Axle Type: Semi Floating And Full Floating
New Or Remanufactured: New
Pinion Gear Included: Y
Ring Gear Included: Y
Pinion Nut Included: Y
