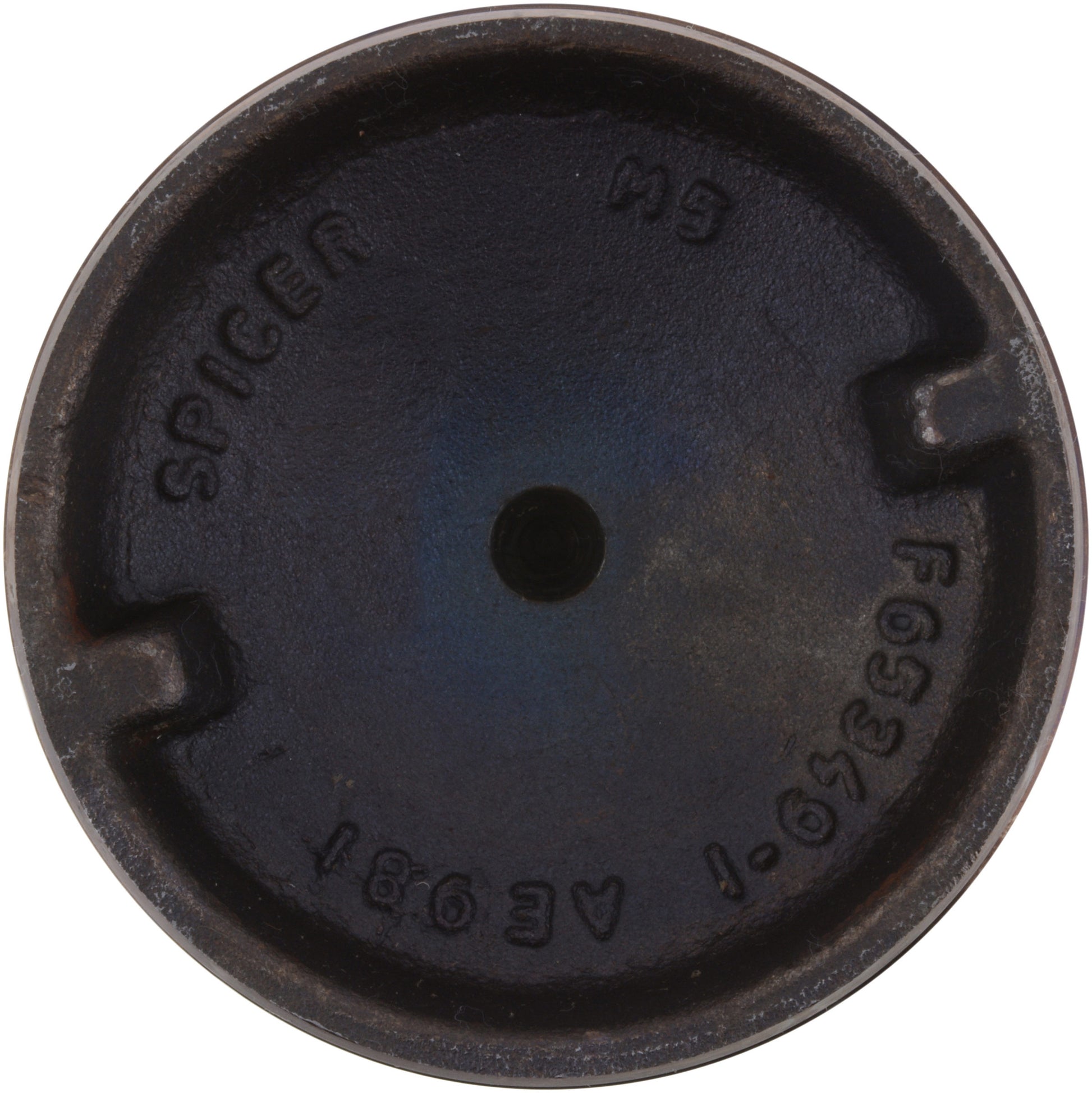

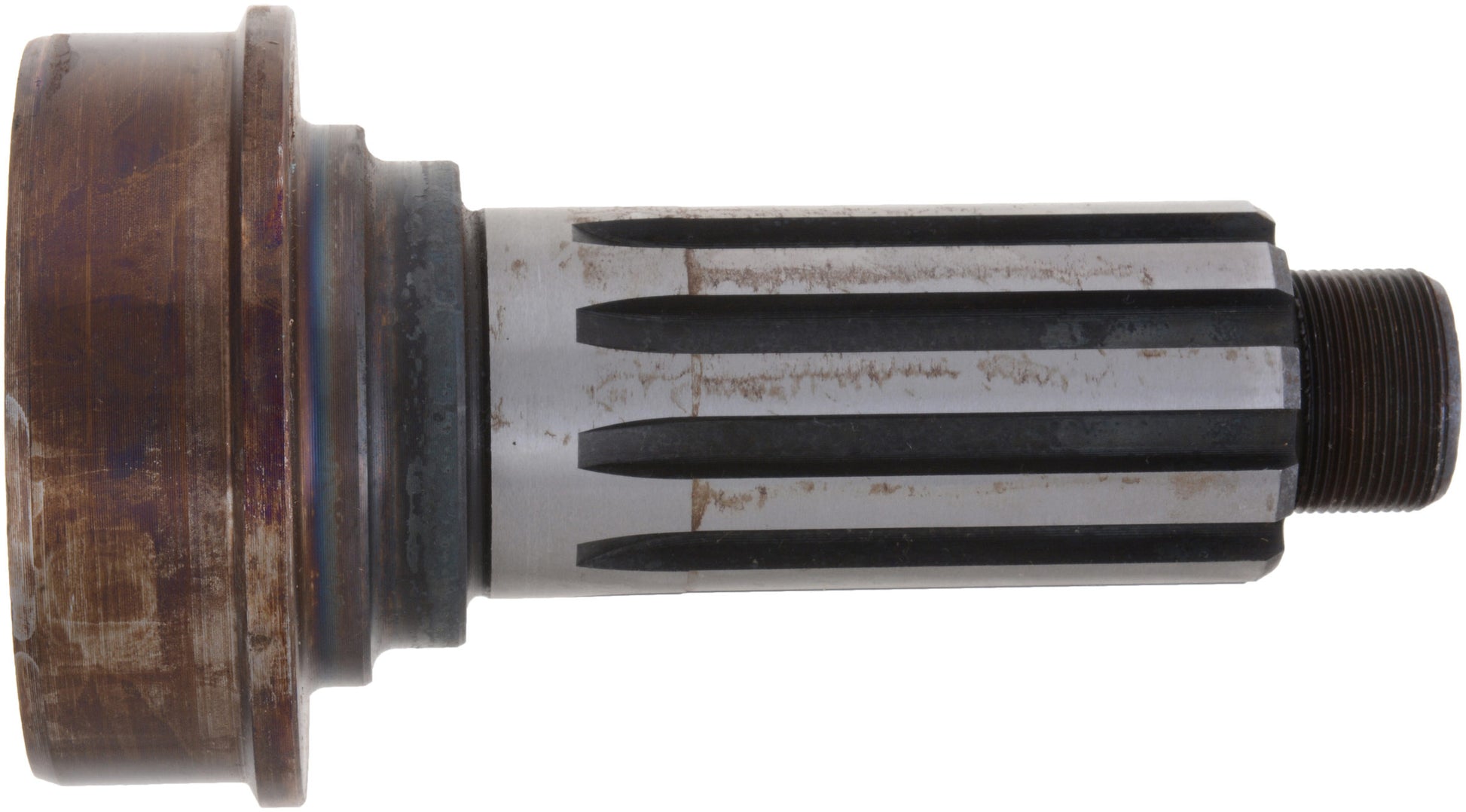

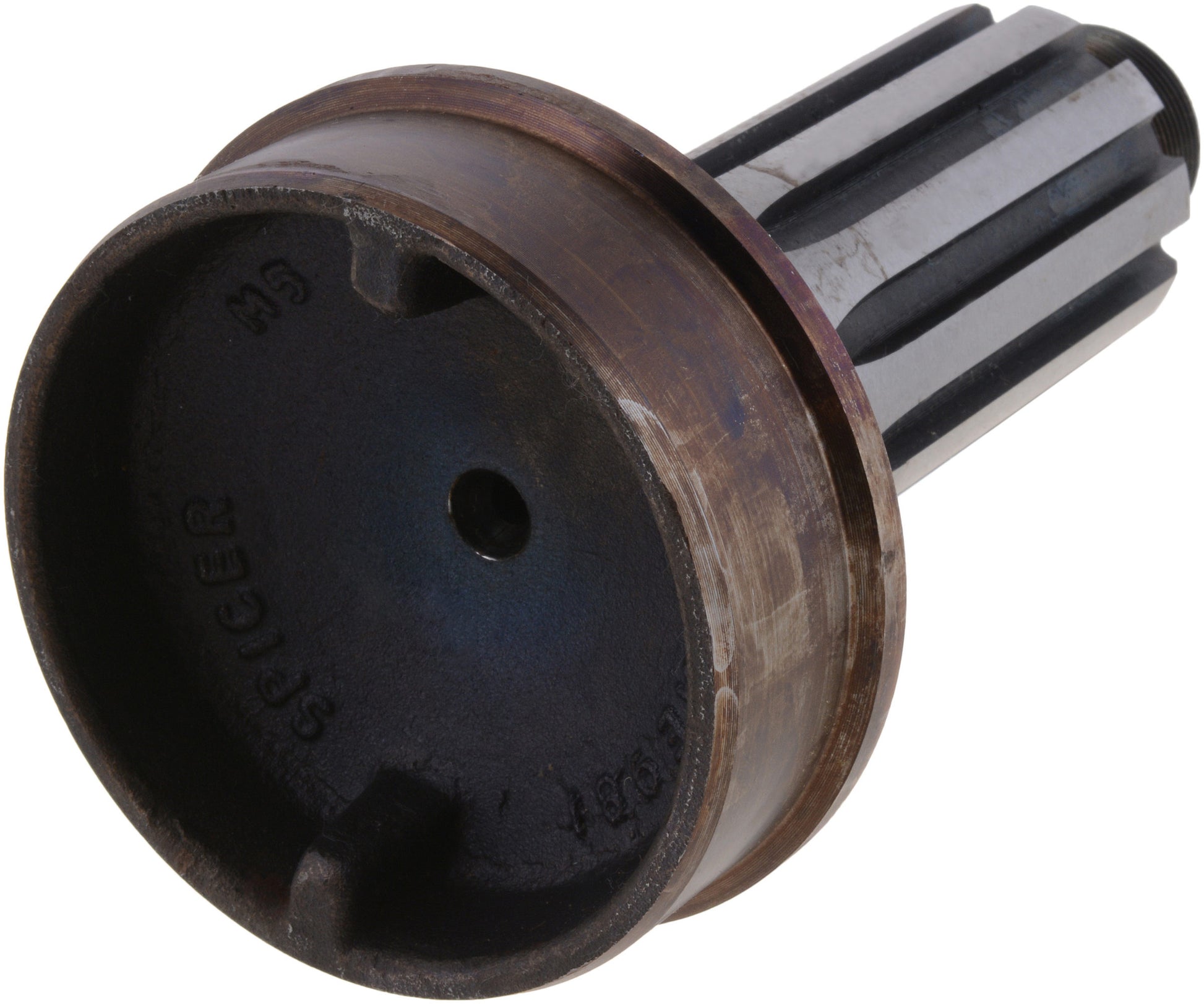

Spicer 6-53-201 - DRIVE SHAFT MIDSHIP STUB SHAFT
Spicer 6-53-201 - DRIVE SHAFT MIDSHIP STUB SHAFT
SKU: FSGR-6-53-201
Regular price
$160.99 USD
Regular price
$216.55 USD
Sale price
$160.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 6-53-201 - DRIVE SHAFT MIDSHIP STUB SHAFT
DRIVE SHAFT MIDSHIP STUB SHAFT
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
- Dana engineering-approved for fit, form and function
Series: 1710
Material: Steel
Thread Size: 1.250-18
Style: 2
Fits Tube Diameter: 4.000
Involute: N
Fits Tube Wall: .156
Butt Diameter: 3.743
Bearing Diameter (C) In.: 1.968
Bearing Diameter (Max): 1.9685
Spline End To Weld (K) In.: 5.156
Spline Length (L) In.: 2.875
Spline O.D.: 1.958
Bearing Diameter (Min): 1.968
For Use With: End Yoke Or Companion Flange
Shoulder Diameter (B) In.: 2.438
Shoulder Length (G) In.: .812
Spline End To Brg Shoulder (Y): 4.062
