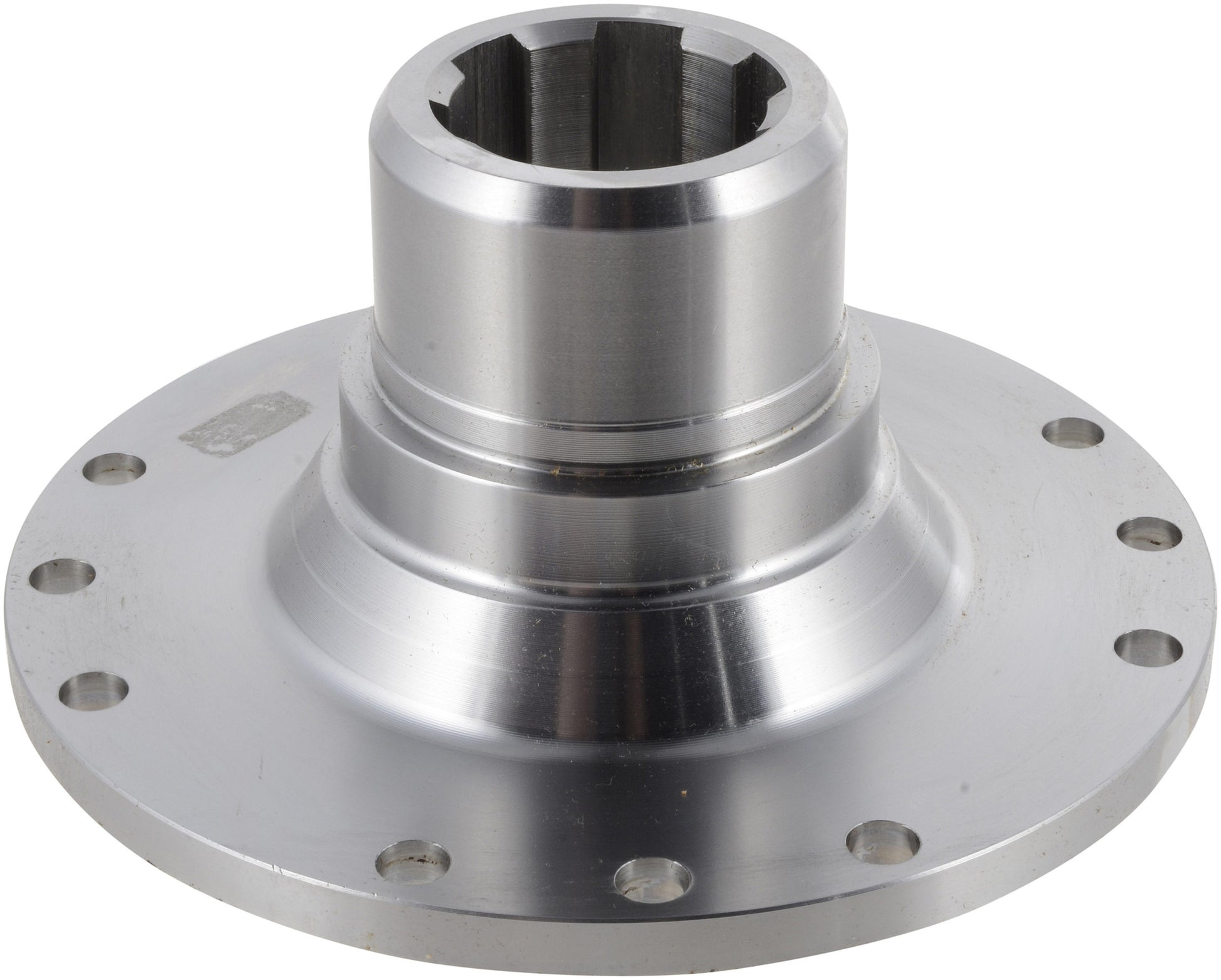

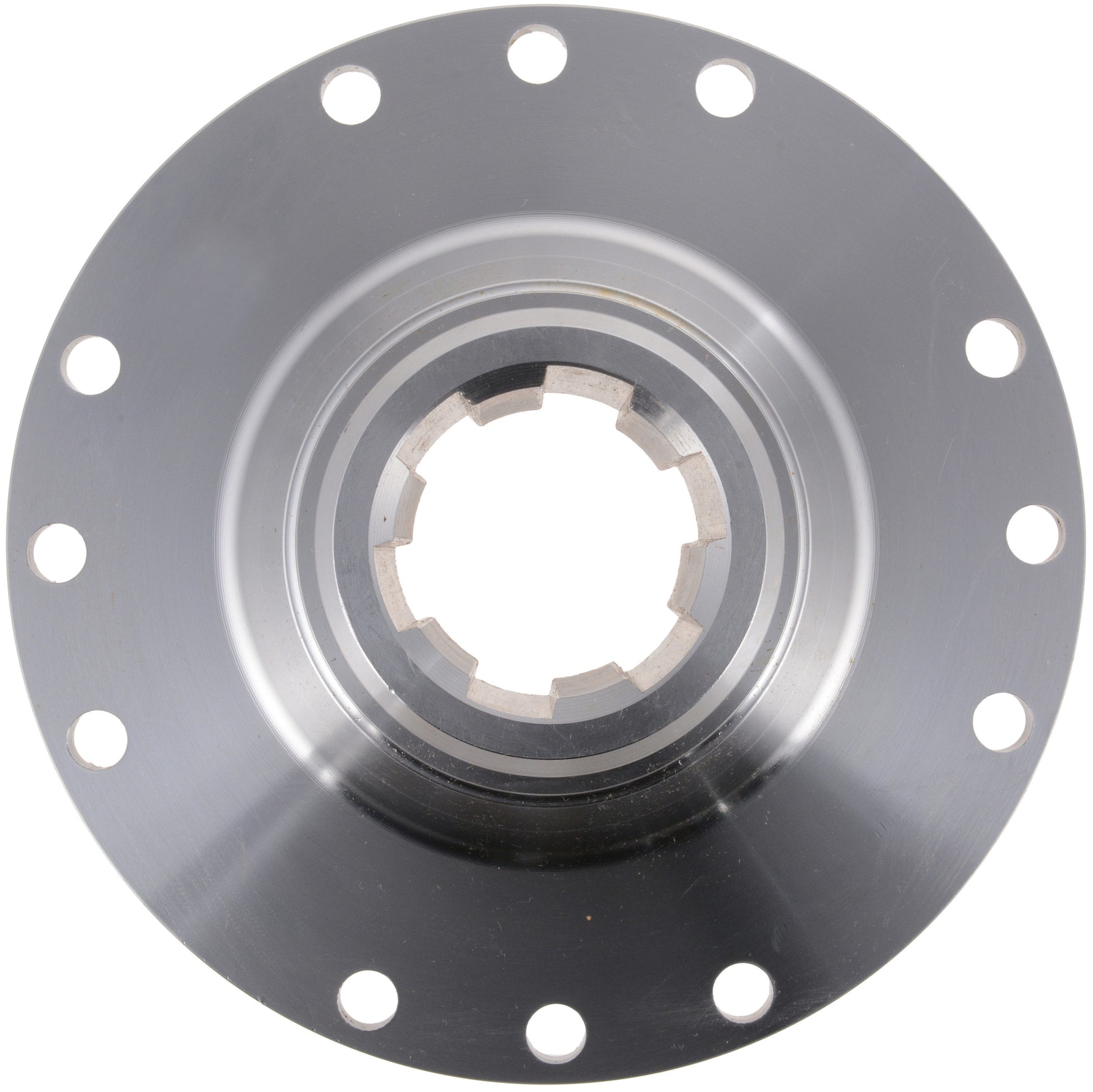

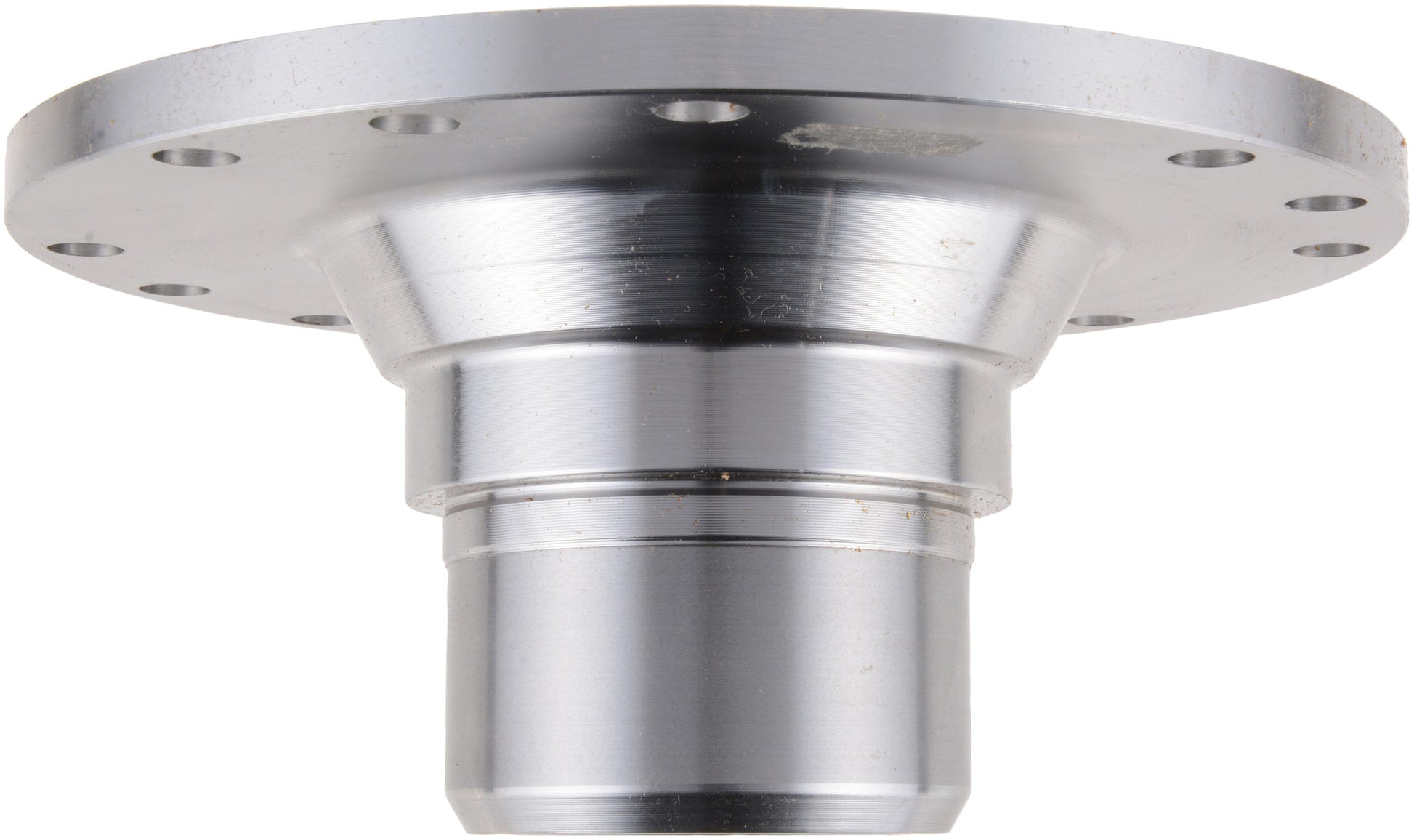

Spicer 6.5-1-481 - Drive Shaft Companion Flange

Spicer 6.5-1-481 - Drive Shaft Companion Flange

Spicer | 6.5-1-481
SKU: FSGR-6.5-1-481
$439.99 USD
$591.62 USD $439.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 6.5-1-481 - Drive Shaft Companion Flange

Drive Shaft Companion Flange

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana.
  • Tested and validated to rigorous OE specifications.
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1810
Material: Steel
Spline Count: 6
Involute Spline: N
Companion Flange Assembly: N
Flange Face To End Of Hub (G): 3.750
Ground Hub Diameter In.: 3.000
Length Thru Hole (F) In.: 3.250
Major Diameter (D) In.: 2.225
Pilot Diameter (C) In.: 7.750 - FEMALE
Bolt Circle Dia.(B) In.(FL YK): 7.250
Bolt Hole Diameter In (FL YK): 0.438 - DRILLED
Number Of Holes (FL YK): 12
Slinger Diameter: 3.070
