Spicer 6-4-8431 - OUTPUT SHAFT END YOKE
Spicer 6-4-8431 - OUTPUT SHAFT END YOKE
SKU: FSGR-6-4-8431
Regular price
$381.99 USD
Regular price
$512.83 USD
Sale price
$381.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

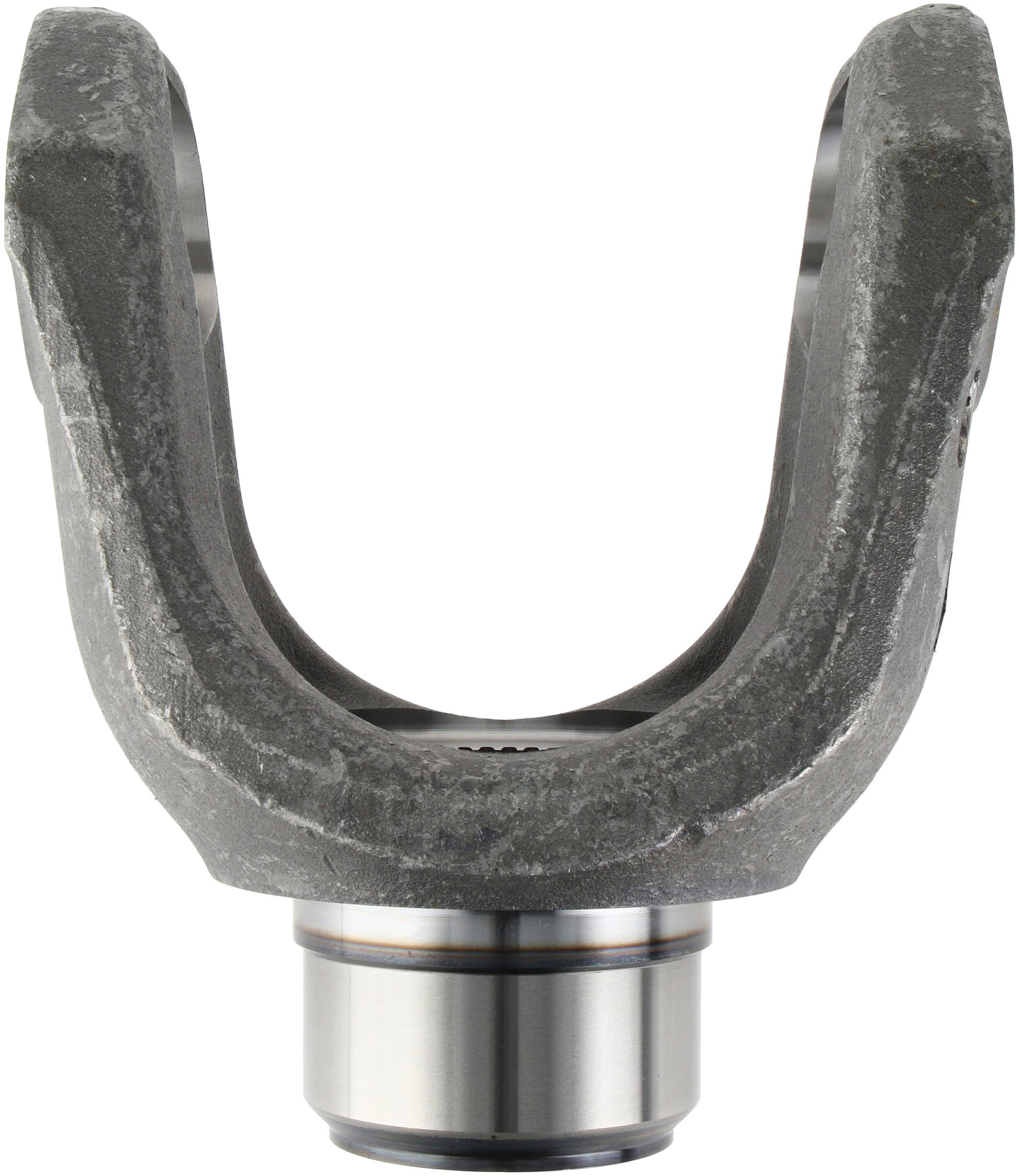

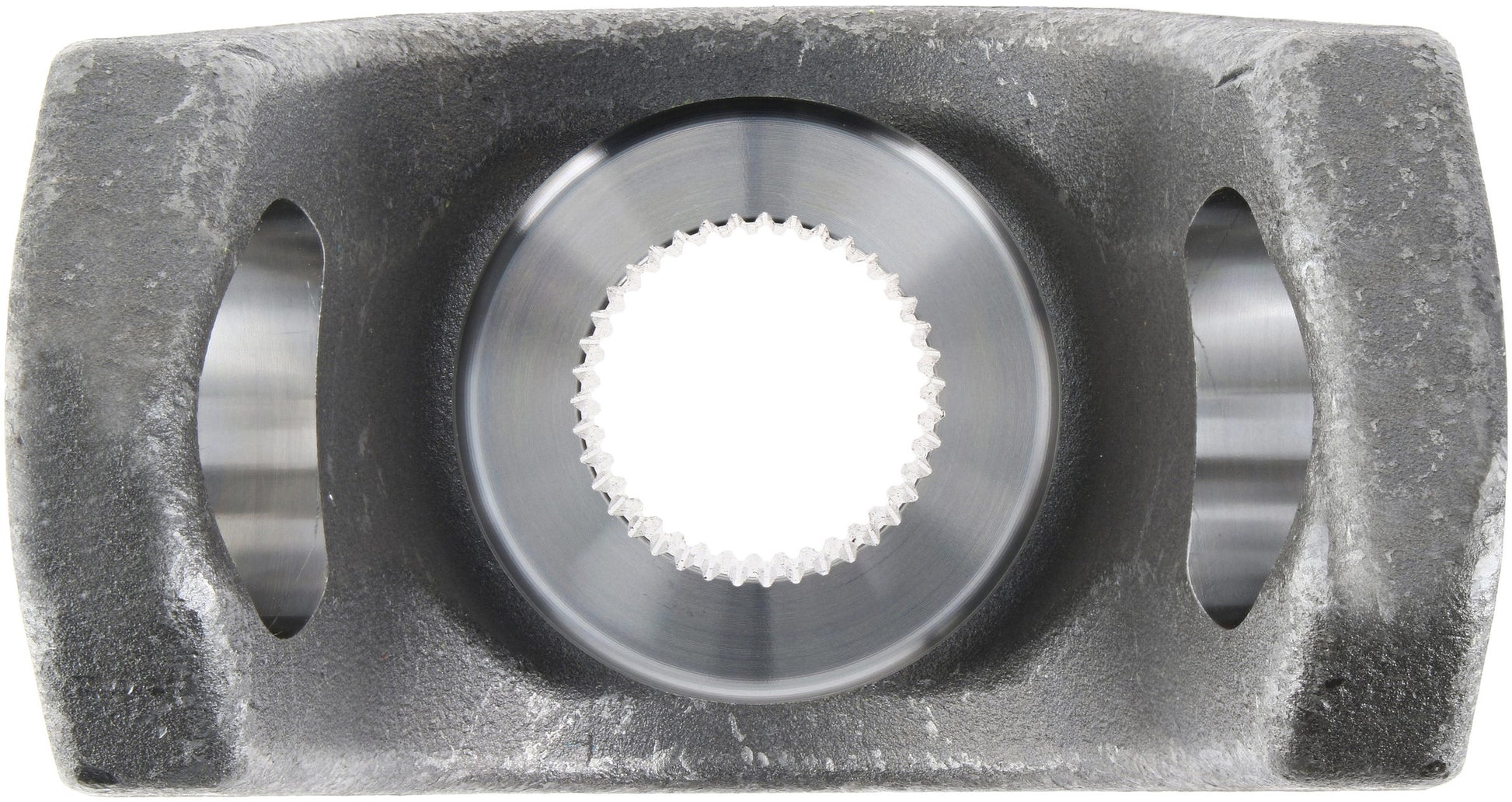

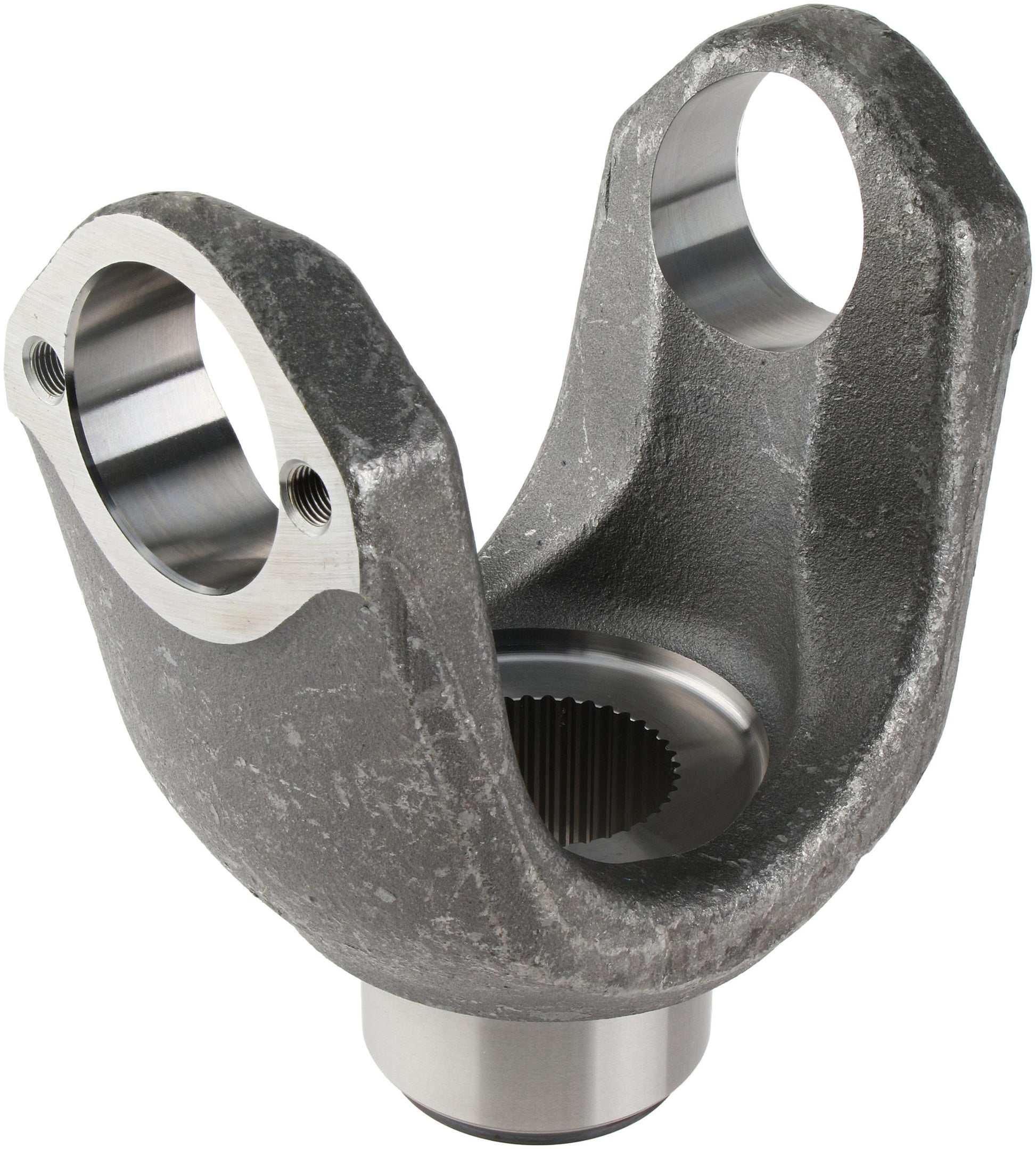

Spicer 6-4-8431 - OUTPUT SHAFT END YOKE
OUTPUT SHAFT END YOKE
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: 1710
Material: Steel
Spline Count: 39
Type: Splined Hole
Assembly: Y
Hub Diameter R: 2.6265
Includes Slinger/Plug: Y
Involute Spline: Yes
Length Thru Hole Q: 2.4950
Outside Yoke Dimension (In) E: 6.0920
Yoke Bearing Dimension (In) D: 1.9383
Yoke Style: BP
Major Diameter: 2.0240
Note: High Angle Yoke; Differential End Yoke
C/L To End Hub S: 6.125
O.D. of Spline: 2.024
C-Bore Depth: 0.250
C-Bore Diameter: 2.0470
Joint Angle #1: 45
