Spicer 6-4-7141 - DRIVE SHAFT END YOKE
Spicer 6-4-7141 - DRIVE SHAFT END YOKE
SKU: FSGR-6-4-7141
Regular price
$371.99 USD
Regular price
$499.30 USD
Sale price
$371.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

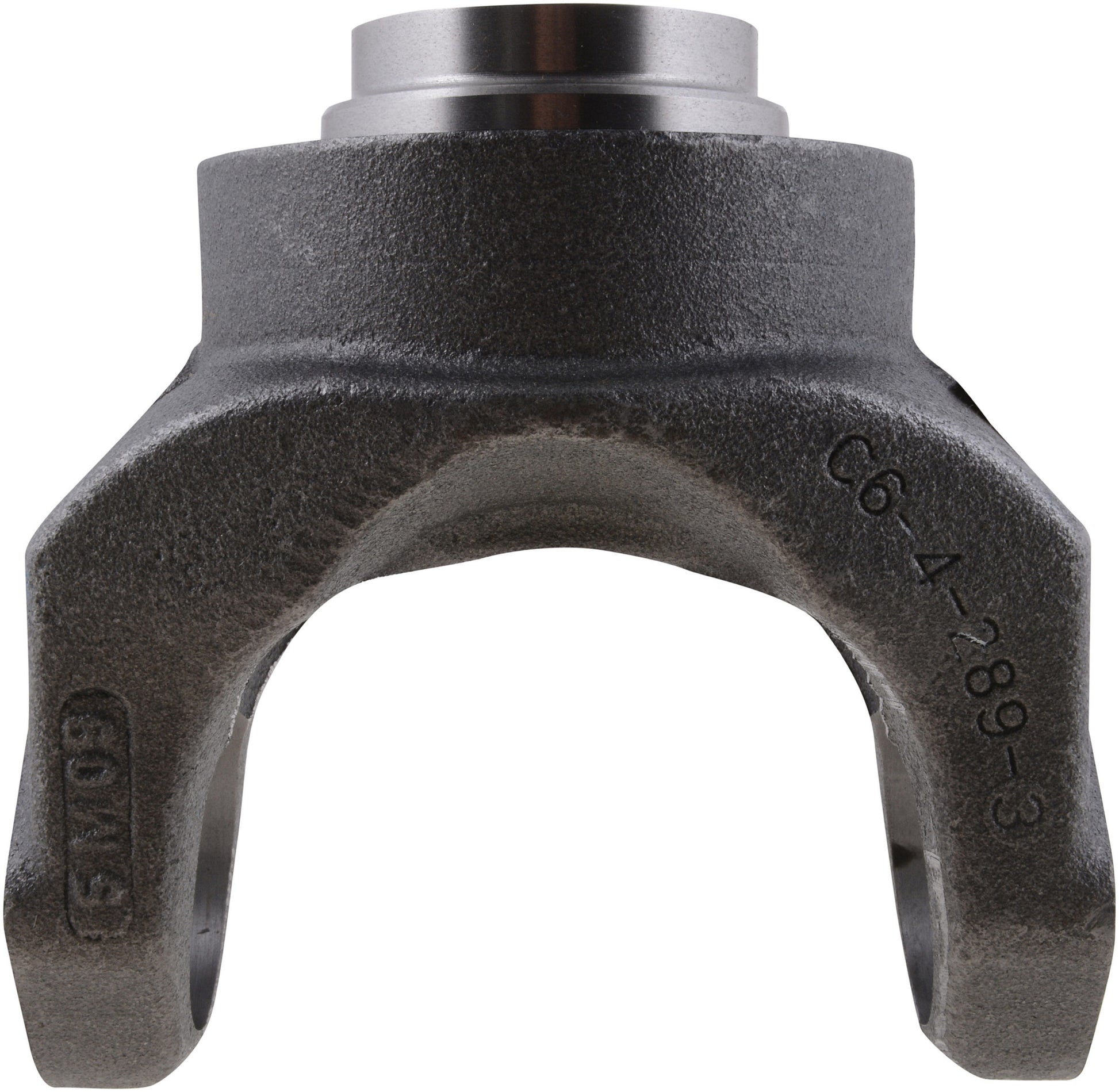

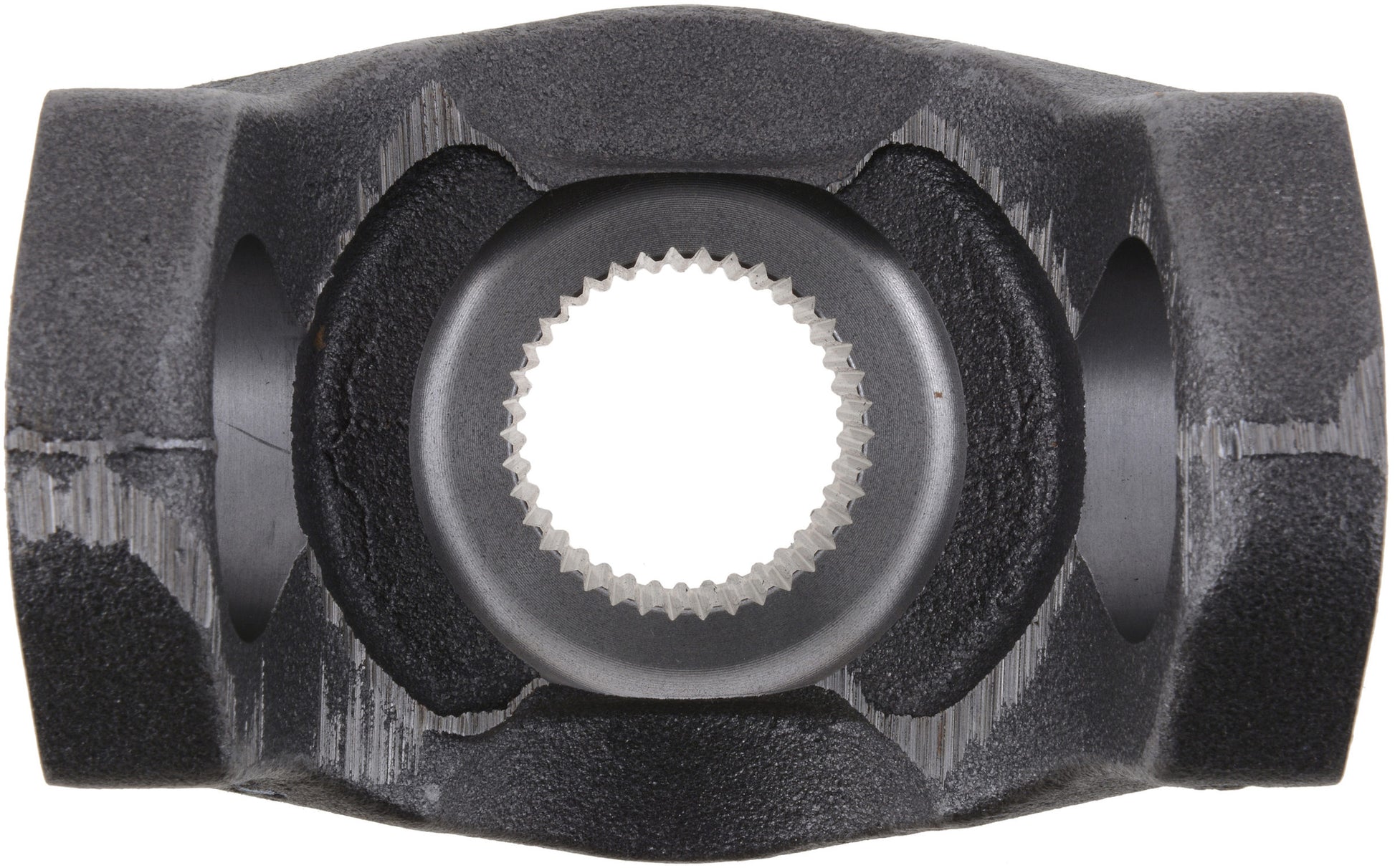

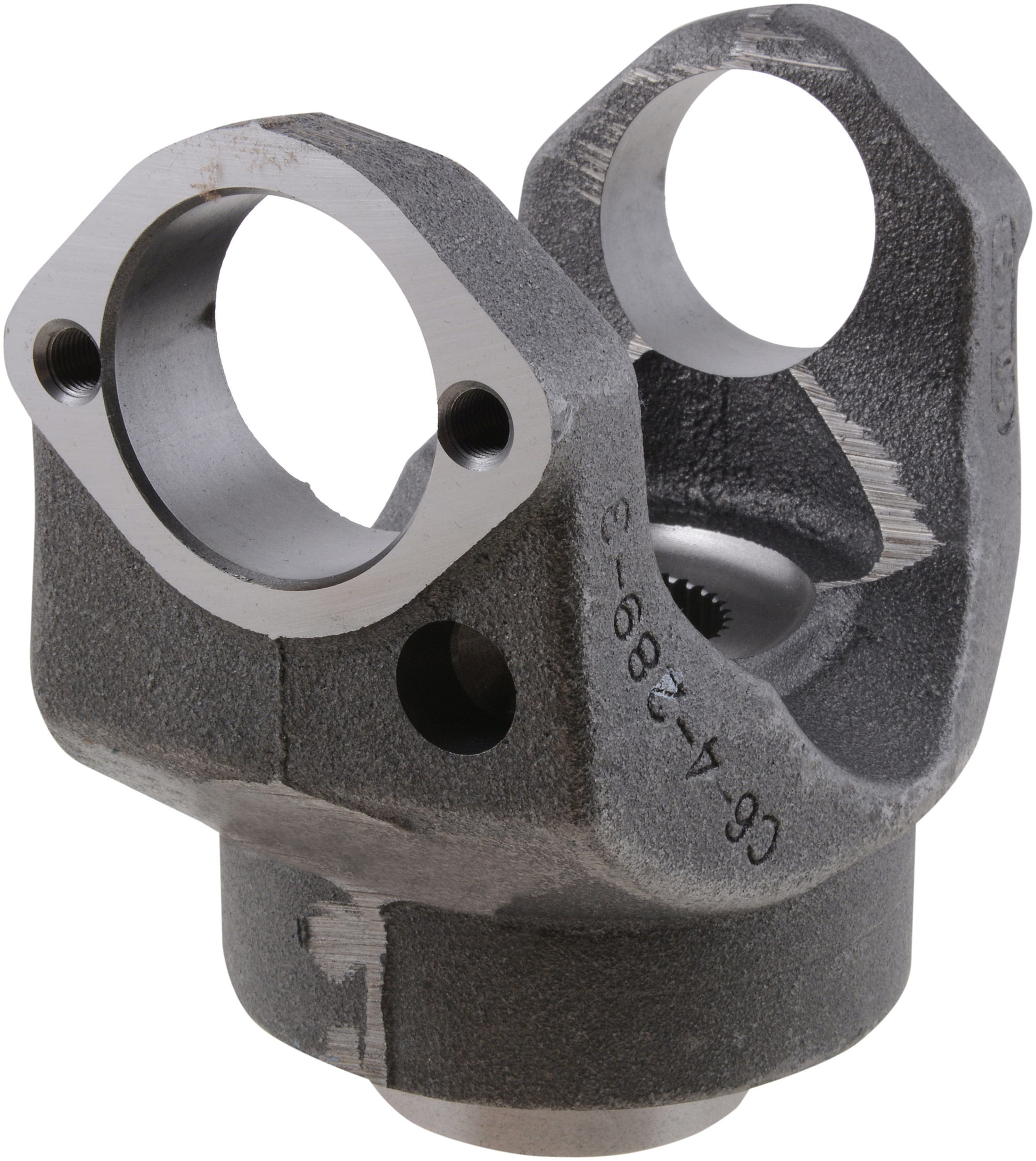

Spicer 6-4-7141 - DRIVE SHAFT END YOKE
DRIVE SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Series: 1710
Material: Steel
Spline Count: 38
Type: Splined Hole
Assembly: N
Hub Diameter R: 2.810
Includes Slinger/Plug: N
Involute Spline: Yes
Length Thru Hole Q: 3.000
Outside Yoke Dimension (In) E: 6.094
Yoke Bearing Dimension (In) D: 1.9383
Yoke Style: BP
Major Diameter: 1.998
Note: Center Bearing End Yoke/Coupling Shaft Yoke
C/L To End Hub S: 5.000
C-Bore Depth: 0.500
Joint Angle #1: 25
