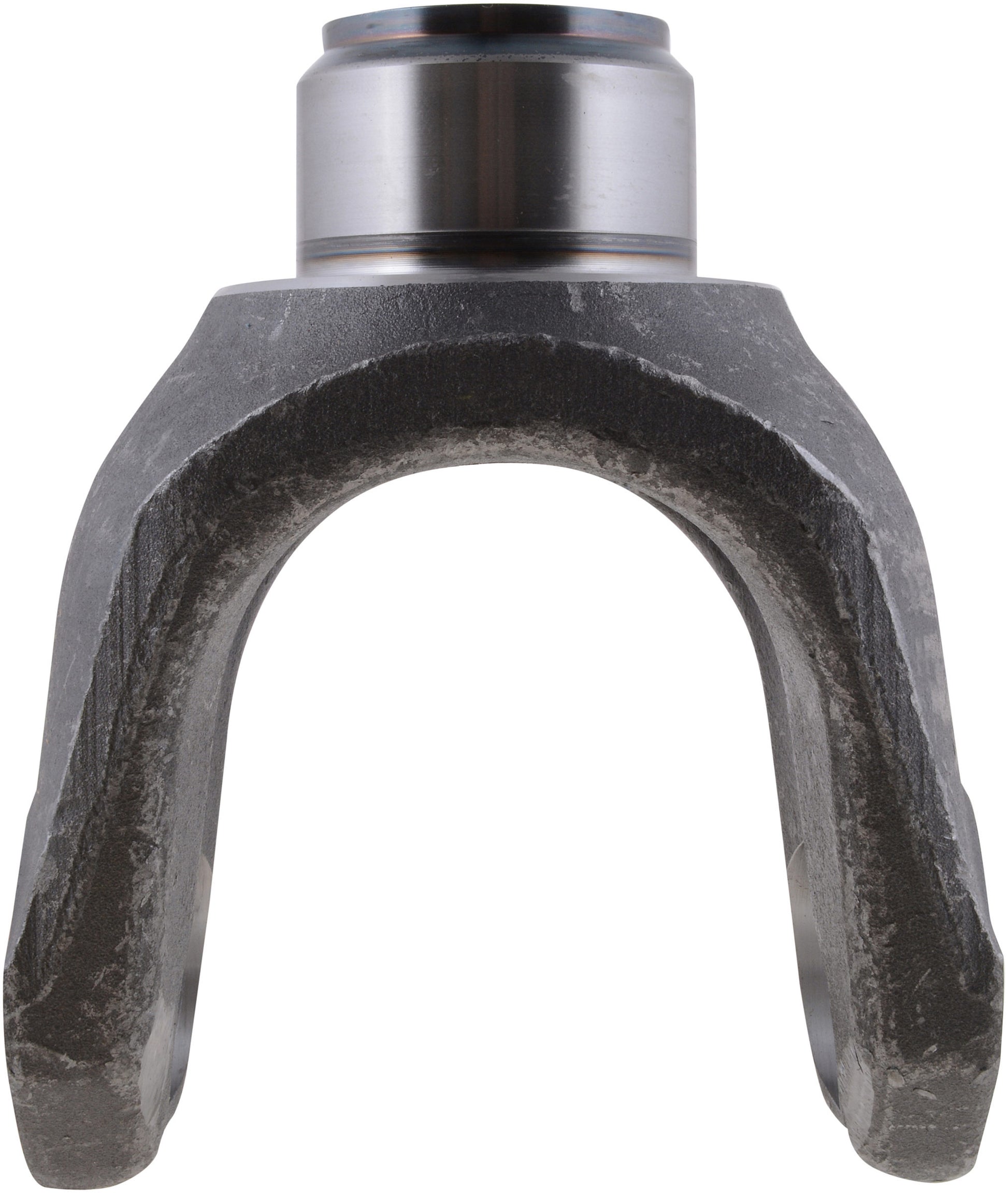

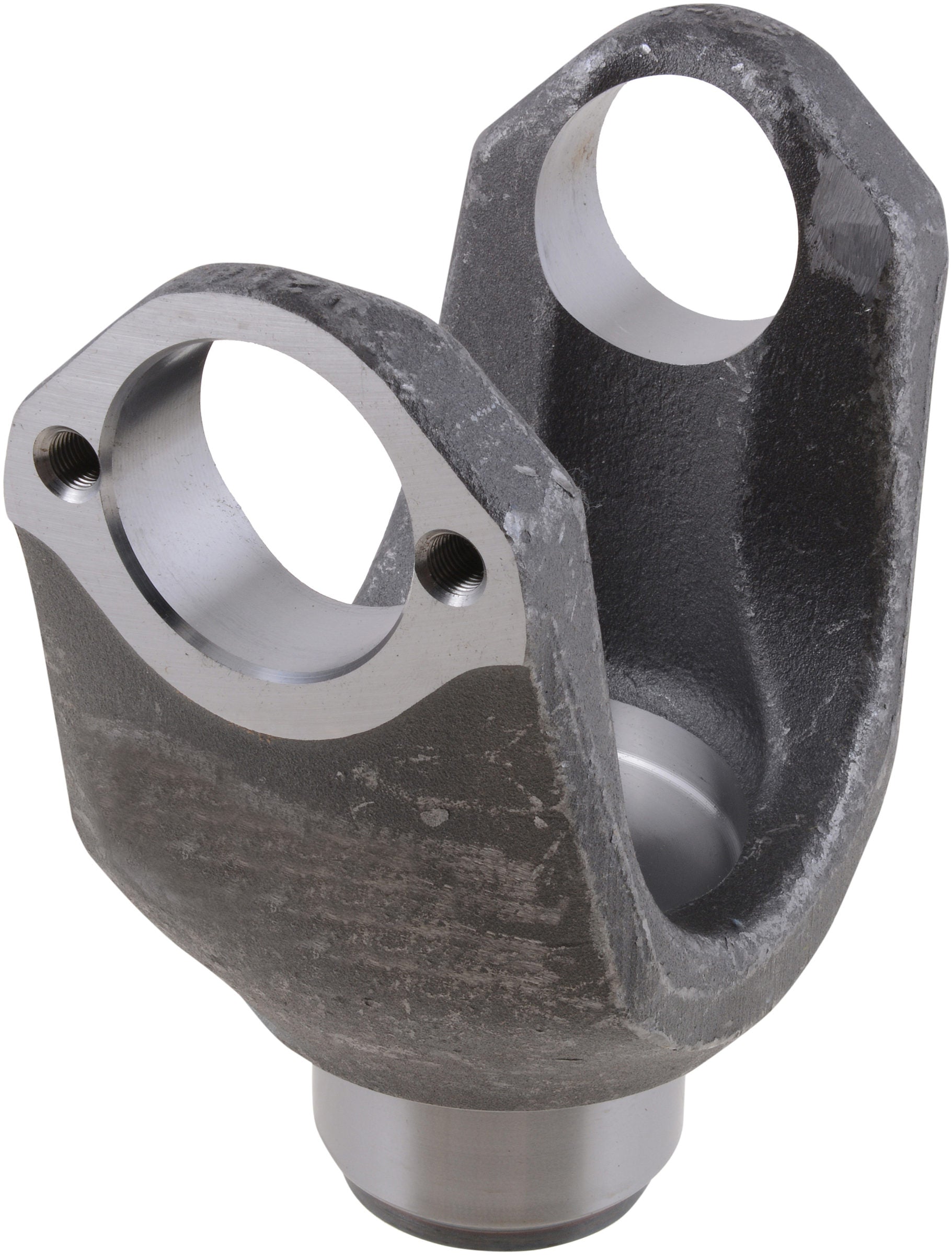

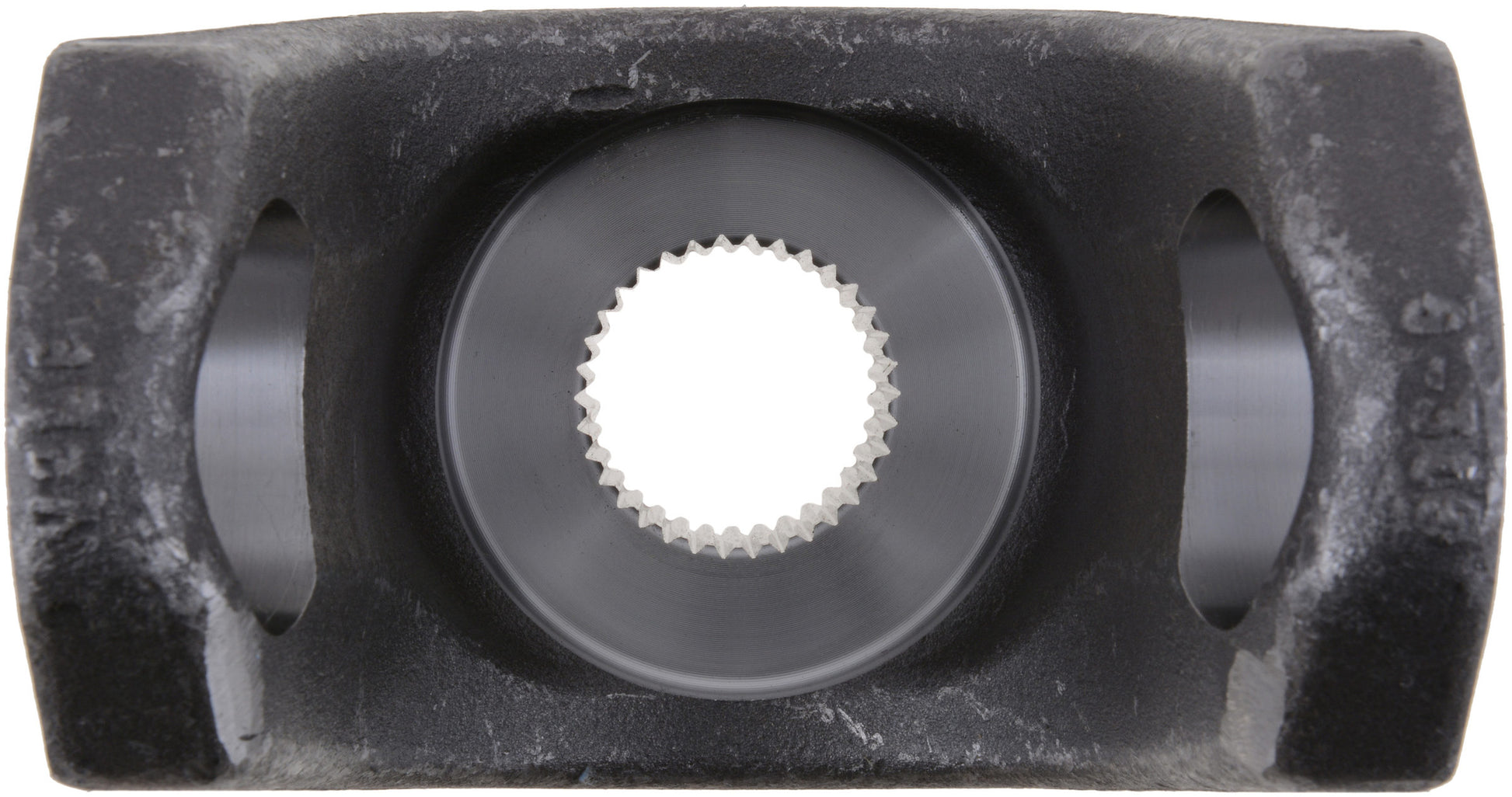

Spicer 6-4-6451 - OUTPUT SHAFT END YOKE
Spicer 6-4-6451 - OUTPUT SHAFT END YOKE
SKU: FSGR-6-4-6451
Regular price
$390.99 USD
Regular price
$525.45 USD
Sale price
$390.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 6-4-6451 - OUTPUT SHAFT END YOKE
OUTPUT SHAFT END YOKE
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Material: Steel
Spline Count: 34
Type: Splined Hole
Assembly: N
Hub Diameter R: 2.625
Includes Slinger/Plug: N
Involute Spline: I
Length Thru Hole Q: 2.438
Series: 1710
Outside Yoke Dimension (In) E: 6.094
Yoke Bearing Dimension (In) D: 1.938
Yoke Style: BP
Major Diameter: 1.790
C/L To End Hub S: 6.312
C-Bore Depth: 0.250
C-Bore Diameter: 1.810
Joint Angle #1: 45
