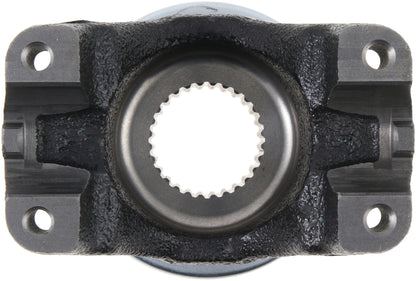

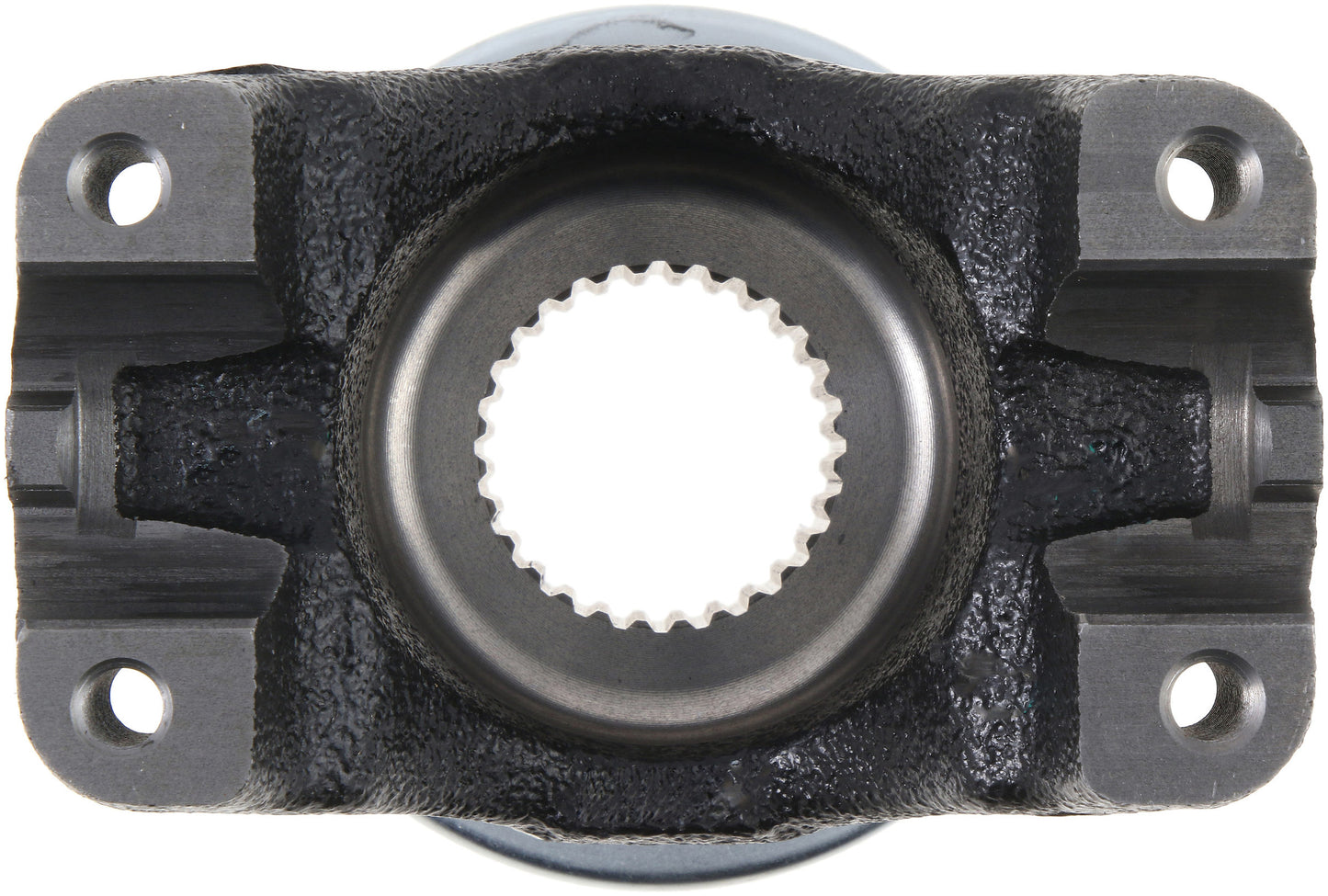

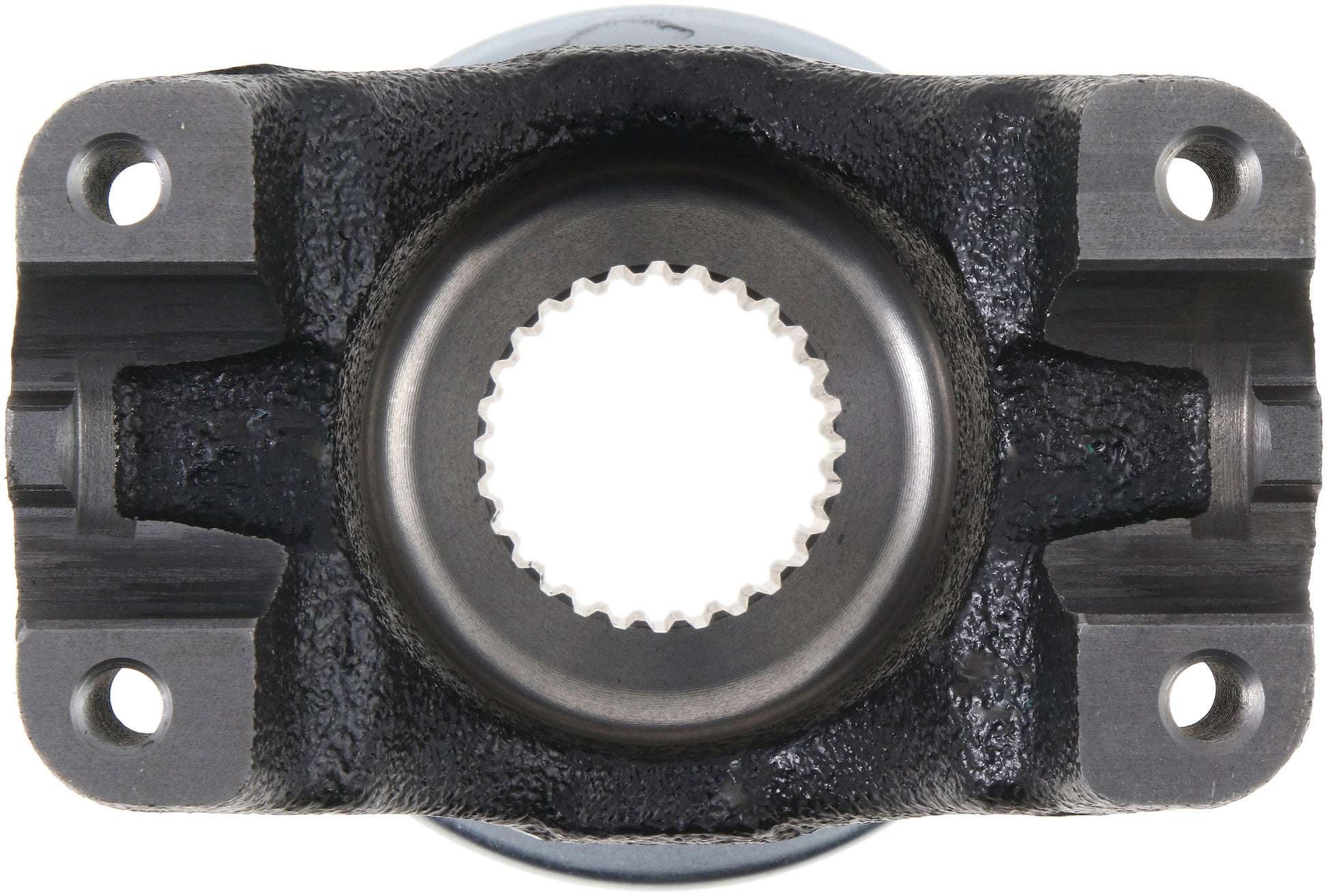

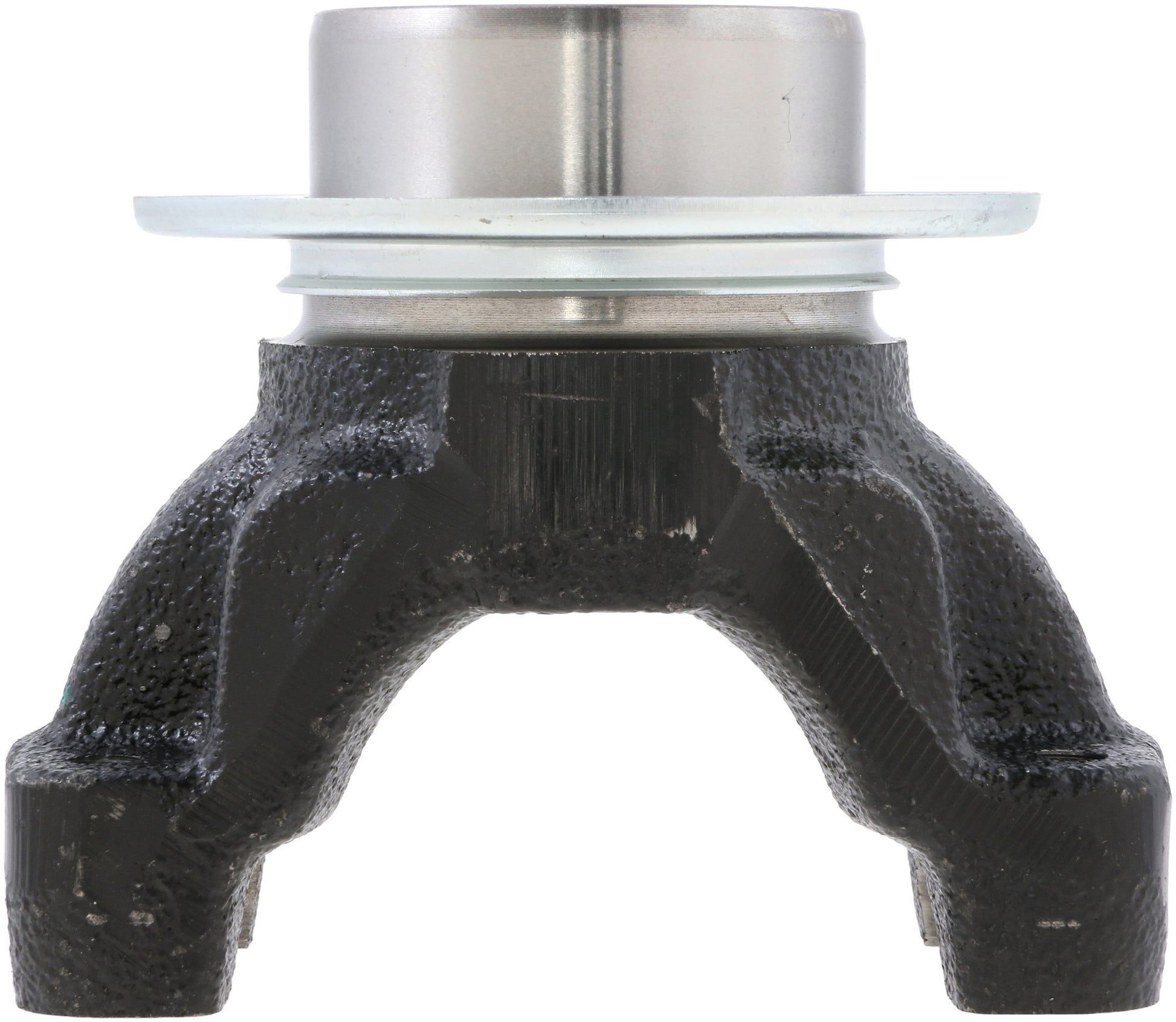

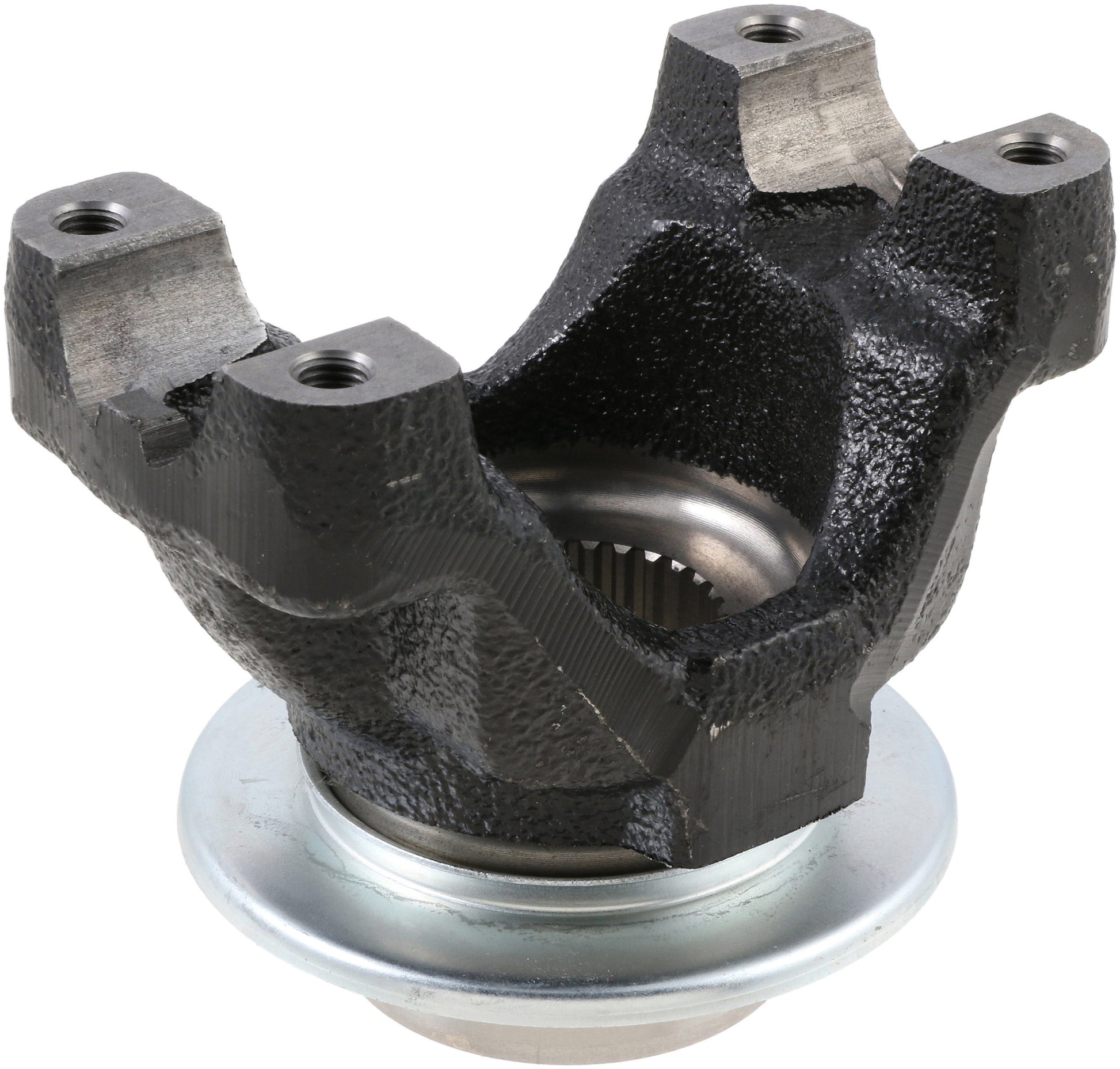

Spicer 5023764 - Differential End Yoke - Dana 60 Front Super Duty
Spicer 5023764 - Differential End Yoke - Dana 60 Front Super Duty
SKU: FSGR-5023764
Regular price
$56.99 USD
Regular price
$68.36 USD
Sale price
$56.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 5023764 - Differential End Yoke - Dana 60 Front Super Duty
Differential End Yoke - Dana 60 Front Super Duty
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: 1410
Material: Steel
Spline Count: 28
Type: Splined Hole
Assembly: Yes
Hub Diameter R: 2.2419
Includes Slinger/Plug: 2021025
Involute Spline: Yes
Length Thru Hole Q: 1.7441
Outside Yoke Dimension (In) E: 4.1838
Yoke Bearing Dimension (In) D: 1.1879
Yoke Style: HR
Major Diameter: 1.4501
C/L To End Hub S: 3.8504
C-Bore Depth: 0.3189
C-Bore Diameter: 1.7709
Joint Angle #1: 26.5
