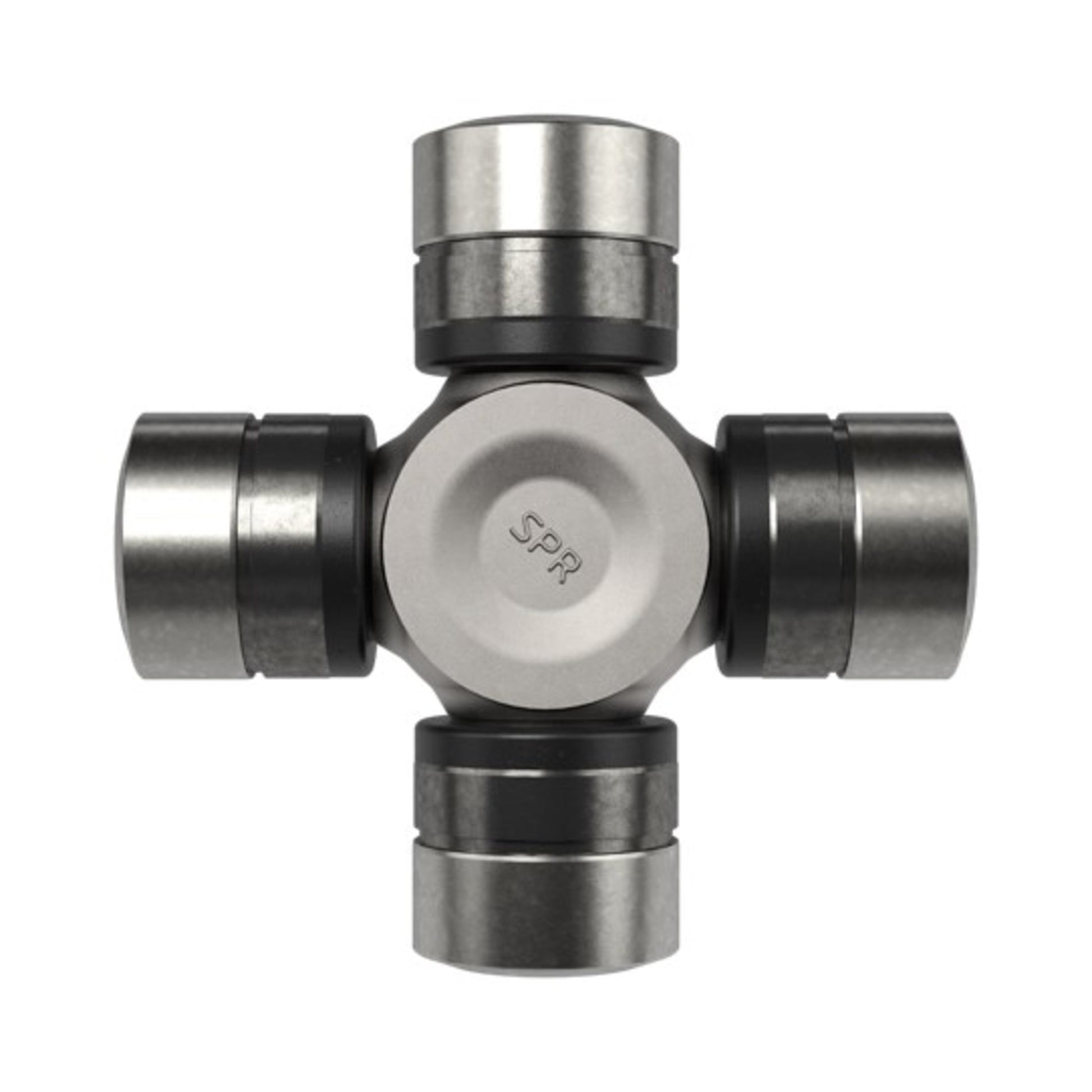

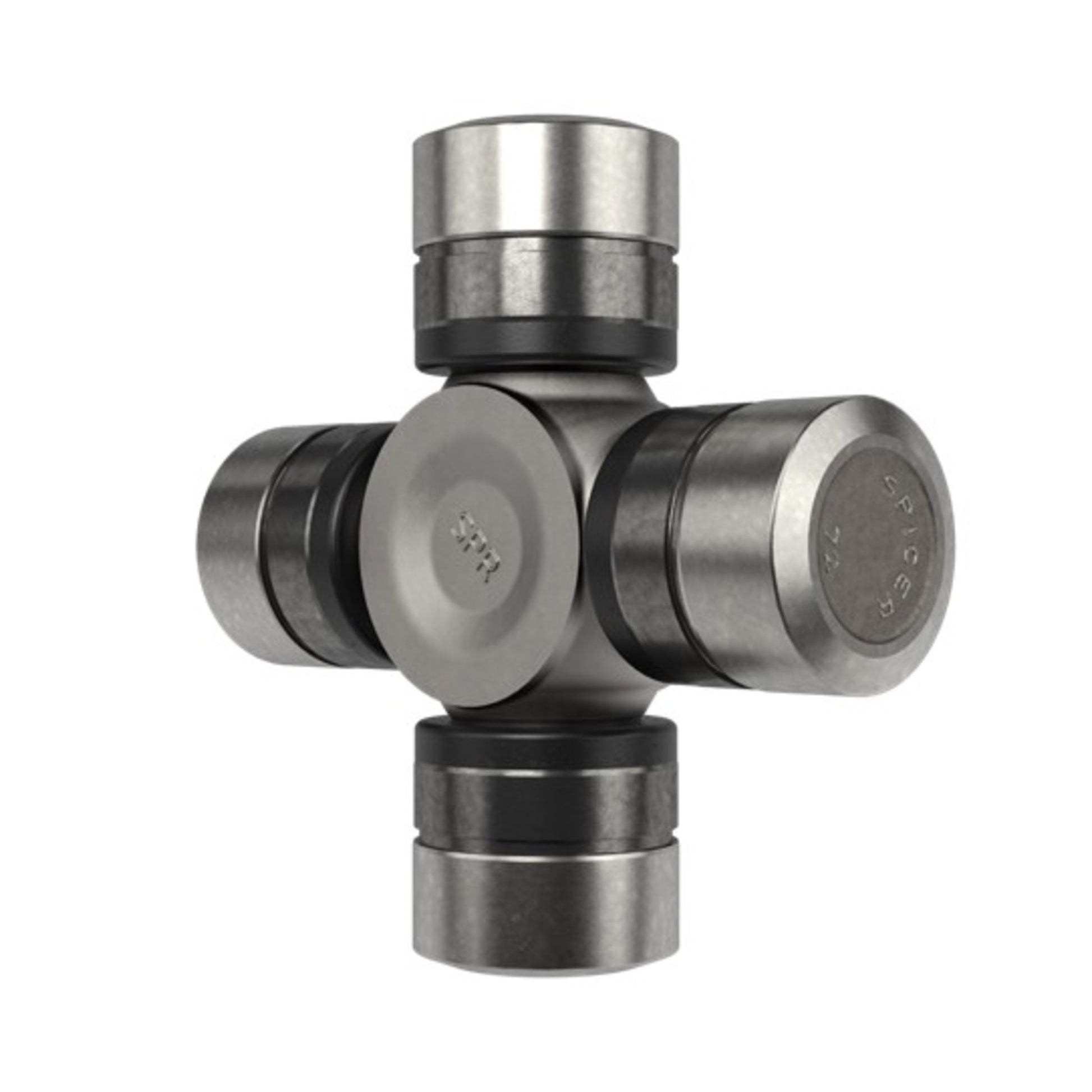

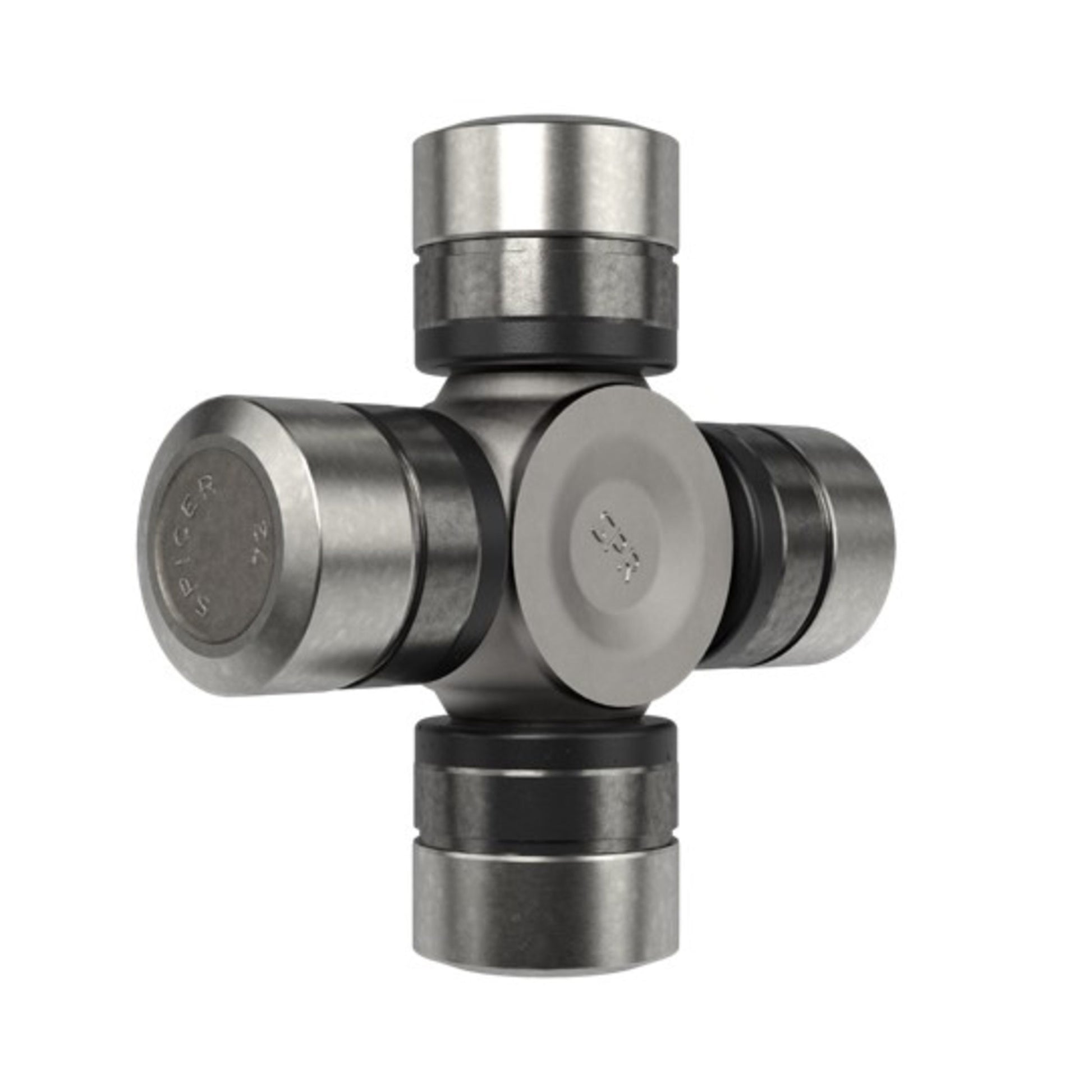

Spicer 5006813 - Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR
Spicer 5006813 - Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR
SKU: FSGR-5006813
Regular price
$78.99 USD
Regular price
$86.89 USD
Sale price
$78.99 USD
Shipping calculated at checkout.
19 in stock
Quantity
Couldn't load pickup availability
Spicer 5006813 - Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR
Universal Joint - 1485 Series - 1.375 in Bearing Caps - Clips Included - Steel - Natural - Each
Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

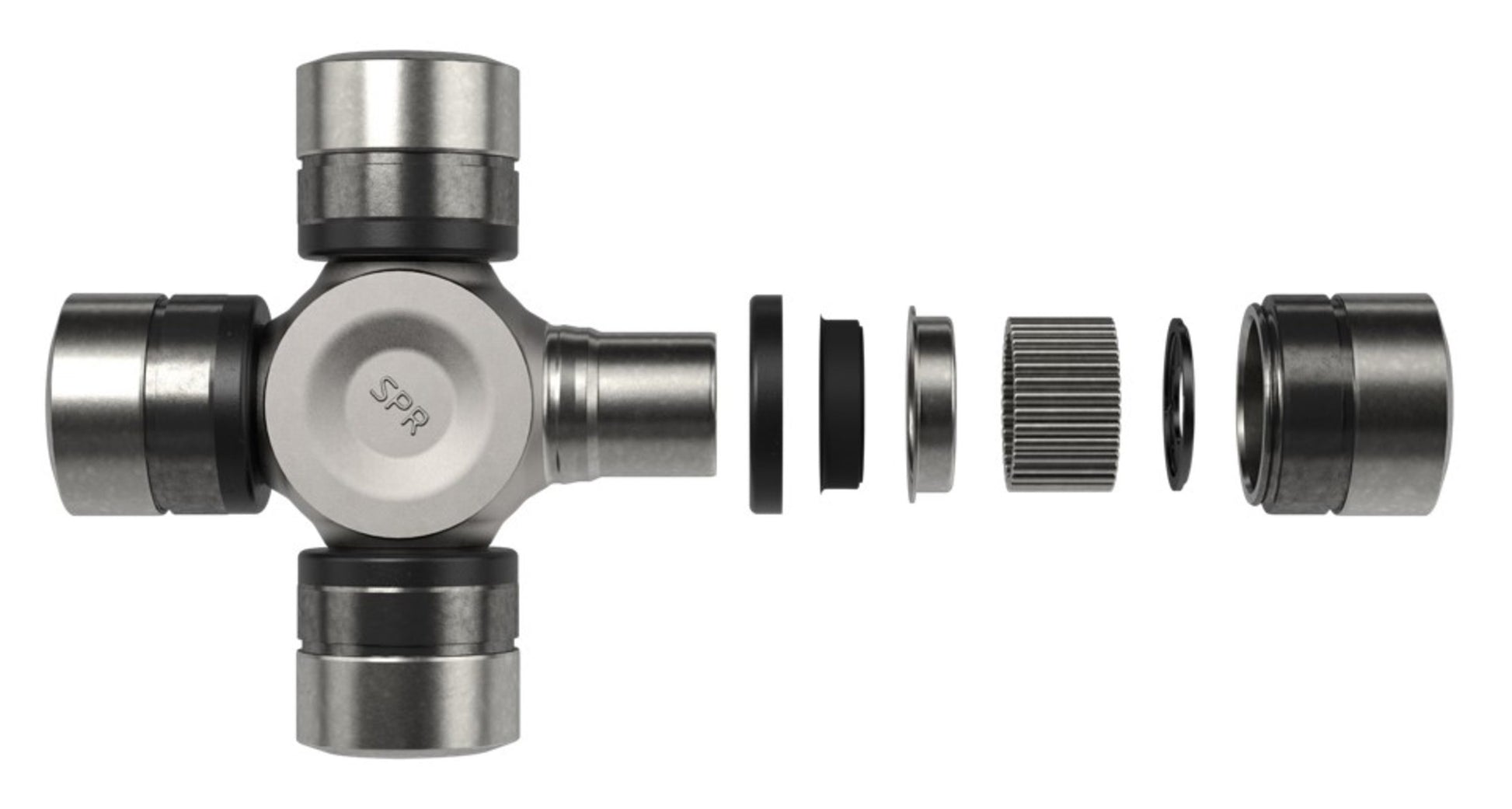

- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel

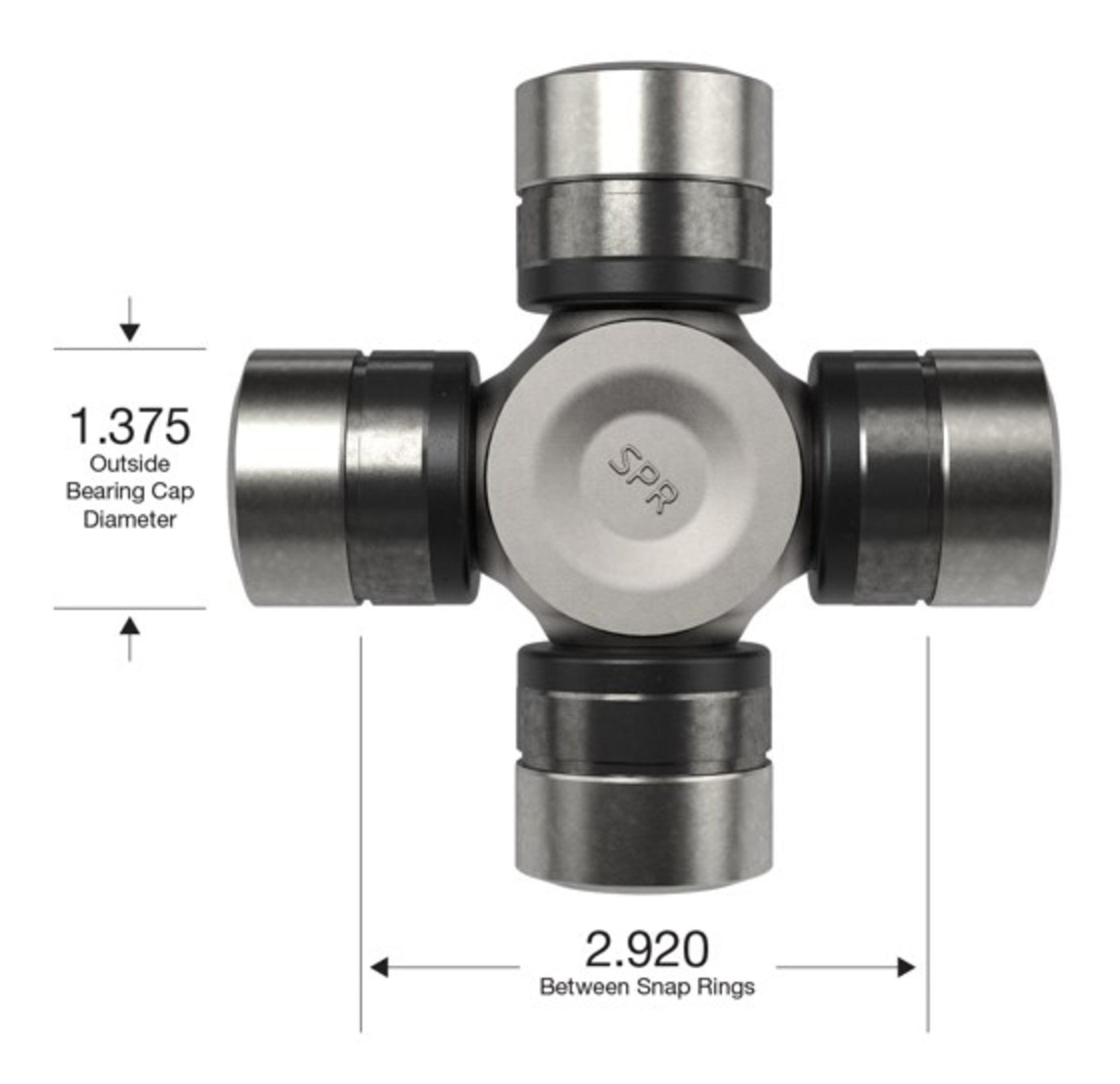

Bearing Cap Diameter (1): 1.375
OEM Mfg: AAM
OEM Series: AAM 1485WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.375
Bearing Cap Type: Round with ISR Groove

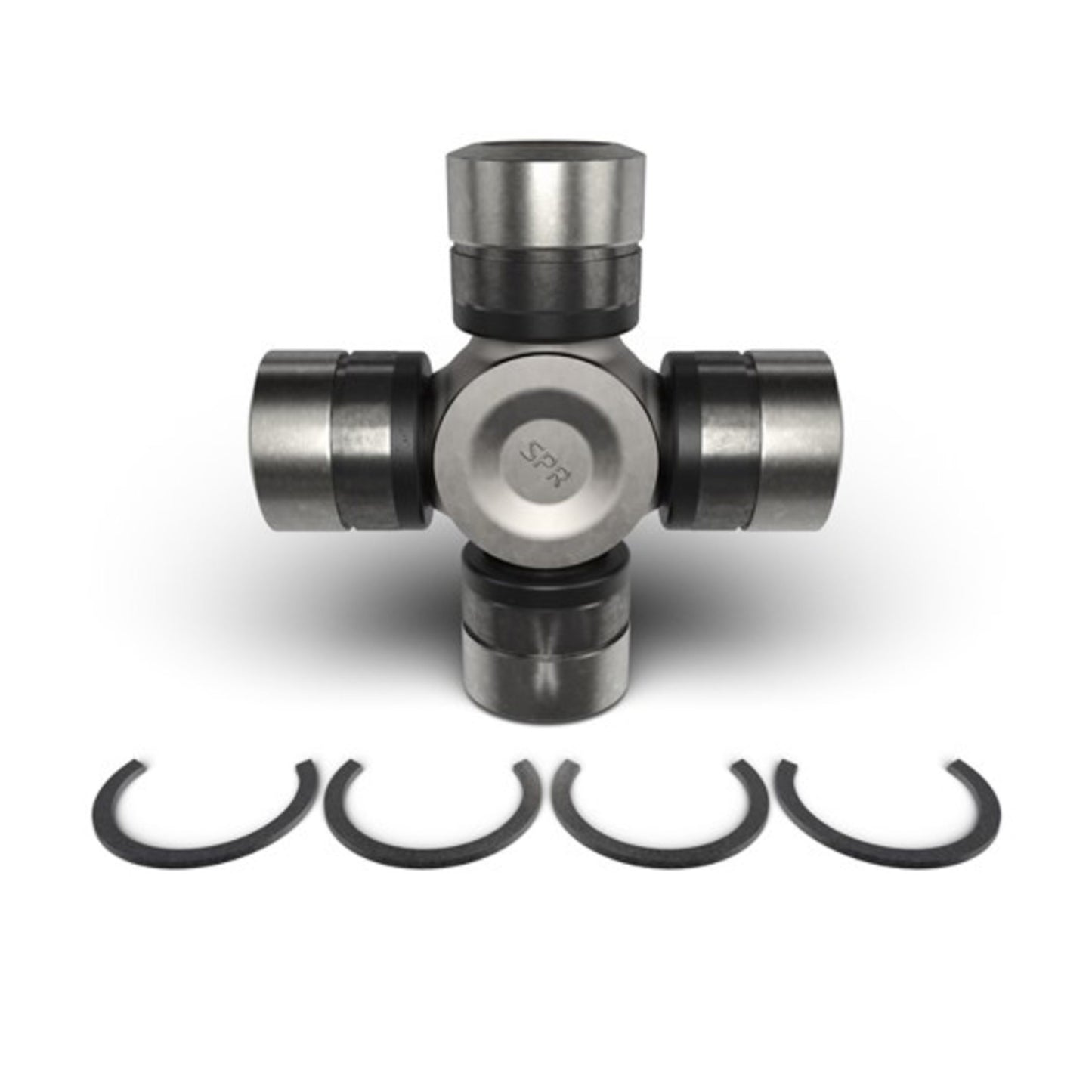

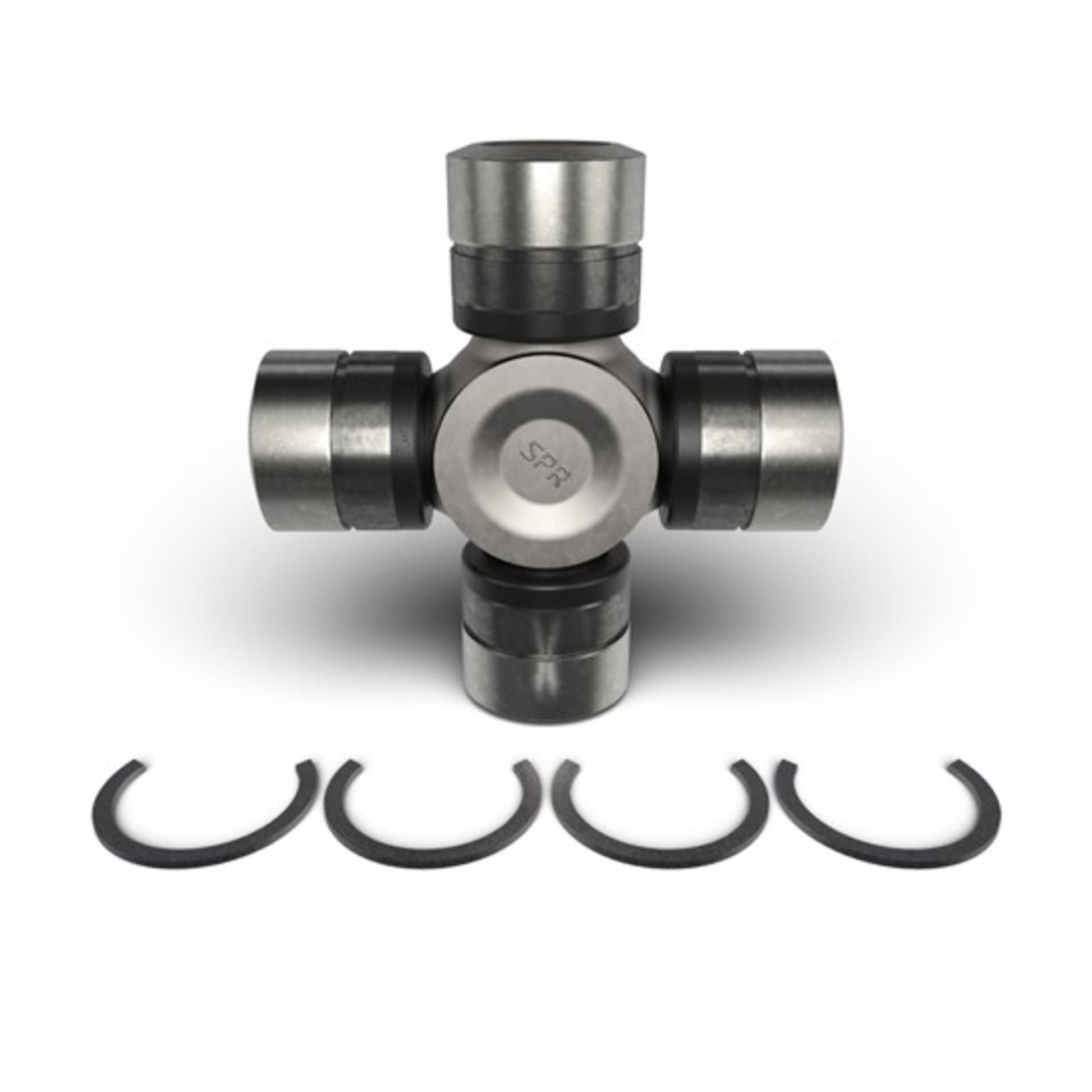

Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Not Required
Pre Greased: Yes
Bearing Cap Finish: Ground
Coating Type: None
Grease Type: N.L.G.I. Grade 2
Model Number: AAM 1485WJ
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: No
Bearing Cap Diameter A (mm): 34.925
Bearing Cap Diameter B (mm): 34.925
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 2.920
Length A (mm): 74.168
Length B (In): 2.920
Length B (mm): 74.168
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 2.920
Distance Btw Snap Ring Grooves (ISR) (2): 2.920
