Spicer 5-760X - Axle Shaft Universal Joint; Non-Greaseable

Spicer 5-760X - Axle Shaft Universal Joint; Non-Greaseable

Spicer | 5-760X
SKU: FSGR-5-760X
Regular price $34.99 USD
Regular price $38.49 USD Sale price $34.99 USD
Sale Sold out
Shipping calculated at checkout.

63 in stock

Quantity

Spicer 5-760X - Axle Shaft Universal Joint; Non-Greaseable

Universal Joint - 1310WJ Series - 1.188 in Bearing Caps - Clips Included - Steel - Natural - Each

Axle Shaft Universal Joint; Non-Greaseable

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

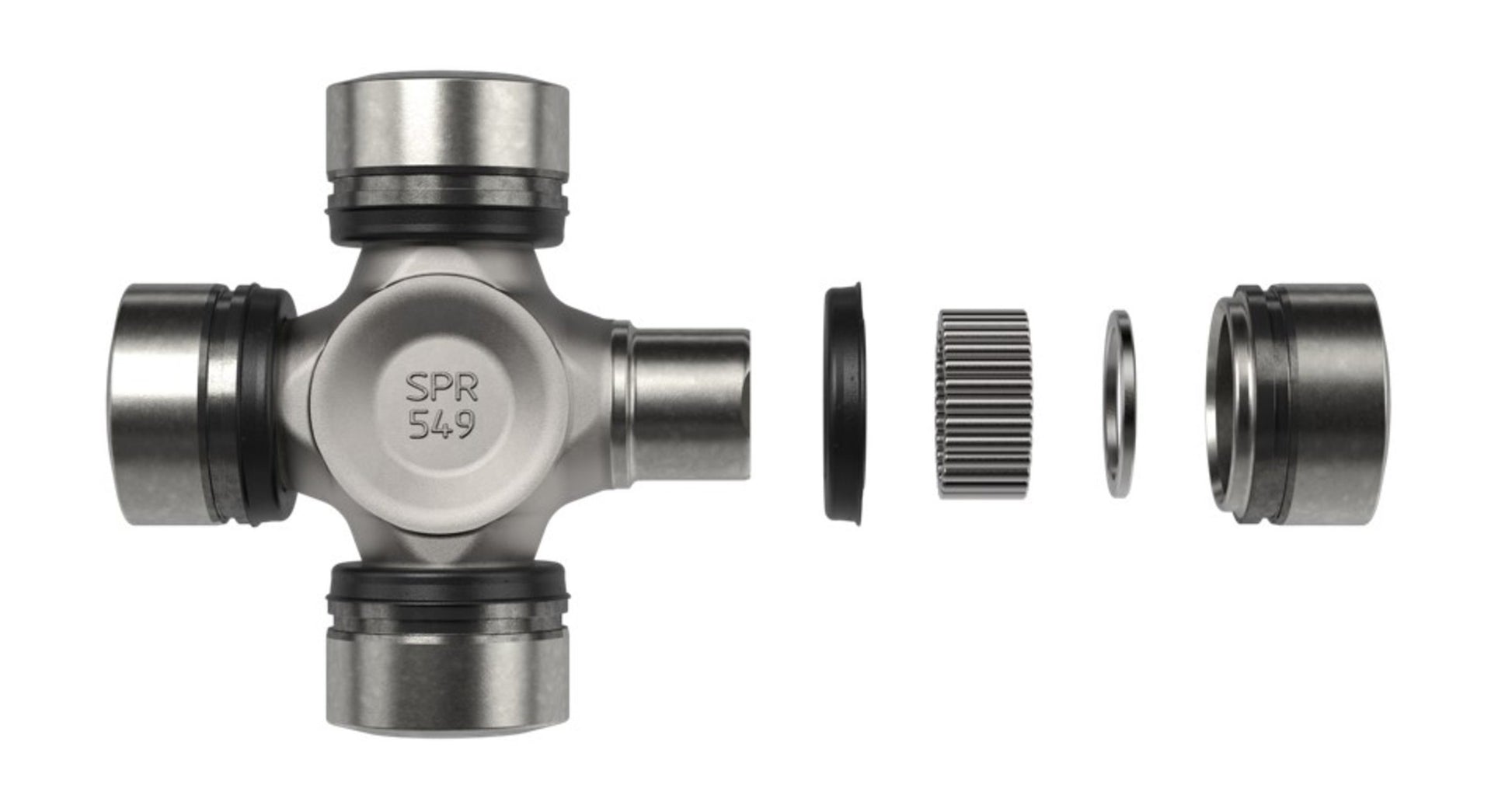

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel

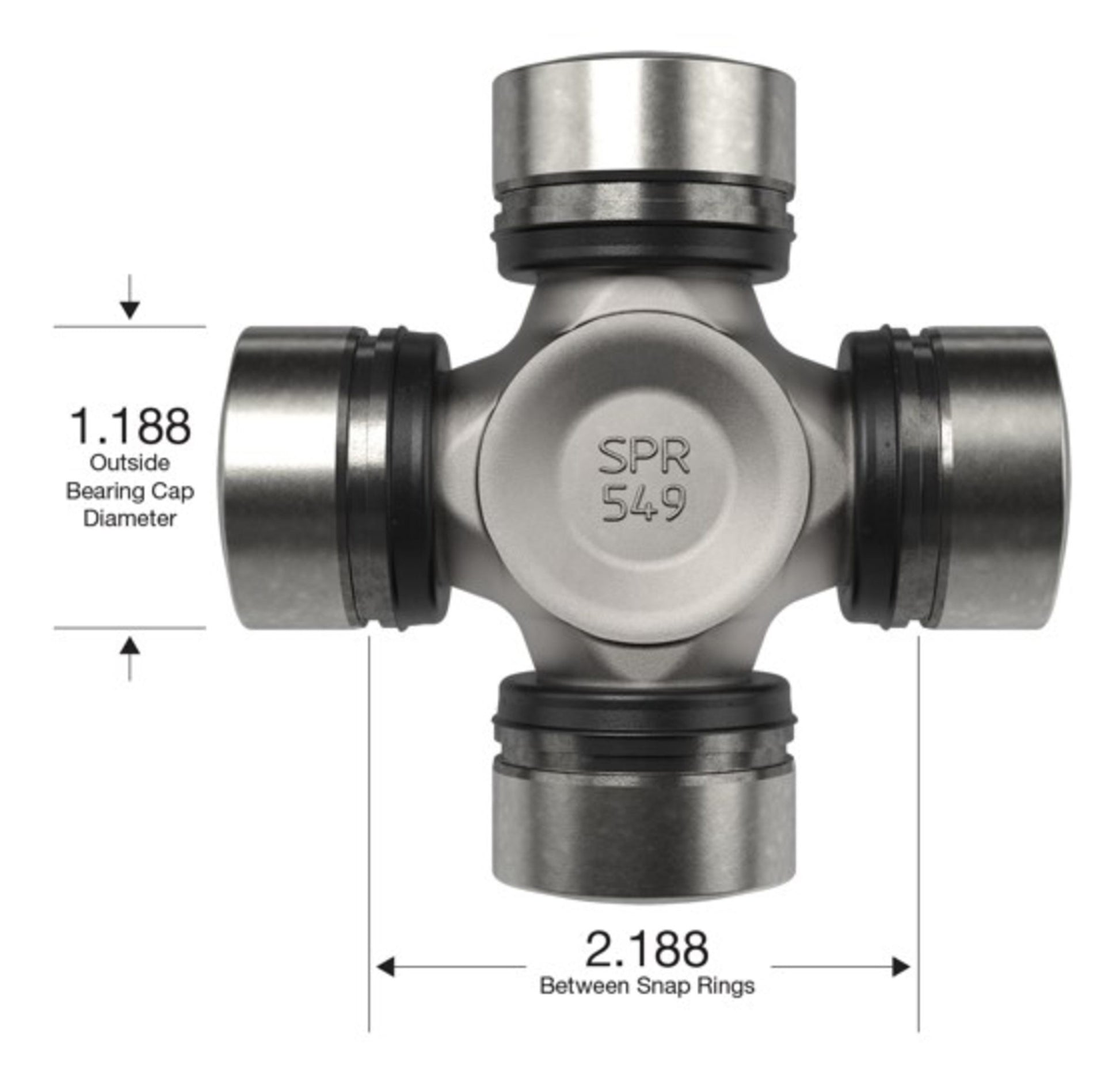

Bearing Cap Diameter (1): 1.188
OEM Mfg: Spicer
OEM Series: 1310WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.188
Bearing Cap Type: Round with ISR Groove

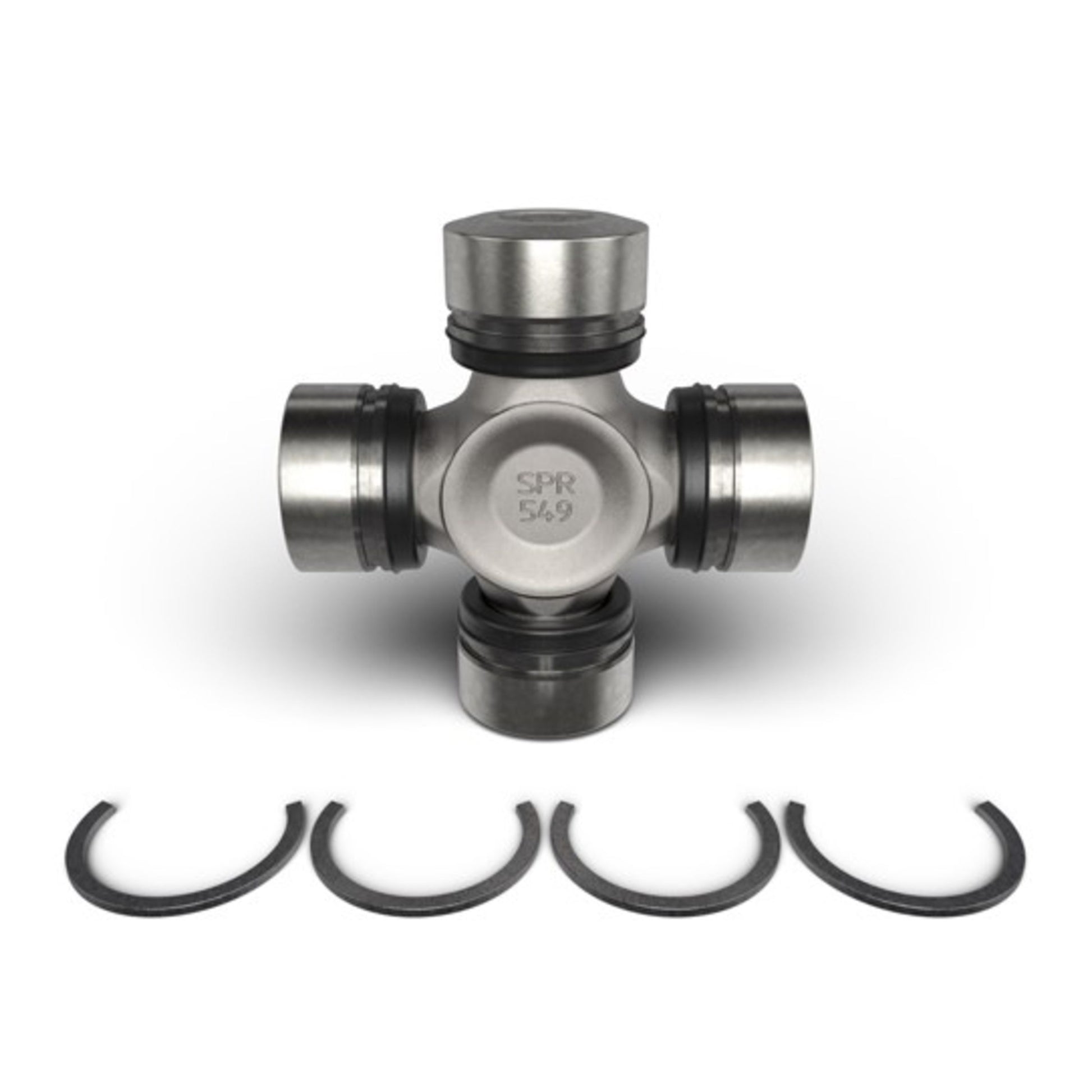

Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Not Required
Pre Greased: Yes
Bearing Cap Finish: Ground
Coating Type: None
Grease Type: N.L.G.I. Grade 2
Model Number: Spicer 1310WJ
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: No
Bearing Cap Diameter A (mm): 30.175
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 2.188
Length A (mm): 55.575
Length B (In): 2.188
Length B (mm): 55.575
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 2.188
Distance Btw Snap Ring Grooves (ISR) (2): 2.188
