Spicer 5-746X - Universal Joint; Greaseable
Spicer 5-746X - Universal Joint; Greaseable
SKU: FSGR-5-746X
Regular price
$101.99 USD
Regular price
$136.13 USD
Sale price
$101.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

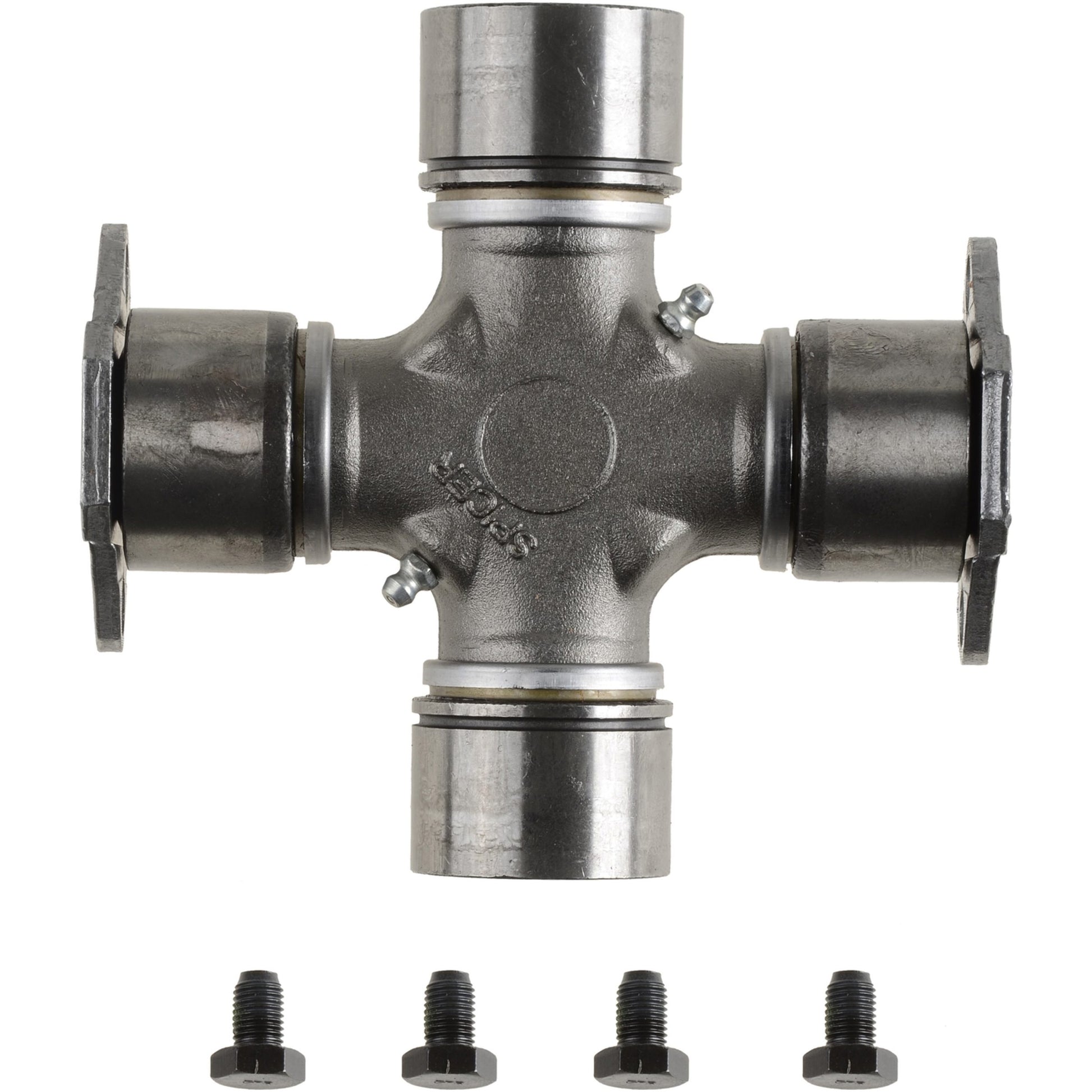

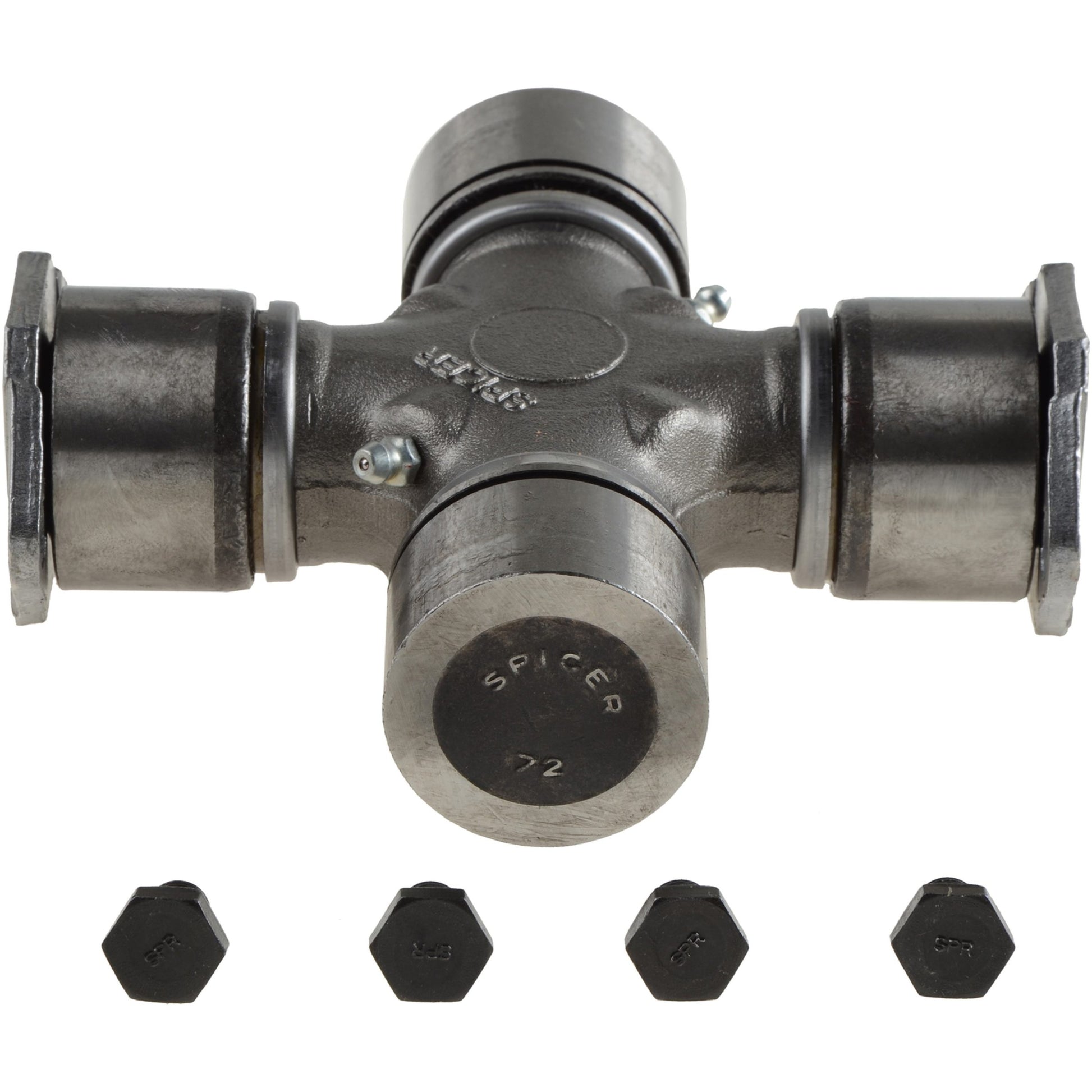

Spicer 5-746X - Universal Joint; Greaseable
Universal Joint; Greaseable
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
Material: Steel
Bearing Cap Diameter (1): 1.938
Bearing Plate (1): 6.094
OEM Mfg: Spicer
OEM Series: 1710
Type: HR Style
Bearing Cap Diameter (2): 1.938
Distance Between Bolts (1): 2.437
Bearing Cap Type: Bearing Plate X Round
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Side of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 49.225
Bearing Cap Diameter B (mm): 49.225
Bearing Cap Type A: Bearing Plate
Bearing Cap Type B: Round
Hardware Included: Yes
Length A (In): 6.094
Length A (mm): 154.788
Length B (In): 6.094
Length B (mm): 154.788
Mounting Hardware Included: Yes
SR(2)Brng Cap to Brng Cap(OSR): 6.094
Notes: Includes M10 X 1.25 Metric Bolts used on Bearing Cap
