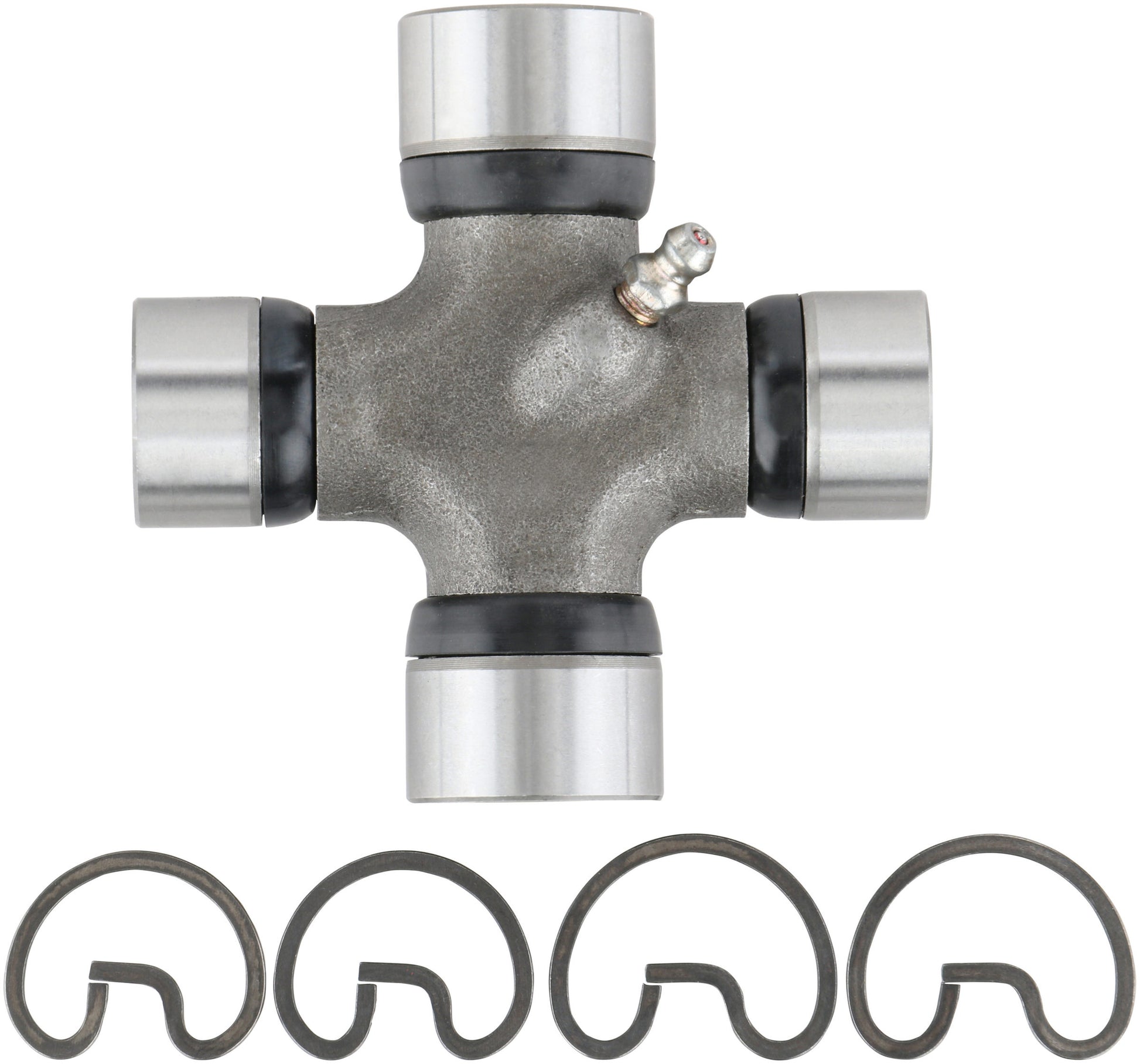

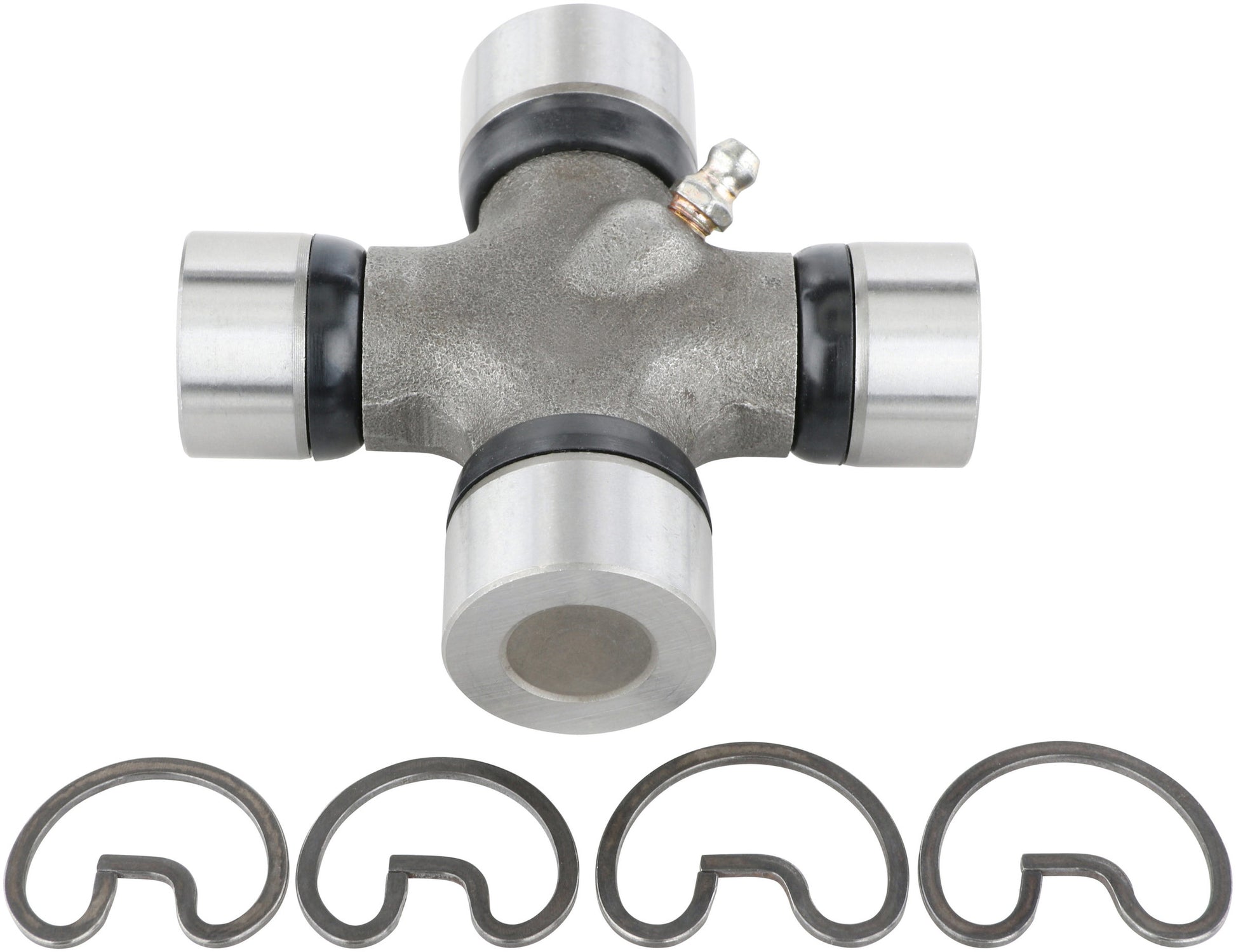

Spicer 5-648X - Universal Joint Greaseable; Conversion U-joint 1330 to 1350 Series
Spicer 5-648X - Universal Joint Greaseable; Conversion U-joint 1330 to 1350 Series
SKU: FSGR-5-648X
Regular price
$53.99 USD
Regular price
$59.39 USD
Sale price
$53.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability
Spicer 5-648X - Universal Joint Greaseable; Conversion U-joint 1330 to 1350 Series
Universal Joint - 1330 to 1350 Series - 1.062 in and 1.188 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint Greaseable; Conversion U-joint 1330 to 1350 Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
Material: Steel
Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1330/1350
Type: OSR Style
Bearing Cap Diameter (2): 1.188
Converts This Series: 1330
To This Series: 1350
Bearing Cap Type: Round
Snap Ring Included: Yes
Snap Ring Type: External
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Side of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 26.975
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: No
Length A (In): 3.625
Length A (mm): 92.075
Length B (In): 3.625
Length B (mm): 92.075
Mounting Hardware Included: No
SR(1)Brng Cap to Brng Cap(OSR): 3.625
SR(2)Brng Cap to Brng Cap(OSR): 3.625
