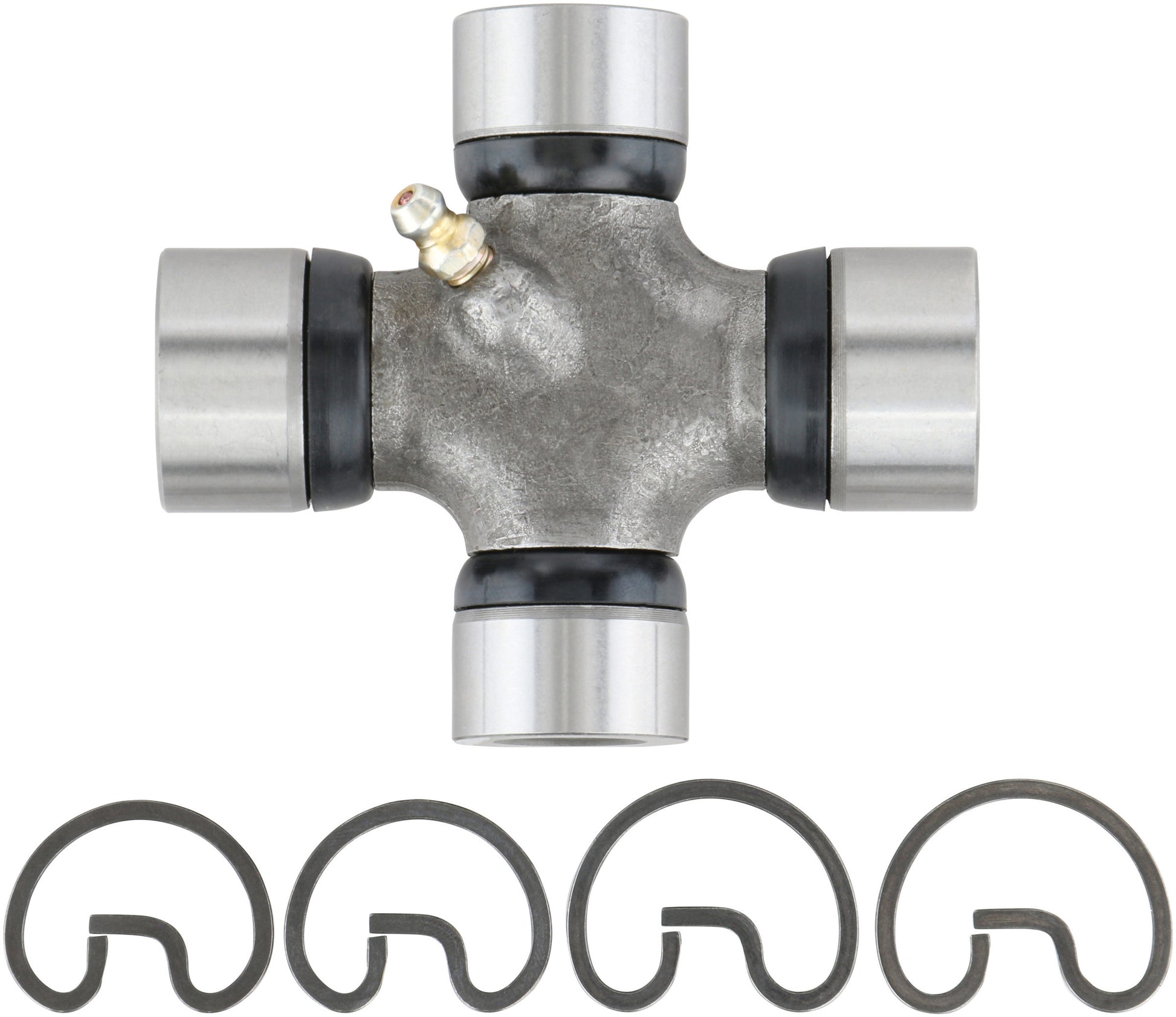

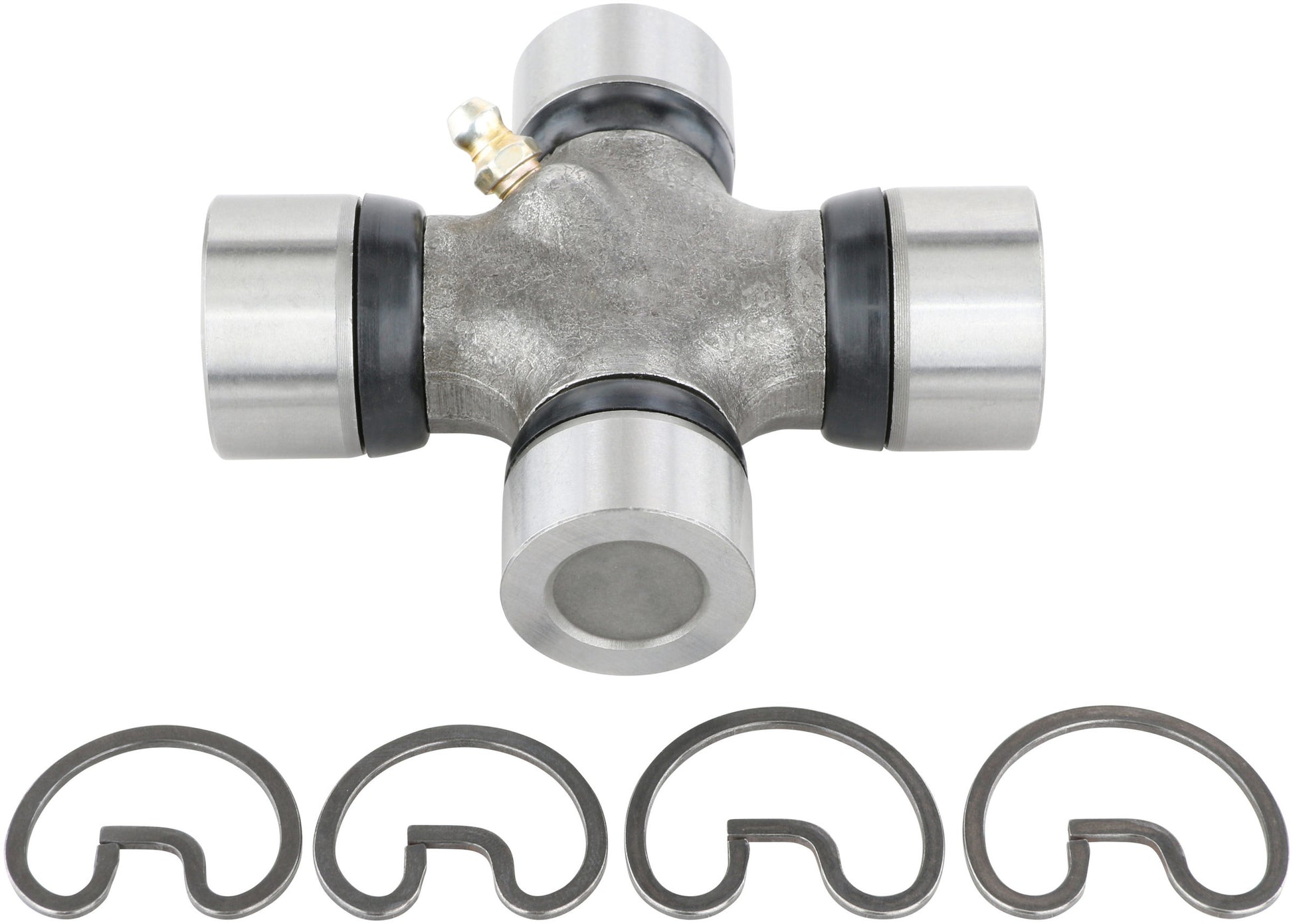

Spicer - 5-460X
Universal Joint - 1310 to 1350 Series - 1.062 in and 1.188 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Conversion Universal Joint Greaseable 1310 to 1350 Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1310/1350
Type: OSR Style
Bearing Cap Diameter (2): 1.188
Converts This Series: 1310
To This Series: 1350
Bearing Cap Type: Round
Snap Ring Included: Y
Snap Ring Type: External
Grease Zerk Included: Y
Grease Fitting Location: Side of Cross
Greaseable: Y
Bearing Cap Diameter A (mm): 26.975
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 3.219
SR(2)Brng Cap to Brng Cap(OSR): 3.625
