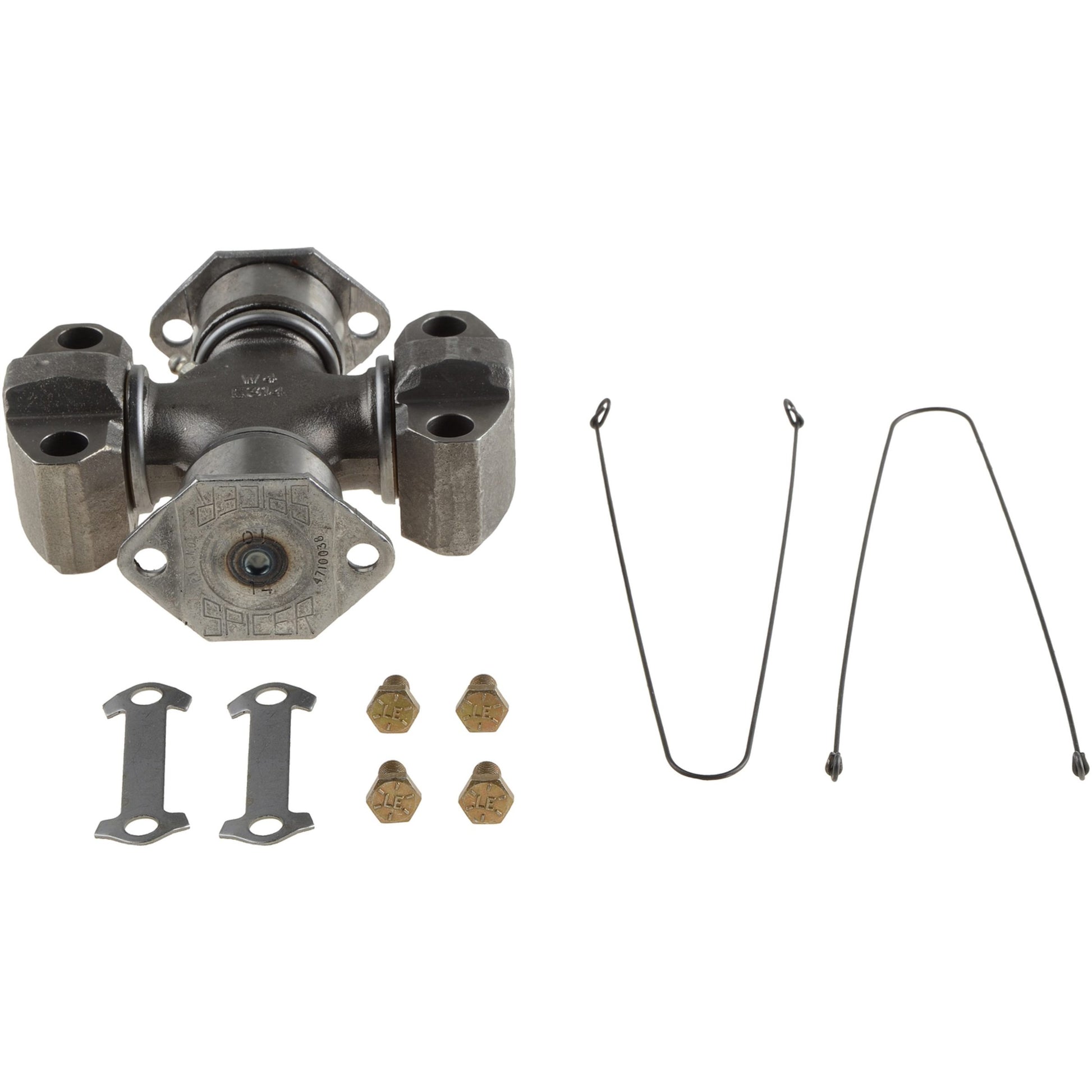

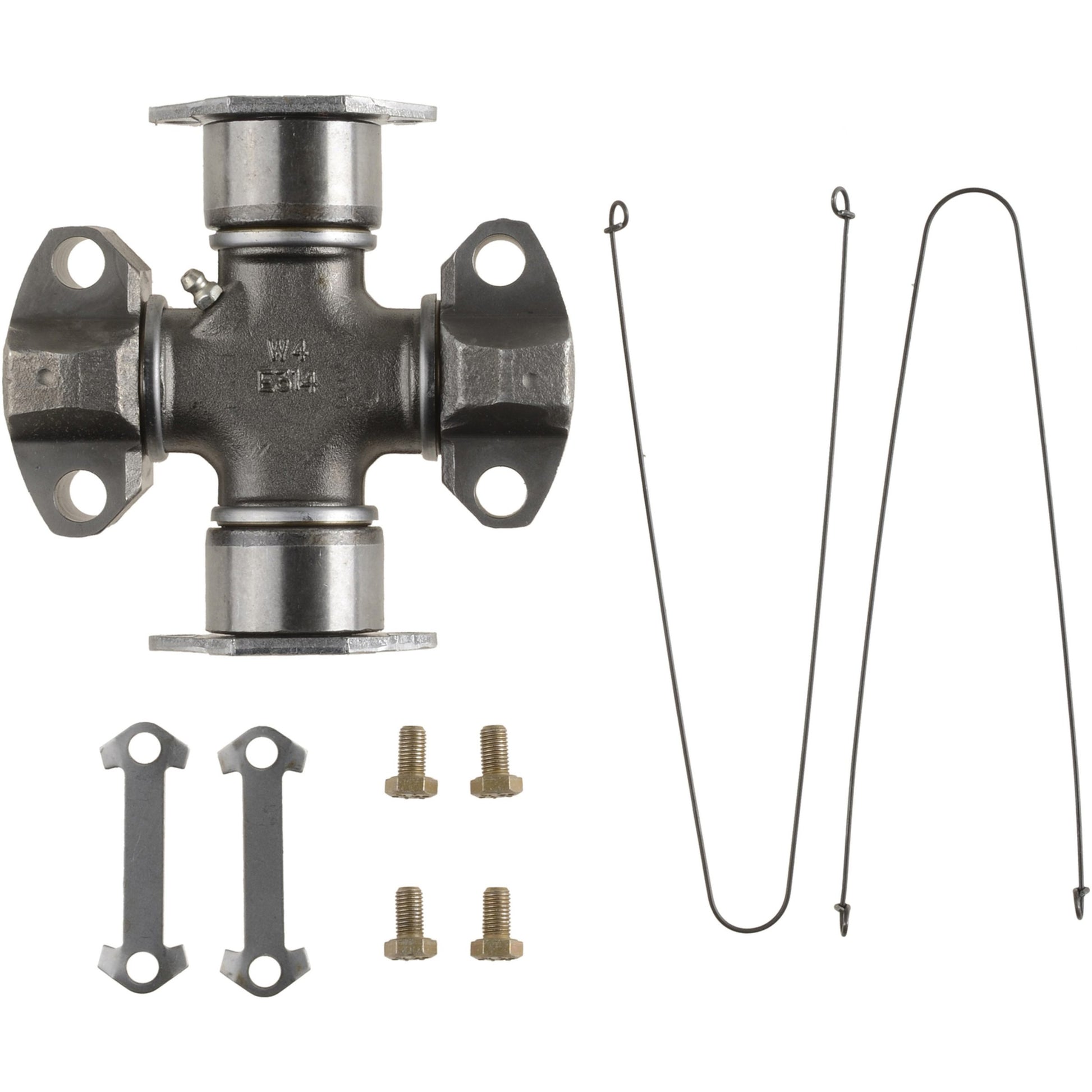

Spicer 5-450X - Universal Joint Greaseable Bradley to 1610 Series BP X WB Style

Spicer 5-450X - Universal Joint Greaseable Bradley to 1610 Series BP X WB Style

Spicer | 5-450X
SKU: FSGR-5-450X
Regular price $485.99 USD
Regular price $652.60 USD Sale price $485.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-450X - Universal Joint Greaseable Bradley to 1610 Series BP X WB Style

Universal Joint Greaseable Bradley to 1610 Series BP X WB Style

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.875
Bearing Plate (1): 5.312
OEM Series: 1610/Bradley
Type: BP/WB Style
Converts This Series: BRADLEY
Pilot Diameter: 5.606
To This Series: 1610
Distance Between Bolts (2): 2.400
Wb Type (2): HWD
Bearing Cap Type: BP/WB Style
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Side of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 47.625
Bearing Cap Type A: Bearing Plate
Bearing Cap Type B: HWD
Hardware Included: Yes
Length A (In): 5.312
Length A (mm): 134.925
Mounting Hardware Included: Yes
Wing Bearing Type: HWD
Wing Bearing Type Pilot Diam.: 5.606
