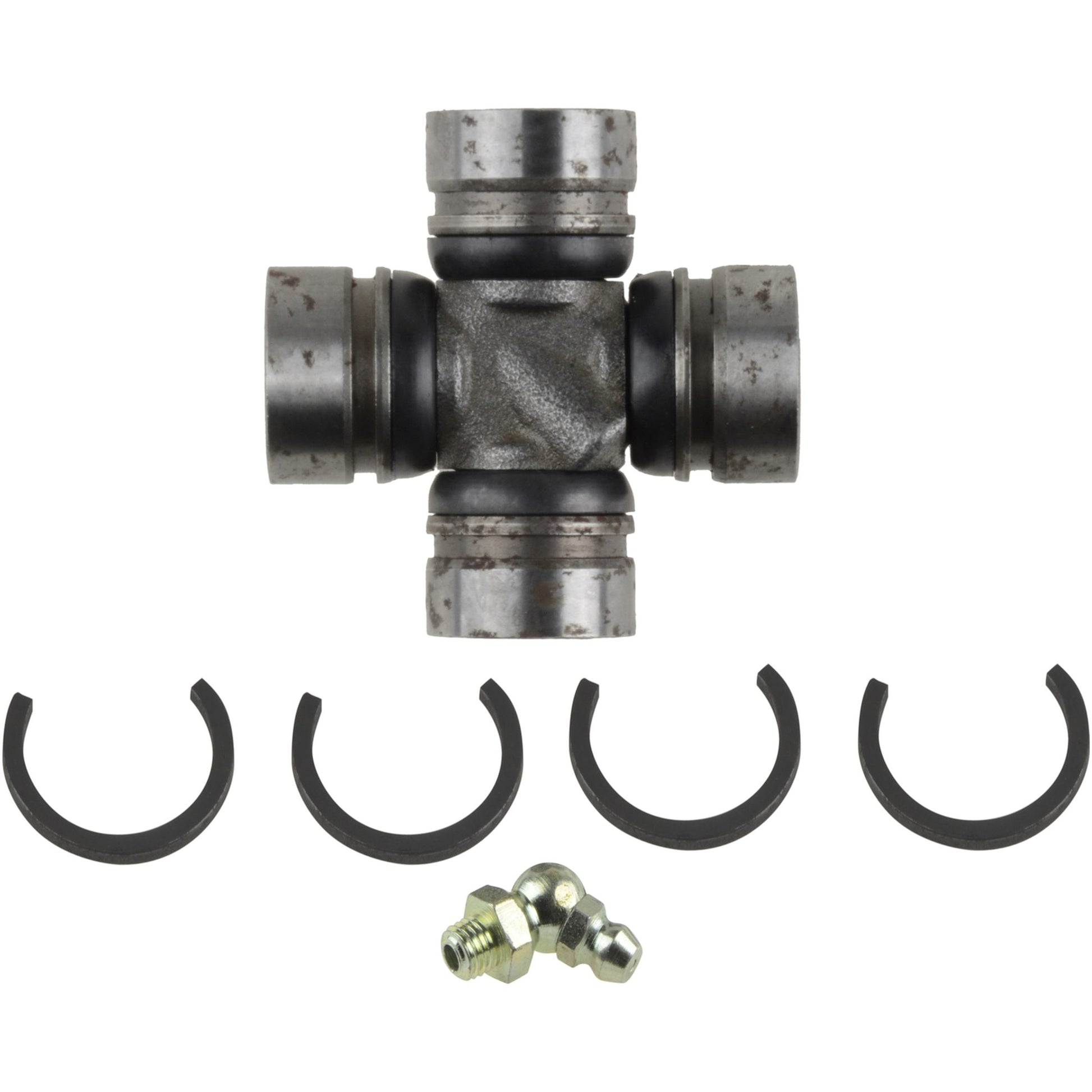

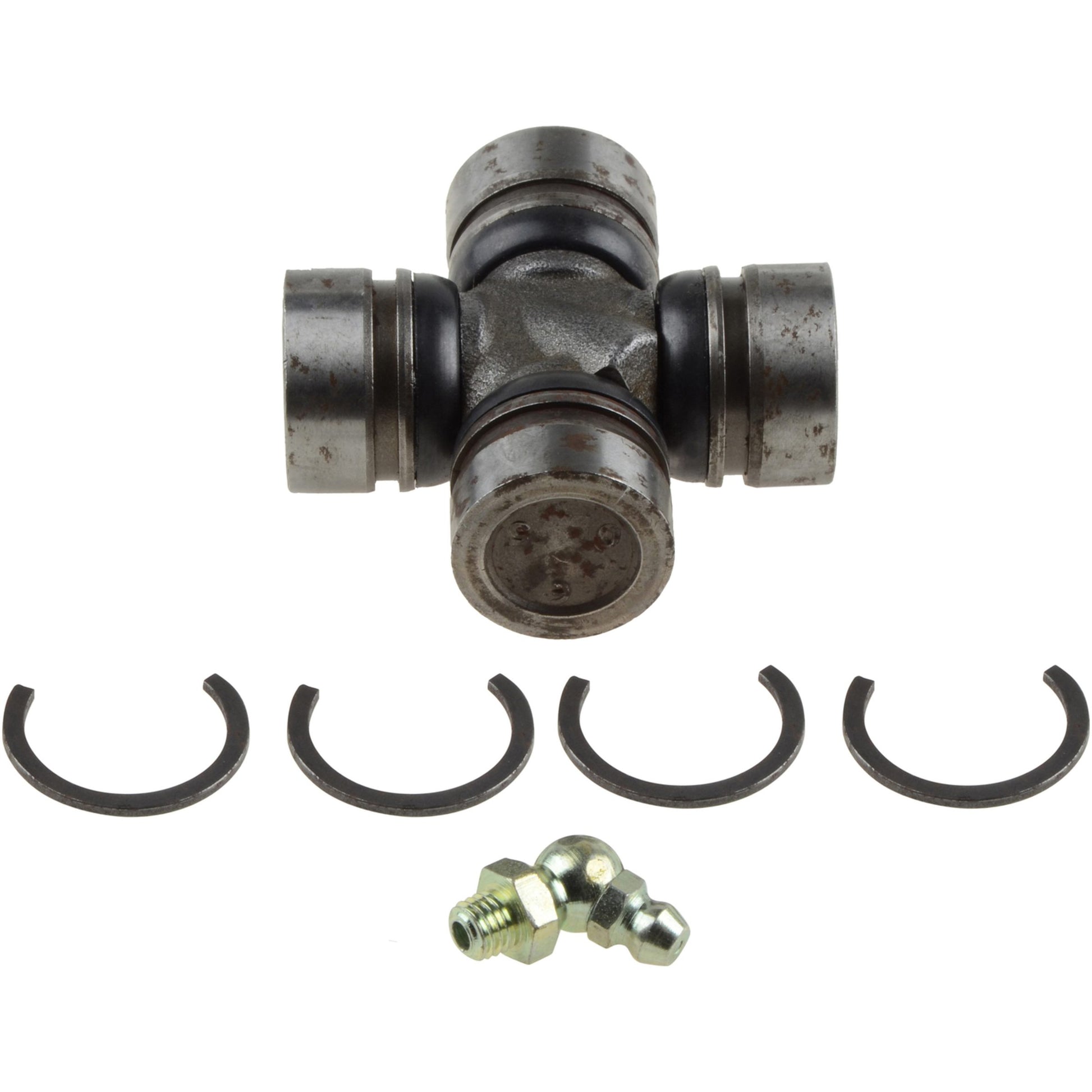

Spicer 5-430X - Universal Joint Greaseable 1000 X L6N Series Conversion Joint

Spicer 5-430X - Universal Joint Greaseable 1000 X L6N Series Conversion Joint

Spicer | 5-430X
SKU: FSGR-5-430X
Regular price $48.99 USD
Regular price $58.00 USD Sale price $48.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-430X - Universal Joint Greaseable 1000 X L6N Series Conversion Joint

Universal Joint Greaseable 1000 X L6N Series Conversion Joint

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 0.938
OEM Mfg: Rockwell
OEM Series: L6N
Type: ISR Style
Bearing Cap Diameter (2): 0.971
Converts This Series: 1000
To This Series: L6N
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Center of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 23.825
Bearing Cap Diameter B (mm): 24.663
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 1.500
Length A (mm): 38.100
Length B (In): 1.445
Distance Btw Snap Ring Grooves (ISR) (2): 1.445
Distance Btw Snap Ring Grooves: 1.500
Mounting Hardware Included: No
Length B (mm): 36.703
