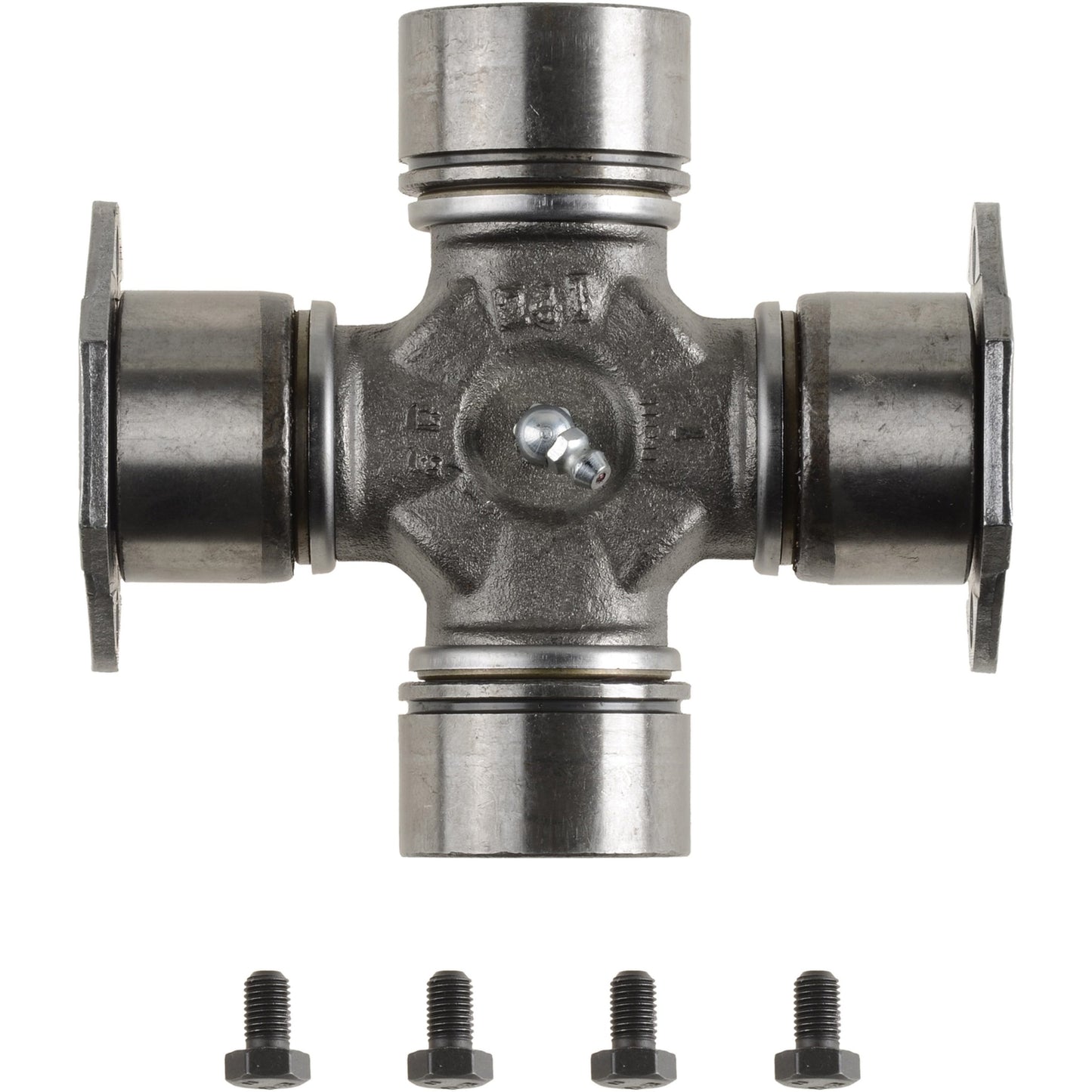

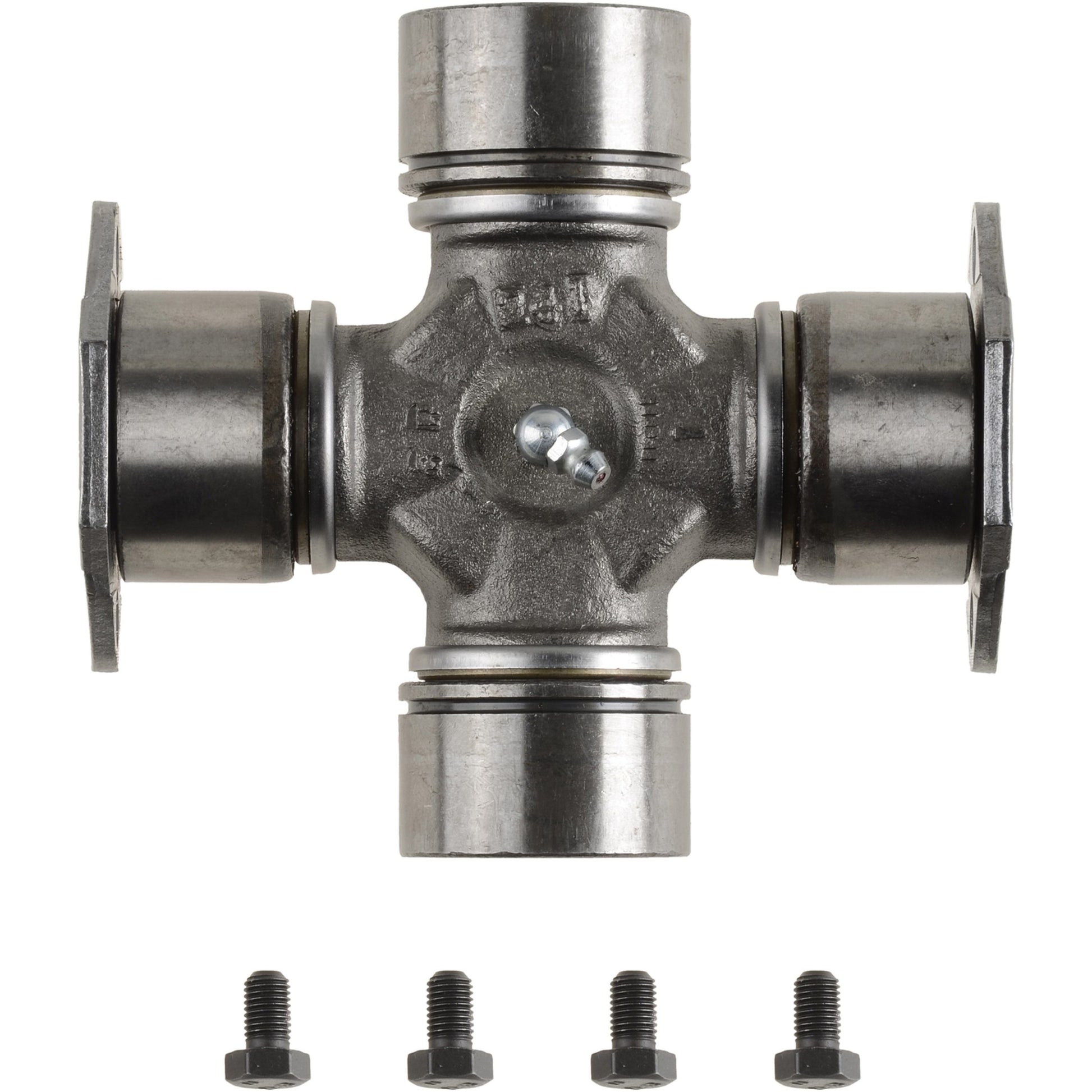

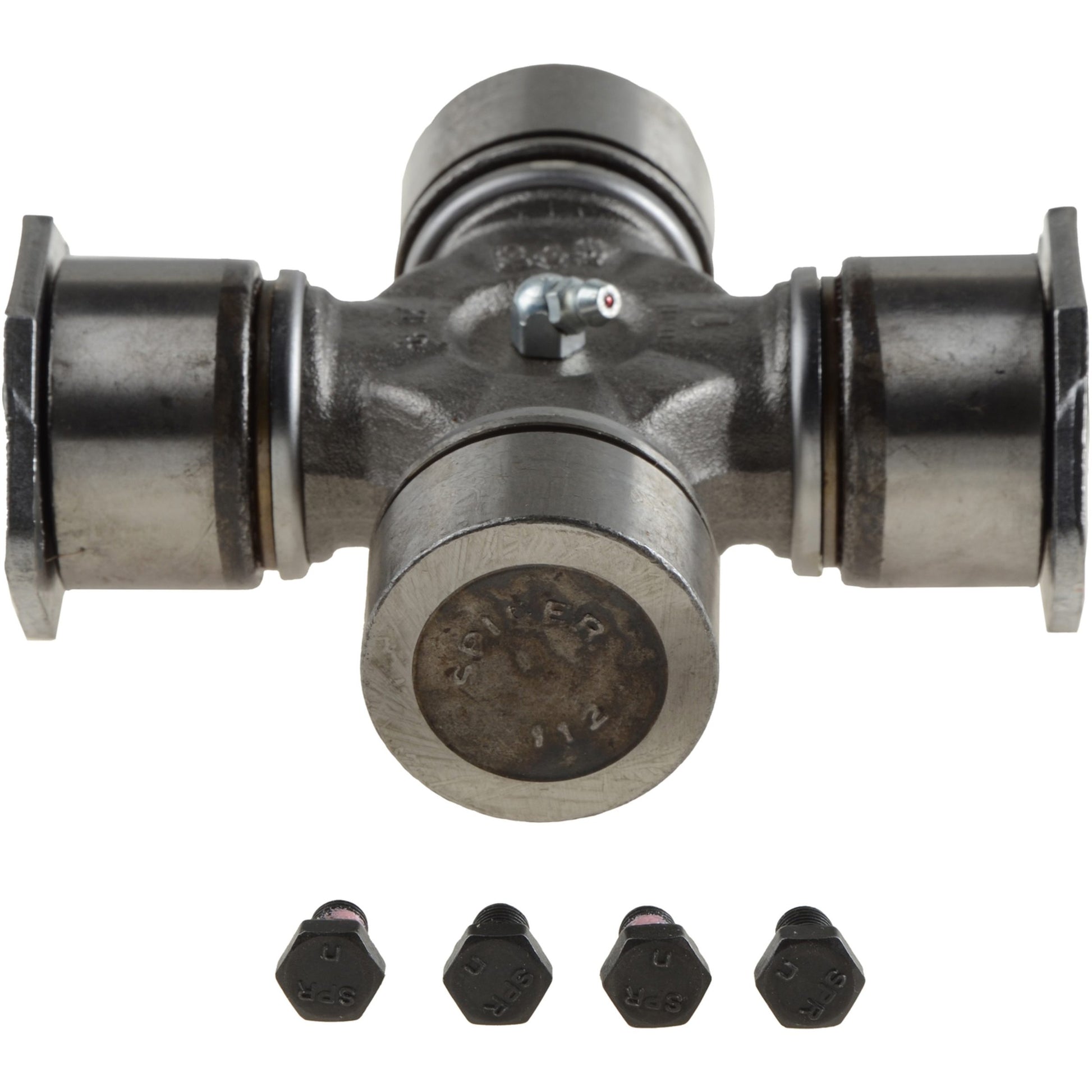

Spicer 5-423X - U-Joint Greaseable; 1610 Series Half Round; with Grease Zerk in Center of Cross

Spicer 5-423X - U-Joint Greaseable; 1610 Series Half Round; with Grease Zerk in Center of Cross

Spicer | 5-423X
SKU: FSGR-5-423X
Regular price $145.99 USD
Regular price $196.25 USD Sale price $145.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-423X - U-Joint Greaseable; 1610 Series Half Round; with Grease Zerk in Center of Cross

U-Joint Greaseable; 1610 Series Half Round; with Grease Zerk in Center of Cross

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.875
Bearing Plate (1): 5.312
OEM Mfg: Spicer
OEM Series: 1610
Type: HR Style
Bearing Cap Diameter (2): 1.875
Distance Between Bolts (1): 2.315
Bearing Cap Type: Bearing Plate X Round
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Center of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 47.625
Bearing Cap Diameter B (mm): 47.625
Bearing Cap Type A: Bearing Plate
Bearing Cap Type B: Round
Hardware Included: Yes
Length A (In): 5.312
Length A (mm): 134.925
Length B (In): 5.312
Length B (mm): 134.925
Mounting Hardware Included: Yes
SR(2)Brng Cap to Brng Cap(OSR): 5.312
