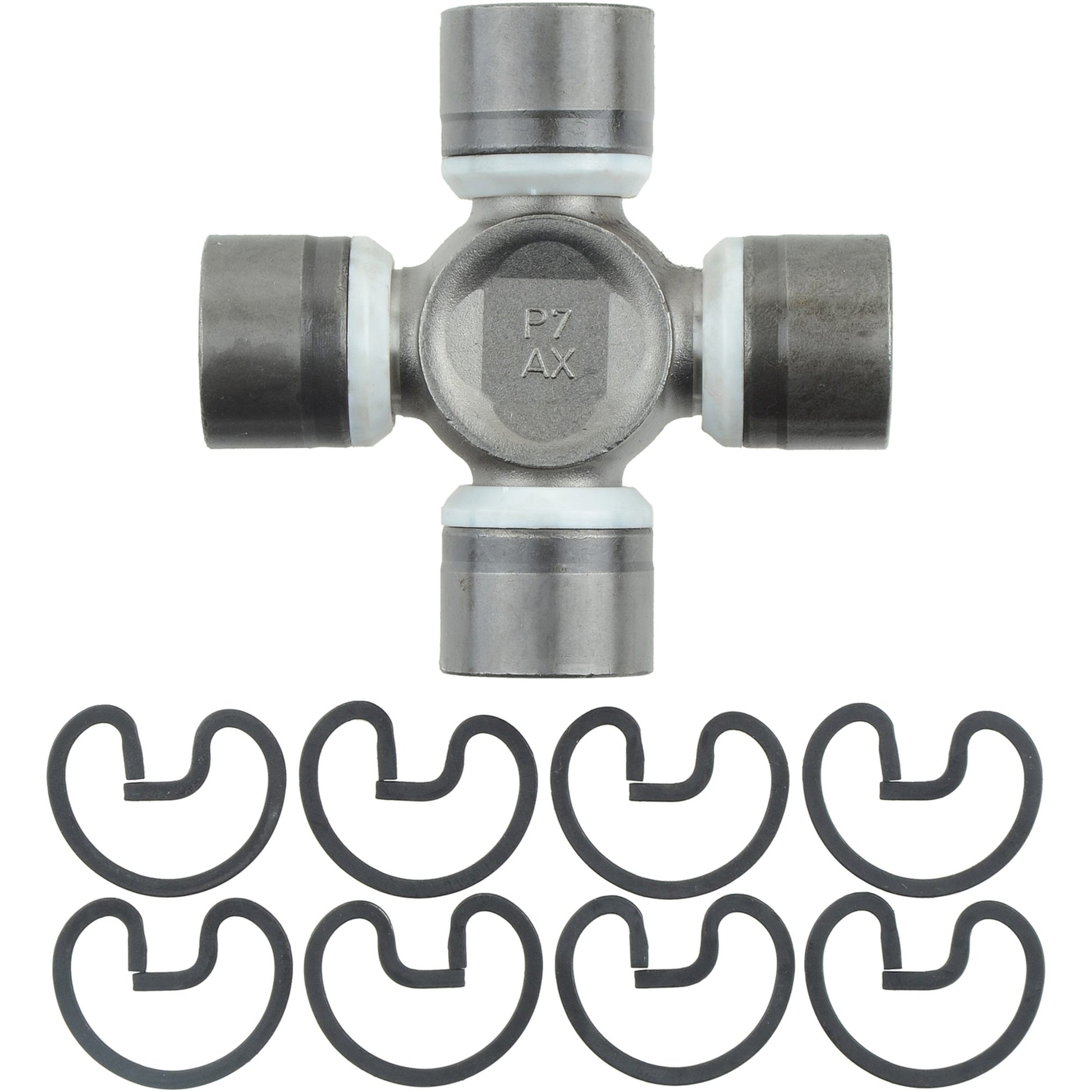

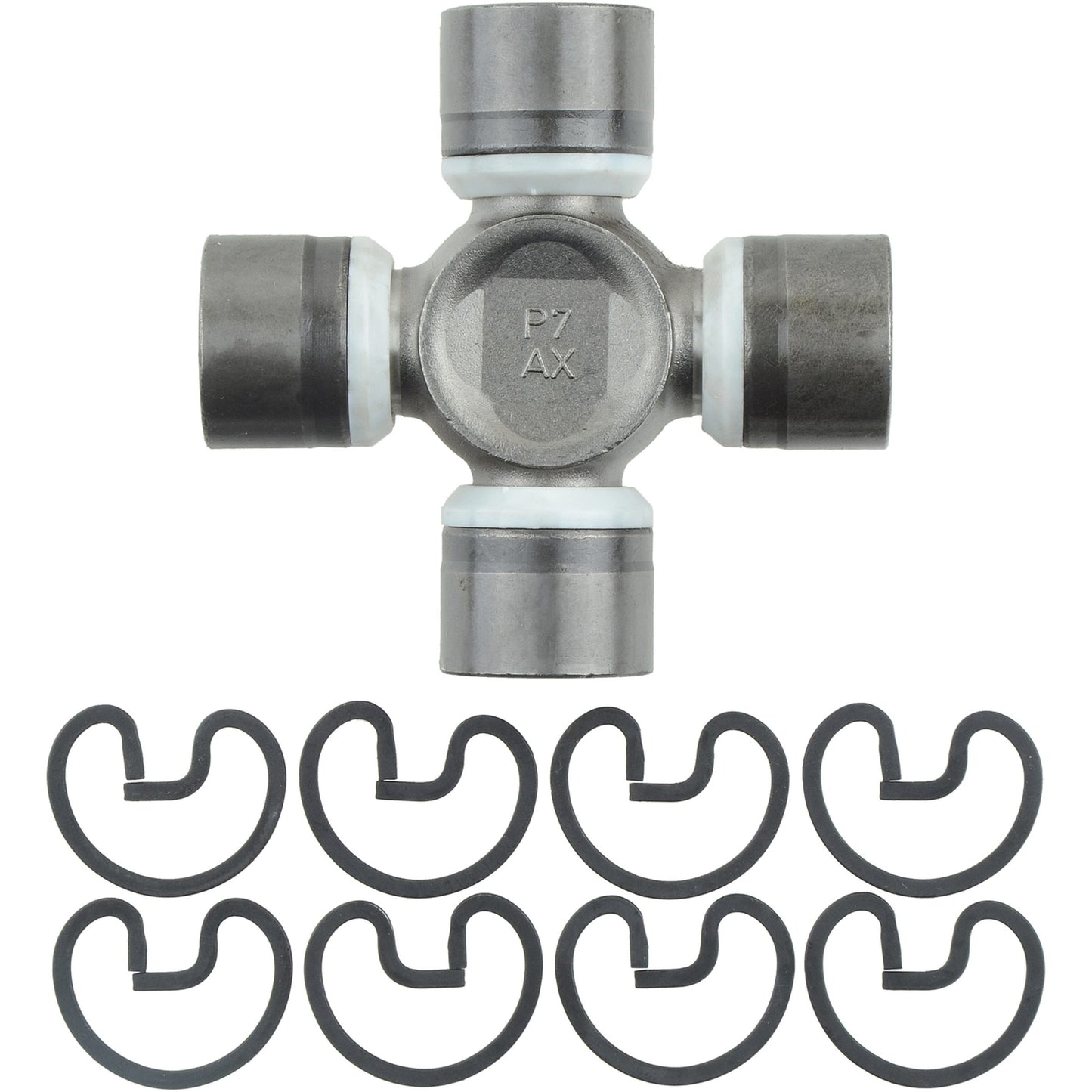

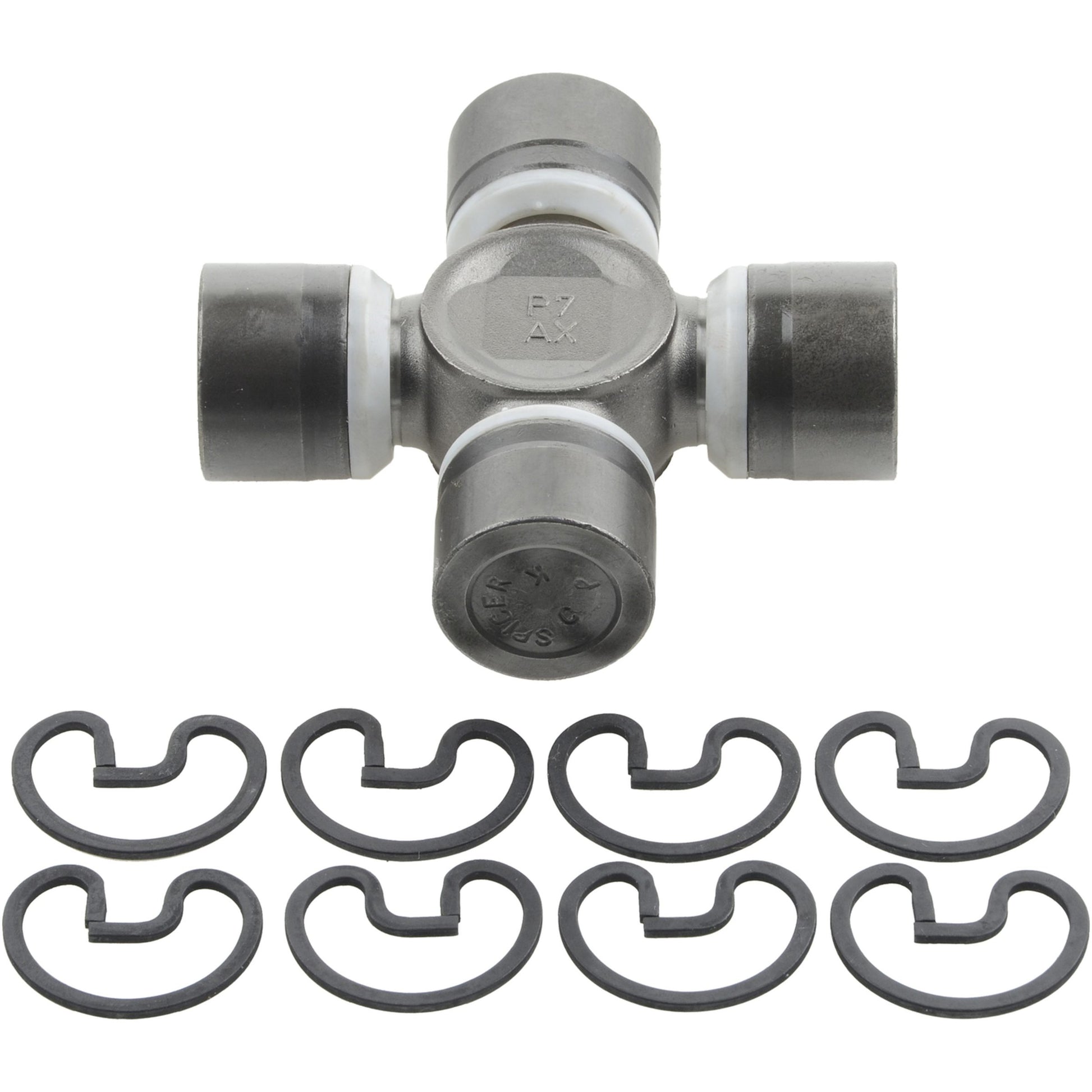

Spicer - 5-3613X
Universal Joint - 1310 Series - 3-1/2 in Across - 1-1/16 in Cap - Clips Included - Natural - Each
Universal Joint Non Greaseable 1310 Series OSR; Coated Caps
You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL universal joints can make in your vehicle, and make sure you are getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Snap Ring Included: Y
Bearing Cap Type: Round
Bearing Cap Diameter (2): 1.062
Type: OSR Style
Length A (mm): 81.7626
Length B (In): 3.219
Length B (mm): 81.7626
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 3.219
SR(2)Brng Cap to Brng Cap(OSR): 3.219
Material: Steel
Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1310
Bearing Cap Finish: Coated Caps for Aluminum Driveshafts
Greaseable: N
Bearing Cap Diameter A (mm): 27
Bearing Cap Diameter B (mm): 27
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N
Length A (In): 3.219
Grease Zerk Included: Not Required
Snap Ring Type: External
