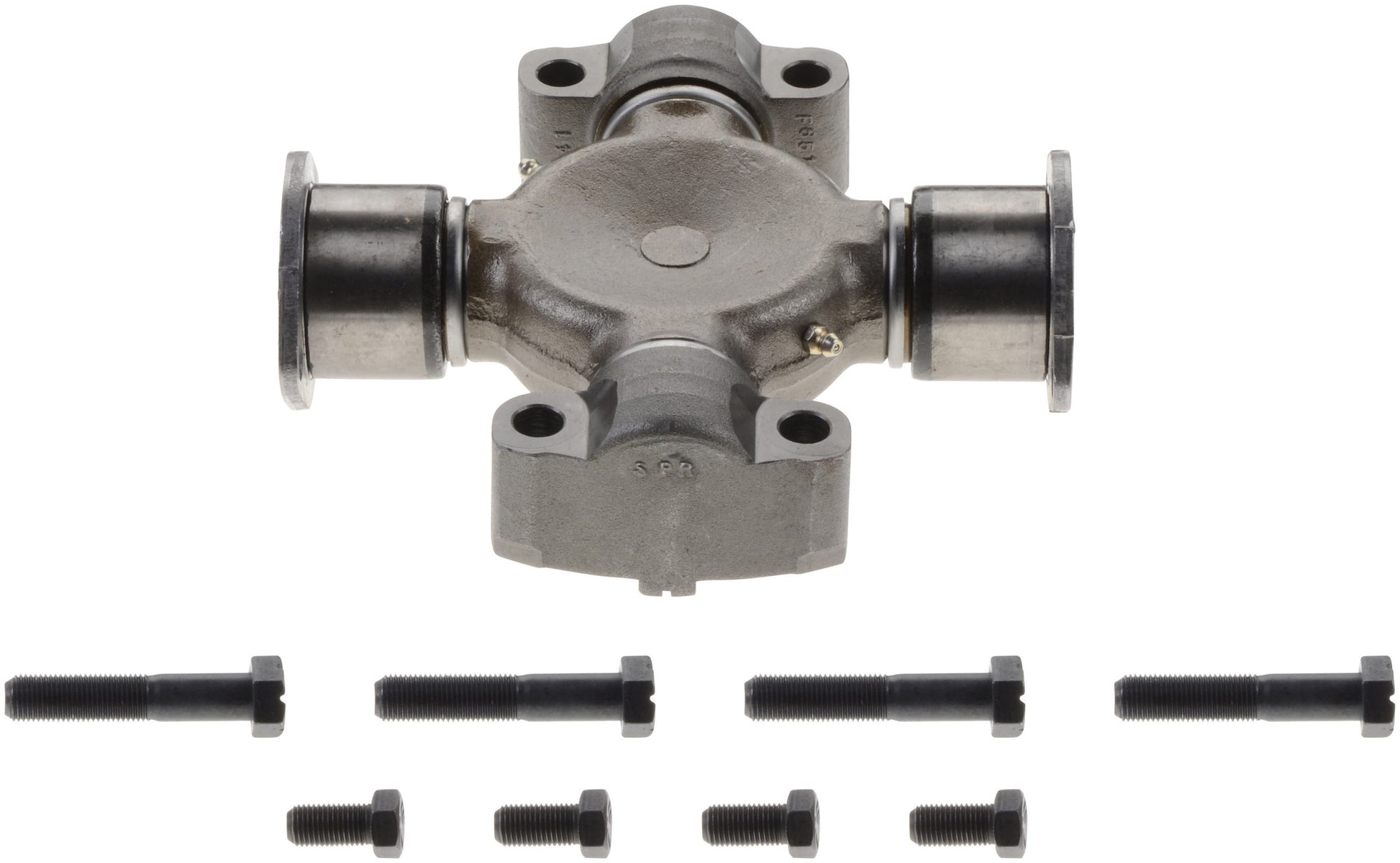

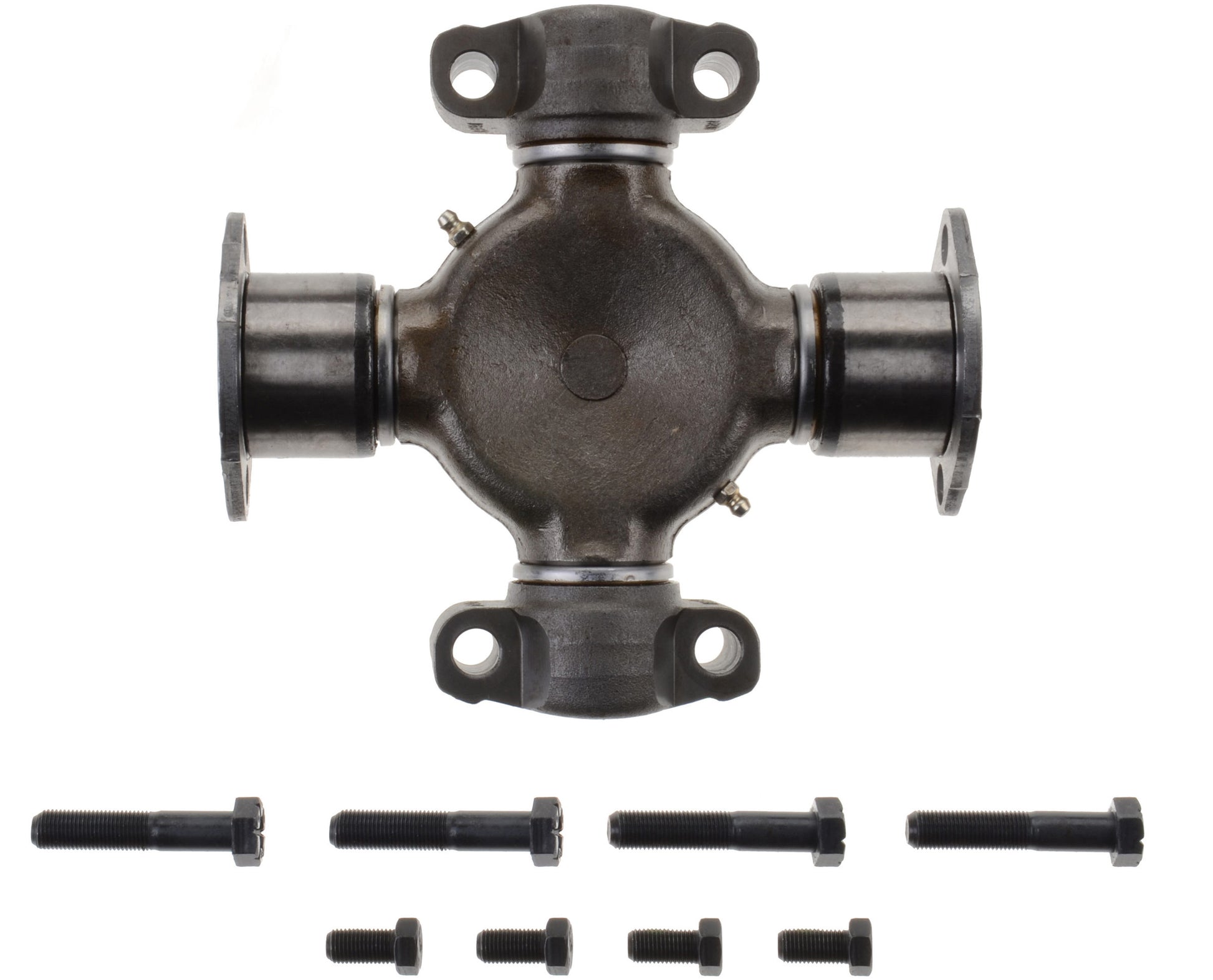

Spicer 5-326X - U-Joint; Greaseable; Conversion U-Joint 1880 Series X 9C Wing Bearing - BP x HWD

Spicer 5-326X - U-Joint; Greaseable; Conversion U-Joint 1880 Series X 9C Wing Bearing - BP x HWD

Spicer | 5-326X
SKU: FSGR-5-326X
Regular price $495.99 USD
Regular price $666.38 USD Sale price $495.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-326X - U-Joint; Greaseable; Conversion U-Joint 1880 Series X 9C Wing Bearing - BP x HWD

U-Joint; Greaseable; Conversion U-Joint 1880 Series X 9C Wing Bearing - BP x HWD

You expect a lot from your vehicle, and Spicer Life Series (SPL) universal joints deliver. SPL universal joints consistently outperform competitors, so you can hit the road or trail with confidence. Check out the difference that SPL universal joints can make in your vehicle, and make sure you are getting the longer life, increased bearing capacity and lower maintenance costs that Spicer Life Series (SPL) can provide.

  • Kit includes new self locking bearing plate bolts
  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
Material: Steel
Bearing Cap Diameter (1): 2.188
Bearing Plate (1): 8.094
OEM Mfg: Mechanics
OEM Series: 1880/9C
Type: BP/WB Style
Converts This Series: 1880
Pilot Diameter: 8.250
To This Series: 9C/92N
Distance Between Bolts (2): 2.812
Wb Type (2): HWD
Bearing Cap Type: BP/WB Style
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Side of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 55.575
Bearing Cap Type A: Bearing Plate
Bearing Cap Type B: HWD
Hardware Included: Yes
Length A (In): 8.094
Length A (mm): 205.588
Mounting Hardware Included: Yes
Wing Bearing Type: HWD
Wing Bearing Type Pilot Diam.: 8.250
