Spicer 5-3263X - Universal Joint Greaseable Mechanics 2 RL Series
Spicer 5-3263X - Universal Joint Greaseable Mechanics 2 RL Series
SKU: FSGR-5-3263X
Regular price
$47.99 USD
Regular price
$55.77 USD
Sale price
$47.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

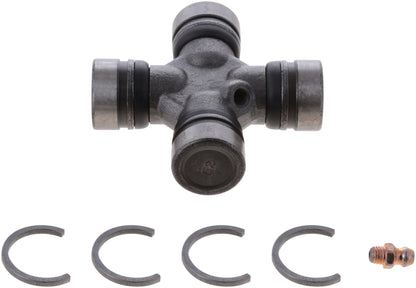

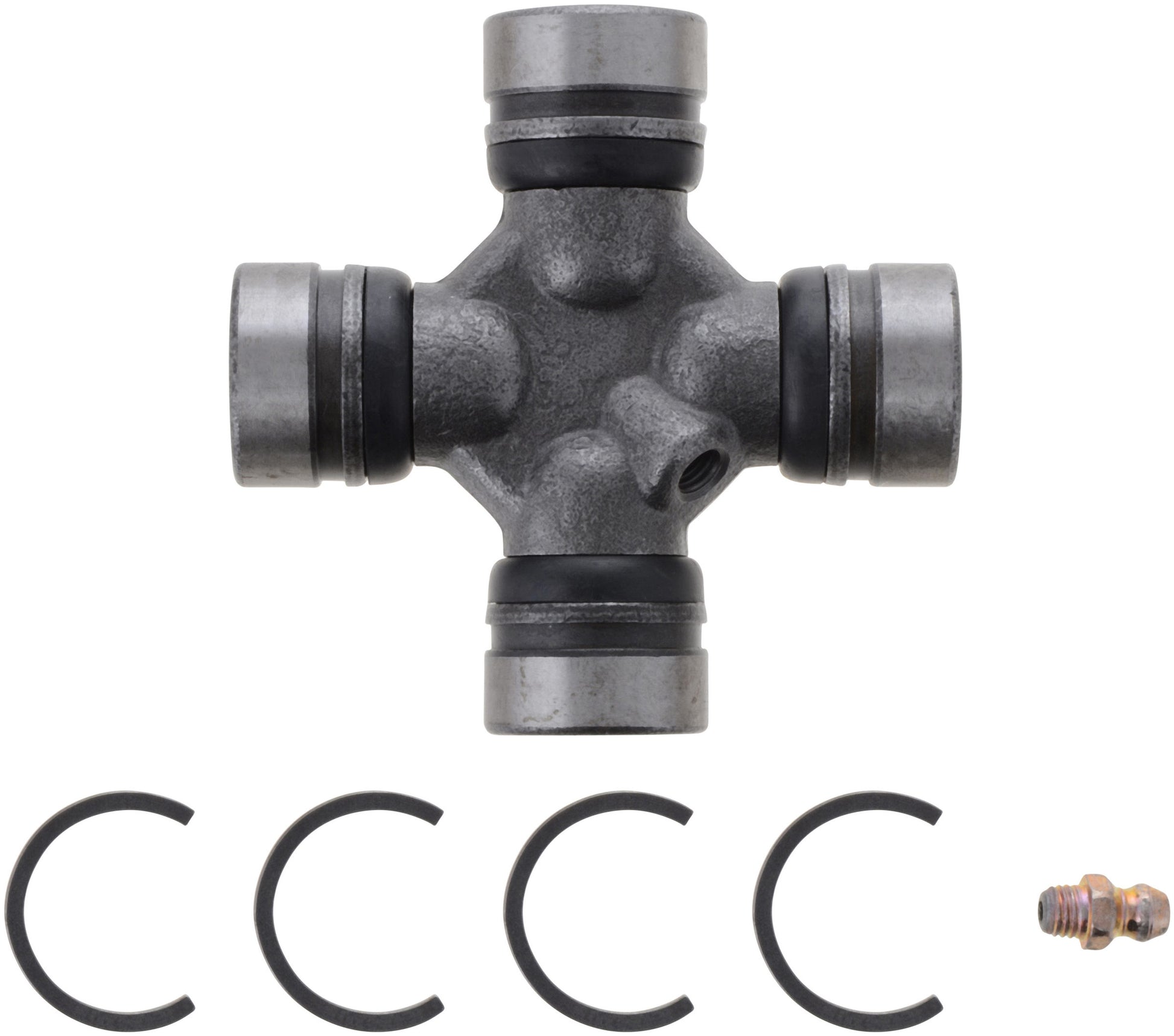

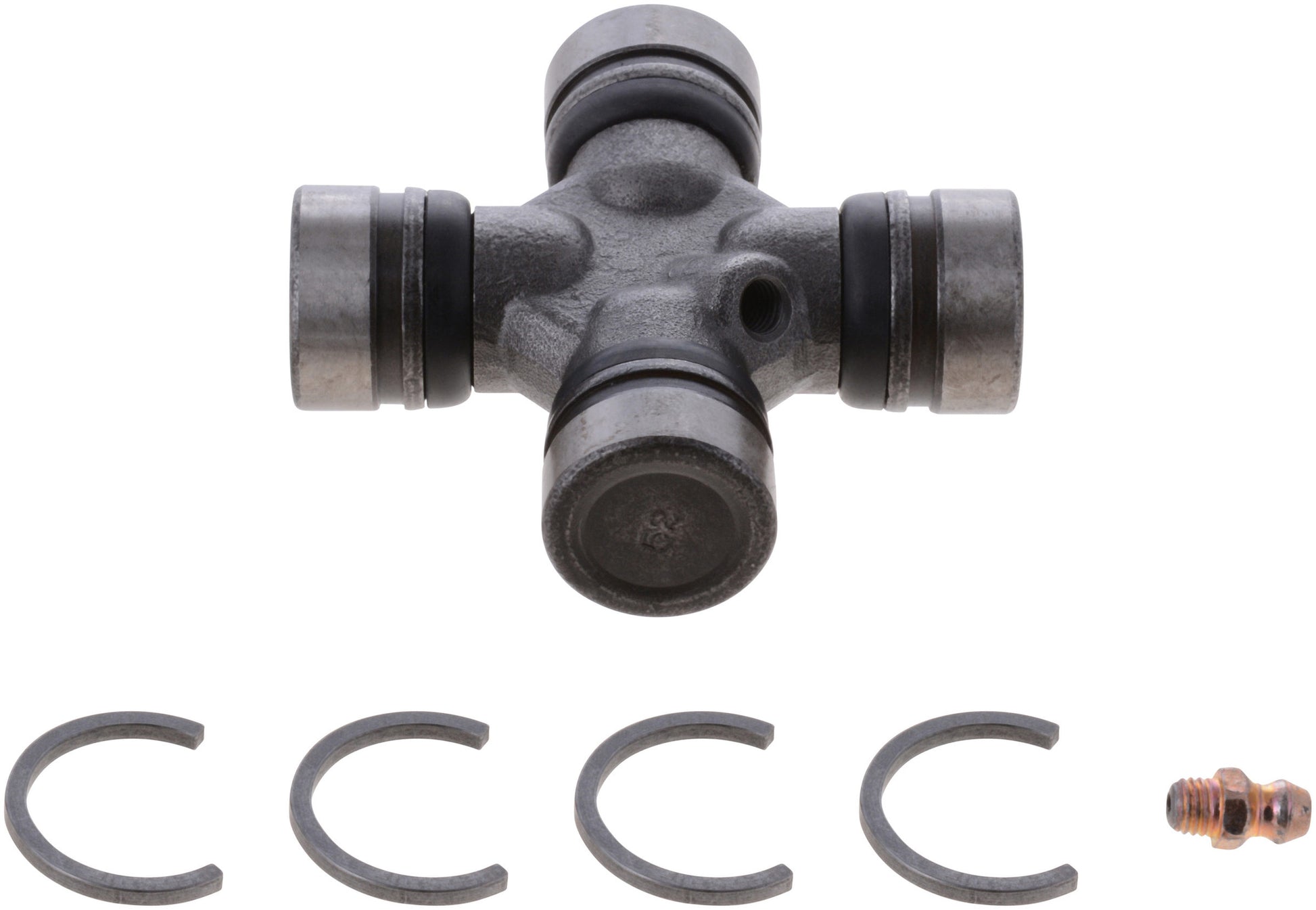

Spicer 5-3263X - Universal Joint Greaseable Mechanics 2 RL Series
Universal Joint Greaseable Mechanics 2 RL Series
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.000
OEM Mfg: Mechanics
OEM Series: 2RL
Type: ISR Style
Bearing Cap Diameter (2): 1.000
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Side of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 25.400
Bearing Cap Diameter B (mm): 25.400
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 2.337
Length A (mm): 59.359
Length B (In): 2.337
Length B (mm): 59.359
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 2.337
Distance Btw Snap Ring Grooves (ISR) (2): 2.337
