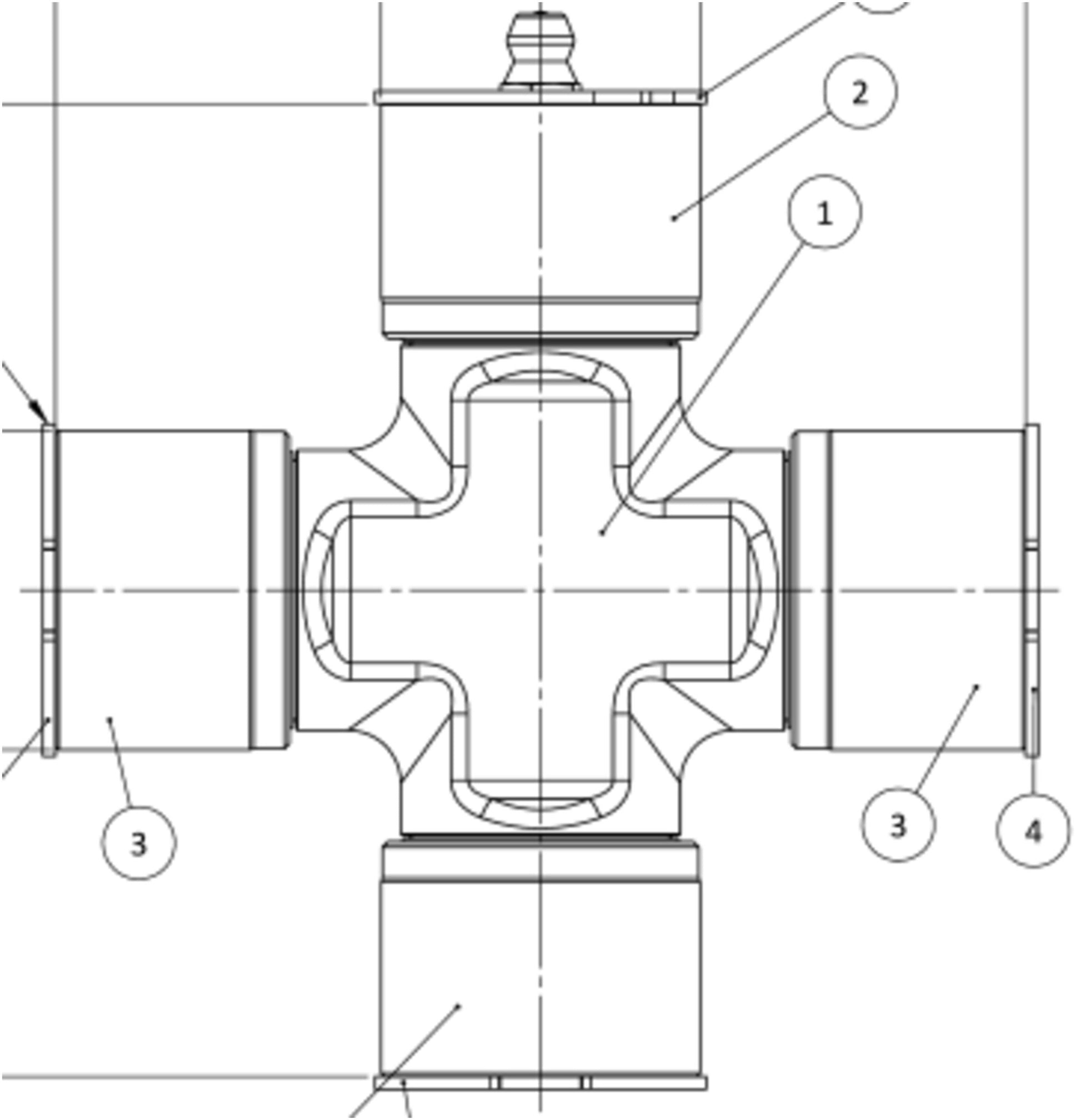

Spicer 5-3236X - Universal Joint Greaseable Bondioli Pavesi Series 6

Spicer 5-3236X - Universal Joint Greaseable Bondioli Pavesi Series 6

Spicer | 5-3236X
SKU: FSGR-5-3236X
$50.99 USD
$59.87 USD $50.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-3236X - Universal Joint Greaseable Bondioli Pavesi Series 6

Universal Joint Greaseable Bondioli Pavesi Series 6

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Kit includes new self locking bearing plate bolts.
  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.188
OEM Mfg: Bondioli Pavesi / Walterscheid
OEM Series: Bondioli Pavesi Series 6 / Walterscheid W220
Type: OSR Style
Bearing Cap Diameter (2): 1.188
Bearing Cap Type: Round
Snap Ring Included: Yes
Snap Ring Type: External
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Center of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 30.175
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: No
Length A (In): 3.625
Length A (mm): 92.075
Length B (In): 3.625
Length B (mm): 92.075
Mounting Hardware Included: No
SR(1)Brng Cap to Brng Cap(OSR): 3.625
SR(2)Brng Cap to Brng Cap(OSR): 3.625
