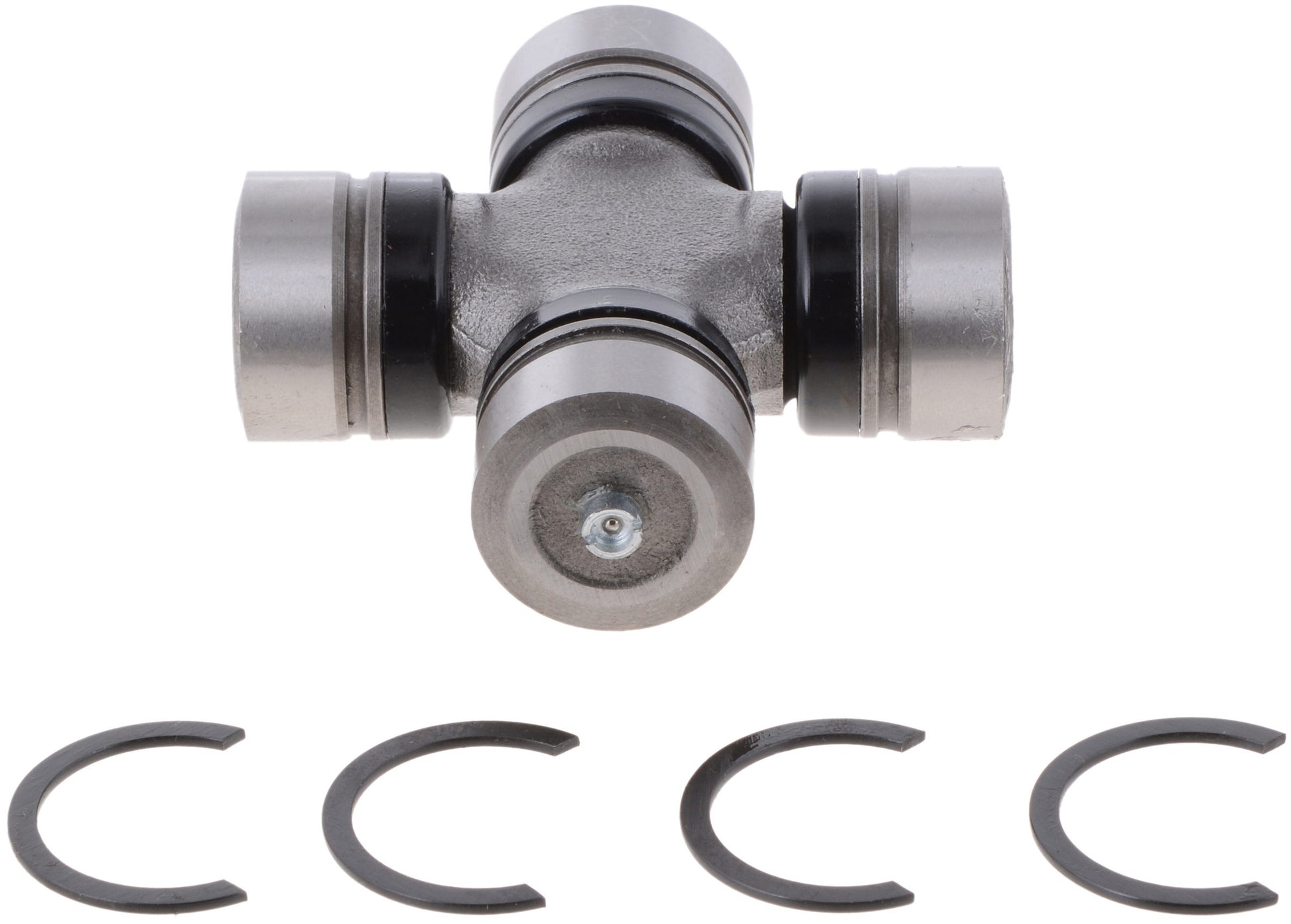

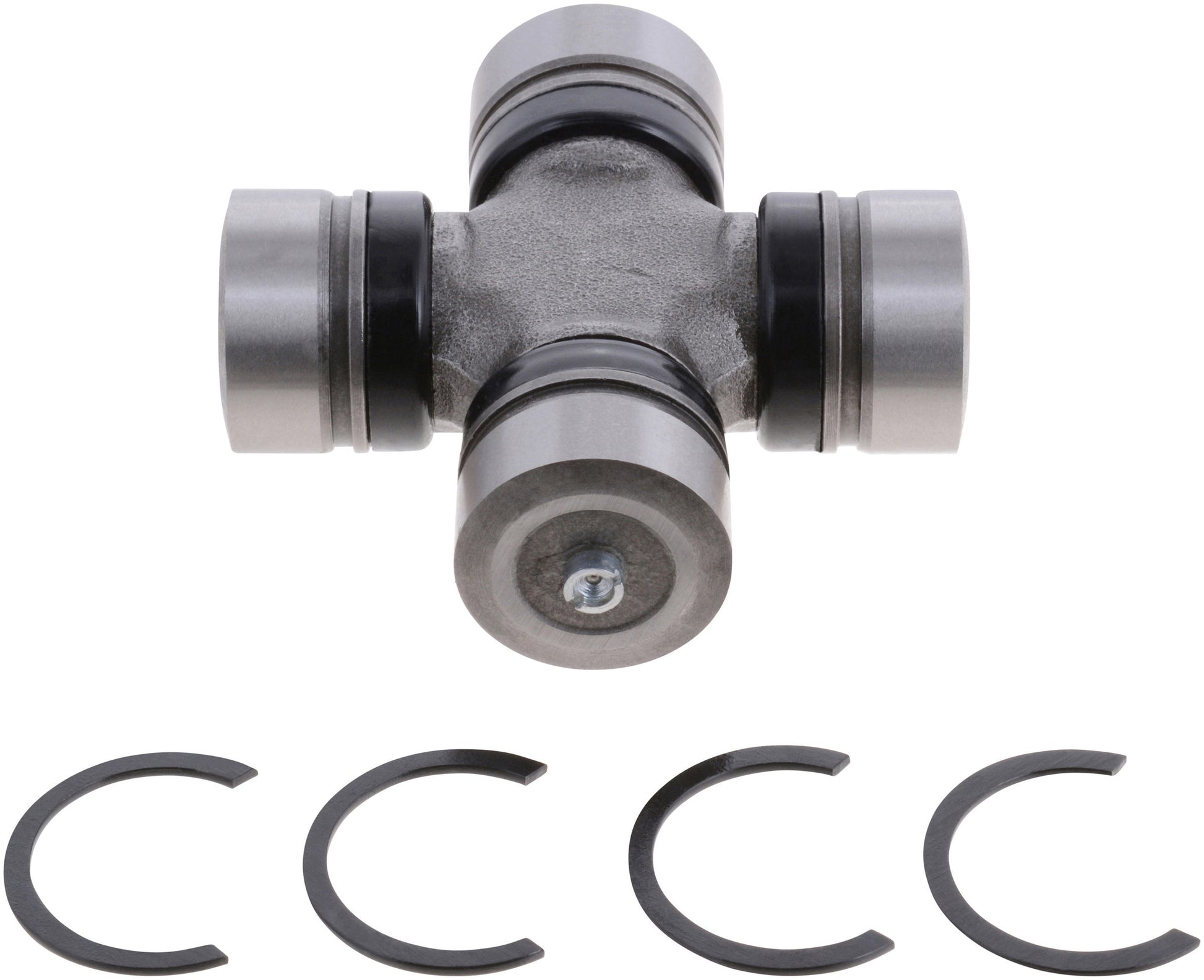

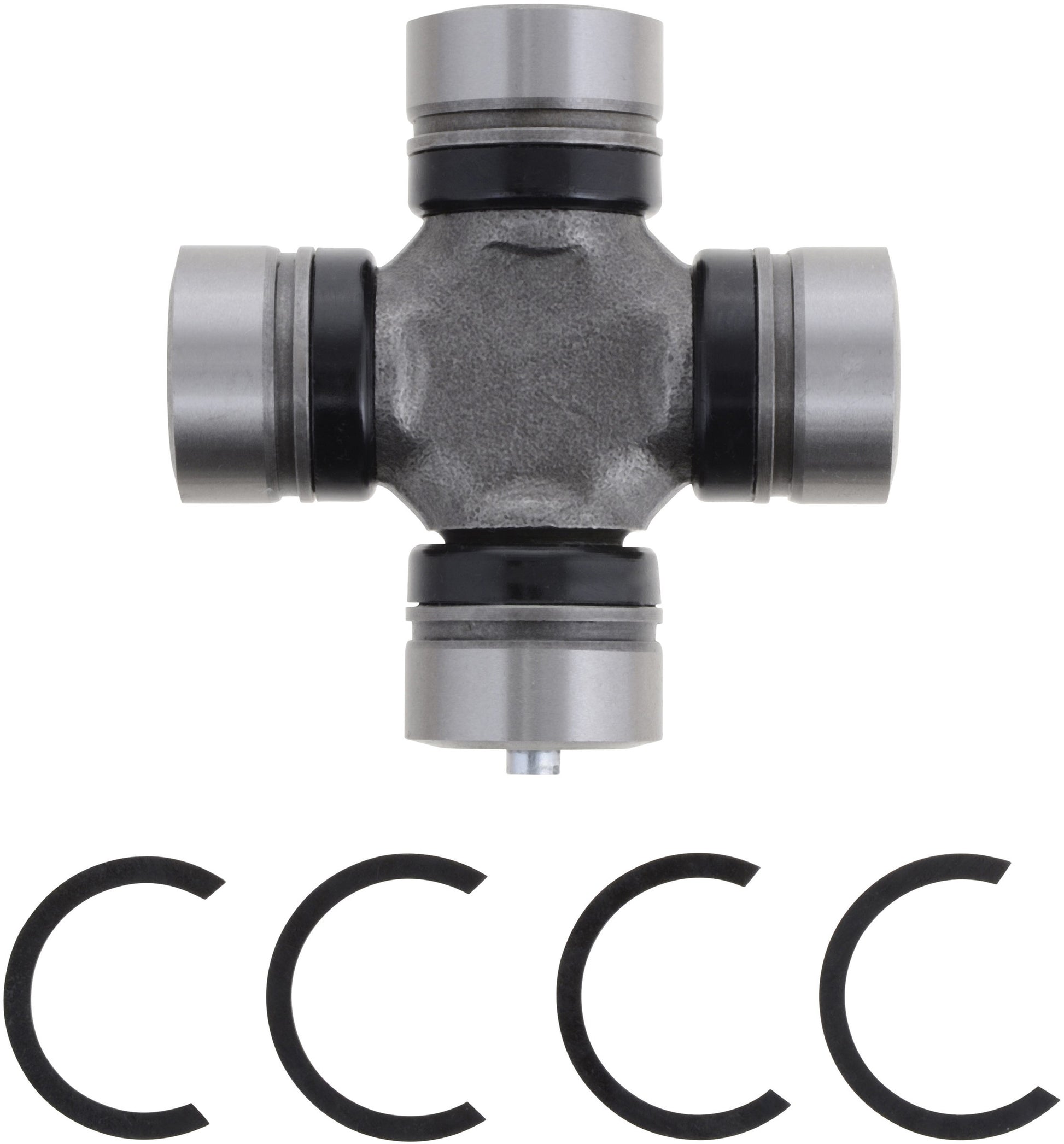

Spicer 5-3226X - Axle Shaft Universal Joint Greaseable 1310WJ Series

Spicer 5-3226X - Axle Shaft Universal Joint Greaseable 1310WJ Series

Spicer | 5-3226X
SKU: FSGR-5-3226X
$44.99 USD
$52.70 USD $44.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-3226X - Axle Shaft Universal Joint Greaseable 1310WJ Series

Axle Shaft Universal Joint Greaseable 1310WJ Series

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.188
OEM Mfg: Spicer
OEM Series: 1310WJ
Type: ISR Style
Bearing Cap Diameter (2): 1.188
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: In Bearing Cap
Greaseable: Yes
Bearing Cap Diameter A (mm): 30.175
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 2.188
Length A (mm): 55.575
Length B (In): 2.188
Length B (mm): 55.575
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 2.188
Distance Btw Snap Ring Grooves (ISR) (2): 2.188
