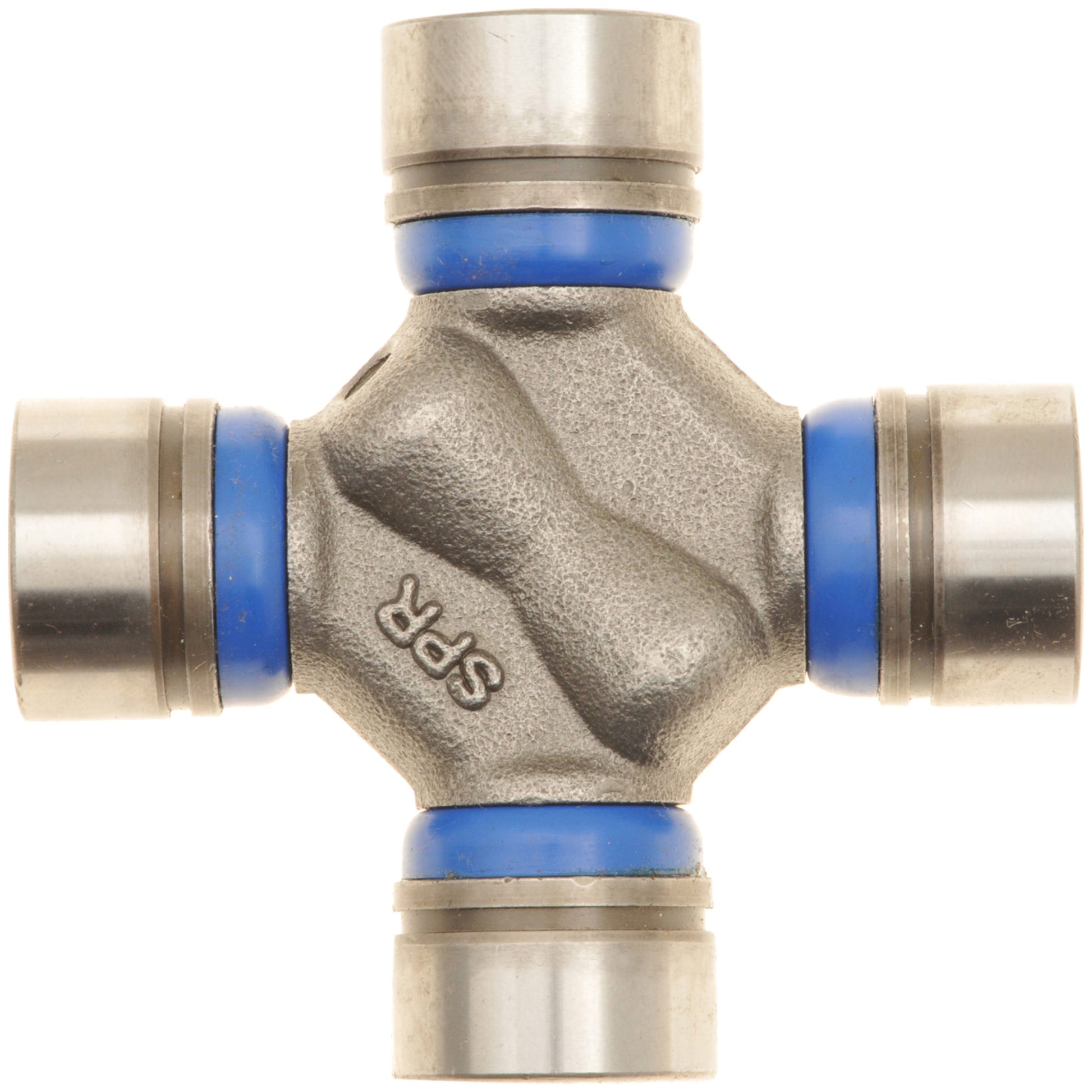

Spicer - 5-3147X
Universal Joint - S44 Series - 1.125 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint Greaseable S44/3R Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.125
OEM Mfg: Mechanics
OEM Series: S44
Type: ISR Style
Bearing Cap Diameter (2): 1.125
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Y
Snap Ring Type: Internal
Grease Zerk Included: Y
Pre Greased: N
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: Side of Cross
Grease Type: N.L.G.I. Grade 2
Model Number: 3R, SAGINAW 44, AAM 1344
Seal Color/Finish: Blue
Seal Material: Rubber
Greaseable: Y
Bearing Cap Diameter A (mm): 28.575
Bearing Cap Diameter B (mm): 28.575
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: N
Length A (In): 2.556
Length A (mm): 64.9
Length B (In): 2.556
Length B (mm): 64.9
Mounting Hardware Included: N
