Spicer - 5-3022-1X

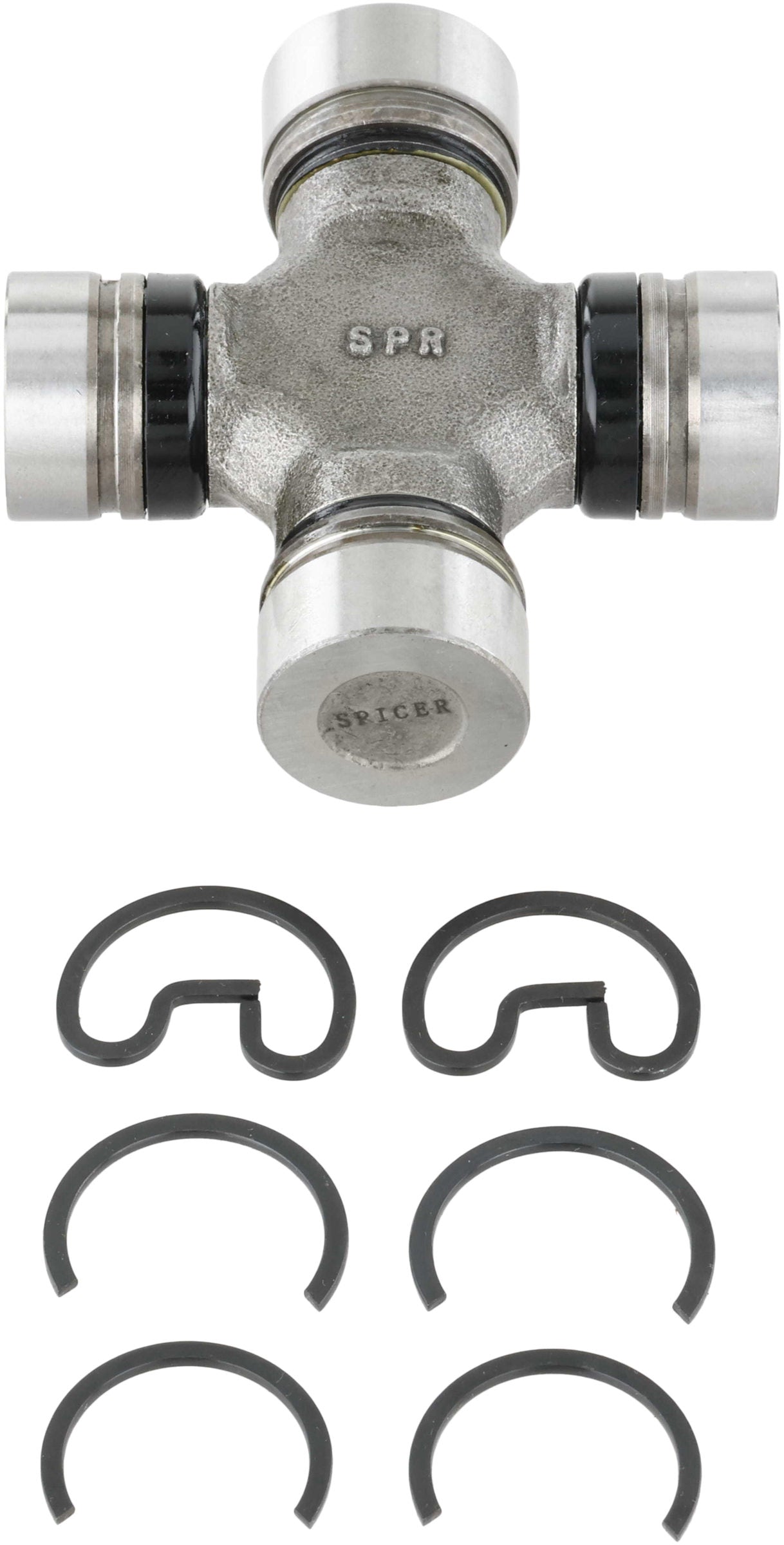

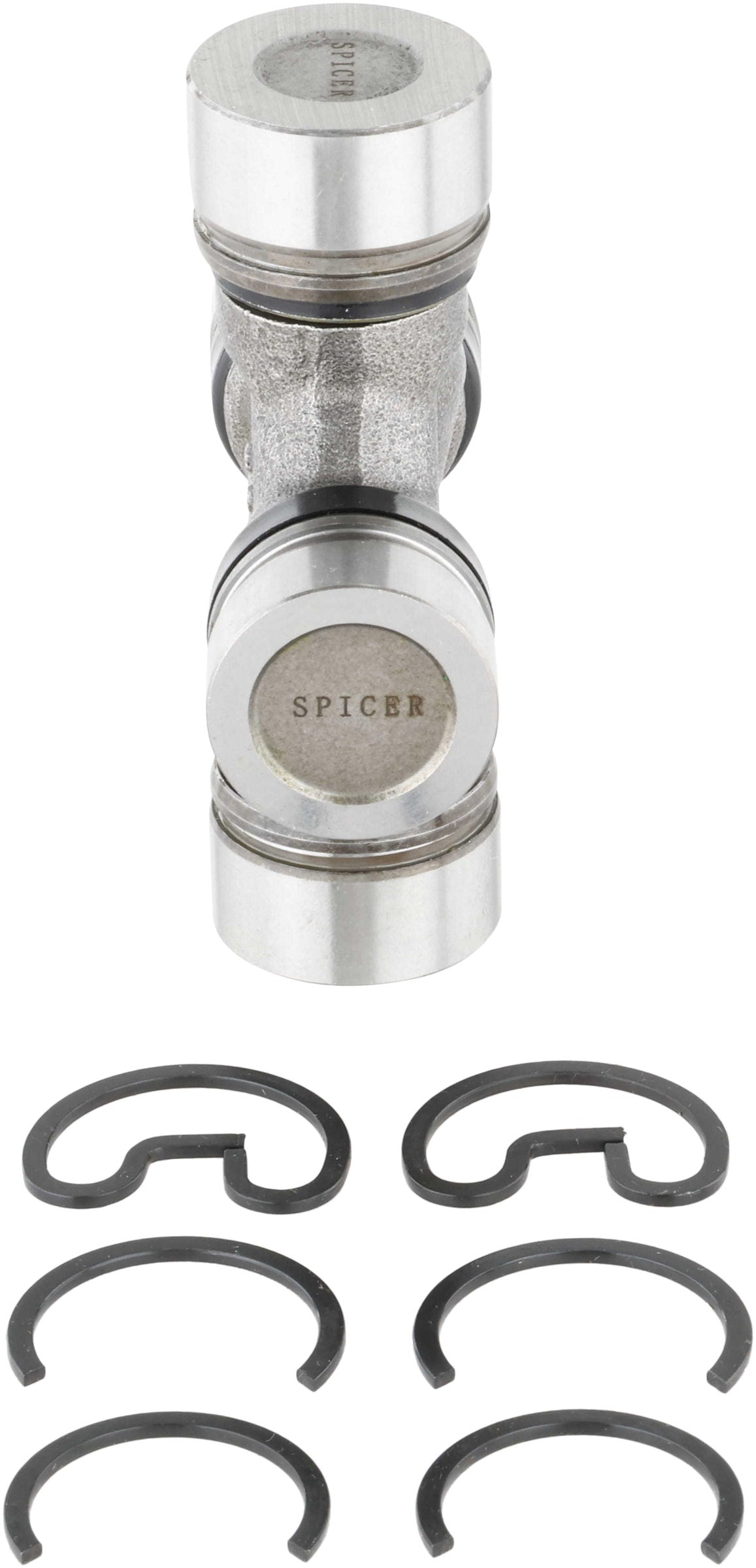

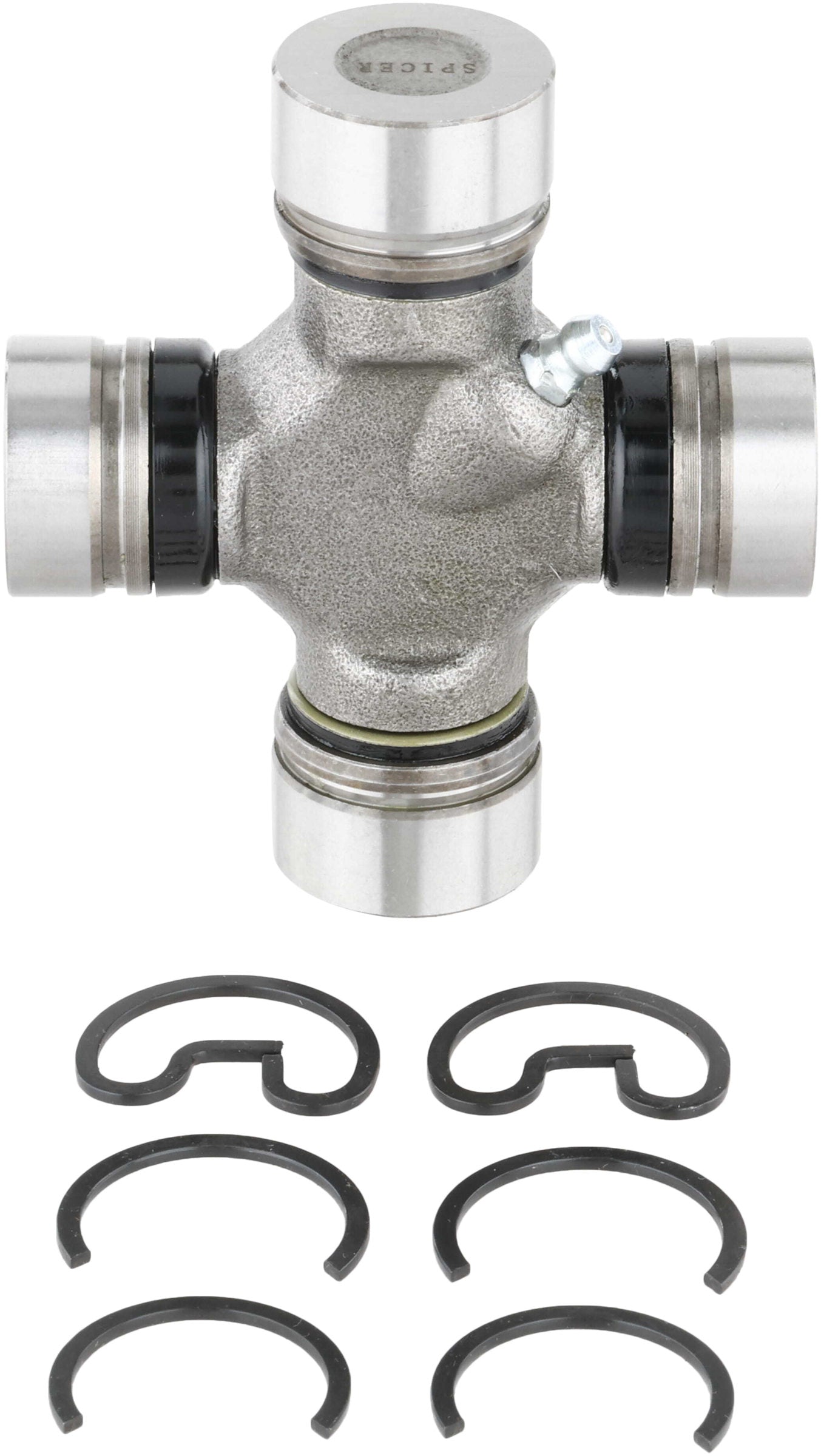

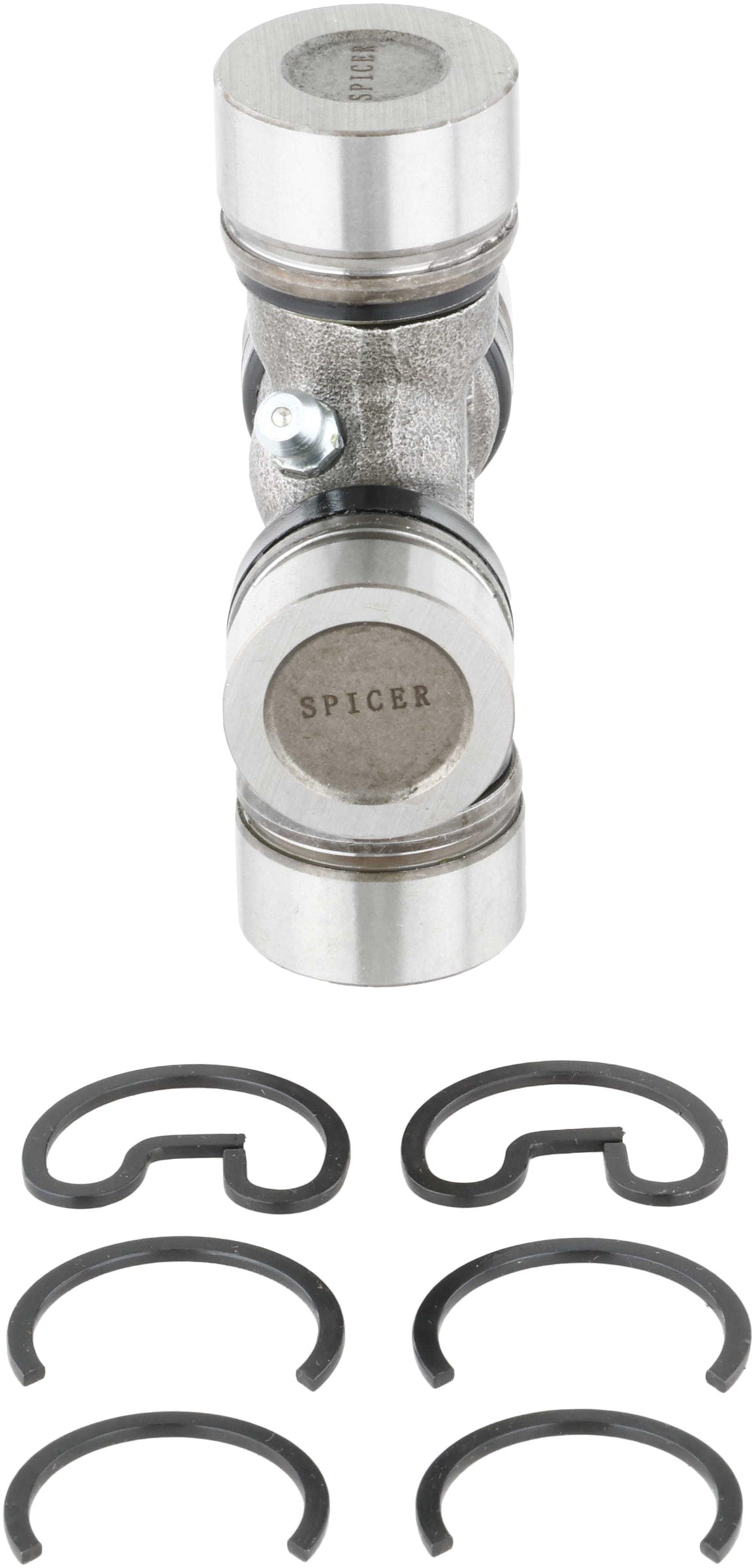

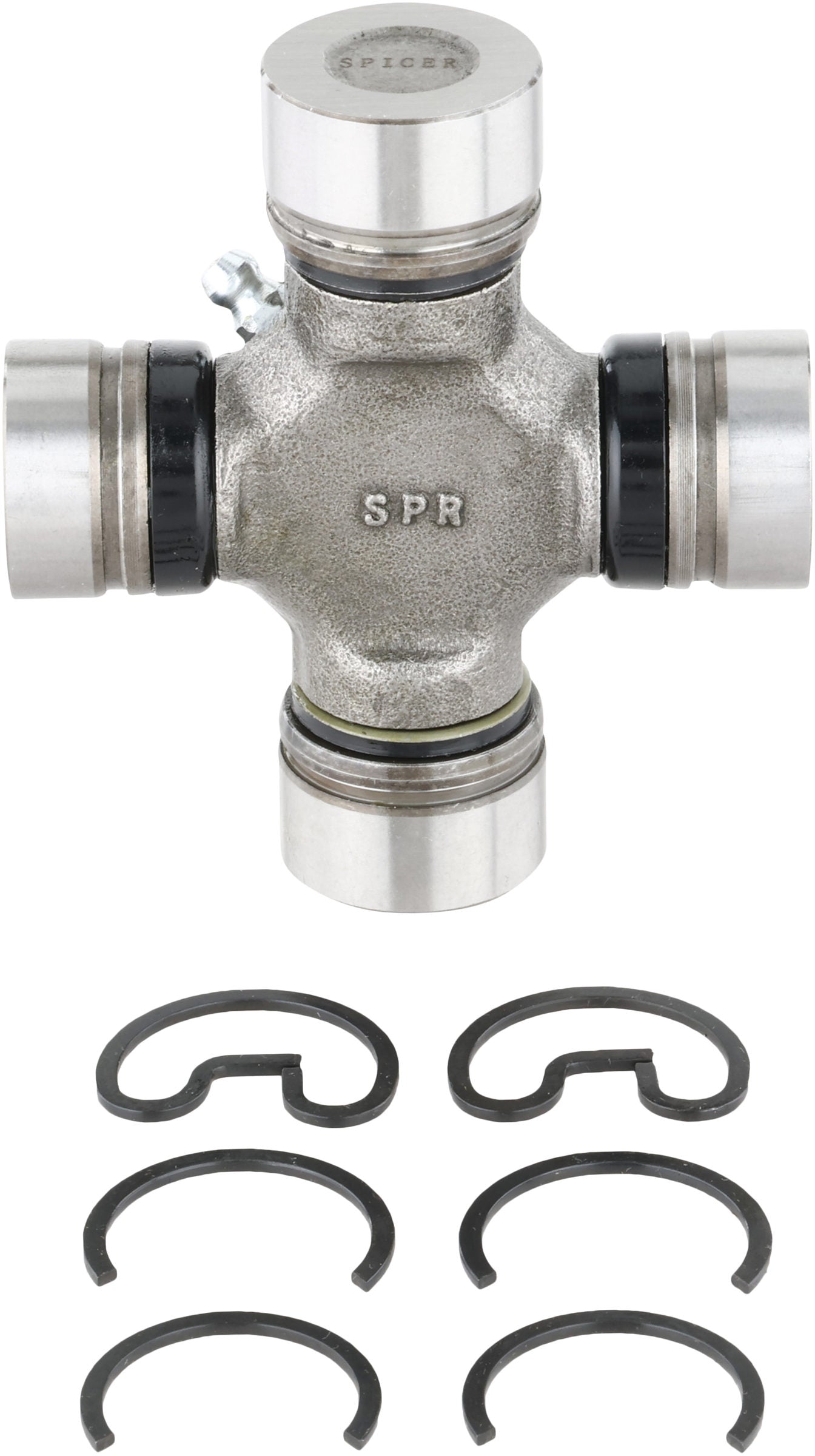

Universal Joint - S44/3R to 1310 Series - 1.125 in and 1.062 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint Greaseable Mechanics S44/3R to 1310 Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.125
OEM Mfg: Mechanics
OEM Series: S44
Type: OSR/ISR Style
Bearing Cap Diameter (2): 1.062
Converts This Series: S44
To This Series: 1310
Bearing Cap Type: Round/Round with ISR Groove

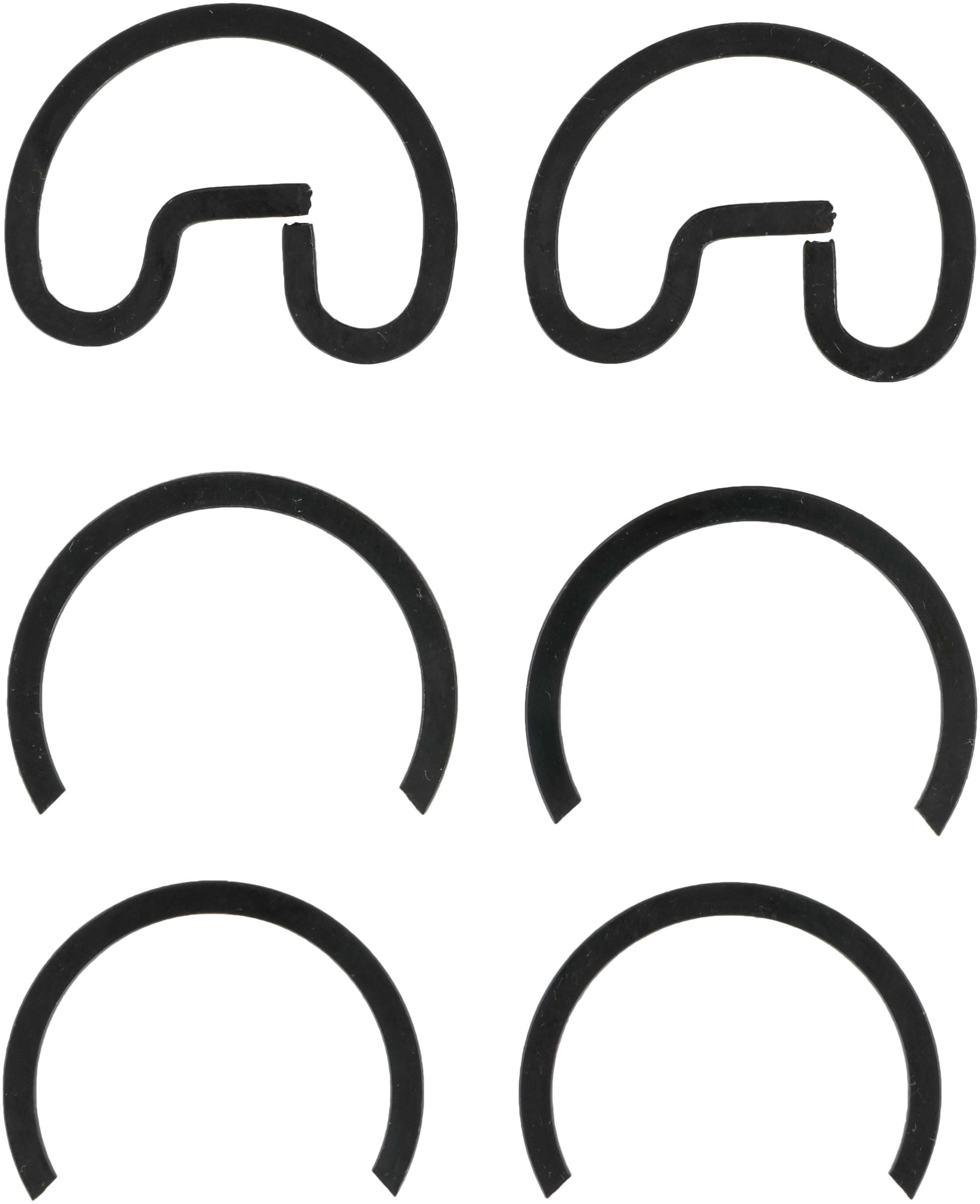

Snap Ring Included: Y
Snap Ring Type: External, Internal
Grease Zerk Included: Y
Grease Fitting Location: One straight lube fitting in cross
Greaseable: Y
Bearing Cap Diameter A (mm): 28.6
Bearing Cap Diameter B (mm): 27
Bearing Cap Type A: ISR
Bearing Cap Type B: OSR
Hardware Included: N
Length A (In): 2.556
Length A (mm): 64.9
Length B (In): 3.219
Length B (mm): 81.8
Mounting Hardware Included: N
SR(2)Brng Cap to Brng Cap(OSR): 3.219
