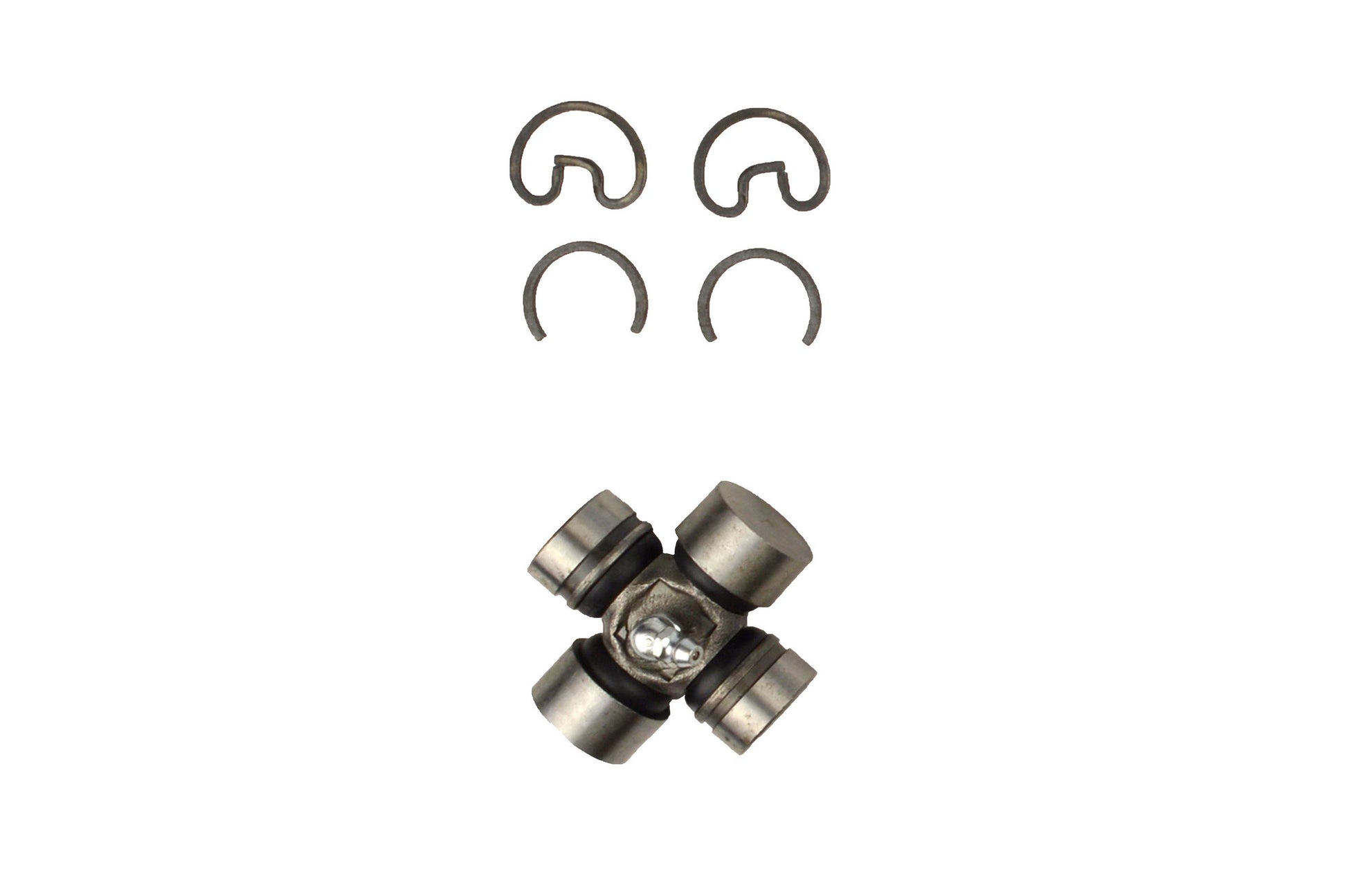

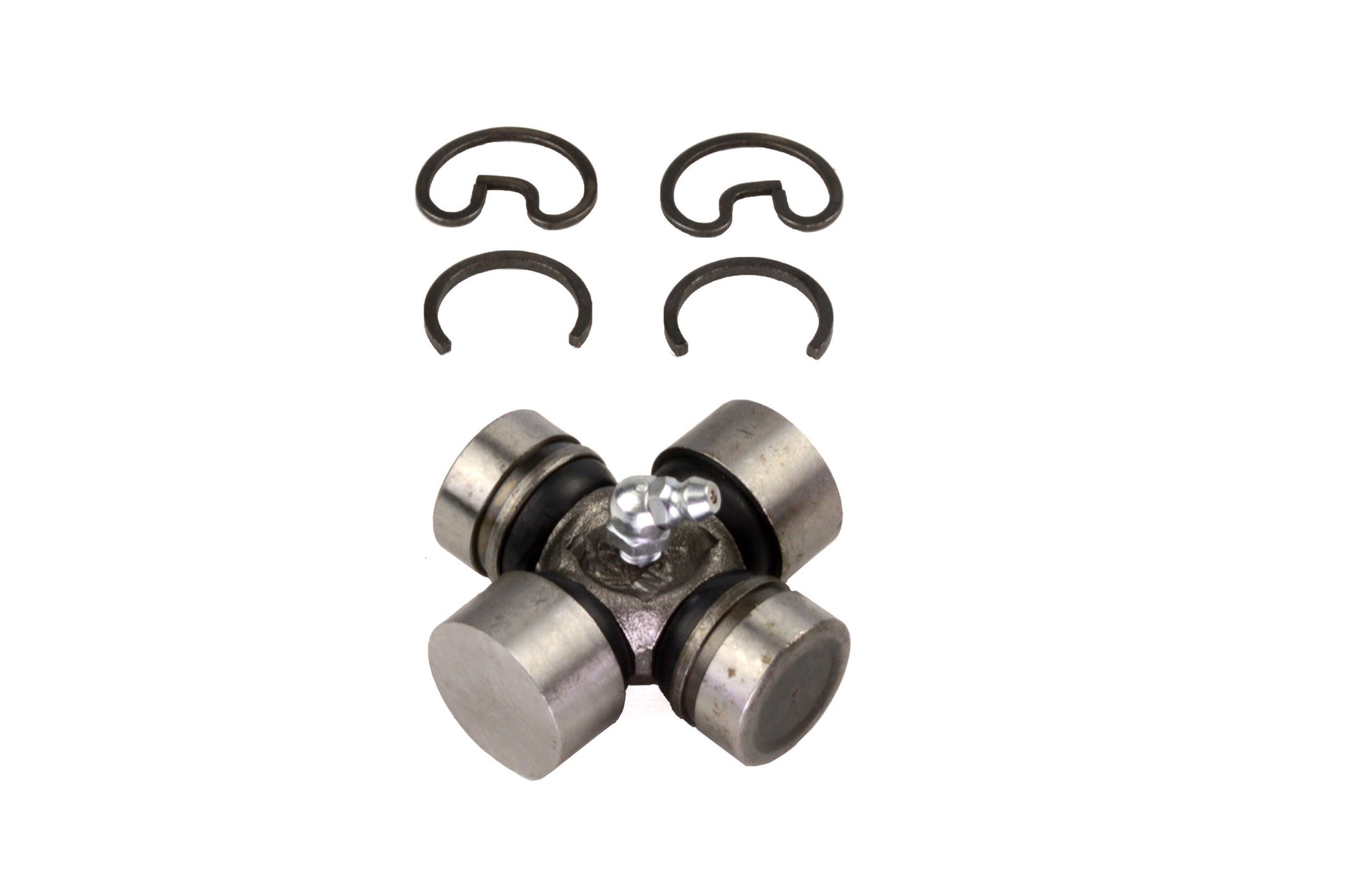

Spicer 5-248X - Universal Joint Greaseable 1110 to 1210 Series

Spicer 5-248X - Universal Joint Greaseable 1110 to 1210 Series

Spicer | 5-248X
SKU: FSGR-5-248X
$56.99 USD
$68.55 USD $56.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-248X - Universal Joint Greaseable 1110 to 1210 Series

Universal Joint Greaseable 1110 to 1210 Series

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Grease Zerk Included: Yes
Pre Greased: No
Grease Fitting Location: Center of Cross
Greaseable: Yes
Bearing Cap Diameter A (mm): 25.400
Length B (In): 2.438
Length B (mm): 61.900
Mounting Hardware Included: No
SR(2)Brng Cap to Brng Cap(OSR): 2.438
Distance Btw Snap Ring Grooves: 1.719
Length A (mm): 43.700
Length A (In): 1.719
Hardware Included: No
Bearing Cap Type B: OSR
Bearing Cap Type A: ISR
Bearing Cap Diameter B (mm): 26.975
Material: Steel
Bearing Cap Diameter (1): 1.000
OEM Mfg: Spicer
OEM Series: 1110/1210
Type: ISR/OSR Style
Bearing Cap Diameter (2): 1.062
Converts This Series: 1110
To This Series: 1210
Bearing Cap Type: Round/Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal/External
