Spicer - 5-213X
Universal Joint - 1330 Series - 1.062 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint Greaseable 1330 Series OSR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

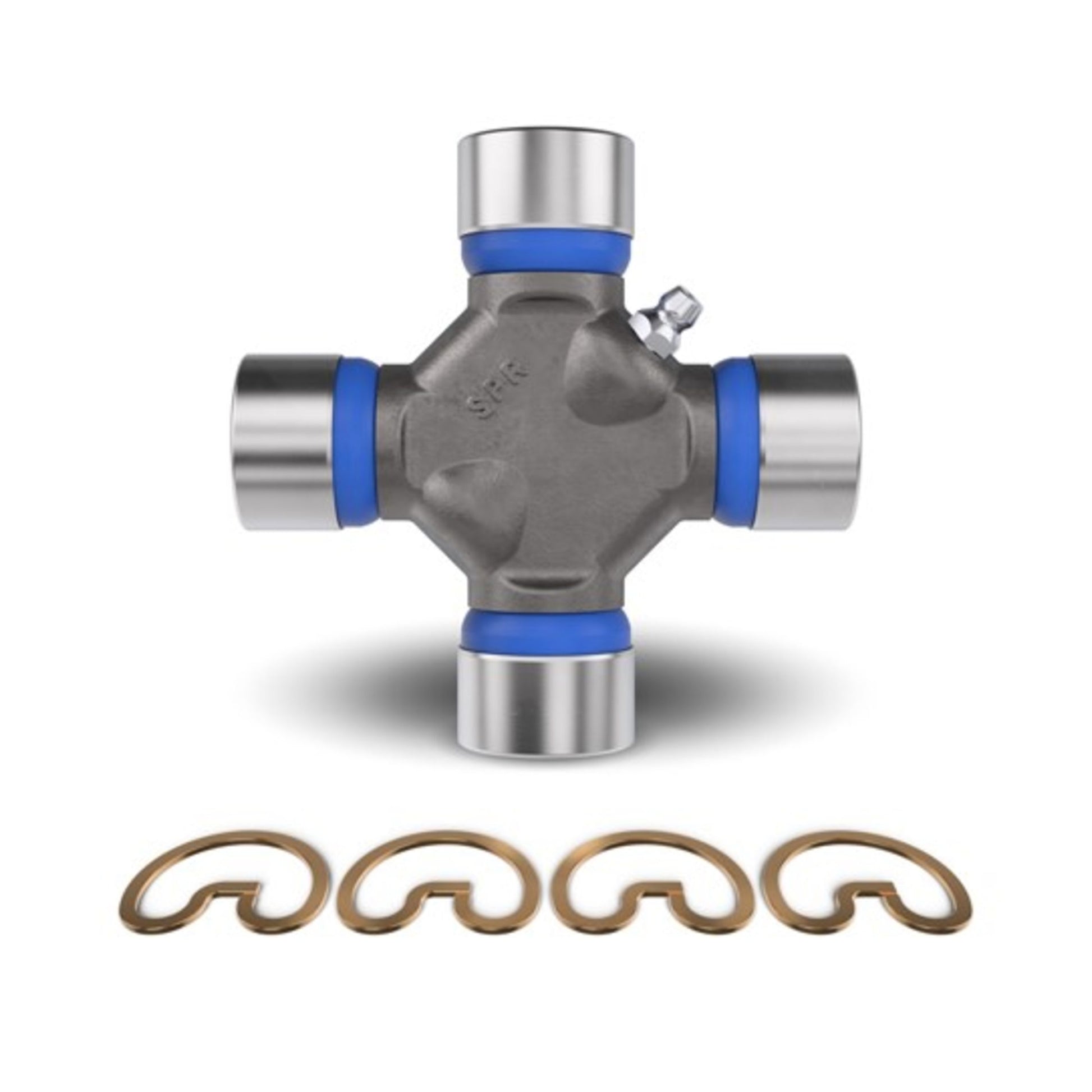

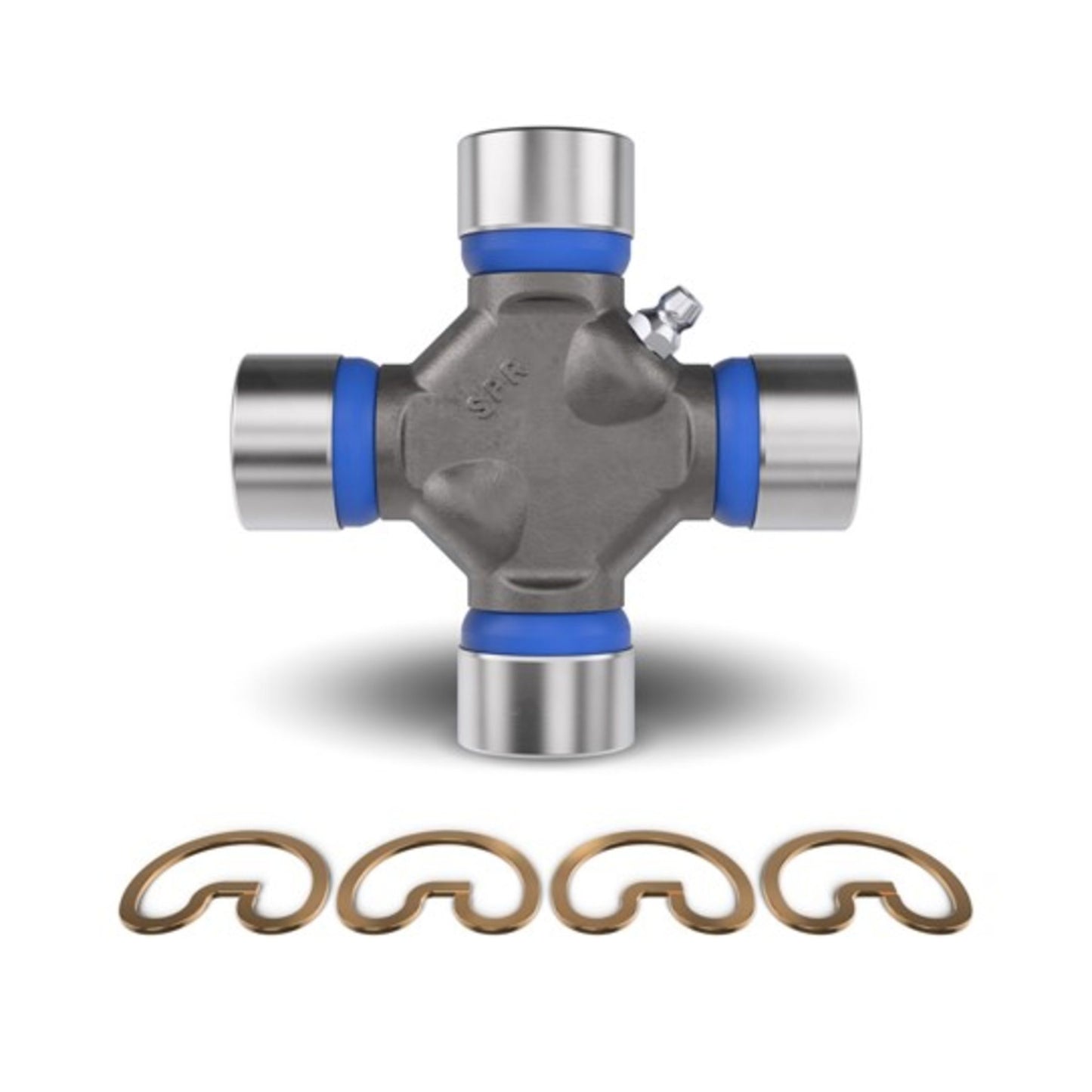

- Kit includes new snap rings.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1330
Type: OSR Style
Bearing Cap Diameter (2): 1.062
Bearing Cap Type: Round
Snap Ring Included: Y
Snap Ring Type: External
Grease Zerk Included: Y
Pre Greased: N
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: One straight lube fitting in cross
Grease Type: N.L.G.I. Grade 2
Model Number: SPICER 1330
Seal Color/Finish: Blue
Seal Material: Rubber
Greaseable: Y
Bearing Cap Diameter A (mm): 26.975
Bearing Cap Diameter B (mm): 26.975
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N

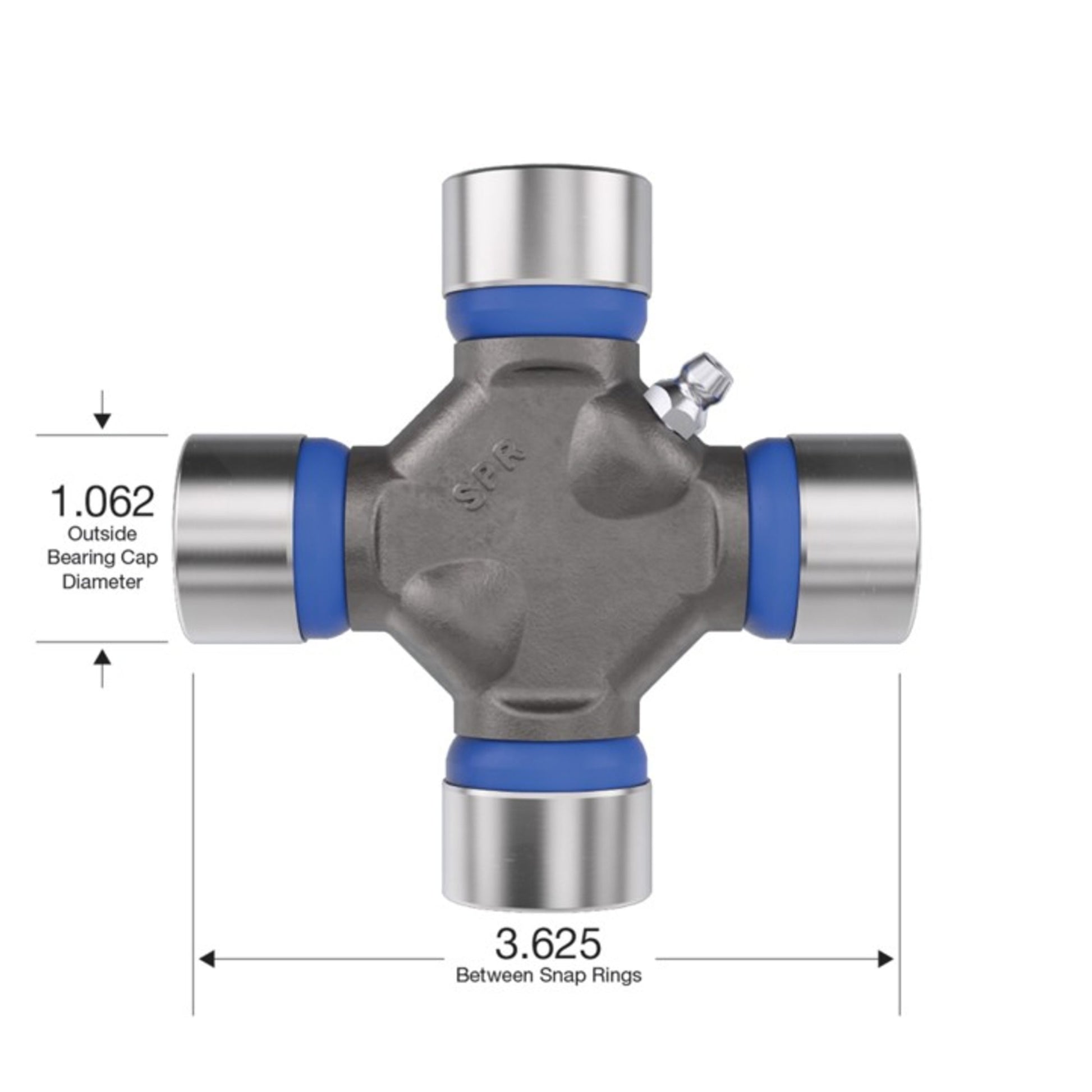

Length A (In): 3.625
Length A (mm): 92.1
Length B (In): 3.625
Length B (mm): 92.1
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 3.625
SR(2)Brng Cap to Brng Cap(OSR): 3.625
