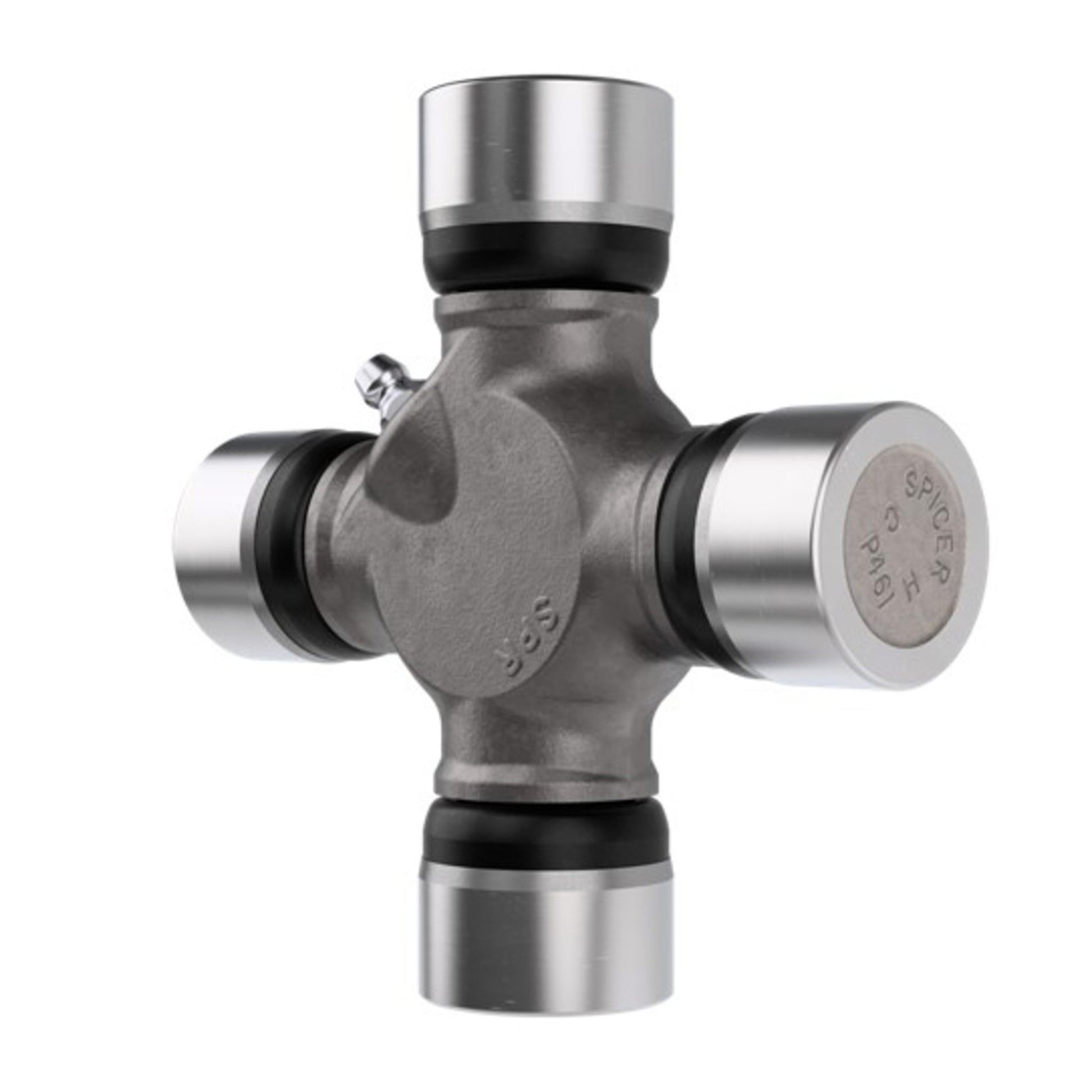

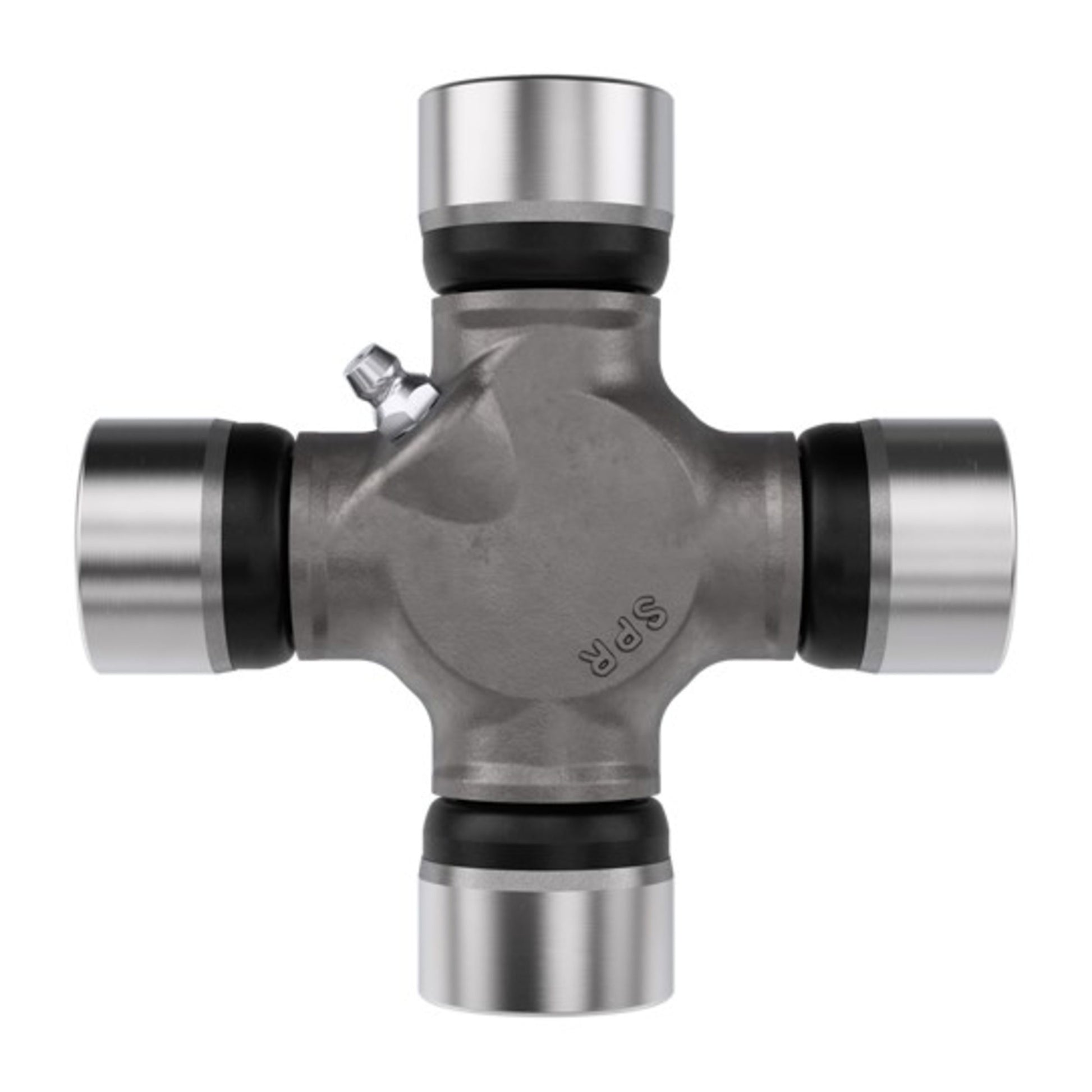

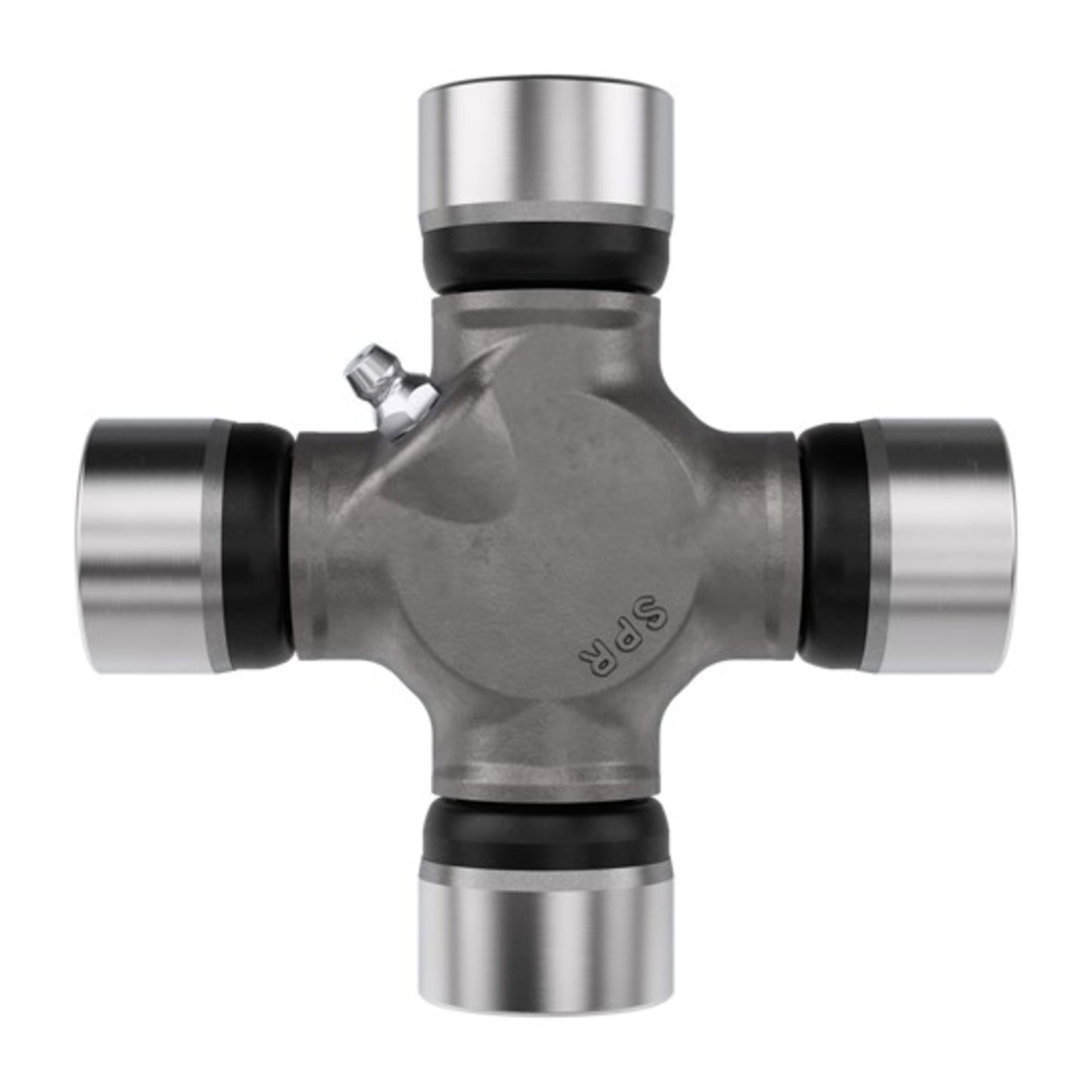

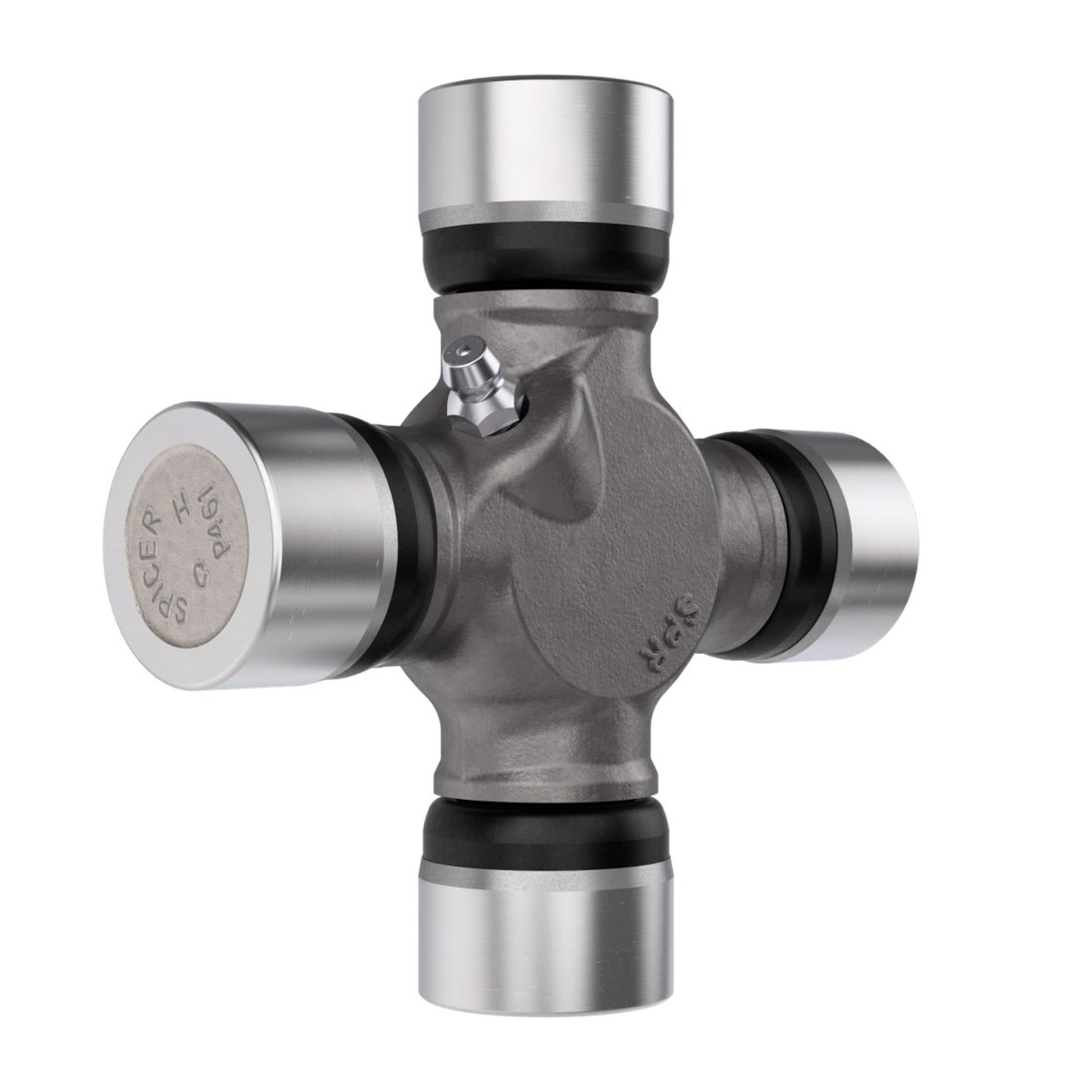

Spicer 5-160X - Universal Joint Greaseable 1410 Series

Spicer 5-160X - Universal Joint Greaseable 1410 Series

Spicer | 5-160X
SKU: FSGR-5-160X
Regular price $31.99 USD
Regular price $35.19 USD Sale price $31.99 USD
Sale Sold out
Shipping calculated at checkout.

22 in stock

Quantity

Spicer 5-160X - Universal Joint Greaseable 1410 Series

Universal Joint - 1410 Series - 1.188 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each

Universal Joint Greaseable 1410 Series

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Material: Steel
Bearing Cap Diameter (1): 1.188
OEM Mfg: Spicer
OEM Series: 1410
Type: OSR Style
Bearing Cap Diameter (2): 1.188
Bearing Cap Type: Round
Snap Ring Included: Yes
Snap Ring Type: External
Grease Zerk Included: Yes
Pre Greased: No
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: Side of Cross
Grease Type: N.L.G.I. Grade 2
Model Number: Spicer 1410 (SPL36)
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: Yes
Bearing Cap Diameter A (mm): 30.175
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: No
Length A (In): 4.188
Length A (mm): 106.400
Length B (In): 4.188
Length B (mm): 106.400
Mounting Hardware Included: No
SR(1)Brng Cap to Brng Cap(OSR): 4.188
SR(2)Brng Cap to Brng Cap(OSR): 4.188
