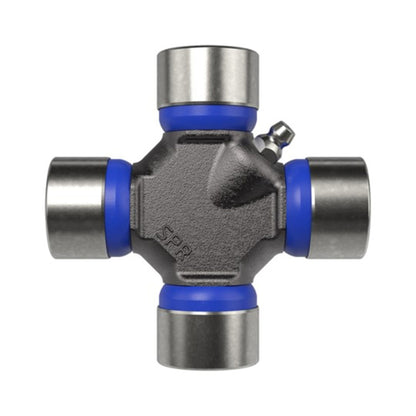

Spicer - 5-153X

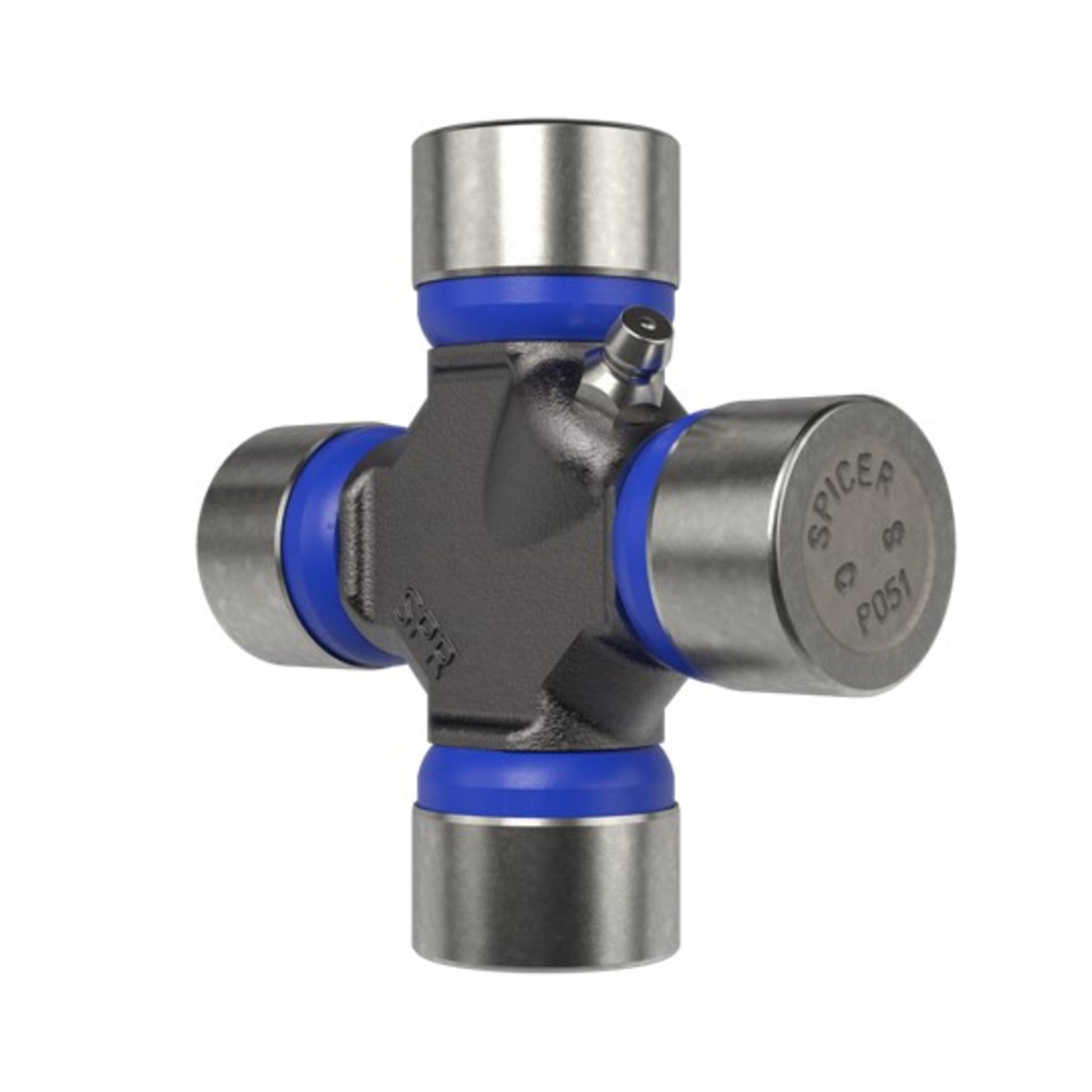

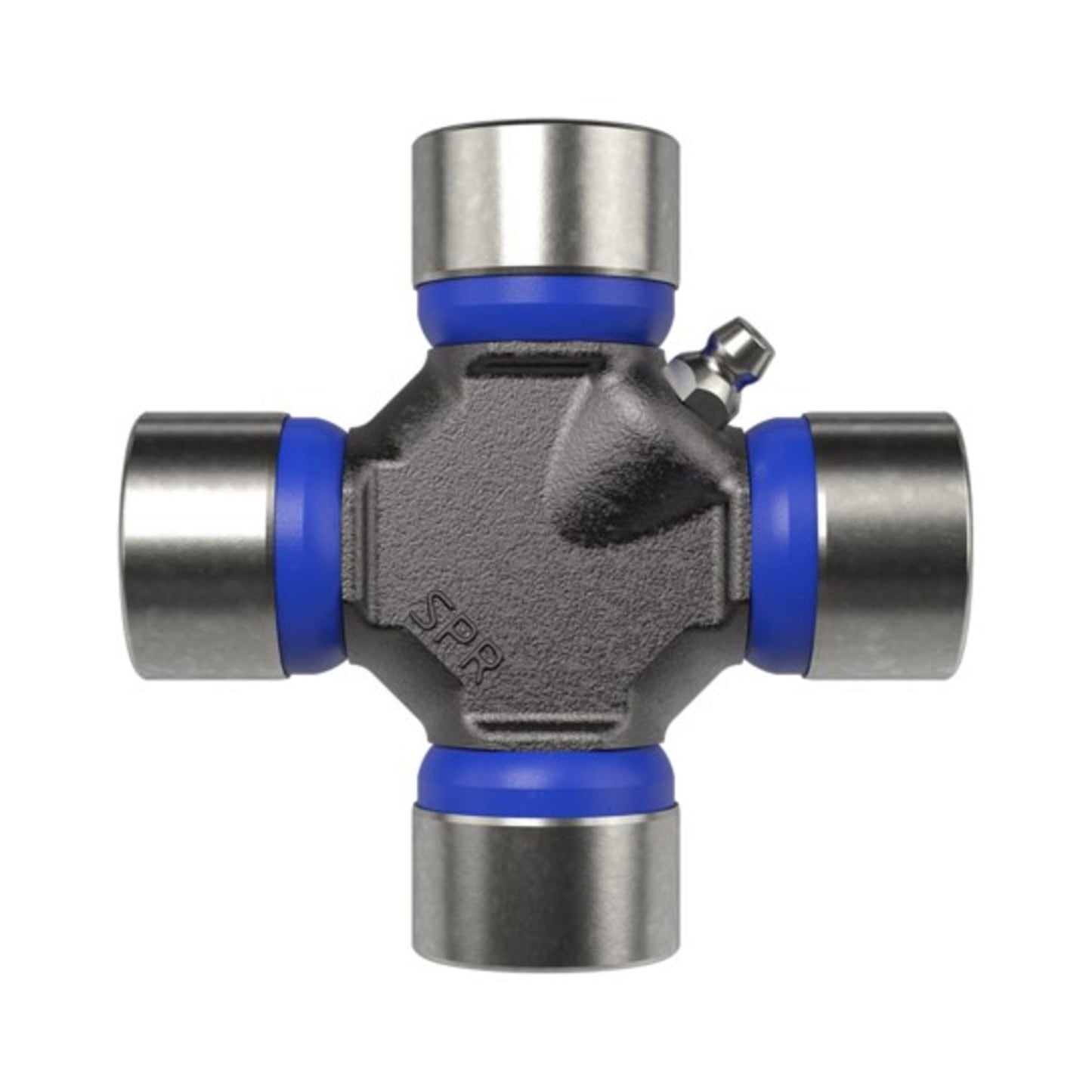

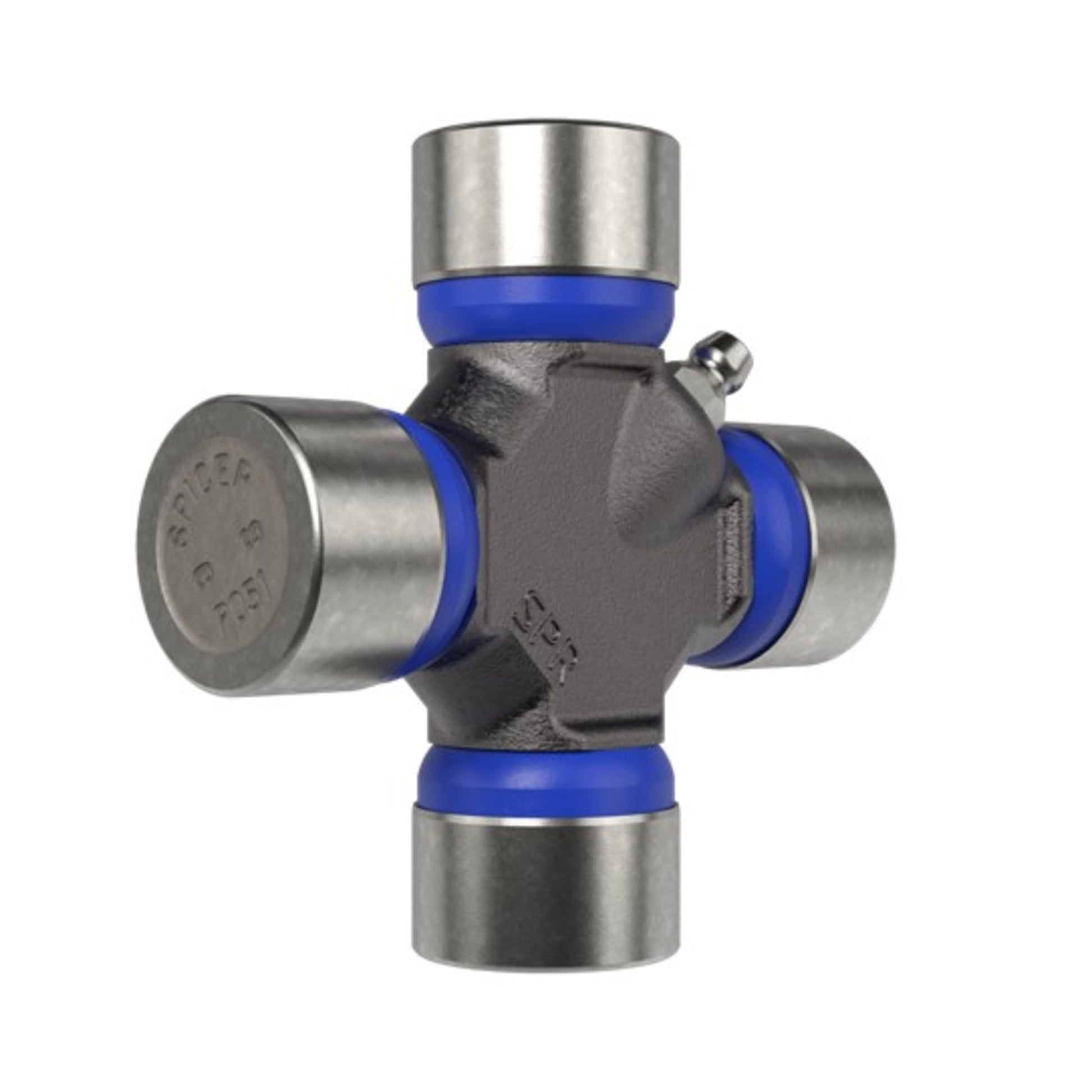

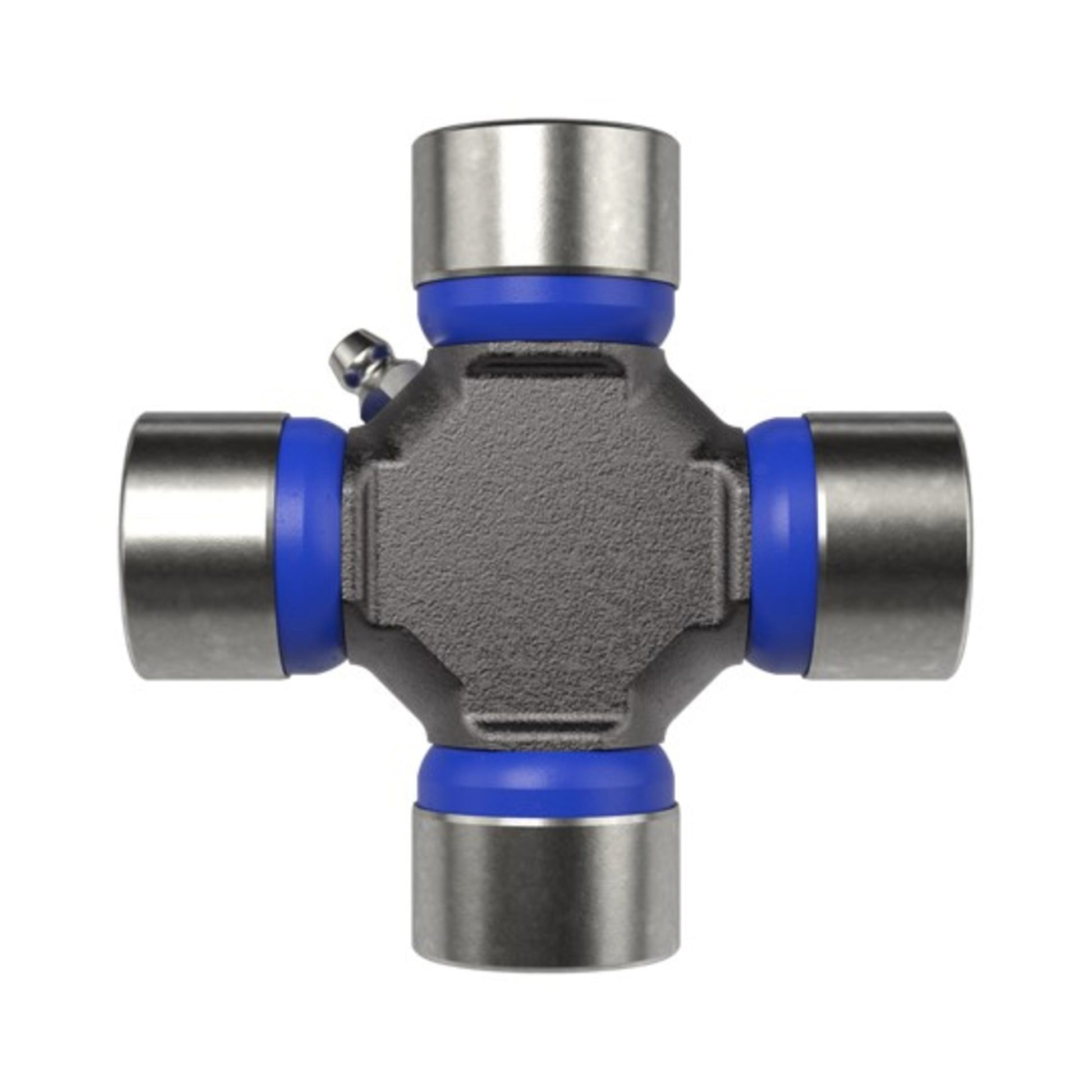

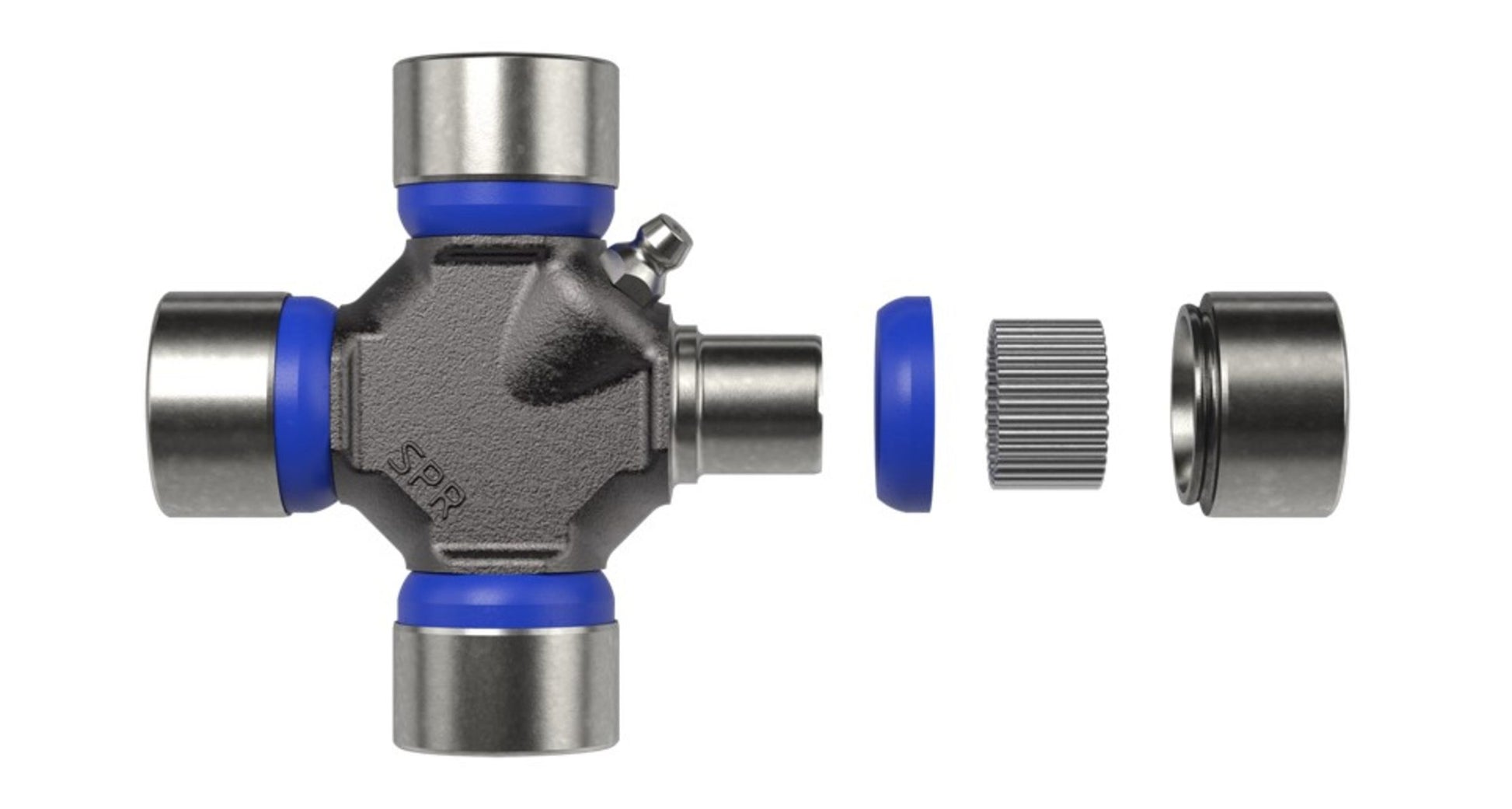

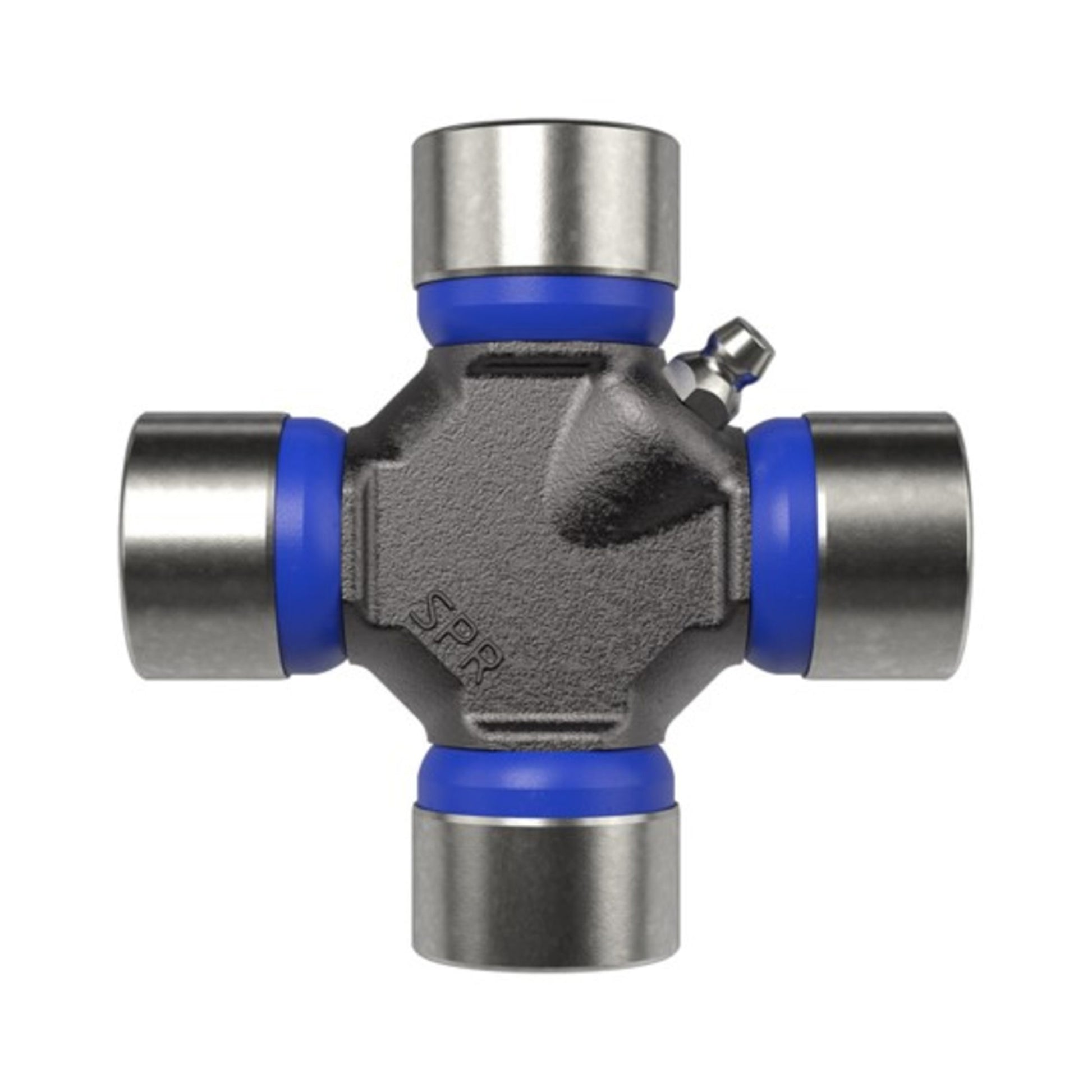

Universal Joint - 1310 Series - 1.062 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint Greaseable 1310 Series OSR
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel

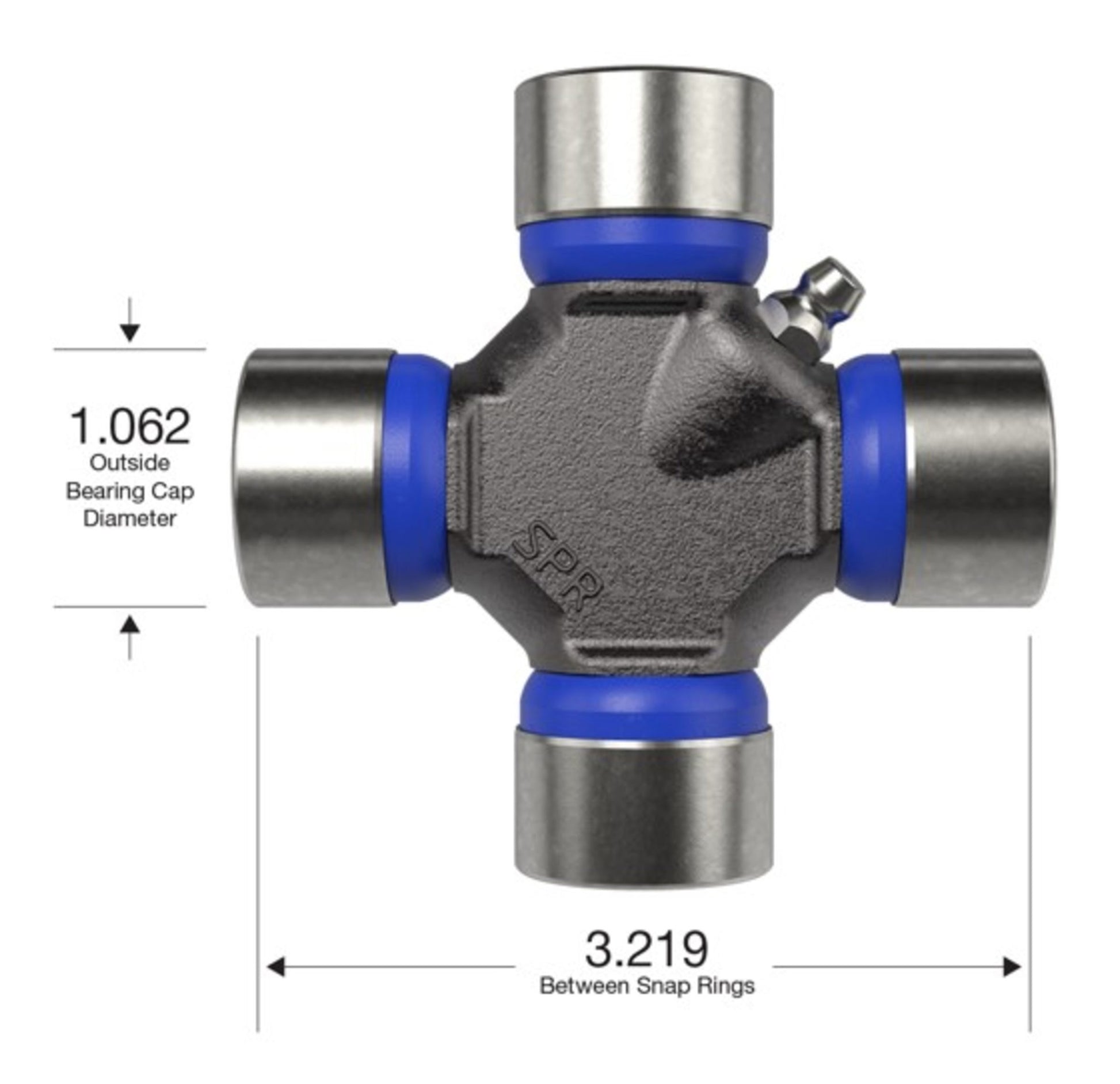

Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1310
Type: OSR Style
Bearing Cap Diameter (2): 1.062
Bearing Cap Type: Round

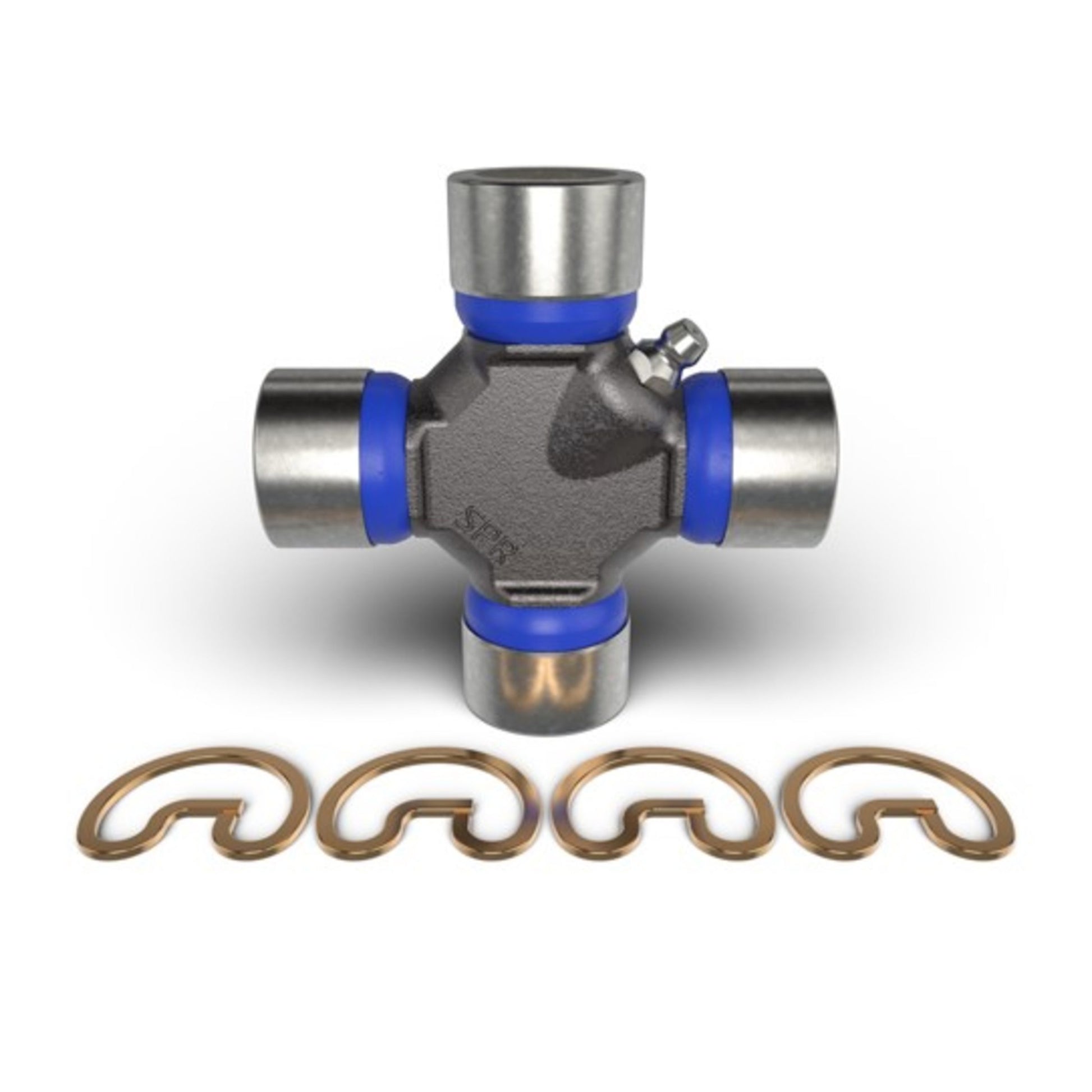

Snap Ring Included: Y
Snap Ring Type: External
Grease Zerk Included: Y
Pre Greased: N
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: One straight lube fitting in cross
Grease Type: N.L.G.I. Grade 2
Model Number: SPICER 1310/SPL22
Seal Color/Finish: Black
Seal Material: Rubber
Greaseable: Y
Bearing Cap Diameter A (mm): 26.975
Bearing Cap Diameter B (mm): 26.975
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N
Length A (In): 3.219
Length A (mm): 81.8
Length B (In): 3.219
Length B (mm): 81.8
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 3.219
SR(2)Brng Cap to Brng Cap(OSR): 3.219
