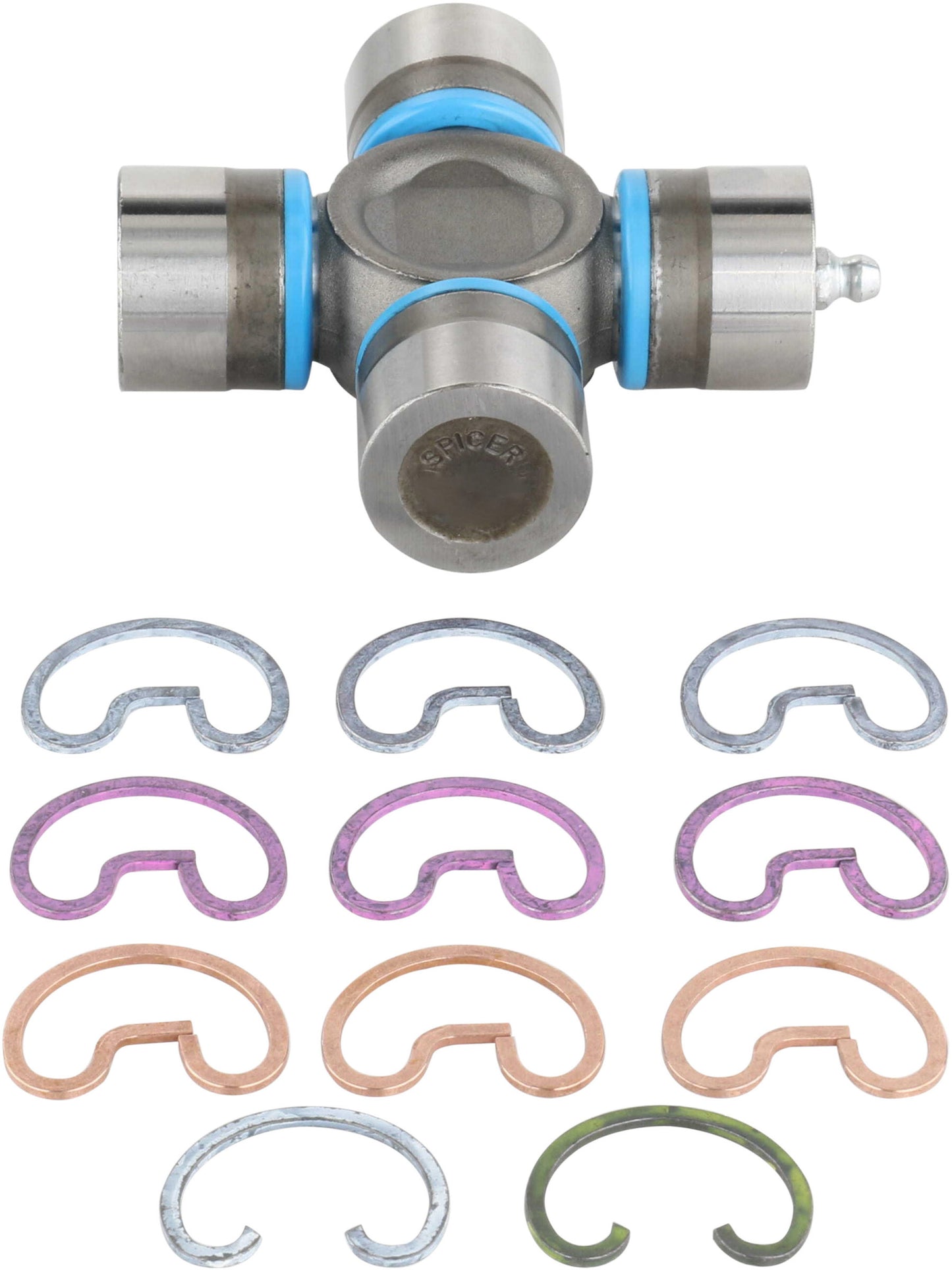

Spicer - 5-1350-1X
Universal Joint - 1350 to SPL 30 Series - 1.188 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint; Greaseable
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.188
OEM Mfg: Spicer
OEM Series: 1350/SPL30
Type: OSR Style
Bearing Cap Diameter (2): 1.188
Bearing Cap Type: Round
Snap Ring Included: Y
Snap Ring Type: External
Grease Zerk Included: Y
Pre Greased: N
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: One lube fitting in bearing
Grease Type: N.L.G.I. Grade 2
Model Number: SPICER 1350 (SPL30)
Seal Color/Finish: Blue
Seal Material: Rubber
Greaseable: Y
Bearing Cap Diameter A (mm): 30.175
Bearing Cap Diameter B (mm): 30.175
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N
Length A (In): 3.625
Length A (mm): 92.1
Length B (In): 3.625
Length B (mm): 92.1
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 3.625
SR(2)Brng Cap to Brng Cap(OSR): 3.625
