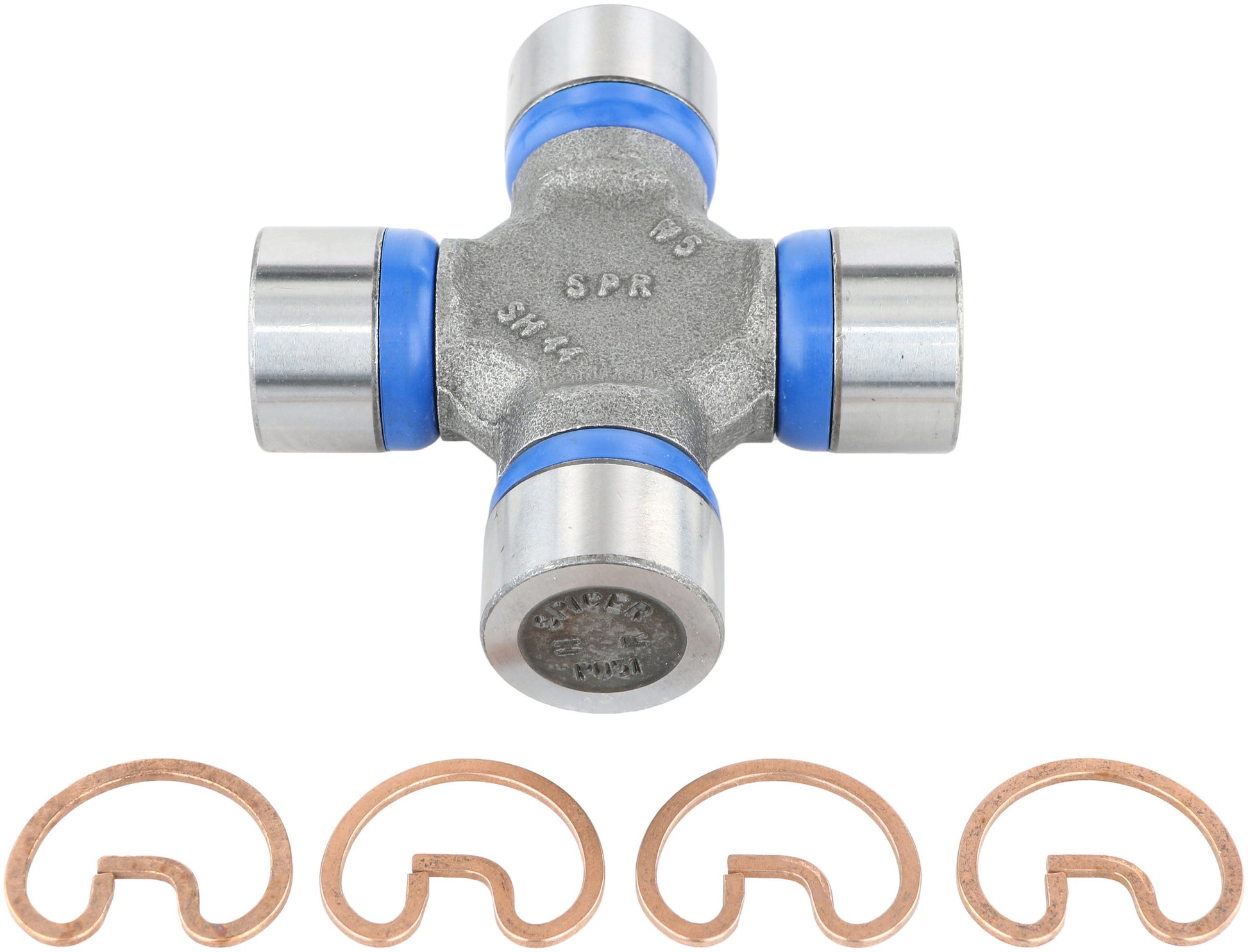

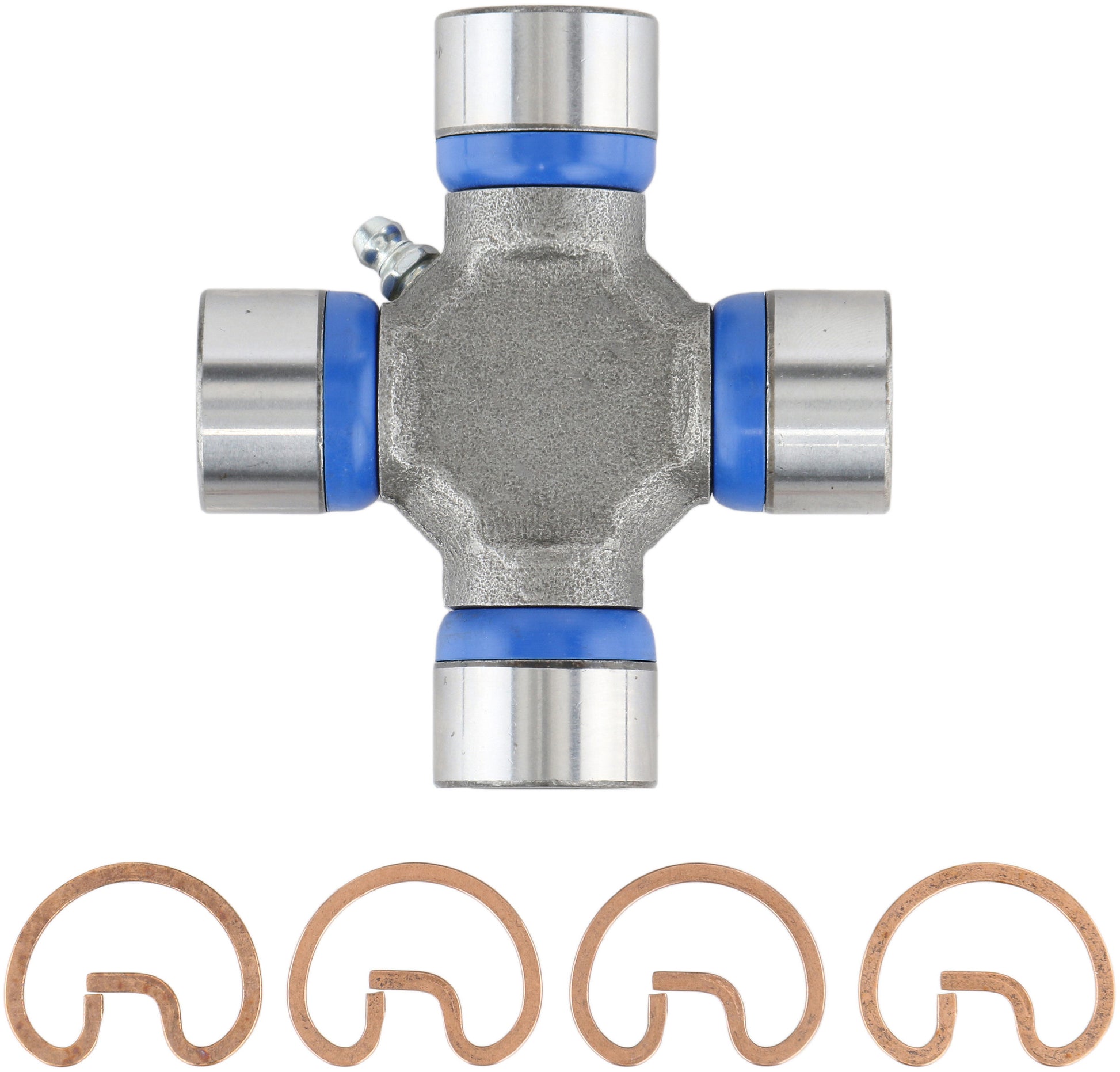

Spicer - 5-134X
Universal Joint - 1310 to 1330 Series - 1.062 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each
Universal Joint Greaseable 1310 To 1330 Series
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1310/1330
Type: OSR Style
Bearing Cap Diameter (2): 1.062
Converts This Series: 1310
To This Series: 1330
Bearing Cap Type: Round
Snap Ring Included: Y
Snap Ring Type: External
Grease Zerk Included: Y
Grease Fitting Location: One straight lube fitting in cross
Greaseable: Y
Bearing Cap Diameter A (mm): 27
Bearing Cap Diameter B (mm): 27
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: N
Length A (In): 3.219
Length A (mm): 81.8
Length B (In): 3.625
Length B (mm): 92.1
Mounting Hardware Included: N
SR(1)Brng Cap to Brng Cap(OSR): 3.219
SR(2)Brng Cap to Brng Cap(OSR): 3.625
