Spicer 5-1330-1X - Universal Joint; Greaseable

Spicer 5-1330-1X - Universal Joint; Greaseable

Spicer | 5-1330-1X
SKU: FSGR-5-1330-1X
Regular price $33.99 USD
Regular price $37.39 USD Sale price $33.99 USD
Sale Sold out
Shipping calculated at checkout.

16 in stock

Quantity

Spicer 5-1330-1X - Universal Joint; Greaseable

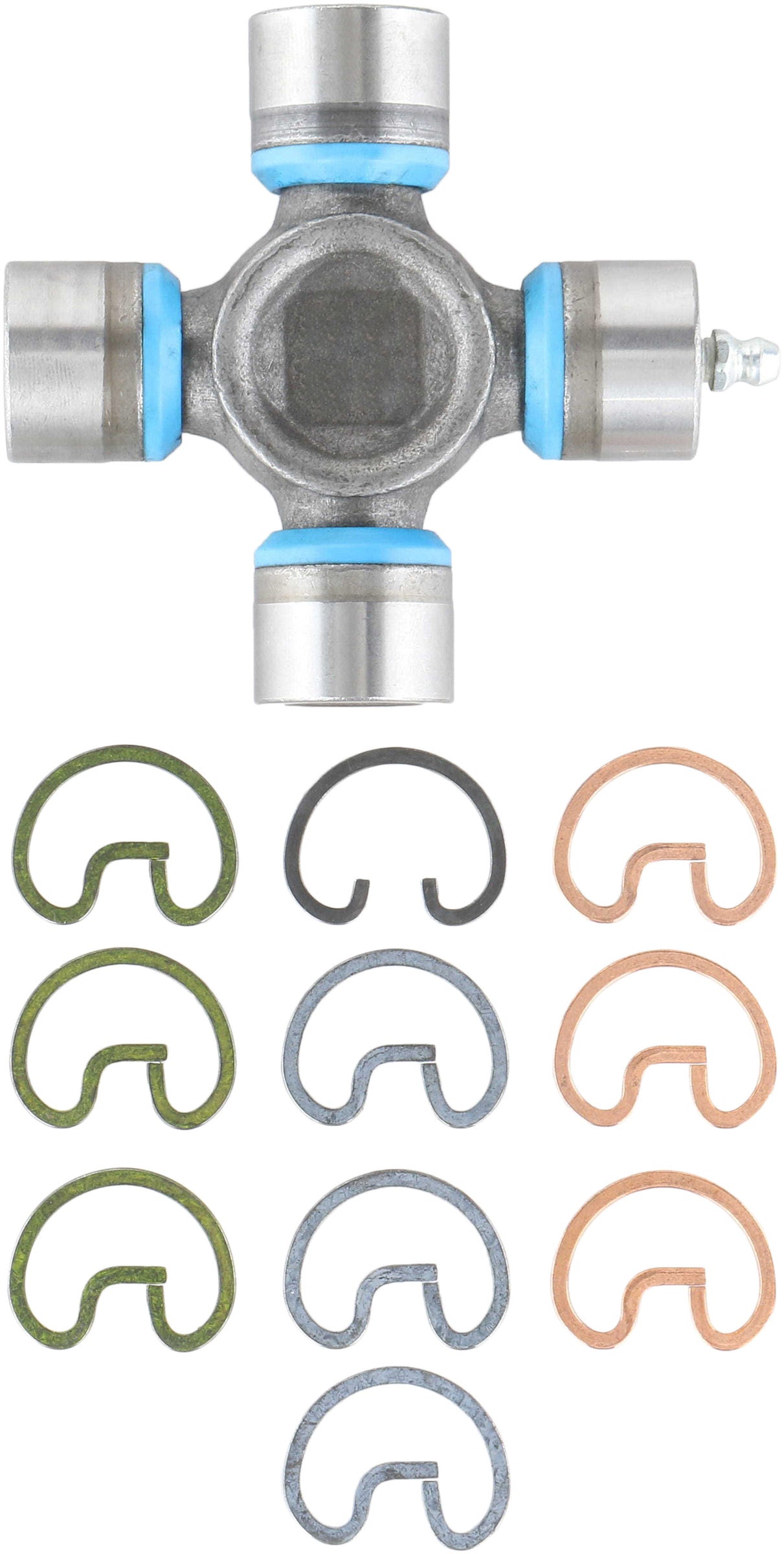

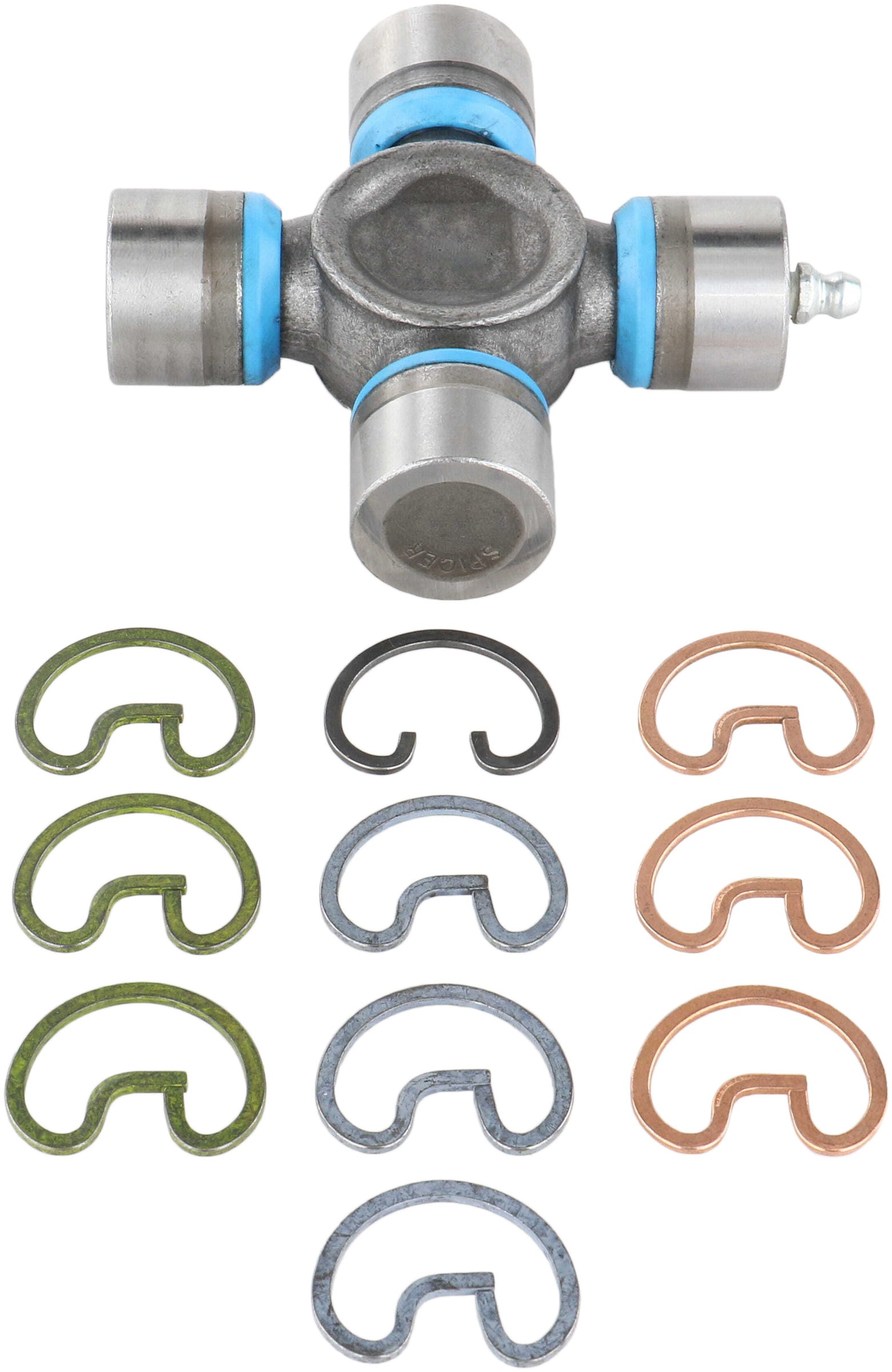

Universal Joint - 1330 to SPL 25 Series - 1.062 in Bearing Caps - Clips Included - Greasable - Steel - Natural - Each

Universal Joint; Greaseable

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
  • Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
  • Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
  • Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
Bearing Cap Diameter (2): 1.062
Bearing Cap Type: Round
Snap Ring Included: Yes
Snap Ring Type: External
Grease Zerk Included: Yes
Pre Greased: No
Bearing Cap Finish: Ground
Coating Type: None
Type: OSR Style
OEM Series: 1330/SPL25
OEM Mfg: Spicer
Bearing Cap Diameter (1): 1.062
Material: Steel
Grease Fitting Location: One lube fitting in bearing
Grease Type: N.L.G.I. Grade 2
Model Number: Spicer 1330
Seal Color/Finish: Blue
Seal Material: Rubber
Greaseable: Yes
Bearing Cap Diameter A (mm): 26.975
Bearing Cap Diameter B (mm): 26.975
Bearing Cap Type A: OSR
Bearing Cap Type B: OSR
Hardware Included: No
Length A (In): 3.625
Length A (mm): 92.100
Length B (In): 3.625
Length B (mm): 92.100
Mounting Hardware Included: No
SR(1)Brng Cap to Brng Cap(OSR): 3.625
SR(2)Brng Cap to Brng Cap(OSR): 3.625
