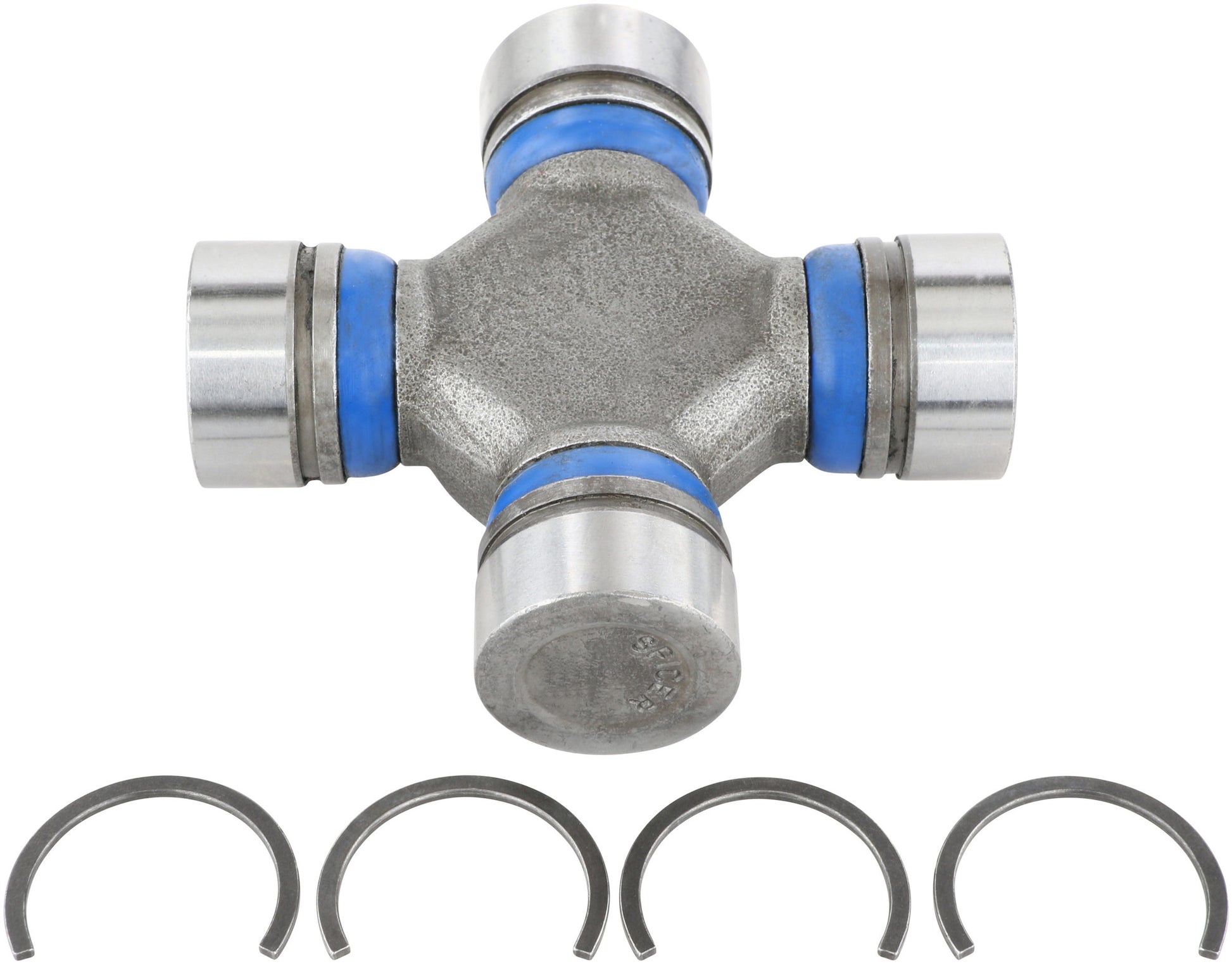

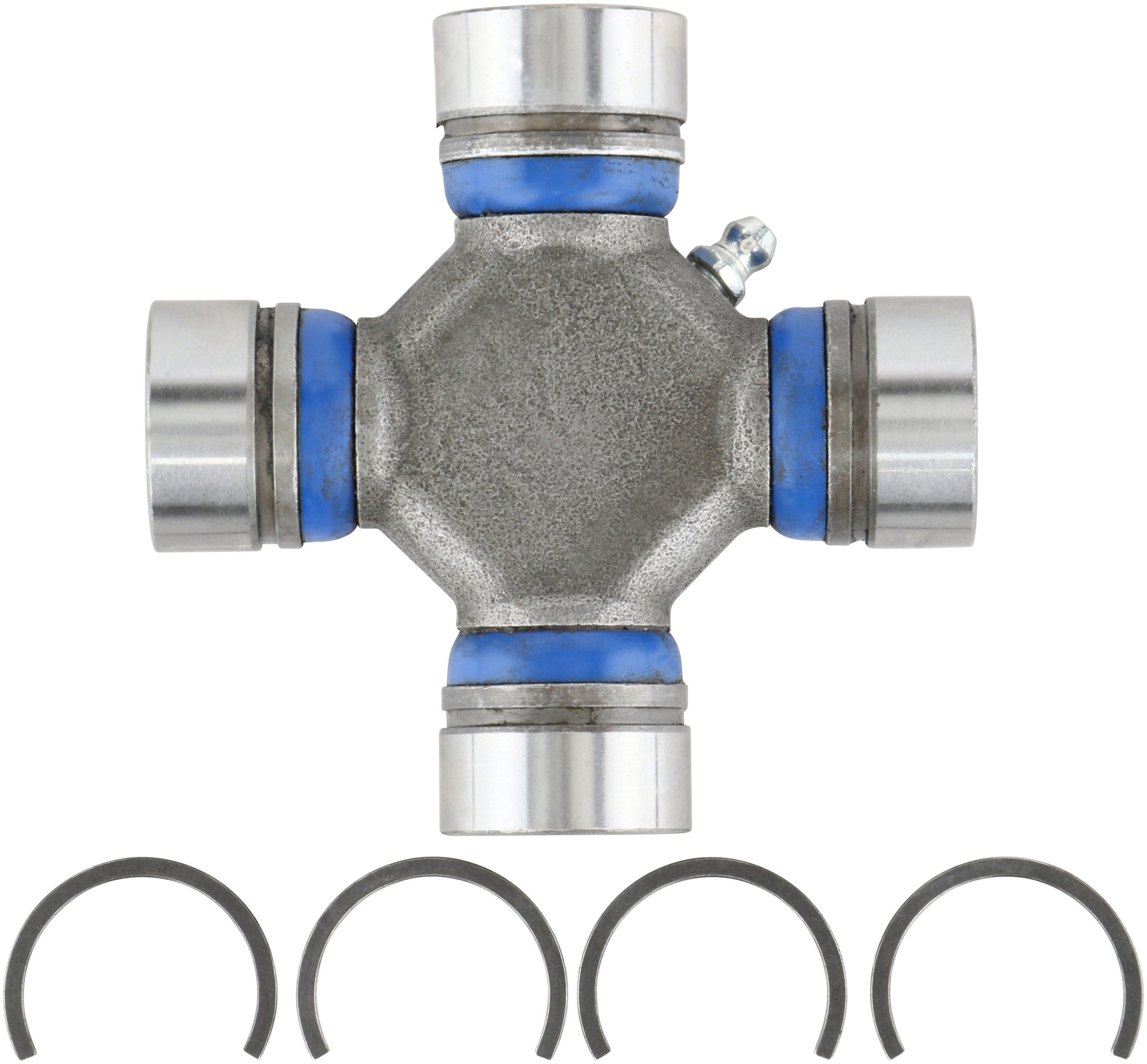

Spicer 5-1309X - Universal Joint Greaseable 7290 Series Inside Snap Ring (ISR)

Spicer 5-1309X - Universal Joint Greaseable 7290 Series Inside Snap Ring (ISR)

Spicer | 5-1309X
SKU: FSGR-5-1309X
Regular price $28.99 USD
Regular price $31.08 USD Sale price $28.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-1309X - Universal Joint Greaseable 7290 Series Inside Snap Ring (ISR)

Universal Joint Greaseable 7290 Series Inside Snap Ring (ISR)

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Material: Steel
Bearing Cap Diameter (1): 1.125
OEM Mfg: Detroit
OEM Series: 7290
Type: ISR Style
Bearing Cap Diameter (2): 1.125
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: Internal
Grease Zerk Included: Yes
Pre Greased: No
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: Side of Cross
Grease Type: N.L.G.I. Grade 2
Model Number: DETROIT 7290
Seal Color/Finish: Blue
Seal Material: Rubber
Greaseable: Yes
Bearing Cap Diameter A (mm): 28.575
Bearing Cap Diameter B (mm): 28.575
Bearing Cap Type A: ISR
Bearing Cap Type B: ISR
Hardware Included: No
Length A (In): 2.625
Length A (mm): 66.675
Length B (In): 2.625
Length B (mm): 66.675
Mounting Hardware Included: No
Distance Btw Snap Ring Grooves: 2.625
Distance Btw Snap Ring Grooves (ISR) (2): 2.625
