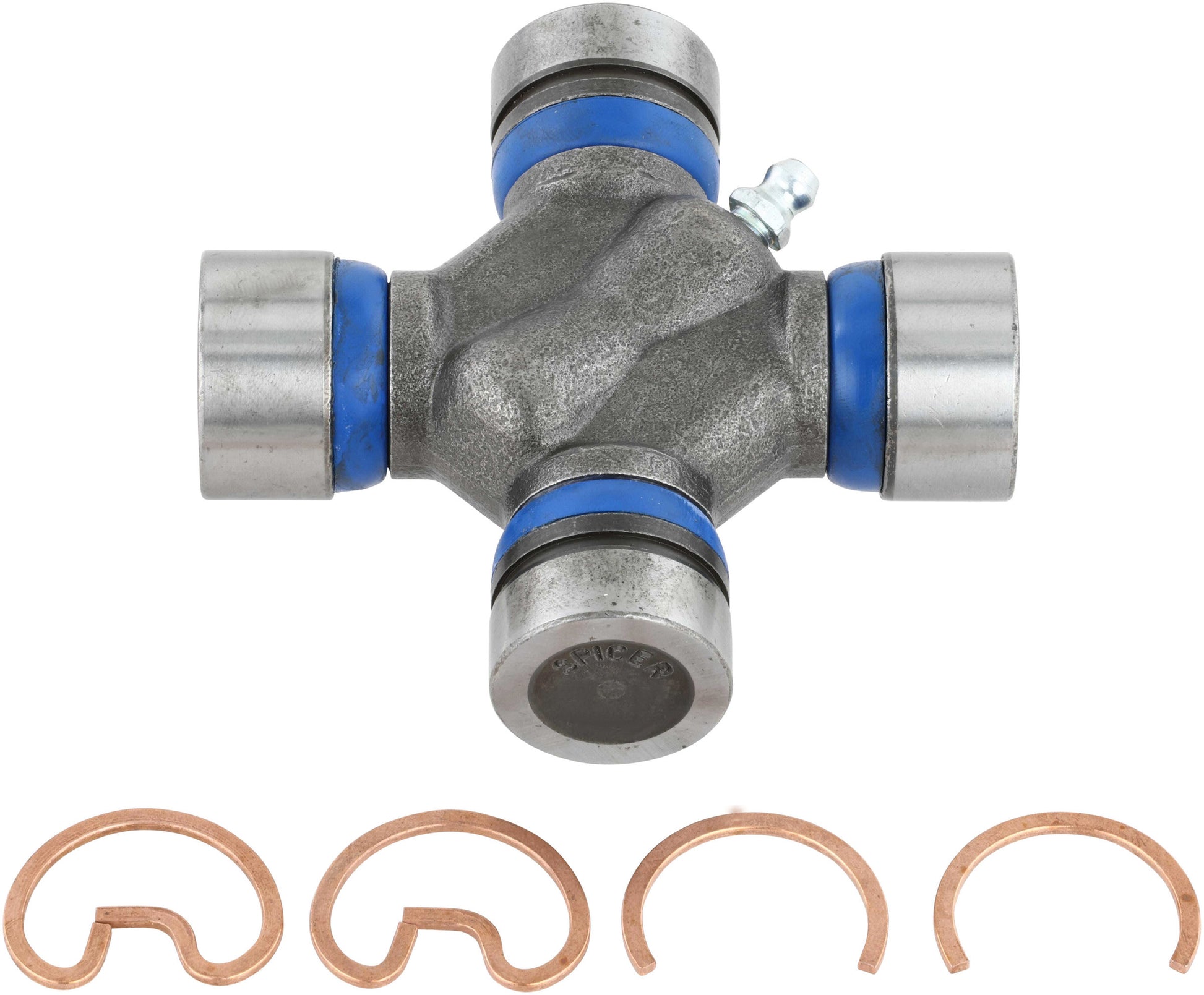

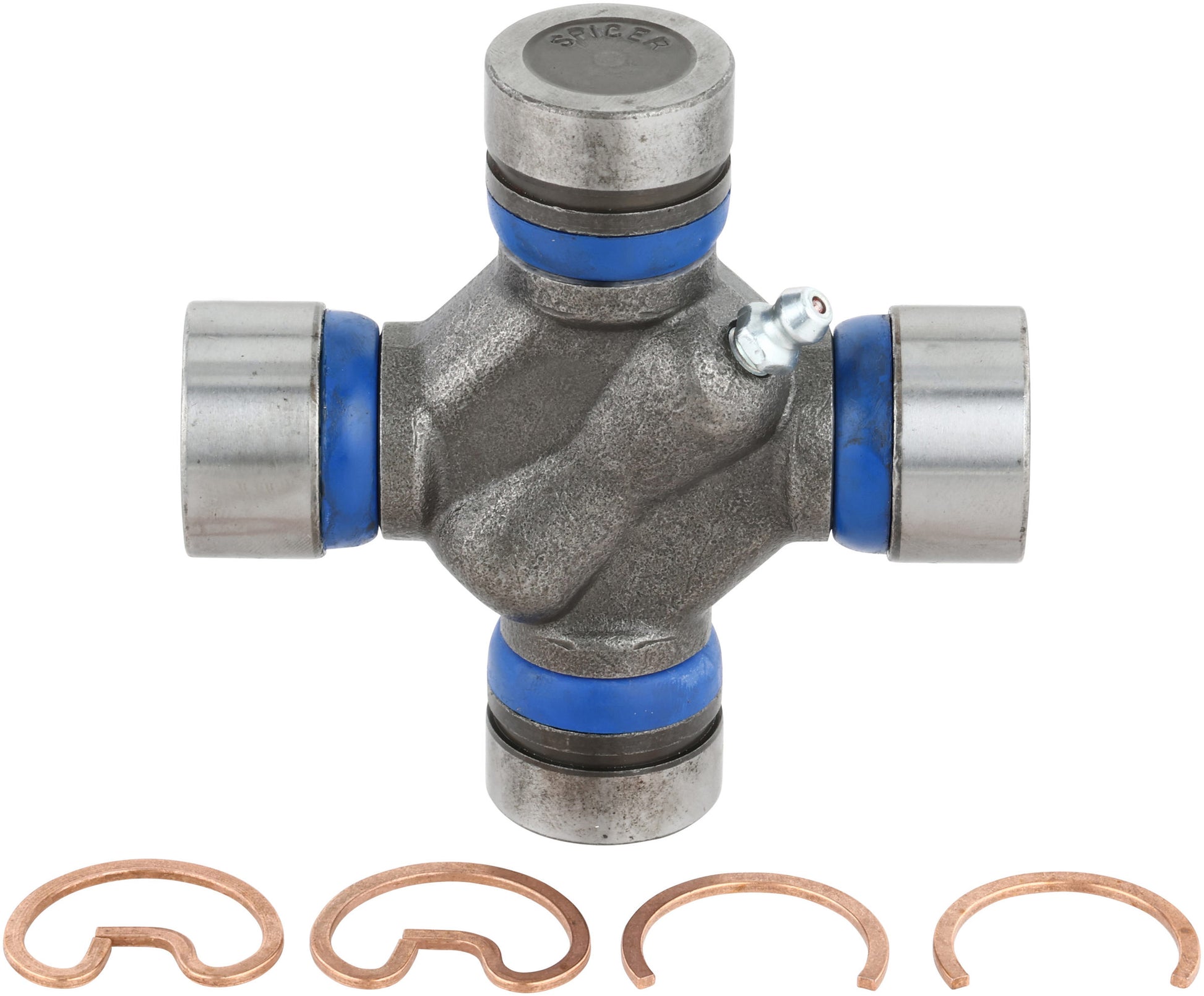

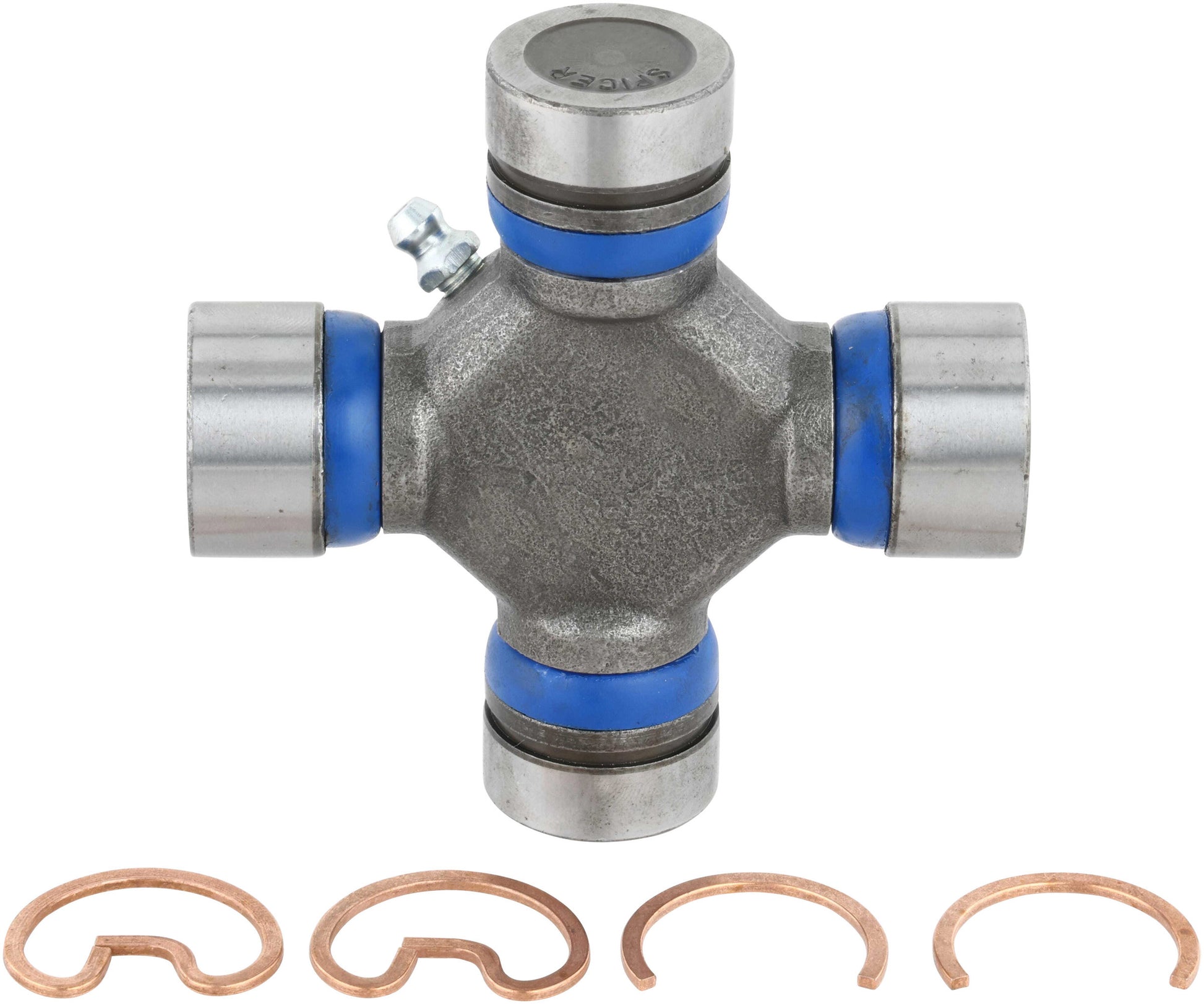

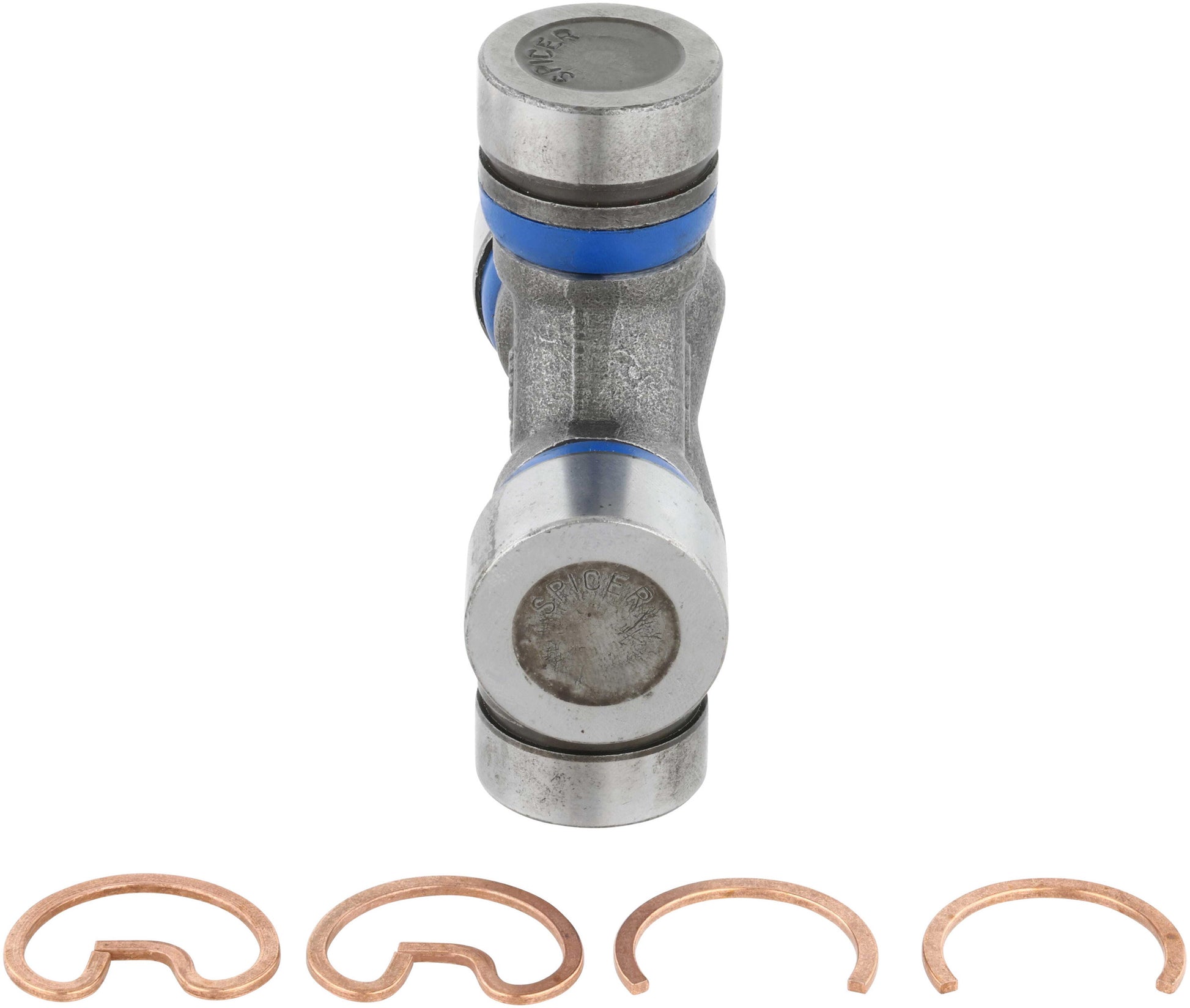

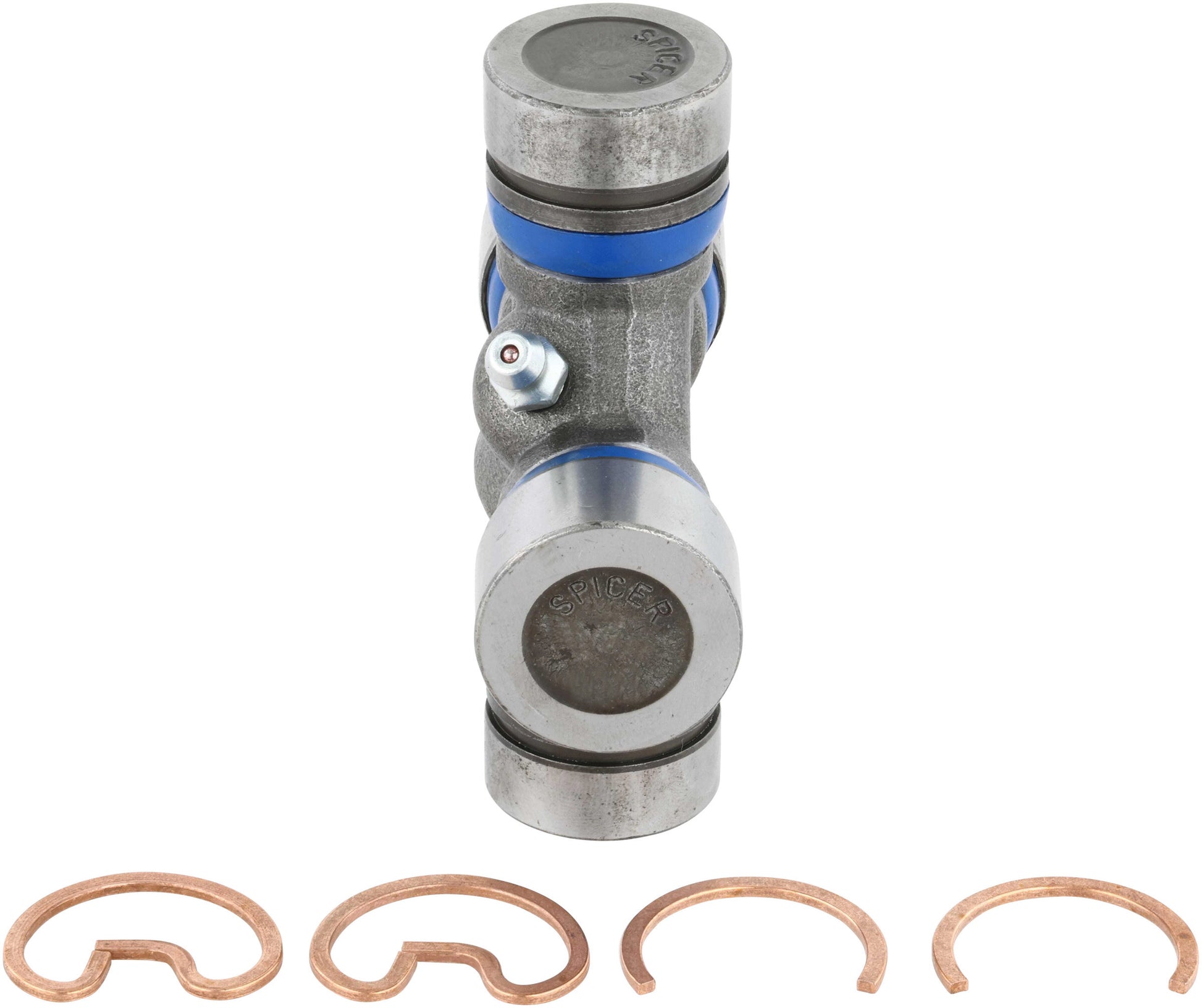

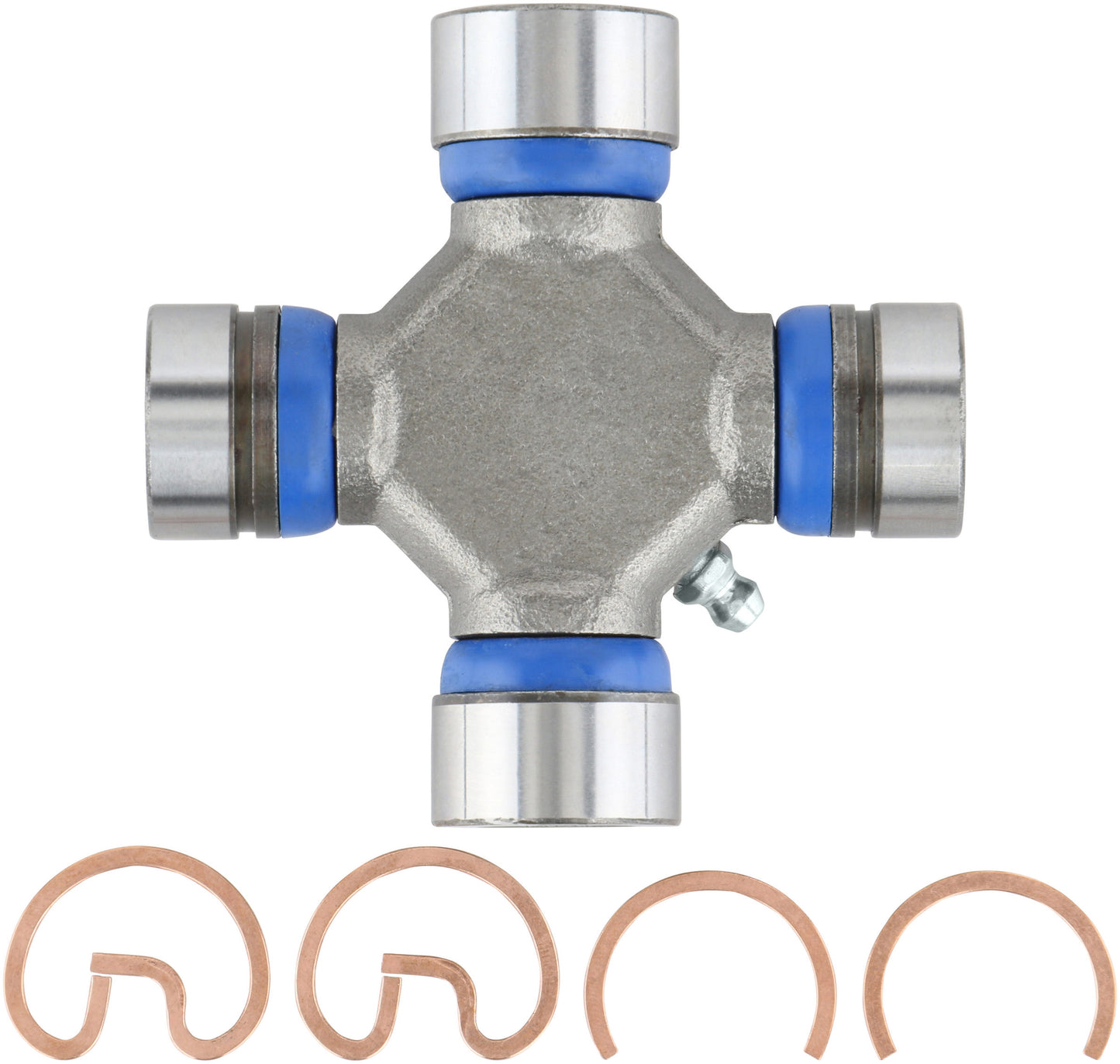

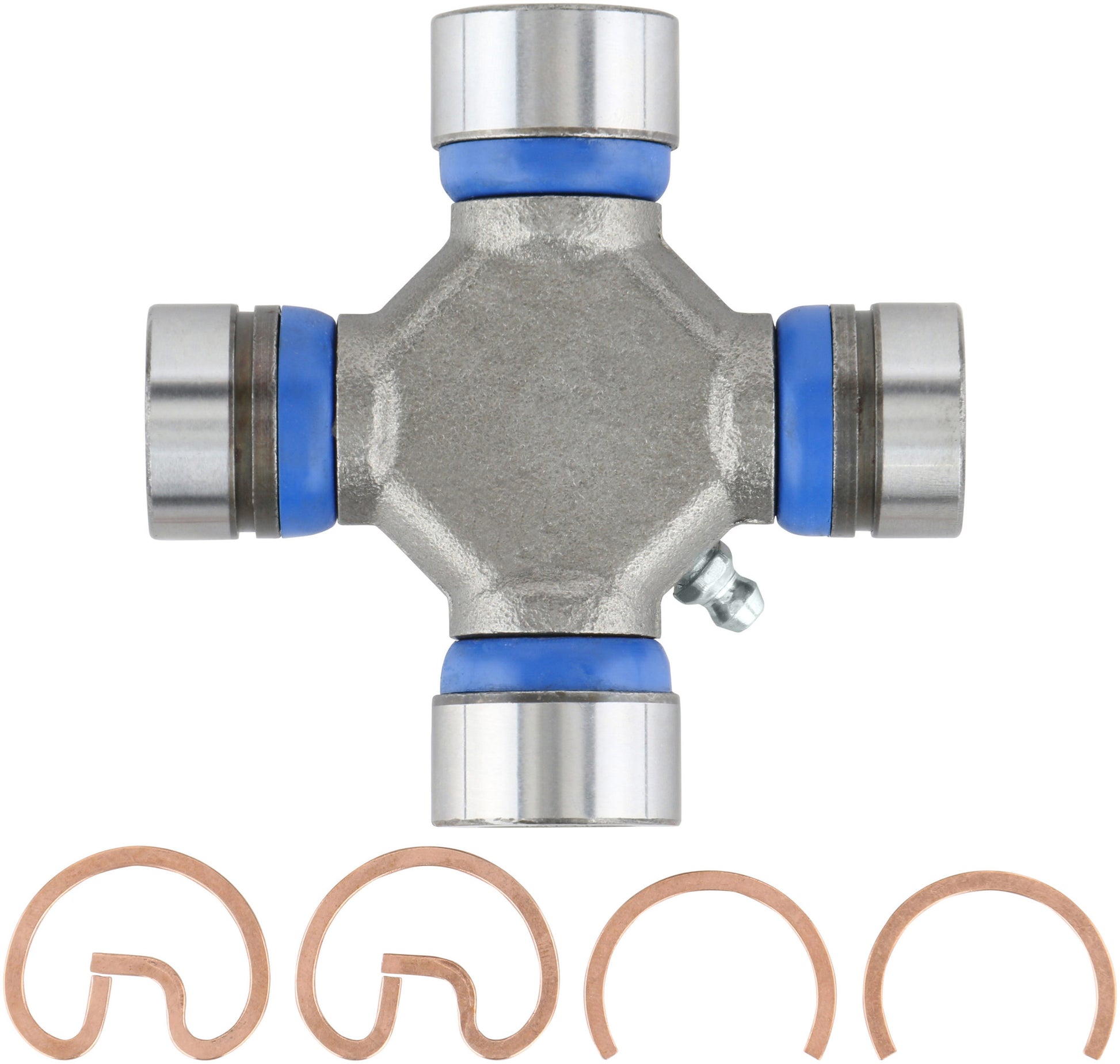

Spicer 5-1204X - Universal Joint Greaseable 1330-F SPEC Series

Spicer 5-1204X - Universal Joint Greaseable 1330-F SPEC Series

Spicer | 5-1204X
SKU: FSGR-5-1204X
$29.99 USD
$32.40 USD $29.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 5-1204X - Universal Joint Greaseable 1330-F SPEC Series

Universal Joint Greaseable 1330-F SPEC Series

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Genuine OE quality. Tested and proven.
  • Built to meet OE standards set by Dana
  • Tested and validated to rigorous OE specifications
  • Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.

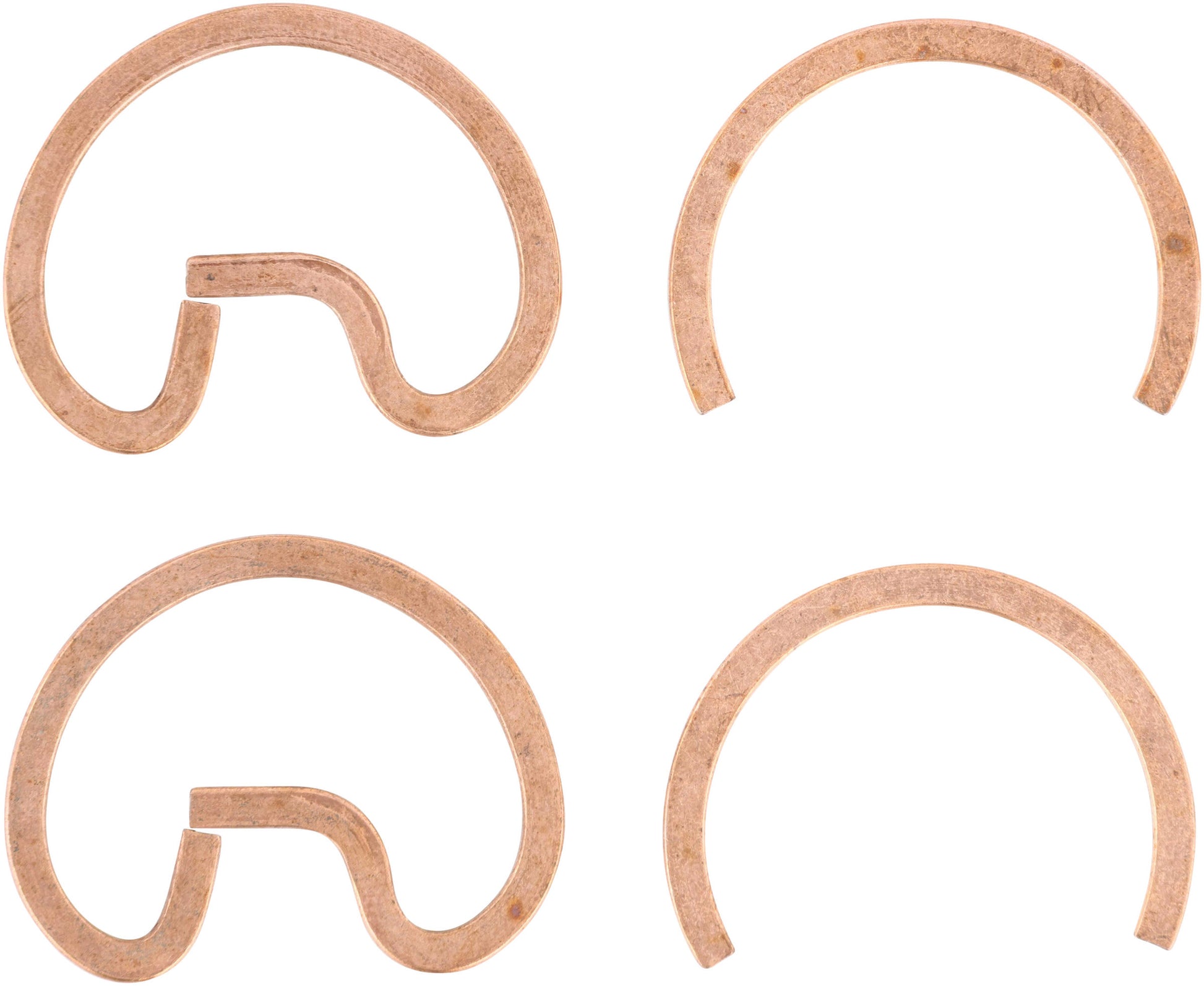

Notes: Includes Inside and Outside Snap Rings
Distance Btw Snap Ring Grooves: 2.767
Distance Btw Snap Ring Grooves (ISR) (2): 2.767
Material: Steel
Bearing Cap Diameter (1): 1.062
OEM Mfg: Spicer
OEM Series: 1330SPEC
Type: ISR or OSR Style
Bearing Cap Diameter (2): 1.125
Converts This Series: 1330
To This Series: 1330SPEC
Bearing Cap Type: Round with ISR Groove
Snap Ring Included: Yes
Snap Ring Type: External
Grease Zerk Included: Yes
Pre Greased: No
Bearing Cap Finish: Ground
Coating Type: None
Grease Fitting Location: Side of Cross
Grease Type: N.L.G.I. Grade 2
Model Number: Spicer 1330
Seal Color/Finish: Blue
Seal Material: Rubber
Greaseable: Yes
Bearing Cap Diameter A (mm): 26.975
Bearing Cap Diameter B (mm): 28.575
Bearing Cap Type A: ISR or OSR
Bearing Cap Type B: ISR or OSR
Hardware Included: No
Length A (In): 2.767 or 3.625
Length A (mm): 70.282 or 92.100
Length B (In): 3.625
Length B (mm): 92.100
Mounting Hardware Included: No
SR(1)Brng Cap to Brng Cap(OSR): 3.625
SR(2)Brng Cap to Brng Cap(OSR): 3.625
