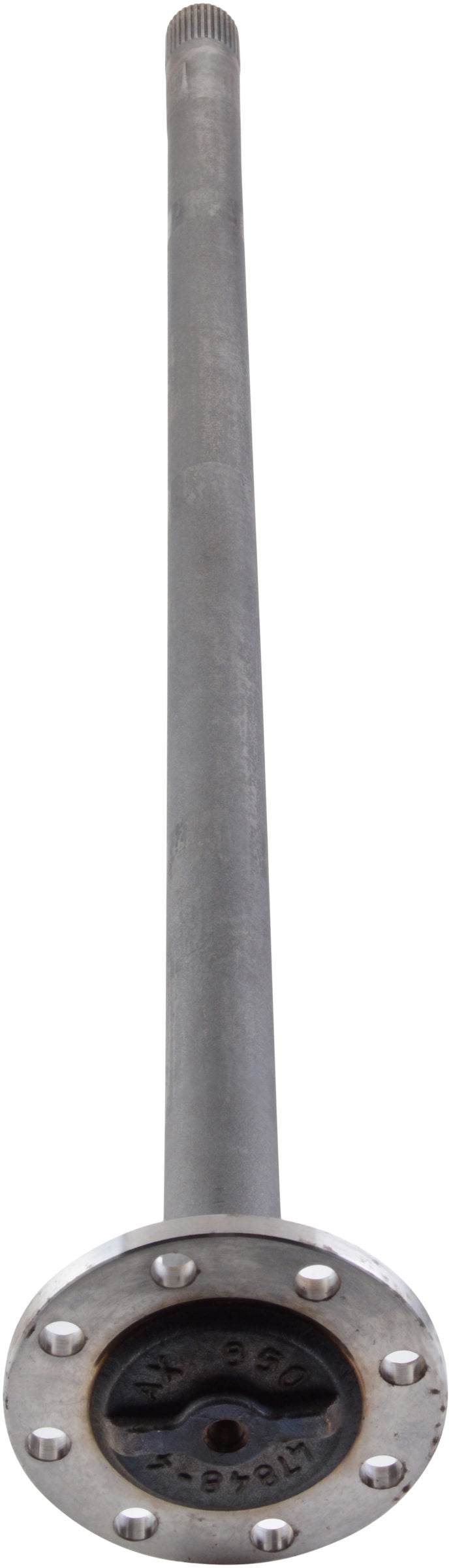

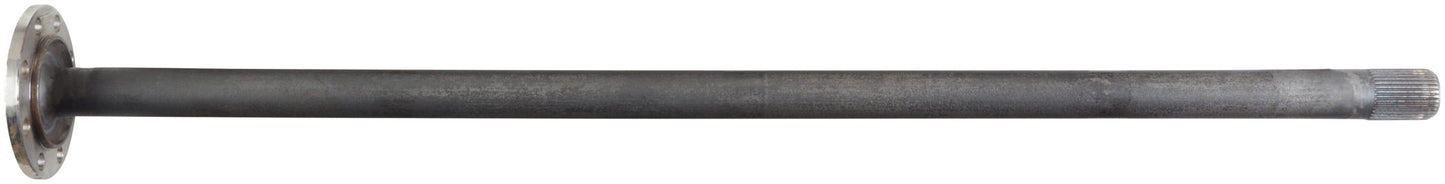

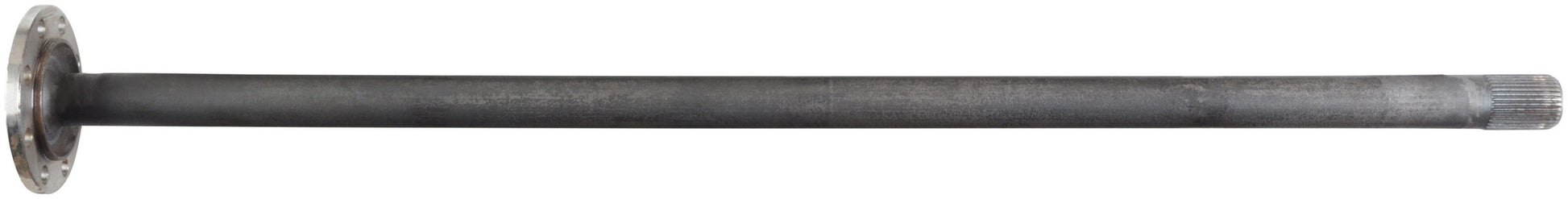

  • Product Image 1
  • Product Image 2
1 2

Spicer 47847-4 - AXLE SHAFT

Spicer 47847-4 - AXLE SHAFT

Spicer | 47847-4
SKU: FSGR-47847-4
$194.99 USD
$262.25 USD $194.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 47847-4 - AXLE SHAFT

AXLE SHAFT

Genuine Spicer light vehicle axle products are manufactured to the same high standards as original equipment (OE) parts because they are OE parts. That means when an automotive axle part is replaced with a genuine Spicer part, you are getting the same performance and reliability you have come to expect. And because Dana is constantly revolutionizing the technology behind its Dana axles and Spicer products, the replacement car axle or component you purchase today may even exceed the standards set for the original equipment part that you are replacing.

  • Genuine OE quality. Tested and proven.
  • Precision manufacturing processes
  • Engineered for consistent quality and durability
  • Meets Dana aftermarket requirements for static ultimate strength, torsional fatigue and rotating/bending torque
Axle Model: DANA 80
Material: Steel
ABS/Non-ABS: Non-ABS
Length (IN): 38.740
Location: LH
Spline Count: 35 Inboard
Axle Spline Count: 35 Inboard
Axle Cover Bolt Hole Qty: 10
Axle Length (In): 38.740
Bearing Pilot Diameter (In): 1.374
Bolt Pattern: 8 X 4.02
Brake Pilot Diameter (In): 3.015
Includes Tone: N
Wheel Stud Hole Diameter (In): 0.484
Cover Bolt Quantity: 10
Axle Type: Complete Assembly
Quantity: 1
ABS Sensor Ring Included: No
ABS Sensor Ring Installed: N
Axle Shaft Included: Y
Bearing Included: N
Full-Floating Or Semi-Floating: Full-Floating
Inner Axle Included: Y
Number Of Wheel Lugs: 8
Outer Axle Included: Y
Retainer Ring Included: N
Seal Included: N
Seal Kit Included: N
U-Joint Included: N
Wheel Bearing Included: N
Wheel Bolt Prep Kit Included: N
Wheel Nuts Included: N
Wheel Studs Included: N
Axle Length (Mm): 983.996
