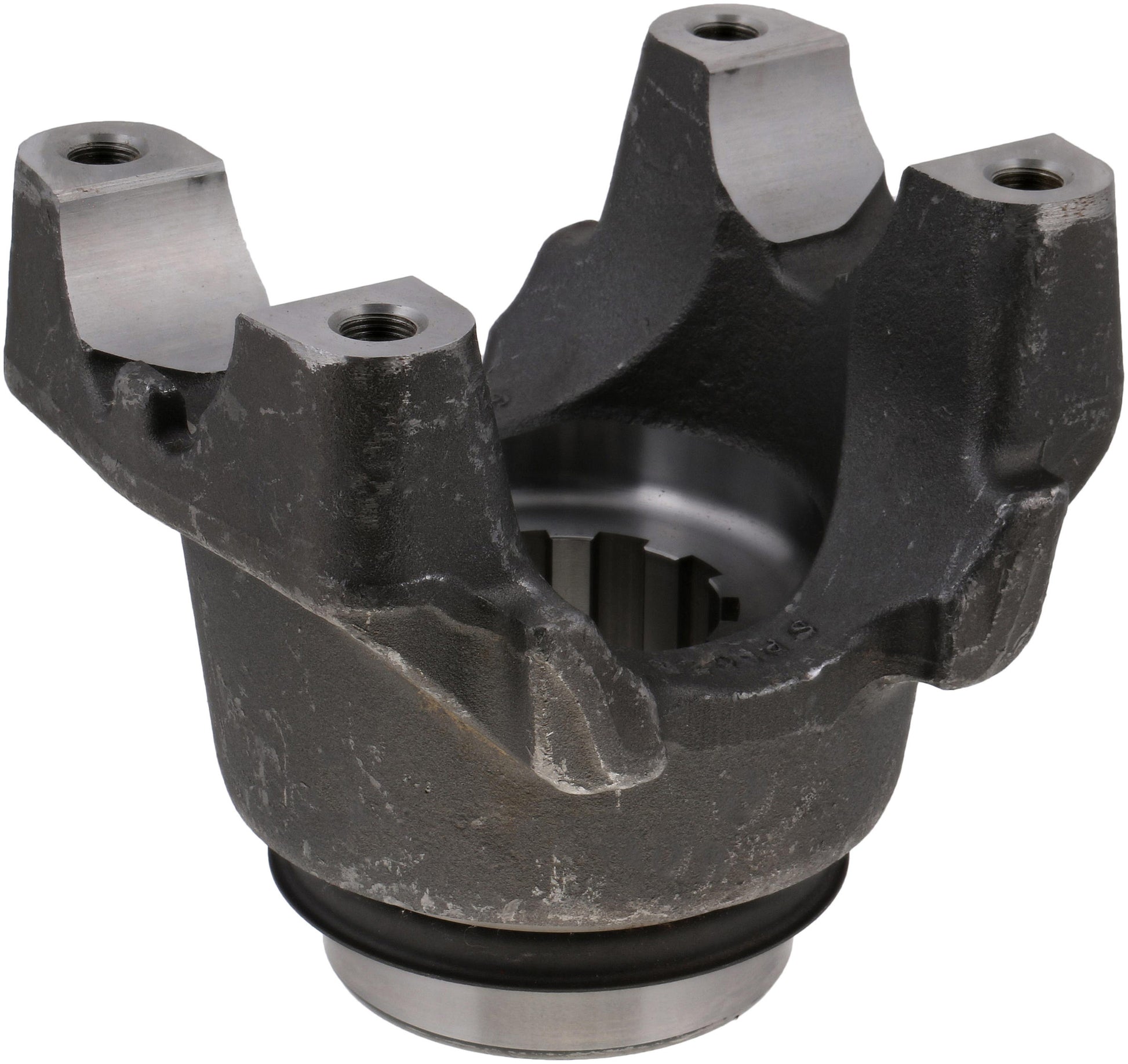

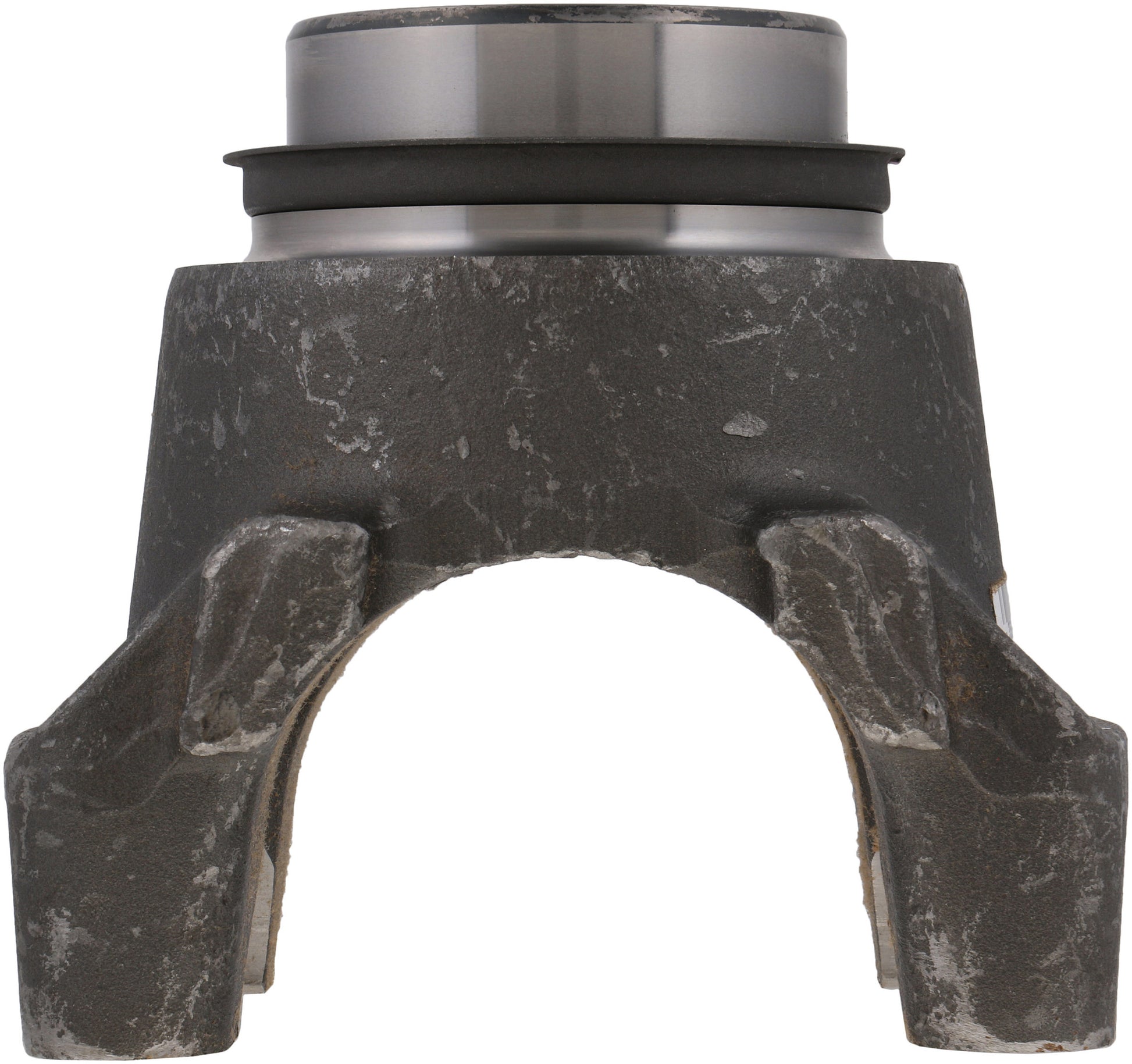

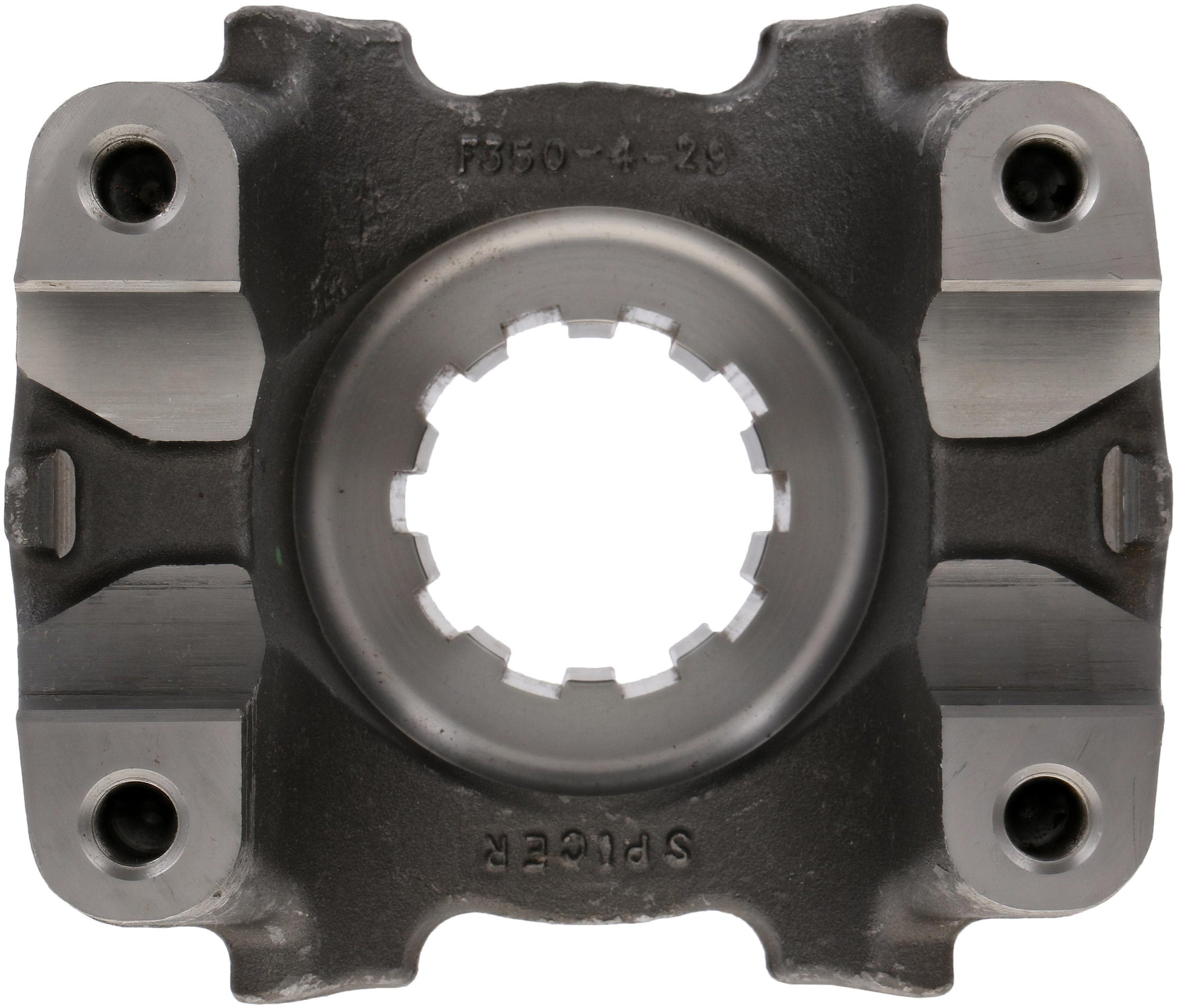

Spicer 350-4-141-1X - PINION SHAFT END YOKE
Spicer 350-4-141-1X - PINION SHAFT END YOKE
SKU: FSGR-350-4-141-1X
Regular price
$494.99 USD
Regular price
$665.25 USD
Sale price
$494.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Spicer 350-4-141-1X - PINION SHAFT END YOKE
PINION SHAFT END YOKE
Demand genuine Spicer. Complete with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
Series: SPL350
Material: Steel
Spline Count: 10
Type: Splined Hole
Assembly: Yes
Hub Diameter R: 3.7525
Includes Slinger/Plug: 231616
Involute Spline: No
Length Thru Hole Q: 2.9948
Outside Yoke Dimension (In) E: 6.7636
Yoke Bearing Dimension (In) D: 2.5603
Yoke Style: HR
Major Diameter: 2.75
C/L To End Hub S: 6.6141
Joint Angle #1: 25
