Spicer 3-4-8491-1 - End Yoke
Spicer 3-4-8491-1 - End Yoke
SKU: FSGR-3-4-8491-1
Regular price
$459.99 USD
Regular price
$617.75 USD
Sale price
$459.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

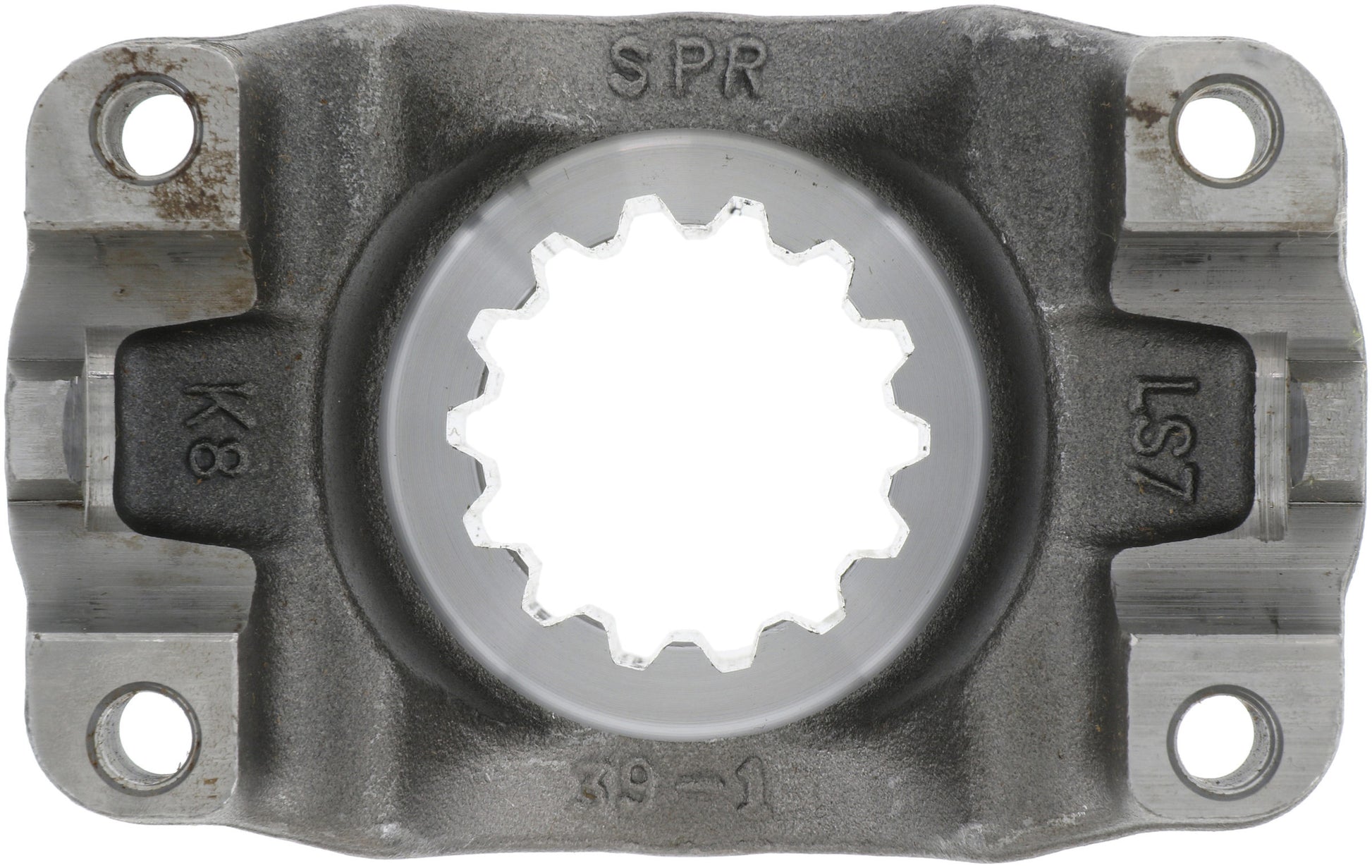

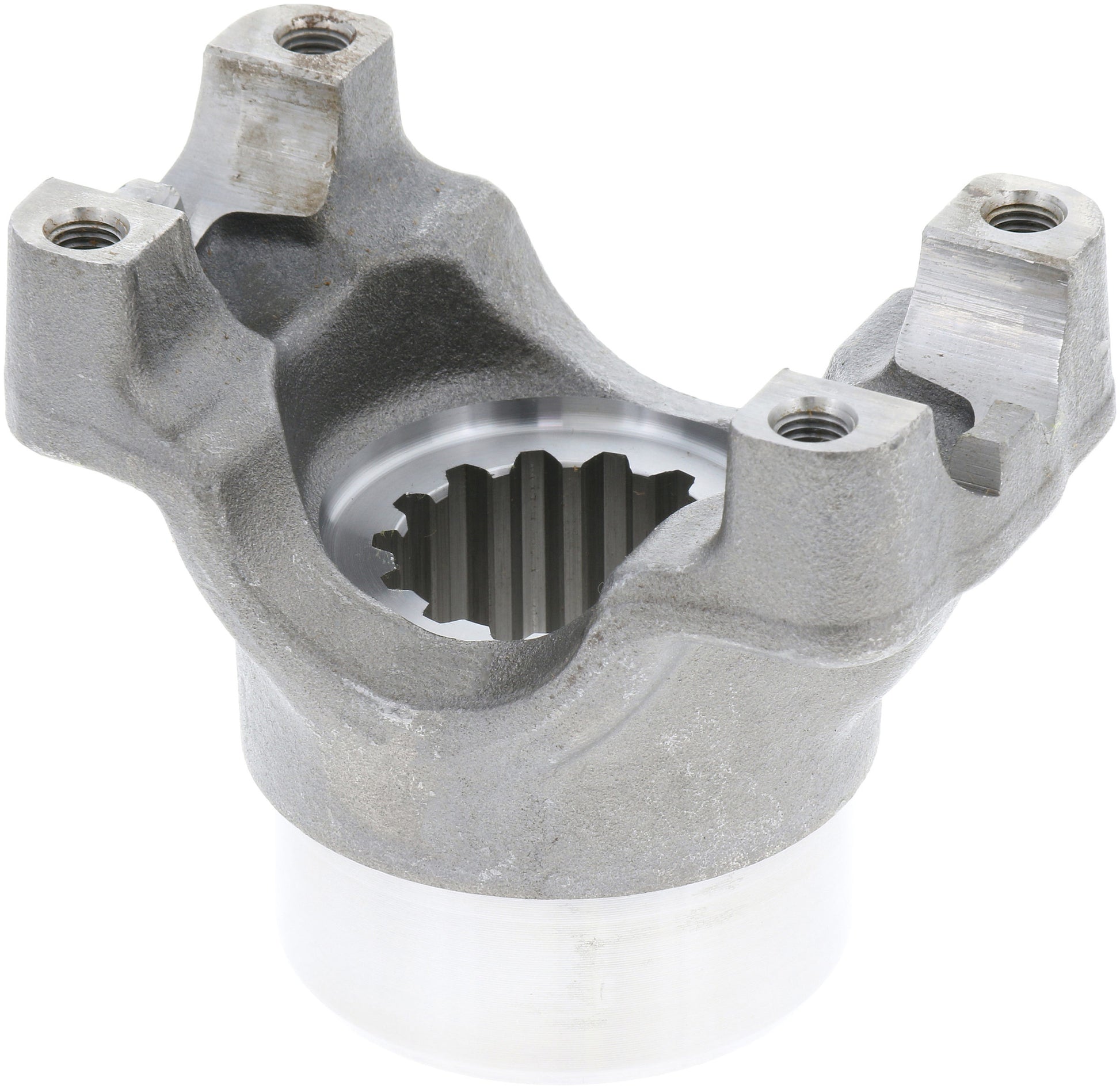

Spicer 3-4-8491-1 - End Yoke
End Yoke
Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Hub Diameter R: 2.375
Involute Spline: I
Length Thru Hole Q: 1.828
Outside Yoke Dimension (In) E: 3.625
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Major Diameter: 1.480
C/L To End Hub S: 3.312
Joint Angle #1: 30
Series: 1350
Material: Steel
Spline Count: 14
Type: Splined Hole
