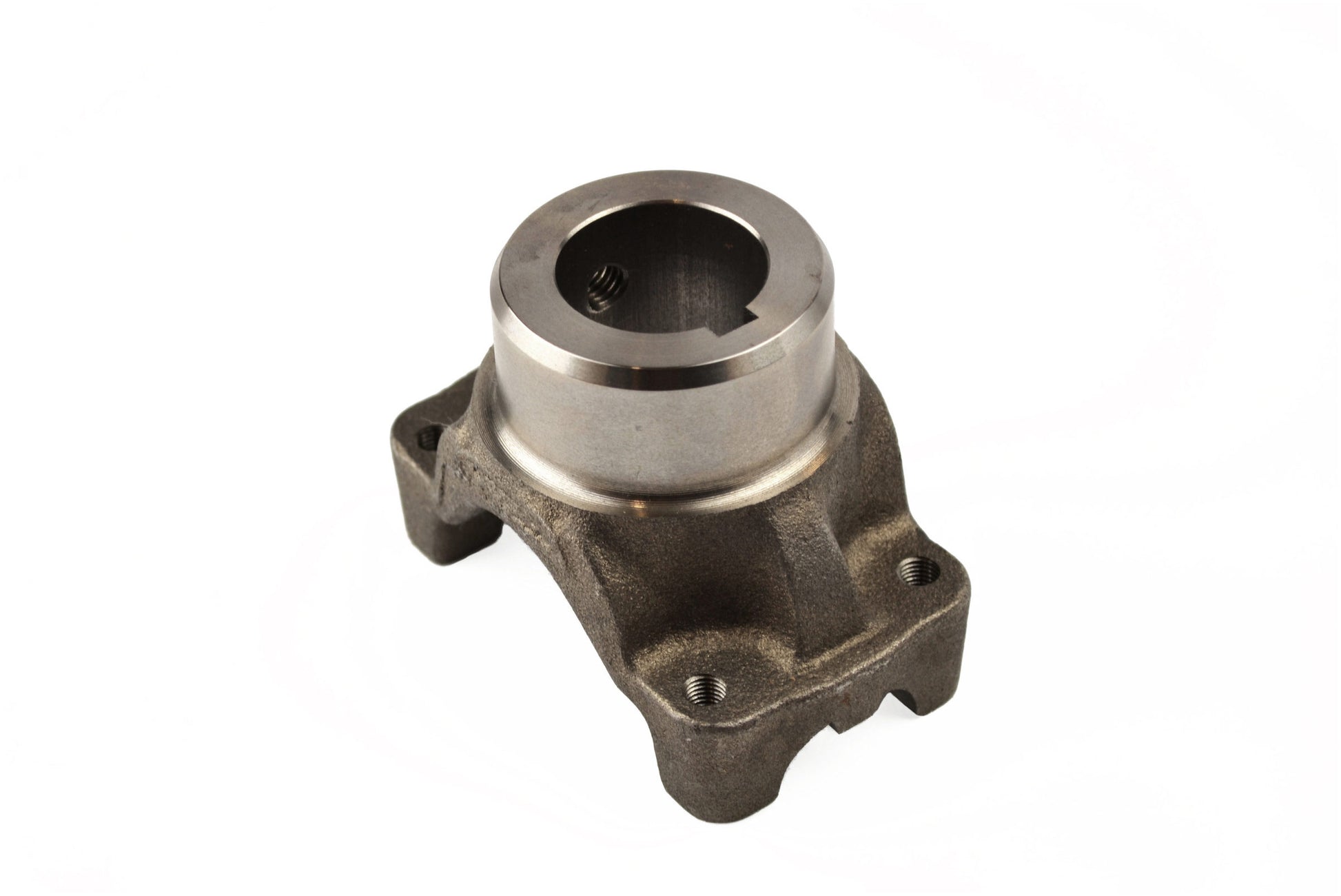

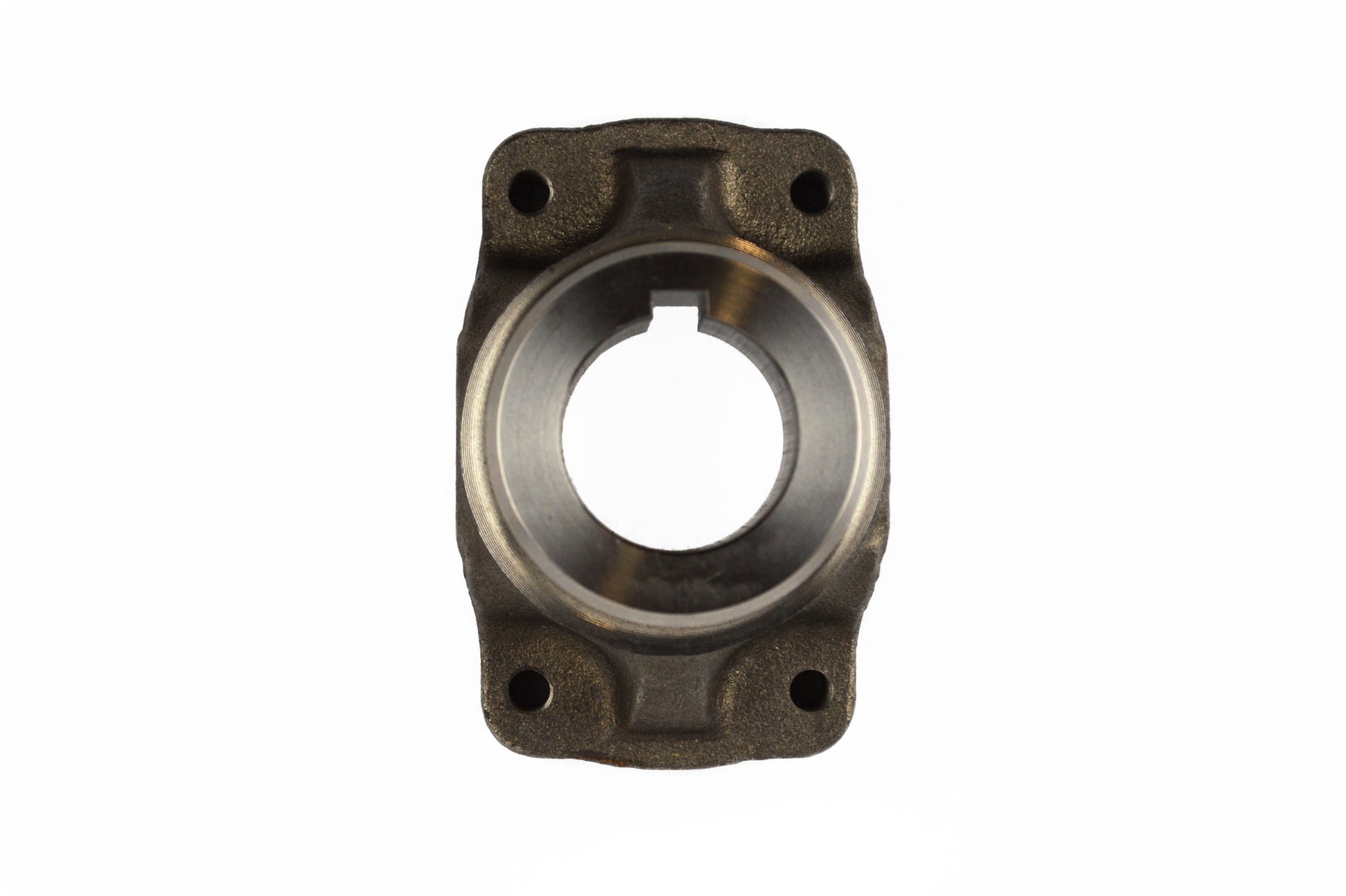

Spicer 3-4-613-1 - DRIVE SHAFT END YOKE

Spicer 3-4-613-1 - DRIVE SHAFT END YOKE

Spicer | 3-4-613-1
SKU: FSGR-3-4-613-1
$99.99 USD
$133.55 USD $99.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 3-4-613-1 - DRIVE SHAFT END YOKE

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: 1350
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.375
Hub Diameter R: 2.250
Involute Spline: N
Length Thru Hole Q: 1.500
Outside Yoke Dimension (In) E: 3.625
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.312
Set Screw Location W: 6
C/L To End Hub S: 3.031
Joint Angle #1: 22
Set Screw Hole Diameter (In): 0.375
Hole Diameter - Max: 1.376
Hole Diameter - Min: 1.375
Keyway Width - Max: 0.3155
Keyway Width - Min: 0.3135
