Spicer 3-4-273-1 - DRIVE SHAFT END YOKE

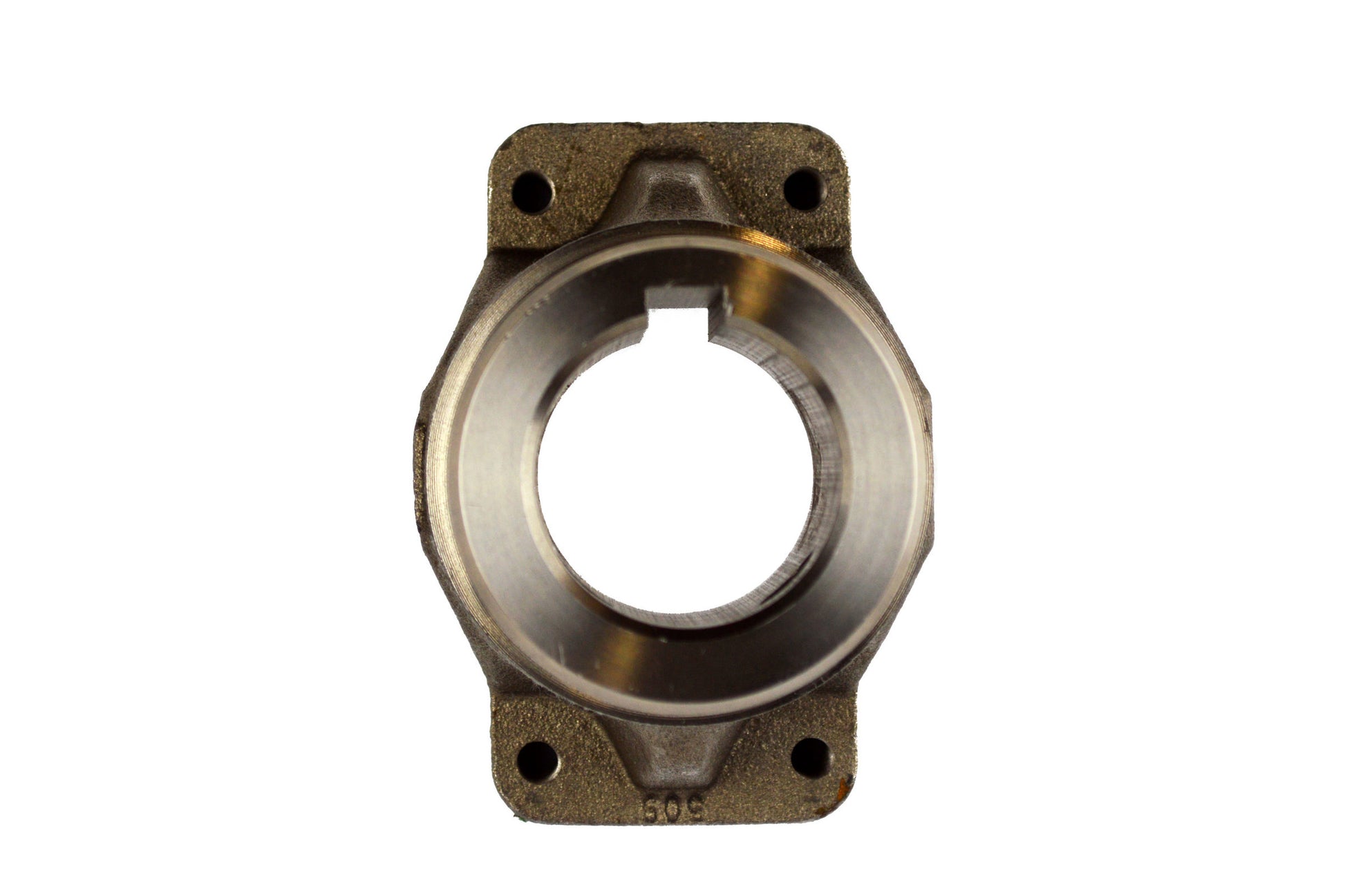

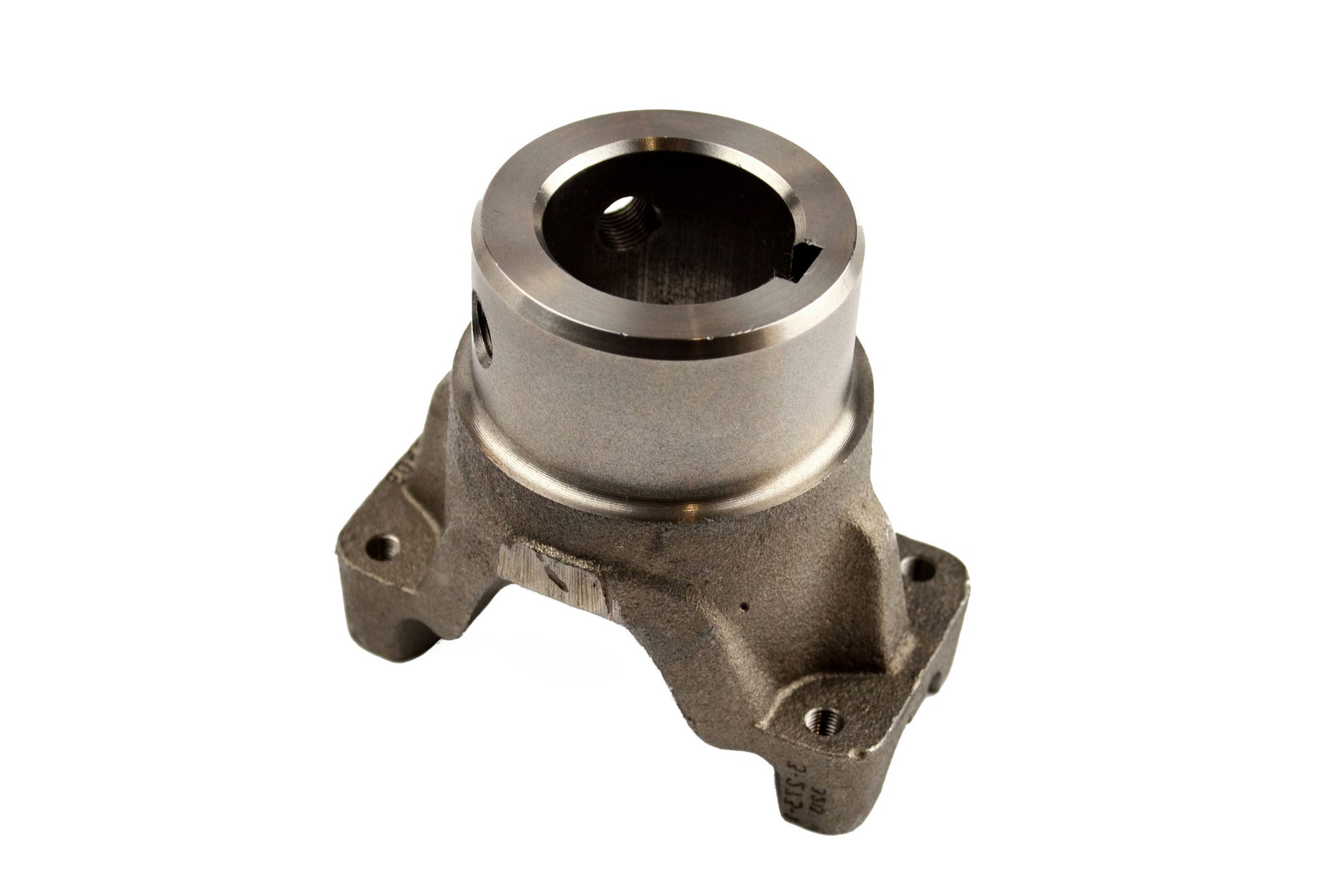

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Hub Diameter R: 2.750
Involute Spline: N
Length Thru Hole Q: 2.500
Outside Yoke Dimension (In) E: 4.188
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.439
C/L To End Hub S: 4.250
Joint Angle #1: 30
Set Screw Hole Diameter (In): 0.500
Hole Diameter - Max: 1.7505
Hole Diameter - Min: 1.7495
Keyway Width - Max: 0.440
Keyway Width - Min: 0.438
Series: 1410
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.750
