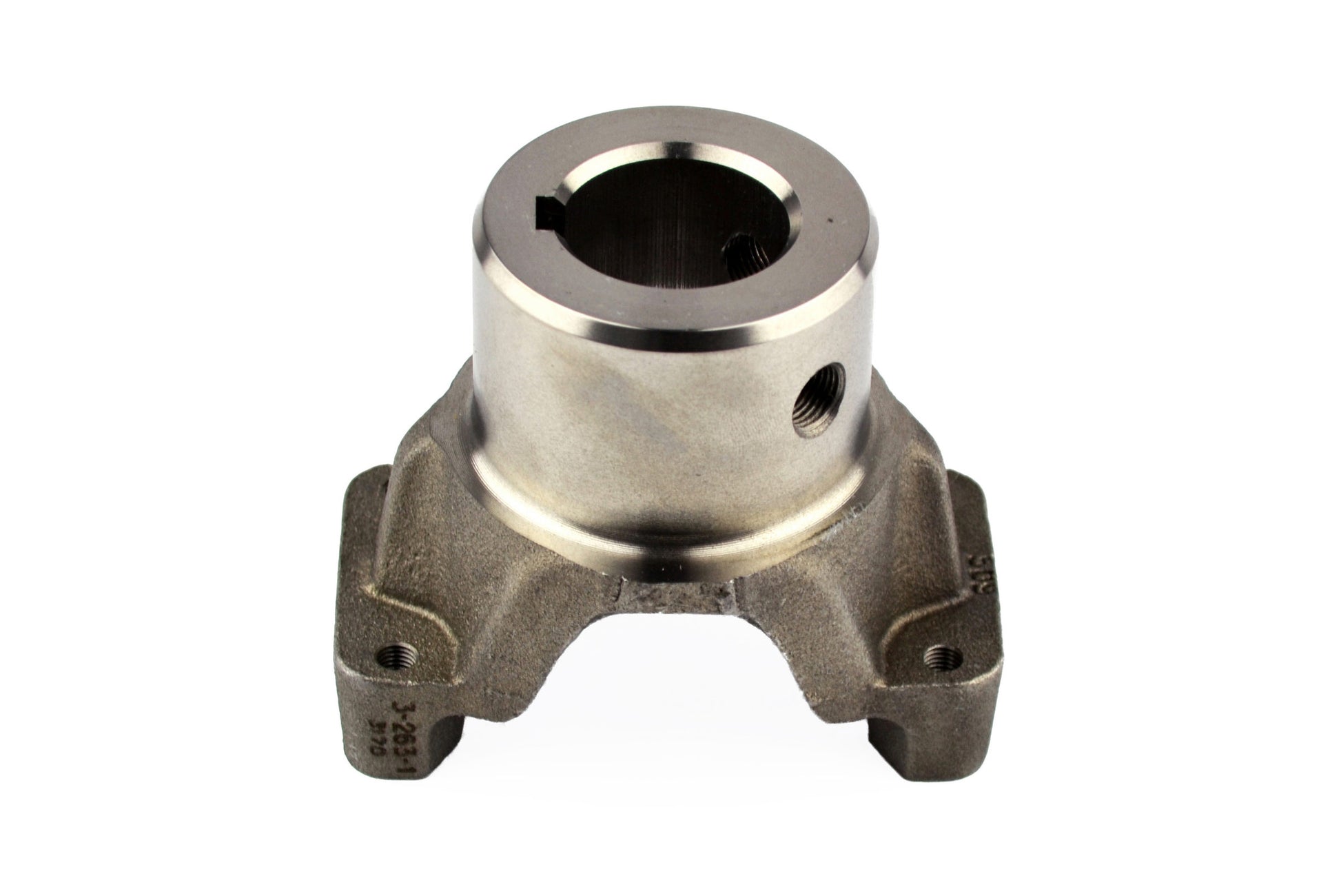

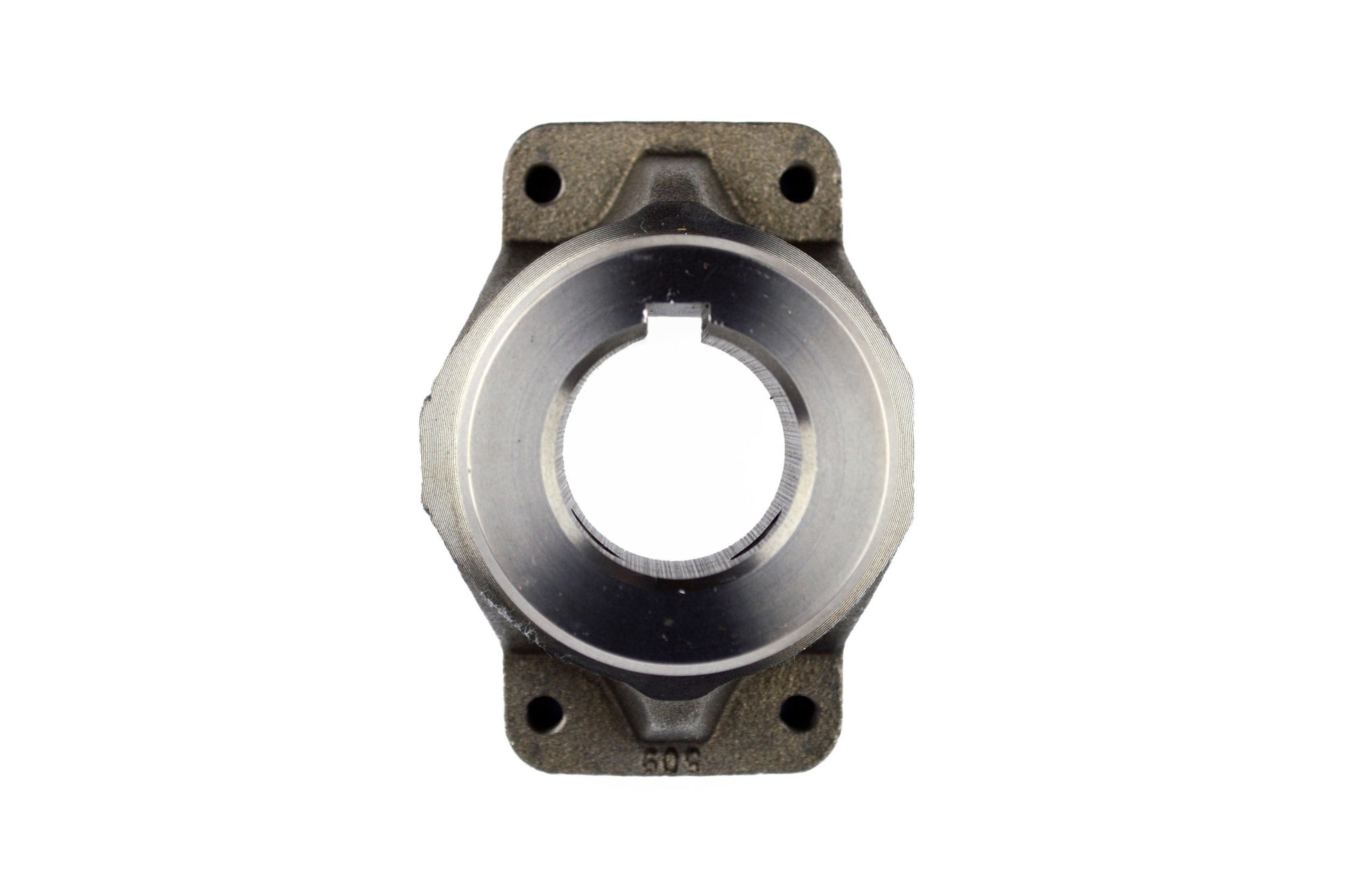

Spicer 3-4-263-1 - DRIVE SHAFT END YOKE

Spicer 3-4-263-1 - DRIVE SHAFT END YOKE

Spicer | 3-4-263-1
SKU: FSGR-3-4-263-1
$132.99 USD
$178.92 USD $132.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 3-4-263-1 - DRIVE SHAFT END YOKE

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: 1410
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.500
Hub Diameter R: 2.690
Involute Spline: N
Length Thru Hole Q: 2.270
Outside Yoke Dimension (In) E: 4.188
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.377
Set Screw Location W: 9
C/L To End Hub S: 4.000
Set Screw Hole Diameter (In): 0.500
Hole Diameter - Max: 1.5005
Hole Diameter - Min: 1.4995
Keyway Width - Max: 0.378
Keyway Width - Min: 0.376
