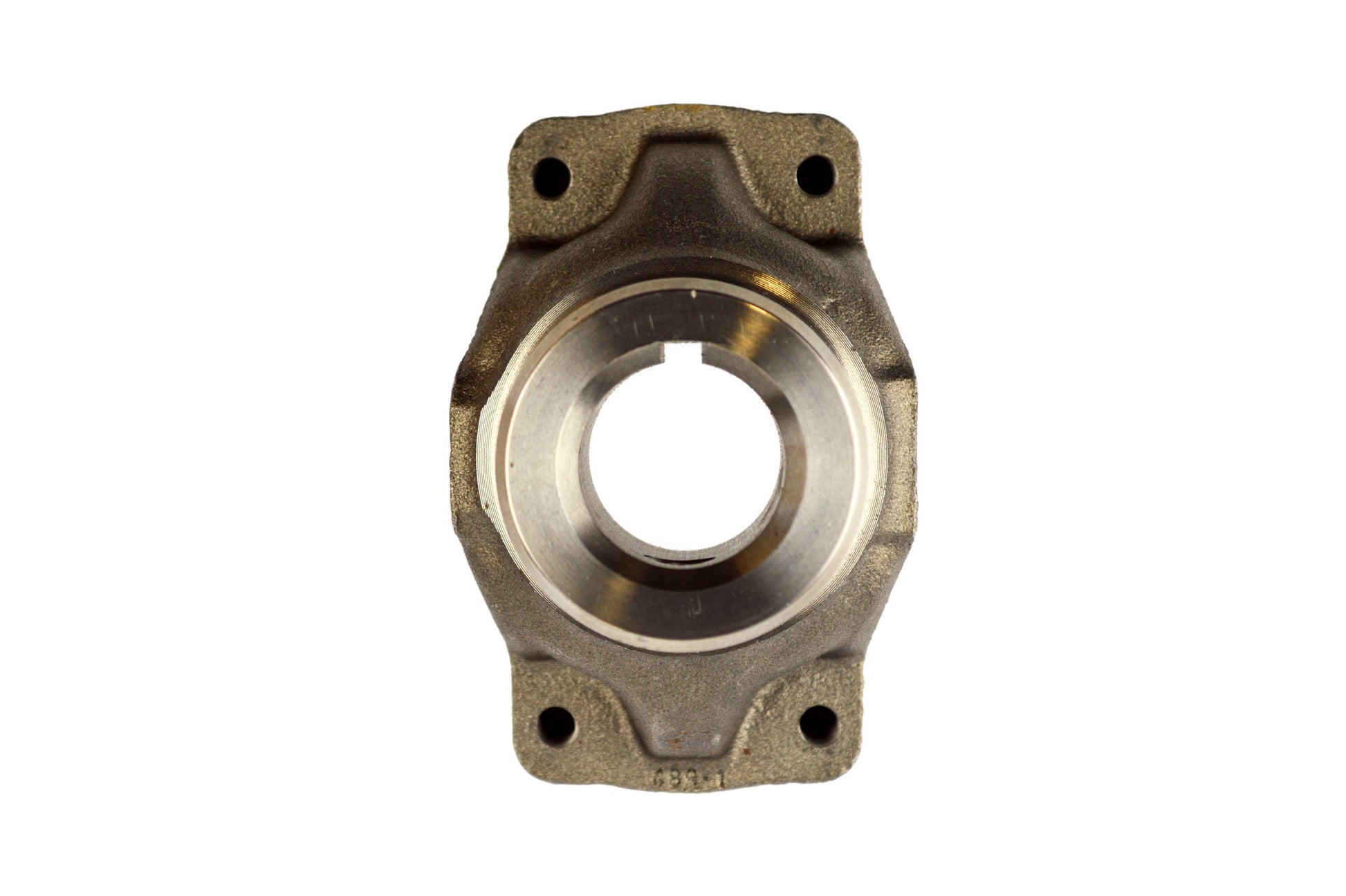

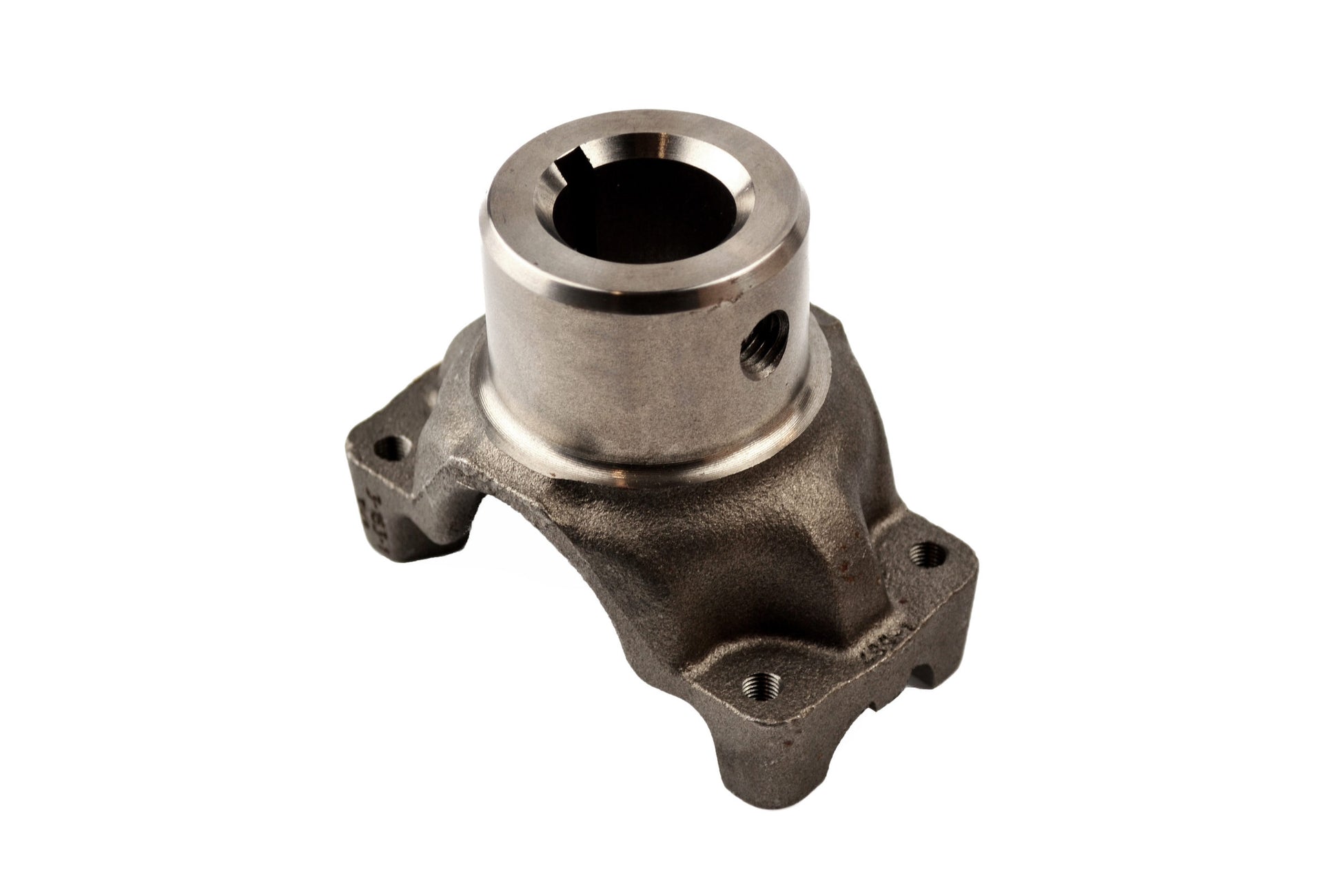

Spicer 3-4-163-1 - DRIVE SHAFT END YOKE

Spicer 3-4-163-1 - DRIVE SHAFT END YOKE

Spicer | 3-4-163-1
SKU: FSGR-3-4-163-1
$196.99 USD
$264.57 USD $196.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 3-4-163-1 - DRIVE SHAFT END YOKE

DRIVE SHAFT END YOKE

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: 1410
Material: Steel
Type: Straight Round Hole
Hole Diameter (In) P: 1.250
Hub Diameter R: 2.250
Involute Spline: N
Outside Yoke Dimension (In) E: 4.188
Yoke Bearing Dimension (In) D: 1.188
Yoke Style: BS
Keyway Location W: 12
Sae Keyway Width (In) X: 0.250
Set Screw Location W: 6
C/L To End Hub S: 3.700
Set Screw Hole Diameter (In): 0.500
Hole Diameter - Max: 1.2505
Hole Diameter - Min: 1.2495
Keyway Width - Max: 0.253
Keyway Width - Min: 0.251
