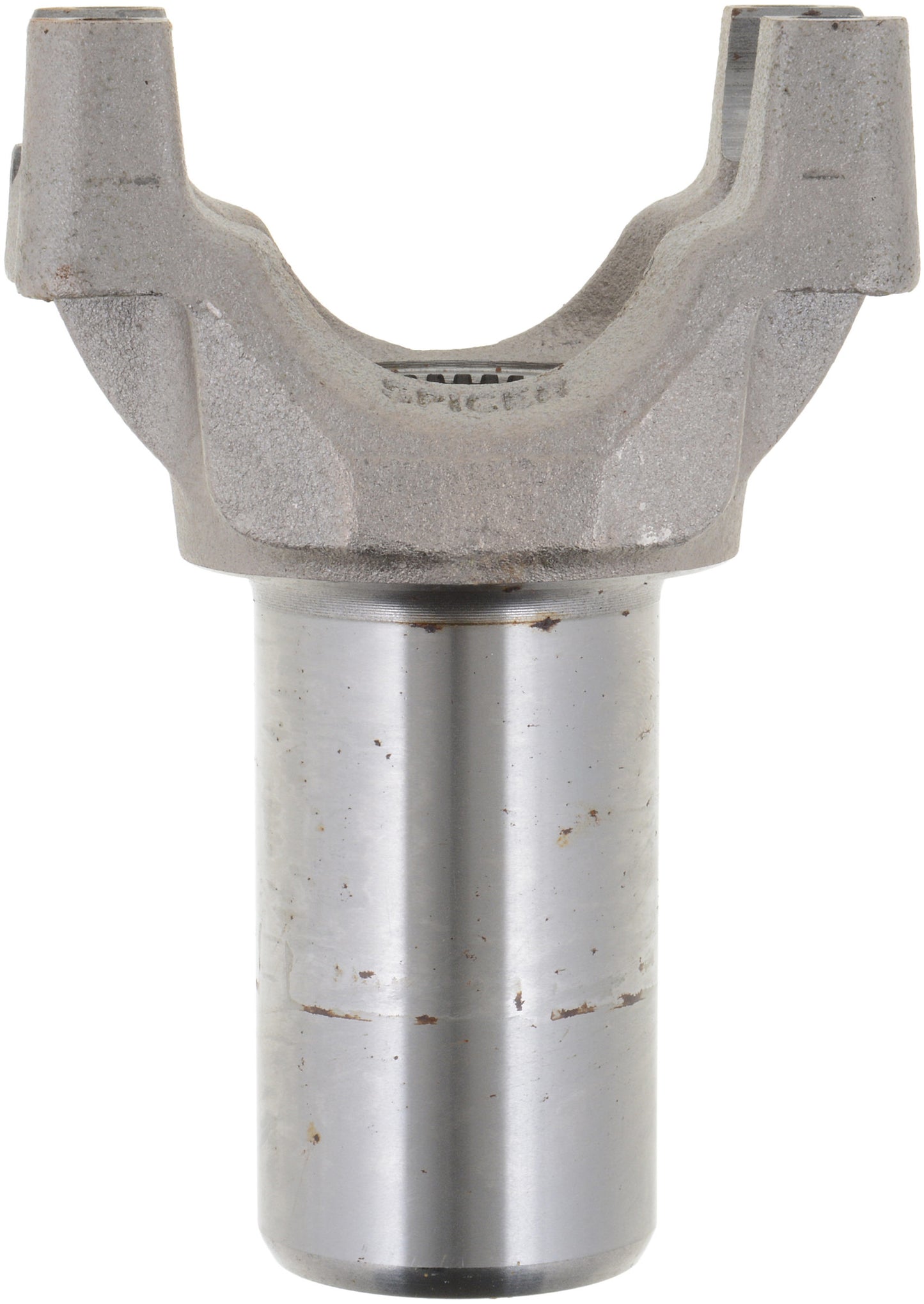

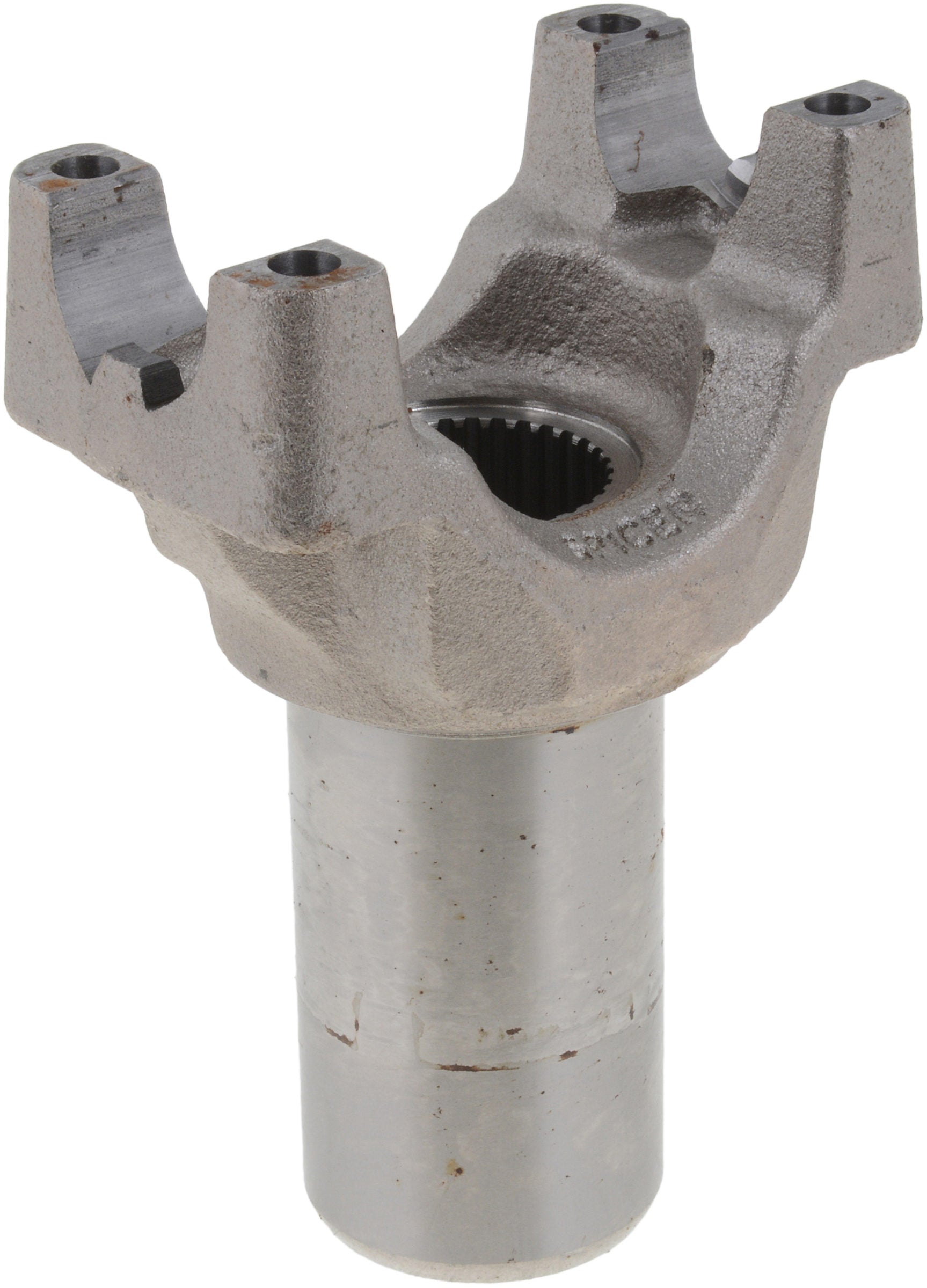

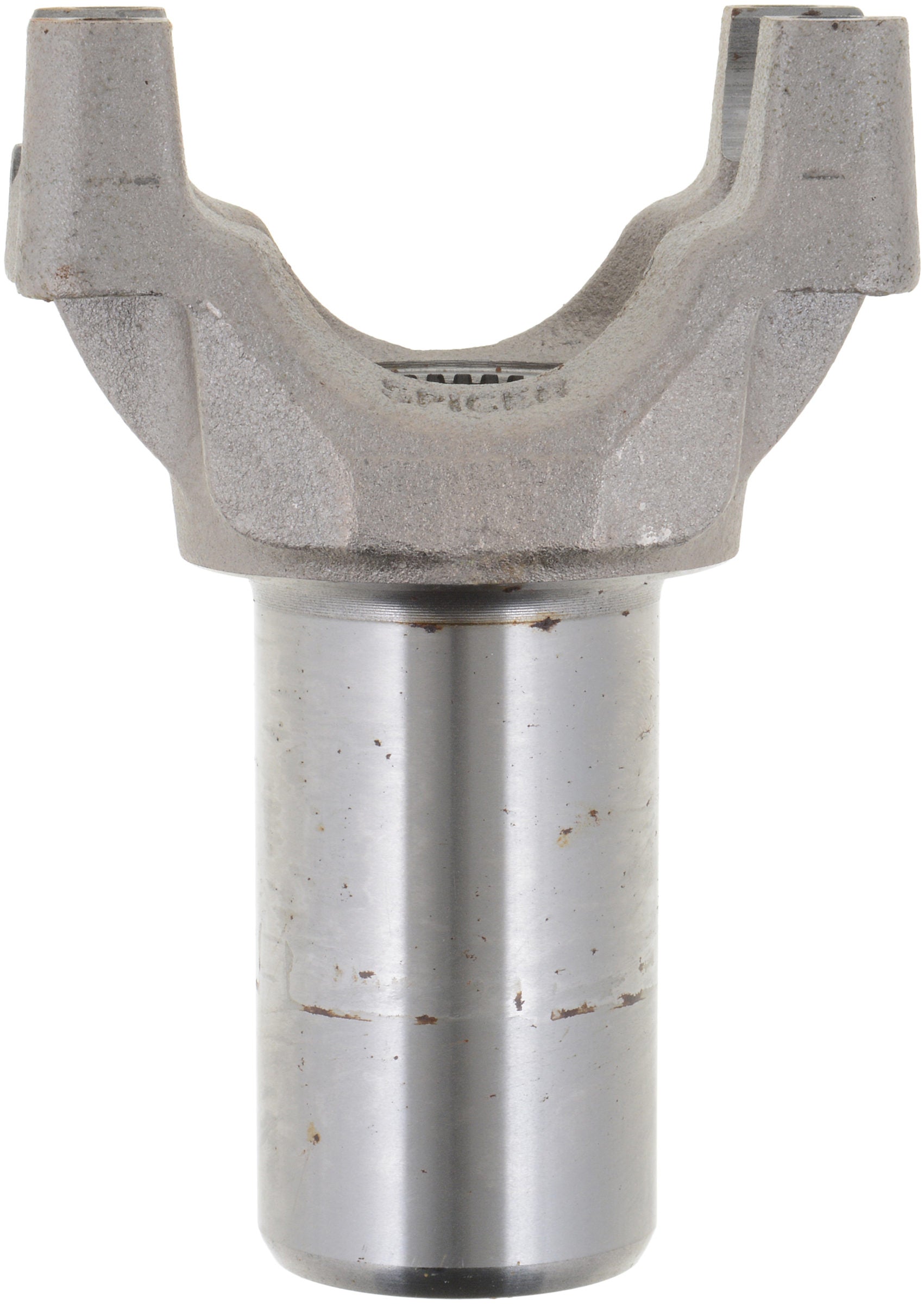

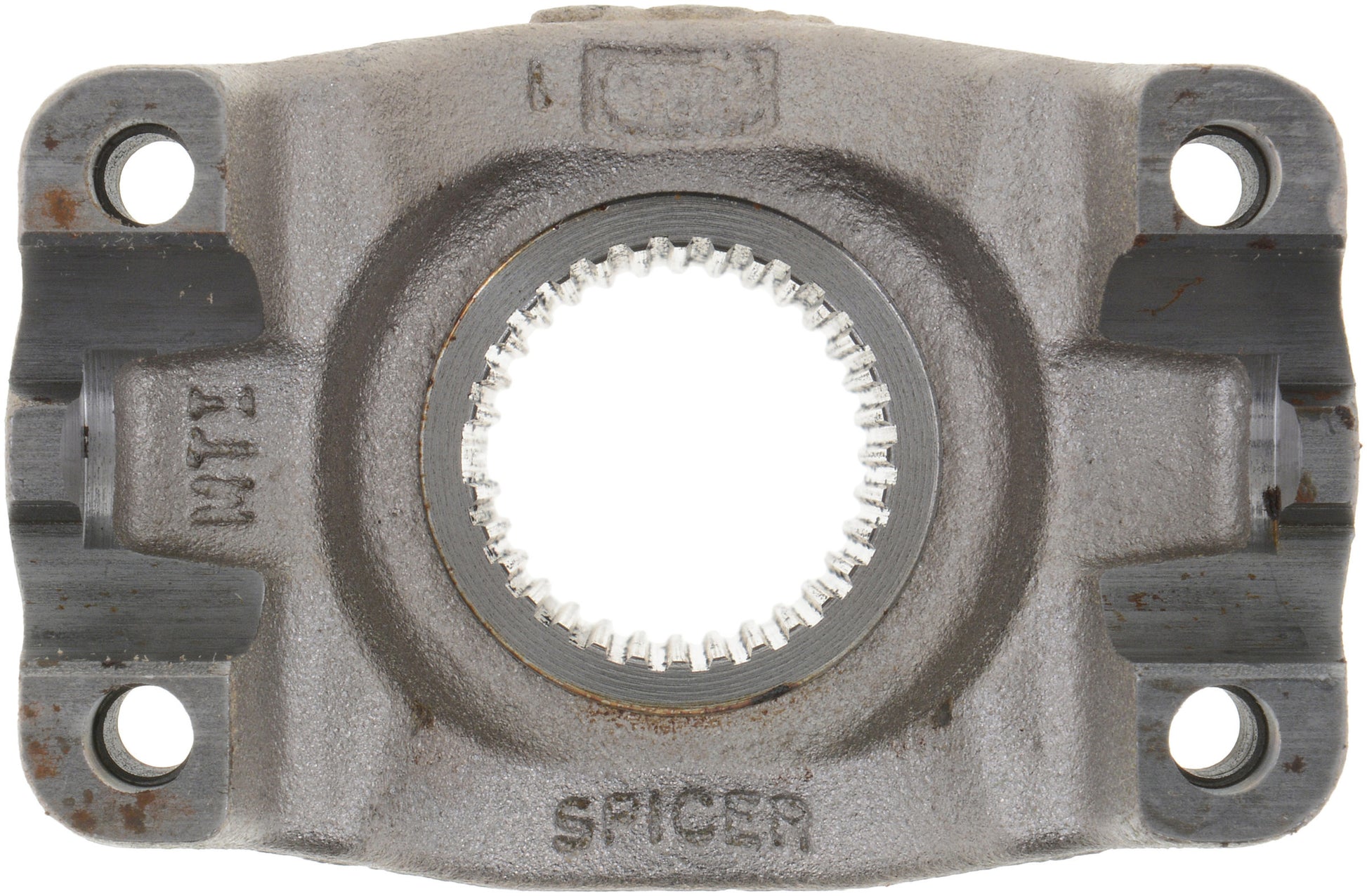

  • Product Image 1
  • Product Image 2
  • Product Image 3
1 3

Spicer 3-4-13731-1 - Drive Shaft End Yoke - Nickel Plated

Spicer 3-4-13731-1 - Drive Shaft End Yoke - Nickel Plated

Spicer | 3-4-13731-1
SKU: FSGR-3-4-13731-1
$364.99 USD
$490.98 USD $364.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Spicer 3-4-13731-1 - Drive Shaft End Yoke - Nickel Plated

Drive Shaft End Yoke - Nickel Plated

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

  • Uses high-grade Dana approved materials to ensure optimal quality.
  • Dana designed, tested and engineered.
  • Genuine OE quality. Tested and proven.
Series: 1350
Material: Steel
Spline Count: 31/32
Type: Splined Hole
Assembly: No
Hub Diameter R: 1.8855
Includes Slinger/Plug: N
Involute Spline: Yes
Length Thru Hole Q: 4.0900
Outside Yoke Dimension (In) E: 3.6218
Yoke Style: HR
Major Diameter: 1.3780
C/L To End Hub S: 5.5900
O.D. of Spline: 31/32
C-Bore Depth: 0.4000
C-Bore Diameter: 1.4360
Joint Angle #1: 22.5
